Elektronikmodul
-
WAVESHARE WAVESHARE 2.4GHz Wi-Fi Mini Development Board Based ESP32-S3 Dual-Core Processor, No Pin Header, Soldered Pin Header
1. Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor with a clock speed of up to 240MHz2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)3. Built-in 512KB SRAM and 384KB ROM, stacked with 4MB Flash and 2MB PSRAM or 8MB Flash and 8MB PSRAM4. Features a stamp-hole design and onboard ceramic antenna for easy integration into user-designed baseboards5. Supports flexible clock and individual module power settings for low-power modes in various scenarios6. Integrated USB serial port full-speed controller with 24 GPIOs for flexible peripheral configuration7. Features 4 x SPI, 2 x I2C, 3 x UART, 2 x I2S, and 2 x ADC peripherals8. Supports MicroPython, ESP-IDF, and Arduino9. Compact size, using a half-hole design for easy integration with other motherboards.10. Multiple low-power operating modes meet the power consumption requirements of Internet of Things (IoT), mobile devices, wearable electronic devices, smart home applications, etc.11. Press and hold the BOOT (GPIO0) button before connecting the Type-C cable each time firmware is downloaded.12. When powered by an external power source, input 3.7V~6V power at the half-hole marked with 5V.13. Dimensions: 18x23.5mmSpecification: Package Weight One Package Weight 0.05kgs / 0.12lb One Package Size 8cm * 8cm * 3cm / 3.15inch * 3.15inch * 1.18inch Qty per Carton 264 Carton Weight 14.30kgs / 31.53lb Carton Size 50cm * 34cm * 35cm / 19.69inch * 13.39inch * 13.78inch Loading Container 20GP: 448 cartons * 264 pcs = 118272 pcs40HQ: 1040 cartons * 264 pcs = 274560 pcs
£5.99 - £8.99
-

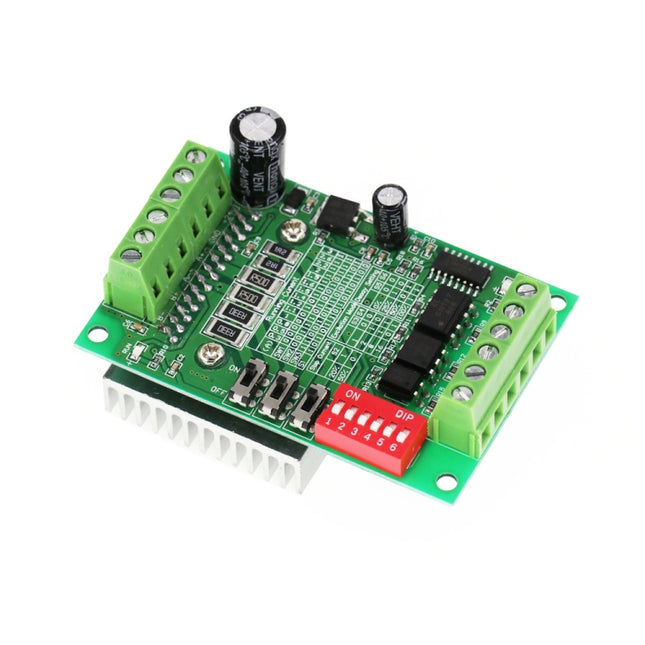

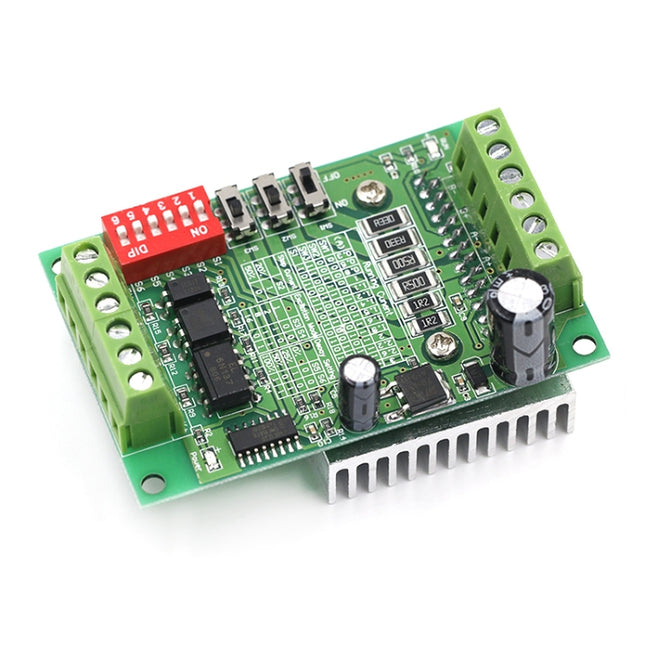

TB6560 3A 10V-35V Stepper Motor Driver Controller Board
1. The working voltage is DC 10V-35V. It is recommended to use a switching power supply DC24V for power supply.2. Using 6N137 high-speed optical coupling to ensure high speed without losing step.3. Using Toshiba TB6560AHQ chip, there are built-in low-voltage shutdown, overheating shutdown and overcurrent protection circuits to ensure performance.4. The rated output (max) is: +/-3A, with a vertex value of 3.5A.5. It is suitable for two-phase/four-phase/four-wire/six-wire stepping motor with 42,57 stepping within 3A, but not suitable for stepping motor with more than 3A.6. Automatic half-flow function.7. Subdivision: Full step, half step, 1/8 step, 1/16 step, maximum 16 subdivision.8. Dimensions: Width 50 x length 75 x height 35 (MM)9. Weight: 83G10. This module does not have any protection circuit, so you must be very careful when using it, otherwise the chip is easy to burn out.Features in similar products:1. The current level can be adjusted step by step to meet your multiple application requirements.2. Automatic half flow is adjustable.3. Using 6N137 high-speed optical coupling to ensure high speed without losing step.4. The board printing instructions can be operated without manual.5. Adopt thick and densely toothed radiator for good heat dissipation.Specification: Package Weight One Package Weight 0.09kgs / 0.20lb One Package Size 25cm * 15cm * 3cm / 9.84inch * 5.91inch * 1.18inch Qty per Carton 100 Carton Weight 11.00kgs / 24.25lb Carton Size 52cm * 32cm * 32cm / 20.47inch * 12.6inch * 12.6inch Loading Container 20GP: 500 cartons * 100 pcs = 50000 pcs40HQ: 1162 cartons * 100 pcs = 116200 pcs
£3.99
-
Waveshare Waveshare Solar Panel (6V 5W), 16158
Specifications1.Solar cell type: 156 monocrystalline cell2.Surface: toughened glass3.Frame material: anodic oxidation aluminum alloy4.Back board material: 0.25mm PET5.Power: 5.0W ± 5%6.Operating voltage: 6.0V ± 5%7.Operating current: 833mA ± 5% (max)8.Open circuit voltage: 7.2V ± 5%9.Short circuit current: 916mA ± 5%10.For use with: Solar Power ManagerNote: specifications above are tested on standard condition: 1000W/m2 radiation intensity, 25℃, AM1.5 air quality.Specification: Package Weight One Package Weight 0.73kgs / 1.61lb One Package Size 25cm * 21cm * 4cm / 9.84inch * 8.27inch * 1.57inch Qty per Carton 25 Carton Weight 18.30kgs / 40.34lb Carton Size 61cm * 50cm * 40cm / 24.02inch * 19.69inch * 15.75inch Loading Container 20GP: 218 cartons * 25 pcs = 5450 pcs40HQ: 507 cartons * 25 pcs = 12675 pcs
£9.99
-
ESP32-DevKitC Development Board With ESP-32D/U Module, CP2102-32D, CP2102-32U, CH9102X-32D, CH9102X-32U, CP2102-32D-Type-C, CP2102-32U-Type-C
1. Includes a port expansion board, expanding the connection options of the module2. Provides ample storage space for storing complex firmware, enhancing the functionality of the module3. Suitable for various power supplies, meeting your project requirements4. Operates reliably within normal temperature range, ensuring stable performance in various environments5. A multi-functional board suitable for intelligent electronic projectsSpecification: Package Weight One Package Weight 0.02kgs / 0.05lb One Package Size 7cm * 6cm * 5cm / 2.76inch * 2.36inch * 1.97inch Qty per Carton 216 Carton Weight 6.00kgs / 13.23lb Carton Size 47cm * 38cm * 30cm / 18.5inch * 14.96inch * 11.81inch Loading Container 20GP: 497 cartons * 216 pcs = 107352 pcs40HQ: 1155 cartons * 216 pcs = 249480 pcs
£3.99
-

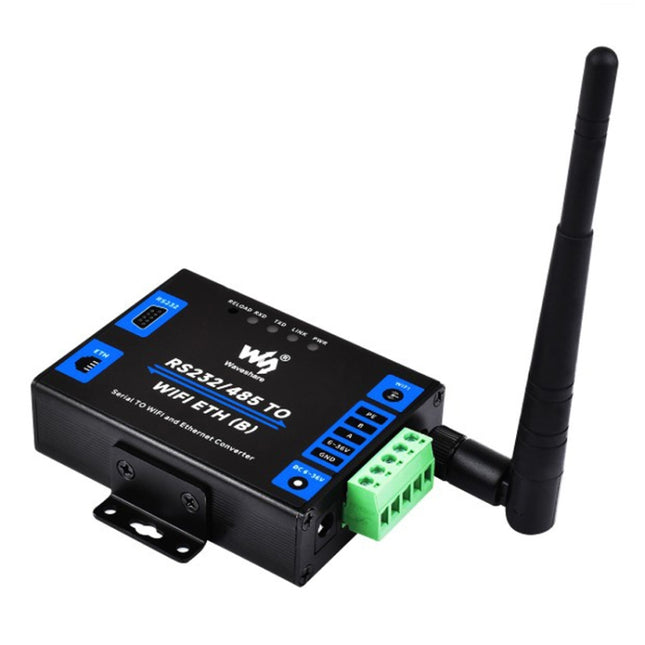

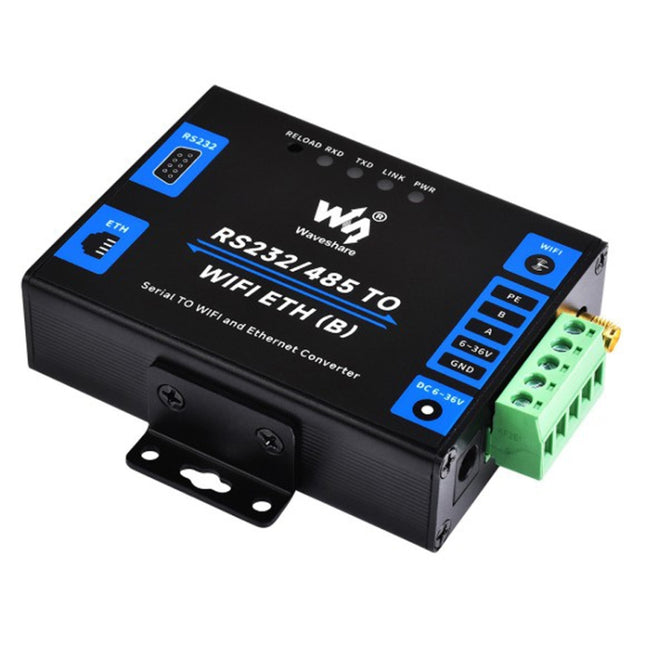

Waveshare Waveshare Industrial Grade Serial Server RS232/485 to WiFi / Ethernet, RJ45 Network Port, RJ45 Network Port with POE Support
Features:1. RS232/485 device data collector/IoT gateway specially designed for industrial environments.2. Integrate multiple functions into one, including serial port server, Modbus gateway, MQTT gateway, serial port to HTTPD client, etc.3. The module has RS232, RS485, WIFI, and Ethernet interfaces, which can realize serial to WIFI, serial to WIFI and other functions; Ethernet, Ethernet to WIFI, etc.4. Multiple onboard power interfaces support a wide range of 6~36V power supply, and can be equipped with PoE function.5. Industrial-grade metal shell design supports wall-mounted and rail-mounted installation. It is small in size and easy to install.6. Suitable for data collection, IoT gateway, security IoT, smart instrument monitoring and other applications.Product parameters:1. Frequency band: 2.412-2.484 GHz2. Wireless network: Station / AP / AP+Station mode3. Security mechanism: WPA-PSK / WPA2-PSK4. Encryption type: TKIP/AES5. Transmission power:802.11b: +19dBm (max @11Mbps)802.11g: +18dBm (max @54Mbps)802.11n: +17dBm (maximum @HT20, MCS7); +17dBm (maximum @HT40, MCS7)6. Receiving sensitivity:802.11b: -89dBm (@11Mbps)802.11g: -81dBm (@54Mbps)802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)7. Baud rate: 300-460800 bps8. Check digit: none, odd, even, mark, space9. Data bits: 5-9 bits10. Flow control: RTS/CTS N/A11. Protocol: TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP/MQTT12. Configuration: host, browser, serial AT command13. Communication method: TCP/IP direct communication, VCOM14. Working mode: transparent transmission, serial port command, HTTPD Client, Modbus TCP to Modbus RTU15. Working temperature: minus 40 degrees Celsius - 85 degrees Celsius16. Humidity range: 5%-95% relative humidity17. Product size: 85 x 84 x 24mm18. Weight: 157g, 169gPacking list:RJ45 network port:-RS232/485 to WIFI Ethernet (B) x1-2.4G WiFi antenna x1-Rail mounting buckle x1-Screwdriver x1-Screw pack x1RJ45 network port supporting POE:-RS232/485 to WIFI POE ETH (B) x1-2.4G WiFi antenna x1-Rail mounting buckle x1-Screwdriver x1-Screw pack x1Specification: Package Weight One Package Weight 0.23kgs / 0.51lb One Package Size 18cm * 14cm * 4cm / 7.09inch * 5.51inch * 1.57inch Qty per Carton 32 Carton Weight 7.50kgs / 16.53lb Carton Size 38cm * 30cm * 34cm / 14.96inch * 11.81inch * 13.39inch Loading Container 20GP: 687 cartons * 32 pcs = 21984 pcs40HQ: 1597 cartons * 32 pcs = 51104 pcs
£27.99 - £30.99
-
Waveshare Waveshare IMX219-160 160 Degree FOV IMX219 Camera, Applicable for Jetson Nano
Features1. Supports NVIDIA Jetson Nano Developer Kit2. 8 Megapixels3. Sensor: IMX2194. Resolution: 3280 × 24645. Lens specifications:- CMOS size: 1/4inch- Aperture (F): 2.35- Focal Length: 3.15mm- Angle of View (diagonal): 160 degree- Distortion: <14.3%6. 4 screw holes7. Used for attachment8. Provides 3.3V power output9. Dimension: 25mm × 24mm10. Weight: 15gPacking List:1. IMX219-160 Camera x12. 15-pin FFC (opposite sides contact) x1Specification: Package Weight One Package Weight 0.03kgs / 0.06lb One Package Size 10cm * 5cm * 2cm / 3.94inch * 1.97inch * 0.79inch Qty per Carton 960 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch Loading Container 20GP: 277 cartons * 960 pcs = 265920 pcs40HQ: 644 cartons * 960 pcs = 618240 pcs
£17.99
-
Waveshare Waveshare MG996R Servo, Metal Gear, High Torque
1. Product: MG996R Servo2. Torque: 9kg/cm(4.8V), 11kg/cm(6V)3. Speed: 0.19s/60°(4.8V), 0.18s/60°(6V)4. Rotate angle: 180°5. Operating voltage: 4.8 ~ 6V6. Gear: metal7. Dead band: 5us8. Weight: 55g9. Dimension: 40.7mm × 19.7mm × 42.9mmSpecification: Package Weight One Package Weight 0.08kgs / 0.18lb One Package Size 10cm * 7cm * 4cm / 3.94inch * 2.76inch * 1.57inch Qty per Carton 300 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 35cm * 40cm / 23.62inch * 13.78inch * 15.75inch Loading Container 20GP: 317 cartons * 300 pcs = 95100 pcs40HQ: 736 cartons * 300 pcs = 220800 pcs
£3.99
-
WAVESHARE Waveshare Core1262-868M Anti-Interference SX1262 LoRa Module, EU868 Band
About The ProductThe Core1262-868M is a LoRa core module which incorporates new-generation SX1262 chip. It has featuress including mini size, long range transmission, high anti-interference capability, and so on. The module uses EU868 band, combined with LoRa gateway, it can be connected to servers like TTN server to build LoRa network. 1. New-generation SX1262, higher power efficiency and longer transmission distance than the traditional SX1278 2. EU868 band, combined with LoRa gateway, quick connection to cloud servers like TTN server 3. Comes with rich development resources and manual (examples for STM32, Raspberry Pi Pico)Specifications1. RF chip: SX1262 2. Frequency range: EU868 (863~870MHz) 3. Modulation: LoRa/(G)FSK 4. Data rate: 0.018~62.5Kbps (LoRa), 0.6~300Kbps ((G)FSK) 5. Emit power: More than 14dBm 3.3V 6. Spreadind factor: SF5 ~ SF12 7. Operating voltage: 3.3V 8. Module power consumption: Emitting current: 45mA 14dBm; receiving current: 5.3mA 125KHz 9. Communication bus: SPI 10. Operating temperature: -40 ~ 85 degree C 11. Connector: Castellated edge / solder holes 12. Dimensions: 21.00 x 52.00mmSpecification: Package Weight One Package Weight 0.02kgs / 0.05lb One Package Size 15cm * 12cm * 1cm / 5.91inch * 4.72inch * 0.39inch Qty per Carton 1000 Carton Weight 9.00kgs / 19.84lb Carton Size 52cm * 40cm * 39cm / 20.47inch * 15.75inch * 15.35inch Loading Container 20GP: 328 cartons * 1000 pcs = 328000 pcs40HQ: 763 cartons * 1000 pcs = 763000 pcs
£7.99
-
WAVESHARE Waveshare Mini Base Board A for Raspberry Pi Compute Module 4, Base Board A For Raspberry Pi CM4
1. USB: - USB 2.0 x 2 - USB 2.0 x 2 (via FFC connector) 2. GPIO: Raspberry Pi 40 PIN GPIO x 1 3. Header: M.2 slot x 1 4. HD media interface: HDMI x 2, 1x via FFC connector, support 4K 30fps output 5. DSI display: MIPI DSI x 1 (15pin 1.0mm FPC) 6. CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC) 7. Power input: 5V 8. FAN: 5V / 12V (no fan control) 9. RJ45 Ethernet: Gigabit Ethernet 10. CM4 slot: Suitable for all variants of Compute Module 4 11. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 12. Size: 85.0 x 56.0mmSpecification: Package Weight One Package Weight 0.07kgs / 0.16lb One Package Size 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch Qty per Carton 200 Carton Weight 12.60kgs / 27.78lb Carton Size 46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch Loading Container 20GP: 566 cartons * 200 pcs = 113200 pcs40HQ: 1314 cartons * 200 pcs = 262800 pcs
£16.99
-
WAVESHARE Waveshare HRB8825 Stepper Motor HAT For Raspberry Pi, Drives Two Stepper Motors, Up To 1/32 Microstepping
Features1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano 2. Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use 3. 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step 4. Adjustable motor drive current via potentiometer, maximum 2.5A current output 5. Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO) 6. Integrates 5V regulator, allows providing power to Raspberry Pi 7. Onboard multi connector options for stepper motors in different specifications 8. Comes with development resources and manual (examples in BCM2835, wiringPi, and python)Specifications1. Motor controller: HR8825 2. Motor drive voltage: 8.2V~28V 3. Motor drive current: 2.5A 4. Logic voltage: 3.3V 5. Mounting hole size: 3.0mm 6. Size: 65 x 56mmPackage List1. Stepper Motor HAT (B) x 1 2. RPi screws pack (2pcs) x 1 3. Aluminum heatsink x 1Specification: Package Weight One Package Weight 0.06kgs / 0.14lb One Package Size 15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch Qty per Carton 200 Carton Weight 14.00kgs / 30.86lb Carton Size 46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch Loading Container 20GP: 566 cartons * 200 pcs = 113200 pcs40HQ: 1314 cartons * 200 pcs = 262800 pcs
£11.99
-
Waveshare Waveshare Solarstrom-Managementmodul für 6V~24V Solarpanel, 16120
Überblick Dieses Solarstrommanagementmodul ist für 6 V bis 24 V Solarpanel ausgelegt. Es kann die 3,7 V Lithiumbatterie über das Solarpanel oder eine USB-Verbindung aufladen und bietet einen geregelten Ausgang von 5 V/1 A. Das Modul verfügt über die MPPT-Funktion (Maximum Power Point Tracking) und mehrere Schutzschaltungen, sodass es weiterhin mit hoher Effizienz, Stabilität und Sicherheit arbeiten kann. Es eignet sich für solarbetriebene, stromsparende IoT- und andere Umweltschutzprojekte. Merkmale 1. Unterstützt die MPPT-Funktion (Maximum Power Point Tracking) und maximiert so die Effizienz des Solarpanels 2. Unterstützt das Laden des Akkus über Solarpanel/USB-Anschluss 3. Für 6V~24V Solarpanel, DC-002-Buchseneingang oder Schraubklemmeneingang 4. Onboard MPPT SET-Schalter, wählen Sie den Pegel nahe dem Eingangspegel, um die Ladeeffizienz zu verbessern 5. Zwei 5V-Ausgangsschnittstellen: Pinheader und USB-Anschluss 6. Integrierter Aluminium-Elektrolytkondensator mit hoher Kapazität und SMD-Keramikkondensator zur Reduzierung der Welligkeit und für stabile Leistung 7. 14500 Batteriehalter und PH2.0 Batterieanschluss, zum Anschluss mehrerer Arten von 3,7 V Li-Batterien 8. Mehrere LED-Anzeigen zur Überwachung des Status von Solarpanel und Batterie 9. Mehrere Schutzschaltungen: Überladung / Überentladung / Rückwärtsschutz / Überhitzung / Überstrom, stabil und sicher zu verwenden Technische Daten 1. Solarmodul-Eingangsspannung (SOLAR IN): 6 V ~ 24 V 2. Micro-USB-Eingangsspannung (USB IN): 5 V 3. Pinheader / USB-Ausgang (USB OUT): 5V 1A 4. Ladeschlussspannung: 4,2 V +/- 1 % 5. Überentladungsschutzspannung: 2,9 V +/- 1 % 6. Ladeeffizienz des Solarmoduls: ~78 % 7. USB-Ladeeffizienz: ~82 % 8. 3,7-V-Batterie-Boost-Ausgangseffizienz: ~86 % 9. Maximaler Ruhestrom: <2 mA 10. Betriebstemperatur: -40 ~ 85 °C 11. Abmessungen: 65,2 mm x 56,2 mm x 22,9 mm Spezifikation: Paketgewicht Gewicht eines Pakets 0,06 kg / 0,12 lb Einheitspackungsgröße 8 cm * 8 cm * 2 cm / 3,15 Zoll * 3,15 Zoll * 0,79 Zoll Menge pro Karton 500 Kartongewicht 24,50 kg / 54,01 lb Kartongröße 40 cm * 40 cm * 40 cm / 15,75 Zoll * 15,75 Zoll * 15,75 Zoll Container laden 20GP: 416 Kartons * 500 Stück = 208000 Stück 40HQ: 967 Kartons * 500 Stück = 483500 Stück
£8.99
-
Waveshare Waveshare For Raspberry Pi Pico / Pico 2 W Microcontroller Development Board
1. Employs the Raspberry Pis officially designed RP2350 microcontroller chip.2. Unique dual-core, dual-architecture design, featuring a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both operating at flexible clock speeds up to 150MHz.3. Uses Infineons CYW43439 wireless chip, supporting Wi-Fi 4 and Bluetooth 5.2.4. Built-in 520KB SRAM and 4MB on-chip Flash.5. Stamp hole design for direct soldering to user-designed baseboards.6. Pico 2 WH uses official solder headers; no stamp hole design, connection to the baseboard is only possible via headers.7. USB 1.1 host and device support.8. Supports low-power sleep and hibernation modes.9. Can be recognized as a mass storage device via USB for drag-and-drop program downloads.10. Up to 26 versatile GPIO pins.11. 2 One SPI, two I2C, two UARTs, three 12-bit ADCs, and 16 controllable PWM channels.12. Twelve programmable I/O (PIO) state machines for custom peripheral support.Specification: Package Weight One Package Weight 0.04kgs / 0.10lb One Package Size 5cm * 8cm * 3cm / 1.97inch * 3.15inch * 1.18inch Qty per Carton 462 Carton Weight 19.60kgs / 43.21lb Carton Size 50cm * 37cm * 35cm / 19.69inch * 14.57inch * 13.78inch Loading Container 20GP: 411 cartons * 462 pcs = 189882 pcs40HQ: 956 cartons * 462 pcs = 441672 pcs
£9.99
-
WAVESHARE WAVESHARE ESP32-P4-WIFI6 7-Inch Five-Point Touchscreen Development Board 1024x600 Resolution, Basic, Includes OV5647 Camera
Product Introduction:This product is a high-performance development board based on the ESP32-P4 chip, featuring a dual-core plus single-core RISC-V architecture. It includes an onboard 7-inch 1024 × 600 resolution IPS touchscreen display and supports a variety of human-machine interaction interfaces, including MIPI-CSI with an integrated image signal processor (ISP), and a high-speed USB OTG 2.0 HS interface. The ESP32-P4 chip integrates a digital signature peripheral and a dedicated key management unit to ensure data and operational security. Designed for high-performance and high-security applications, it fully meets the higher demands of embedded applications in terms of human-machine interface support, edge computing capabilities, and I/O connectivity.Product features:1. Processor: equipped with a RISC-V 32-bit dual-core processor (HP system), with DSP and instruction set extensions, and a floating-point unit (FPU), with a main frequency up to 360MHz.2. Equipped with a RISC-V 32-bit single-core processor (LP system), with a main frequency up to 40MHz.3. Equipped with an ESP32-C6 WIFI/BT coprocessor, extending WIFI 6/Bluetooth 5 and other functions via SDIO.4. Resolution: 1024x6005. Communication Interface: Supports RGB565, RGB666, RGB8886. Display panel: IPS7. Touch type: capacitive8. Touch chip: GT9119. Brightness: 350cd/m210. Contrast ratio: 600:111. Viewing angle: 160 degrees12. Dimensions: 99.17x164.28mm13. Display size: 86.42x154.58mm14. Display colors: 16.7M colorsMemory:1. 128 KB high-performance (HP) system read-only memory (ROM)2. 16 KB low-power (LP) system read-only memory (ROM)3. 768 KB high-performance (HP) L2 memory (L2MEM)4. 32 KB low-power (LP) SRAM5. 8 KB system tightly coupled memory (TCM)6. 32 MB PSRAM stacked in the package, 32MB Nor Flash connected via QSPI interfacePeripheral Interfaces:1. Onboard Type-C USB 2.0 OTG interface, SDIO 3.0 SD card slot, Type-C UART programming port for convenient use in different scenarios.2. Onboard speaker interface and microphone, allowing for ideal audio functionality using codec and power amplifier chips.3. Onboard MIPI-CSI high-definition camera interface, supporting full HD 1080P image acquisition and encoding, integrated image signal processor (ISP), H264 video encoder, supporting H.264 & JPEG video encoding (1080P @30fps), suitable for applications in computer vision, machine vision, etc.4. Onboard MIPI-DSI high-definition display interface, integrated pixel processing accelerator (PPA), 2D graphics acceleration controller (2D DMA), supporting JPEG image decoding (1080P). At 30fps, it provides strong support for high-definition display and a smooth HMI experience, making it suitable for applications such as smart home control panels, industrial control panels, and automatic vending machines.Specification: Package Weight One Package Weight 0.47kgs / 1.03lb One Package Size 19cm * 12cm * 4cm / 7.48inch * 4.72inch * 1.57inch Qty per Carton 48 Carton Weight 23.30kgs / 51.37lb Carton Size 40cm * 38cm * 34cm / 15.75inch * 14.96inch * 13.39inch Loading Container 20GP: 515 cartons * 48 pcs = 24720 pcs40HQ: 1197 cartons * 48 pcs = 57456 pcs
£49.99 - £57.99
-
WAVESHARE Waveshare Dual ETH Mini-Computer for Raspberry Pi CM4, Gigabit Ethernet, 4CH Isolated RS485
Specifications1. CM4 Socket: Available on all variants of Compute Module 4 2. Network: Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector 3. USB: USB 2.0 Type A x 2 4. Connector: Isolated RS485 x 4, power screw terminal x 1 5. Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector) 6. Video: HD-MI interface x 1, support 4K 30fps output 7. RTC: Real Time Clock with Battery Socket and Ability to Wake Compute Module 4 8. Storage: MicroSD card slot for Compute Module 4 Lite (no eMMC) variant 9. Fan head: allow speed adjustment, 5V 10. Indicator: Power indicator x 1, CM4 status indicator x 1, User LED x 2, RS485 communication indicator x 8 11. Power input: 7-36V 12. Dimensions: 123 x 98 x 32mmPackage List1. CM4-ETH-RS485-BASE-B x 1 2. Metal case (top and bottom) x 1 3. Fan x 1 4. 12V 2A Power Supply x 1 5. Screwdriver x 1 6. Antenna connector rubber plug x 1 7. Screws pack x 1Specification: Package Weight One Package Weight 0.48kgs / 1.05lb One Package Size 16cm * 12cm * 5cm / 6.3inch * 4.72inch * 1.97inch Qty per Carton 40 Carton Weight 19.50kgs / 42.99lb Carton Size 50cm * 32cm * 27cm / 19.69inch * 12.6inch * 10.63inch Loading Container 20GP: 617 cartons * 40 pcs = 24680 pcs40HQ: 1432 cartons * 40 pcs = 57280 pcs
£55.99
-
Waveshare Waveshare Universal e-Paper Raw Panel Driver Board, ESP32 WiFi / Bluetooth Wireless, 15823
Overview1. This is a universal driver board for e-Paper raw panels, thanks to the dual wireless features - WiFi & Bluetooth - it is easy to display images from PC / smart phone via WiFi or Bluetooth.2. Furthermore, it can also be used for Arduino development, just like any other normal Arduino board.Features1. Onboard ESP32, supports Arduino development2. Provide Android APP, allows to refresh display content via Bluetooth EDR3. Provide HTML host code, allows to refresh display content via remote webpage, suit for Internet applications4. Support Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image5. Support popular image formats: BMP, JPEG, GIF, PNG, etc.6. Easy to be integrated into wireless applications7. Come with e-Paper driver (open source)8. Come with development resources and manualSpecifications1. WiFi protocol: 802.11b/g/n2. Bluetooth protocol: 4.2, includes traditional BR/EDR, and low power BLE3. Interface: 3-wire SPI, 4-wire SPI (default)4. Operating voltage: 5V5. Operating current: 50mA ~ 150mA6. Outline dimension: 29.46mm x 48.25mmPackage Contents1. e-Paper ESP32 Driver Board x12. e-Paper Adapter x13. 24PIN FFC x1Note: e-Paper panels in the photos are NOT included.Specification: Package Weight One Package Weight 0.05kgs / 0.11lb One Package Size 10cm * 6cm * 2cm / 3.94inch * 2.36inch * 0.79inch Qty per Carton 720 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 36cm * 40cm / 23.62inch * 14.17inch * 15.75inch Loading Container 20GP: 308 cartons * 720 pcs = 221760 pcs40HQ: 716 cartons * 720 pcs = 515520 pcs
£11.99
-
Waveshare Waveshare 2.13 inch 212x104 Pixel Three-color E-Ink Display HAT (B) for Raspberry Pi, 13448
Overview1. This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.Features1. No backlight, keeps displaying last content for a long time even when power down2. Ultra low power consumption, basically power is only required for refreshing3. Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+4. Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.5. Onboard voltage translator, compatible with 3.3V/5V MCUs6. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)Specifications1. Operating voltage: 3.3V/5V2. Interface: 3-wire SPI, 4-wire SPI3. Outline dimension: 65mm x 30.2mm4. Display size: 23.71mm x 48.55mm5. Dot pitch: 0.229 x 0.2286. Resolution: 212 x 1047. Display color: red, black, white8. Grey level: 29. Full refresh time: 15s10. Refresh power: 26.4mW(typ.)11. Standby power: <0.017mW12. Viewing angle: >170 degreePackage Contents1. 2.13 inch e-Paper HAT (B) x12. RPi screws pack (2pcs) x13. PH2.0 20cm 8 Pin x1Specification: Package Weight One Package Weight 0.03kgs / 0.07lb One Package Size 8cm * 6cm * 2cm / 3.15inch * 2.36inch * 0.79inch Qty per Carton 840 Carton Weight 15.00kgs / 33.07lb Carton Size 56cm * 36cm * 40cm / 22.05inch * 14.17inch * 15.75inch Loading Container 20GP: 330 cartons * 840 pcs = 277200 pcs40HQ: 767 cartons * 840 pcs = 644280 pcs
£11.99
-
Waveshare Waveshare Micro SD(TF) Storage Board Module, Micro SD
1. Micro SD card slot2. Support SDIO and SPI interfaces3. 2.54mm pitch pinheadersSpecification: Package Weight One Package Weight 0.02kgs / 0.05lb One Package Size 5cm * 3cm * 1cm / 1.97inch * 1.18inch * 0.39inch Qty per Carton 6240 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 39cm * 40cm / 23.62inch * 15.35inch * 15.75inch Loading Container 20GP: 284 cartons * 6240 pcs = 1772160 pcs40HQ: 661 cartons * 6240 pcs = 4124640 pcs
£2.99
-
Waveshare Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747
1.5 inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interfaceOverviewThis is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.Features1. 128x128 high resolution, 65K colors, clearly displays colorful images2. Support 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor3. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)Specifications1. Driver: SSD13512. Interface: 4-wire SPI, 3-wire SPI3. Display color: RGB, 65K colors4. Resolution: 128x1285. Viewing angle: >160 degree6. Operating voltage: 3.3V / 5V7. Dimension: 44.5 x 37 (mm)Package Contents1. 1.5 inch RGB OLED Module x12. PH2.0 7Pin x1Specification: Package Weight One Package Weight 0.03kgs / 0.07lb One Package Size 6cm * 4cm * 2cm / 2.36inch * 1.57inch * 0.79inch Qty per Carton 2000 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch Loading Container 20GP: 277 cartons * 2000 pcs = 554000 pcs40HQ: 644 cartons * 2000 pcs = 1288000 pcs
£14.99
-
Waveshare Waveshare RS485 CAN Shield, RS485 CAN Shield Designed for NUCLEO/XNUCLEO
OverviewThe RS485 CAN Shield will easily enable RS485/CAN communication functions for your NUCLEO/XNUCLEO Arduino boards.Features1. Arduino standard interfaces, compatible with Arduino boards like Arduino UNO, Leonardo, NUCLEO, XNUCLEO- When using with Arduino UNO, Leonardo, the CAN function is unavailable due to hardware limitation2. RS485 function, onboard transceiver SP3485/MAX3485, 3.3V power supply3. CAN function, onboard transceiver SN65HVD230, 3.3V power supplySpecification: Package Weight One Package Weight 0.03kgs / 0.07lb One Package Size 7cm * 6cm * 2cm / 2.76inch * 2.36inch * 0.79inch Qty per Carton 960 Carton Weight 15.00kgs / 33.07lb Carton Size 56cm * 36cm * 40cm / 22.05inch * 14.17inch * 15.75inch Loading Container 20GP: 330 cartons * 960 pcs = 316800 pcs40HQ: 767 cartons * 960 pcs = 736320 pcs
£7.99
-
Waveshare Photo Interrupter Sensor, Speed Measuring
Overview1. Infrared detection, eliminating the interferences of external stray light2. Schmitt trigger, stable wave form and signals3. Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)Specifications1. Power: 3.3V ~ 5V2. Dimension: 26.8mm × 15mm × 18.7mm3. Mounting holes size: 3mm4. Gap width: 6mmApplications- Motor speed detection- Pulse counterHow to UseIn the case of working with a MCU:- VCC ? 3.3V ~ 5V- GND ? GND- DOUT ? MCU.IO (digital output)Specification: Package Weight One Package Weight 0.01kgs / 0.03lb One Package Size 6cm * 4cm * 4cm / 2.36inch * 1.57inch * 1.57inch Qty per Carton 1000 Carton Weight 10.00kgs / 22.05lb Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch Loading Container 20GP: 277 cartons * 1000 pcs = 277000 pcs40HQ: 644 cartons * 1000 pcs = 644000 pcs
£2.99
-
Waveshare Waveshare RGB Full-color LED Matrix Panel, 2.5mm Pitch, 64x32 Pixels, Adjustable Brightness, 23707, 23707
1. Pixel: 64 x 32=2048 dots2. Pitch: 2.5mm3. Pixel format: 1R1G1B4. Viewing angle: greater than 140 degrees5. Control mode: synchronous6. Drive: 1/16 scan7. Connector: HUB758. Power supply: V / 2.5A (VH4 connector input)9. Power: within 12W10. Size: 16 x 8cmFeatures:1. 2048 independent RGB led, full color display, adjustable brightness2. 64x32 pixels, 2.5mm pitch, allows displaying text, color images or animations 3. 160x80mm size, moderate size, suitable for DIY desktop display or wall mount display4. Two HUB75 headers on board, 1 for controller data input, 1 output, chain support5. Provide open source development resources (for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino, etc.)Specification: Package Weight One Package Weight 0.40kgs / 0.89lb One Package Size 20cm * 10cm * 2cm / 7.87inch * 3.94inch * 0.79inch Qty per Carton 74 Carton Weight 30.00kgs / 66.14lb Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch Loading Container 20GP: 177 cartons * 74 pcs = 13098 pcs40HQ: 412 cartons * 74 pcs = 30488 pcs
£16.99
-
Waveshare JetBot AI Kit Accessories, Add-ons for Jetson Nano to Build JetBot, US Plug, Add-ons for Jetson Nano
Overview1. Smart robot is always the favorite project of electronic enthusiasts, however, a robot will be "not that smart" if it is not AI-based.2. Welcome the JetBot, an actual smart robot powered by Jetson Nano. With the intelligent eye (front camera), facial recognition, object tracking, auto line following, and collision avoidance can be easily achieved. It also comes with ROS nodes code, which makes it easy to get started with the open source ROS (Robot Operating System), and to learn the system framework and concepts of ROS.3. If you have got a Jetson Nano on your desk right now, combined with our open source codes and tutorials, these add-ons would be the ideal choice for you to learn AI robot designing and development.Features1. Adopts 3x 18650 batteries (NOT included), high battery capacity, up to 12.6V voltage output, more powerful driving force.2. Integrates S-8254AA + AO4407A lithium battery protection circuit, provides protections for over-charge, over-discharge, over-current, and short circuit.3. Onboard APW7313 voltage regulator, provides stable 5V voltage for the Jetson Nano.4. Onboard TB6612FNG dual H-bridge motor driver.5. Onboard 0.91inch 128×32 pixels OLED, allows to display robot IP address, RAM, battery life, etc.6. Onboard ADS1115 AD acquisition chip for monitoring the battery in real time.7. Weight: 773gWhat is on the JetBot Expansion Board1. S-8254AA: Lithium battery protector, provides protections for over-charge, over-discharge, over-current, and short circuit2. ADS1115: 16-bit AD acquisition chip, monitoring the battery in real time3. AO4407A:: P-Channel MOSFET for protection circuit4. APW7313:: 5V power regulator for powering the Jetson Nano5. PCA9685: PWM controller, I2C interface, for IO expansion6. TB6612FNG: dual H-bridge motor driver7. 0.91inch OLED: SSD1306 driver chip, 128×32 pixels8. Battery charger input: charging the 3x 18650 batteries9. Power switch10. 18650 battery holder11. Motor connector (bottom side)12. Jetson Nano communication header: I2C interface and power supplyPacking List1. Metal box x12. Camera holder x13. Acrylic piece x14. Jetbot expansion board x15. IMX219-160 Camera x16. Wireless-AC8265 x17. Motor 2PCS x18. Wheel 2PCS x19. Omni-direction wheel 2PCS x110. Power adapter EU head x111. 12.6V battery charger x112. Wireless gamepad x113. Screwdriver 2PCS x114. 6Pin 9cm cable x115. Screws pack x116. Spanner x117. Cooling fan x118. Micro SD card reader x1Specification: Package Weight One Package Weight 1.04kgs / 2.30lb One Package Size 22cm * 16cm * 4cm / 8.66inch * 6.3inch * 1.57inch Qty per Carton 20 Carton Weight 21.50kgs / 47.40lb Carton Size 62cm * 42cm * 42cm / 24.41inch * 16.54inch * 16.54inch Loading Container 20GP: 243 cartons * 20 pcs = 4860 pcs40HQ: 566 cartons * 20 pcs = 11320 pcs
£91.99
-
Waveshare Waveshare 4-DOF Metal Robot Arm Kit for micro:bit, Support Bluetooth, US Plug
Overview1. Equip your micro:bit with this 4-DOF metal robot arm, and get started to explore the world of artificial intelligent robotic.2. This starter robotic arm kit includes: servo driver board, metal mechanical arm structure, and 4x metal gear servos. When used with the micro:bit, it is easy to control the arm by smart phone through Bluetooth connection.The Servo DriverAdopts Servo Driver for micro:bit:1. Micro:bit edge connector, directly pluggable2. I2C controlled, using only 2 pins3. Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)4. Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal5. Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.6. Reserved I2C control pins, allows to work with other control boards7. Comes with development resources and manual (micro:bit graphical examples like Bluetooth/2.4G wir eless remote control)The Robot Arm Structure1. 4-DOF, large solid base, metal mechanical grasper2. Full aluminium alloy body, sandblasting oxidation surface, strong & durable3. Clever mechanical structure and mounting design, agile to control, easy to build3. Fitted with 4x metal gear servos (1x MG996R, 3x MG90S), large torque force, smooth movingPackage IncludeNote: micro:bit is NOT included.1. Metal arm parts x12. MG996R Servo x13. MG90S Servo x34. MG996R servo wheel x15. Servo Driver for micro:bit x16. Power adapter US plug 5V 3A Micro x17. Servo extension wire 150mm x18. Screws pack x19. Screwdrivers 2PCS x1Specification: Package Weight One Package Weight 0.55kgs / 1.21lb One Package Size 25cm * 15cm * 8cm / 9.84inch * 5.91inch * 3.15inch Qty per Carton 20 Carton Weight 11.00kgs / 24.25lb Carton Size 50cm * 30cm * 40cm / 19.69inch * 11.81inch * 15.75inch Loading Container 20GP: 444 cartons * 20 pcs = 8880 pcs40HQ: 1031 cartons * 20 pcs = 20620 pcs
£42.99
-
WAVESHARE Waveshare Rail-Mount Serial Server RS485 to WIFI/Ethernet Module, Modbus MQTT Gateway, 21968
FeaturesThis is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to HTTPD Client, etc. With RS485, WIFI and Ethernet ports, the module can realize functions such as serial to WIFI, serial to Ethernet, Ethernet to WIFI and so on. Using screw terminals for power input, it supports 5~36V wide range power supply. Rail-mount V0 flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...SpecificationsOutline: 1. Communication interface: RS485, screw terminal 2. Power supply: 5 ~ 36V DC, screw terminal 3. Case: PC + ABS, V0 flame retardant grade 4. Dimensions: L x W x H: 109.66 x 28 x 64.71 mm Comunication: 1. Ethernet: 10 / 100M auto-negotiation RJ45 connector 2. WIFI: 802.11b/g/n compliant 3. Serial port: RS485 interface (Anti-surge, Lightningproof, Over-current protection) Wireless specification: 1. Frequency Band: 2.412 ~ 2.484 GHz 2. Wireless network: Station / AP / AP+Station Mode 3. Security mechanism: WPA-PSK / WPA2-PSK 4. Encryption type: TKIP / AES 5. Transmitting power: - 802.11b: +19dBm (11Mbps) - 802.11g: +18dBm (54Mbps) - 802.11n: +17dBm (HT20, MCS7); +17dBm (HT40, MCS7) 6. Receiving sensitivity: - 802.11b: -89dBm (11Mbps) - 802.11g: -81dBm (54Mbps) - 802.11n: -73dBm (HT20, MCS7); -71dBm (HT40, MCS7) Serial specification: 1. Baudrate: 300 ~ 460800 bps 2. Parity bit: None, odd, even, mark, space 3. Data bit: 5 ~ 9 bits 4. Flow control: N/A Software 1.Protocol: TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT 2. Configuration: Host, web browser, serial AT command 3. Communication method: TCP/IP direct communication, VCOM 4. Operating mode: Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU Environmental requirements 1. Working temperature: -40 ~ 85 degree C 2. Storage temperature: -45 ~ 125 degree C 3. Humidity range: 5% ~ 95% relative humidityPackage List1. RS485 TO WIFI/ETH x 1 2. Antenna x 1Specification: Package Weight One Package Weight 0.17kgs / 0.37lb One Package Size 15cm * 8cm * 5cm / 5.91inch * 3.15inch * 1.97inch Qty per Carton 100 Carton Weight 17.00kgs / 37.48lb Carton Size 42cm * 50cm * 32cm / 16.54inch * 19.69inch * 12.6inch Loading Container 20GP: 396 cartons * 100 pcs = 39600 pcs40HQ: 921 cartons * 100 pcs = 92100 pcs
£32.99
Sie haben 24 von 266 Produkten gesehen
