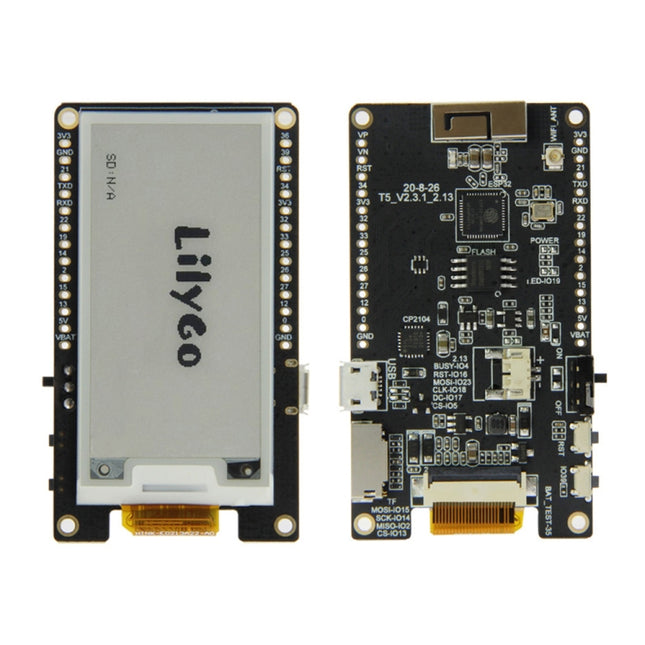

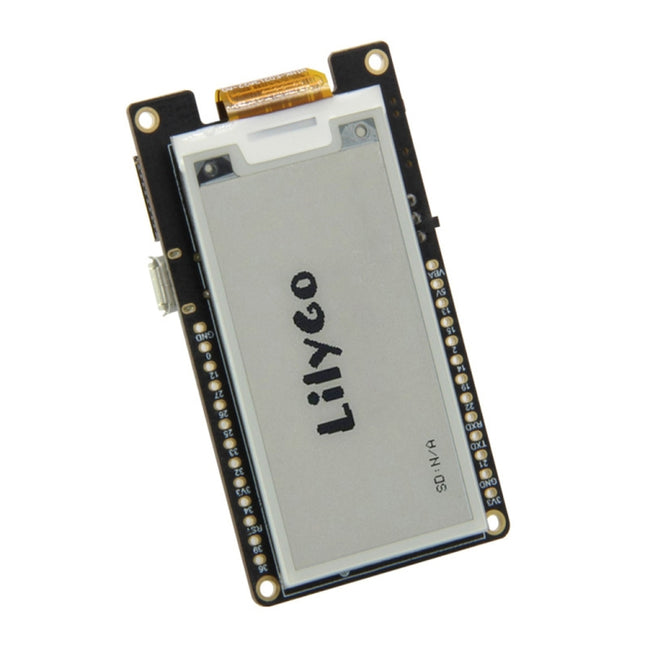

TTGO TTGO T5 V2.3.1 ink screen DEPG0213BN WiFi Bluetooth Module 2.13 inch ink Screen Development Board, DEPG0213BN
Overview Due to the advantages of ultra-low power consumption, wide viewing angle, and clear display without electricity, it is an ideal choice for applications such as shelf labels and industrial instruments. Features 1. Without backlight, the last content can be displayed for a long time even if it is turned off 2. Ultra-low power consumption, basically only need to refresh the power supply 3. Attached with development resources and manuals (example of Arduin-esp32) Product specifications 1. Working voltage: 3.3V 2. Interface: 3-wire SPI, 4-wire SPI 3. Display color: black, white 4. Grayscale: 2 5. Full refresh time: 8s 6. Refresh power: 26.4mW (typical value) 7. Driver chip: DEPG0213BN ESP32 features: 1. Immersion Gold Craft 2. High cost performance 3. Small size, easy to embed other products 4. Powerful function supports LWIP protocol, Freertos 5. WiFi supports three modes: AP, STA and AP + STA 6. Support Windows system (cygwin and msys32) and Linux system 7. Support Arduino-ide, ESP-IDF, Micropython multiple development environments 8. Support Lua program, easy developmentSpecification: Package Weight One Package Weight 0.05kgs / 0.12lb One Package Size 10cm * 6cm * 1cm / 3.94inch * 2.36inch * 0.39inch Qty per Carton 300 Carton Weight 9.00kgs / 19.84lb Carton Size 42cm * 26cm * 26cm / 16.54inch * 10.24inch * 10.24inch Loading Container 20GP: 939 cartons * 300 pcs = 281700 pcs40HQ: 2180 cartons * 300 pcs = 654000 pcs
£22.99
-
WAVESHARE WAVESHARE For Arduino VENTUNO Q Edge AI Computer Qualcomm And STM32 Dual Architecture, 40 Dense TOPS, Extensive Industrial / Robotics Expansion Options, 35981
1. Microprocessor (MPU): Qualcomm Dragonwing IQ8 (QCS8275); octa-core Arm Cortex CPU; Adreno 623 GPU; Adreno VPU 623; Hexagon NPU; Qualcomm Spectra 692 ISP 2. AI Acceleration: Hexagon Tensor AI Processor, up to 40 dense TOPS 3. Microcontroller (MCU): STM32H5F5, Arm Cortex-M33, up to 250 MHz; 4 MB Flash; 1.5 MB RAM 4. System: MPU pre-installed with Ubuntu Linux, with support for Debian; MCU based on Arduino Core running Zephyr OS 5. Memory / Storage: 16GB LPDDR5 (2 x 8GB) / 64GB eMMC 6. Expandable Storage: M.2 Key M 2230, PCIe Gen 4 x 4, NVMe-compatible; for expandable storage only; does not support booting from NVMe 7. Wireless Connectivity: Tri-band Wi-Fi 6 (2.4/5/6 GHz) with 2 onboard antennas; Bluetooth 5.3 with an onboard antenna 8. Wired Networking: 1 x 2.5 Gbit RJ45 Ethernet 9. USB: 1 x USB-C, supports host/device role switching, power delivery role switching, and video output; 2 x USB 3.0 Type-A; JOMEGA provides 2 USB 3.0 ports 10. Cameras: 3 x MIPI CSI interfaces; JMEDIA provides 2 multiplexed MIPI CSI channels; supports USB cameras 11. Video Output: 1 x HDMI; USB-C DisplayPort Alt Mode; JMEDIA MIPI DSI (shared with HDMI) 12. Audio: MAX98091 audio decoder; JMISC provides microphone input, stereo headphone output, mono speaker output, and line-out; JOMEGA provides microphone input 13. CAN-FD: 1 channel via terminal blocks with PHY; 3 channels via JOMEGA without PHY; 1 channel via UNO Shield header without PHY 14. On-board Interaction: 8 x 13 monochrome blue LED dot matrix; 4 user-programmable RGB LEDs; power indicator; USB-C PD fault indicator; user button; reset button 15. Power: USB-C PD: 9–20 V, up to 3 A; DC power connector: 7–24 V, up to 5 A; screw terminal blocks: 7–24 V, up to 10 A 16. Operating Temperature: -10 to +60 degrees Celsius 17. PCBA Dimensions: Approximately 16 x 10 x 2.58 cm (height excludes heat sink and fan)Dual-Architecture Design:1. Processor: AI computing core uses Qualcomm Dragonwing IQ8 (QCS8275); real-time control core uses STM32H5F52. Key Resources: The AI computing core includes an octa-core Arm Cortex CPU, Adreno 623 GPU, Adreno VPU 623, Hexagon NPU, and Qualcomm Spectra 692 ISP; the real-time control core includes an Arm Cortex-M33 at 250 MHz, 4 MB of Flash, and 1.5 MB of RAM3. Software System: The AI computing core runs Ubuntu Linux and also supports Debian; the real-time control core runs Arduino Core based on Zephyr OS4. Primary Tasks: The AI computing core handles local AI, machine vision, network communication, multimedia processing, and Linux applications; the real-time control core handles real-time control of GPIO, PWM, CAN-FD, ADC, sensors, and actuators5. Collaboration Method: Commands, status, and data are exchanged via the Arduino Bridge (RPC)Features:1. MPU + MCU dual-processor architecture: The Qualcomm Dragonwing IQ8 (QCS8275) handles Linux, AI, vision, networking, and multimedia tasks; the STM32H5F5 MCU provides deterministic real-time I/O and control capabilities2. Up to 40 dense TOPS of edge AI performance: The Hexagon NPU supports local execution of computer vision, speech processing, LLM/VLM, and multimodal applications. Onboard 16 GB LPDDR5 and 64 GB eMMC meet storage requirements for the system, models, and application data3. Extensive expansion options for robotics and industrial control: Features tri-band Wi-Fi 6, Bluetooth 5.3, 2.5 Gbit RJ45, M.2 2230 NVMe, HDMI, three MIPI CSI lanes, CAN-FD, UNO Shield, 40-pin JHAT, and Qwiic interfaces, among othersSpecification: Package Weight One Package Weight 0.45kgs / 1.00lb One Package Size 21cm * 15cm * 6cm / 8.27inch * 5.91inch * 2.36inch Qty per Carton 20 Carton Weight 10.00kgs / 22.05lb Carton Size 44cm * 32cm * 32cm / 17.32inch * 12.6inch * 12.6inch Loading Container 20GP: 591 cartons * 20 pcs = 11820 pcs40HQ: 1373 cartons * 20 pcs = 27460 pcs
£475.99
-
WAVESHARE WAVESHARE ESP32 Microcontroller WiFi Development Board 32-Bit LX6 Dual-Core Processor, WROOM-32E-N4, WROOM-32UE-N16, WROVER-E-N16R8, WROVER-IE-N16R8
1. Utilizing the ESP32 module, equipped with the Xtensa 32-bit LX6 dual-core processor, with a main frequency of up to 240 MHz2. Integrating 520KB SRAM and 448KB ROM, with the option of PSRAM and Flash memory versions3. Supporting 2.4GHz Wi-Fi, classic Bluetooth, and low-power Bluetooth wireless communication4. Using the USB Type-C interface, supporting both forward and reverse insertion, facilitating power supply, program download, and serial port debugging5. Onboard the CH343P USB to UART chip, providing stable and reliable serial communication6. Supports both USB Type-C and lithium battery power supply methods, and can automatically switch the power source7. Exposing a rich set of peripheral interfaces, with pin compatibility for the ESP32-DevKitC development board, offering strong compatibility and expandability8. Stamps hole design, allowing for direct soldering integration onto the user self-designed baseboardSpecification: Package Weight One Package Weight 0.02kgs / 0.05lb One Package Size 9cm * 6cm * 3cm / 3.54inch * 2.36inch * 1.18inch Qty per Carton 330 Carton Weight 8.00kgs / 17.64lb Carton Size 47cm * 38cm * 35cm / 18.5inch * 14.96inch * 13.78inch Loading Container 20GP: 426 cartons * 330 pcs = 140580 pcs40HQ: 990 cartons * 330 pcs = 326700 pcs
£7.99 - £9.99
-
Waveshare Waveshare ESP32-C5 Dual-Band Wi-Fi 6 Development Board External FPC Antenna, Without Pinheader, With Pinheader
1. Uses ESP32-C5-MINI-1 series module as the main controller, powered by a RISC-V 32-bit single-core processor with main frequency up to 240 MHz.2. Integrates 320 KB ROM, 384 KB HP SRAM, 16 KB LP SRAM, and 4 MB Flash memory.3. Supports 2.4 GHz and 5 GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication with excellent RF performance.4. Utilizes a USB Type-C interface, eliminating worry about plug orientation, and supporting convenient power supply, development, and debugging.5. Onboard MP1605GTF-Z high-efficiency DC-DC power supply chip, delivering load current up to 2A.6. Onboard ETA6098 power management circuit, supporting lithium battery power supply, charging status indication, and battery voltage sampling.7. Routes out multiple GPIOs and expands 6 additional IOs via TCA9554 for easy peripheral connection. Features rich peripheral interfaces including USB, UART, I2C, SPI, ADC, and PWM for flexible functional implementations.8. Stamp-hole (castellated hole) design allows direct soldering and integration onto user-designed baseboards.9. Supports multiple low-power operating modes to balance communication distance, data rate, and power consumption, meeting energy requirements for various application scenarios.10. Compatible with most of the Raspberry Pi Pico expansion board ecosystem, ideal for AIoT (Artificial Intelligence of Things) application development.FPC Dual-Band Wi-Fi Antenna Parameters:1. Frequency Range: 2400-2500 MHz / 5200-5800 MHz2. Max Power: 5W3. Antenna Dimensions: 48.0 x 10.0 x 0.2 mm4. Cable Length: 80 mm5. VSWR: Less than 36. Connector Specification: IPEX Generation 47. Peak Gain: 6.49 dBi (2.4G band) / 8.24 dBi (5.8G band)8. Antenna Material: FPC9. Output Impedance: 50 ohms10. Operating Temperature: -30 to +80 degrees Celsius11. Polarization Type: Vertical12. Radiation Direction: OmnidirectionalSpecification: Package Weight One Package Weight 0.02kgs / 0.05lb One Package Size 10cm * 8cm * 5cm / 3.94inch * 3.15inch * 1.97inch Qty per Carton 120 Carton Weight 3.50kgs / 7.72lb Carton Size 42cm * 37cm * 32cm / 16.54inch * 14.57inch * 12.6inch Loading Container 20GP: 536 cartons * 120 pcs = 64320 pcs40HQ: 1244 cartons * 120 pcs = 149280 pcs
£8.99 - £9.99
-
Waveshare Waveshare ESP32-C5 Dual-Band Wi-Fi 6 Development Board 240MHz Single-Core Processor, Without Pinheader, With Pinheader
1. Uses ESP32-C5-MINI-1 series module as the main controller, powered by a RISC-V 32-bit single-core processor with main frequency up to 240 MHz.2. Integrates 320 KB ROM, 384 KB HP SRAM, 16 KB LP SRAM, and 4 MB Flash memory.3. Supports 2.4 GHz and 5 GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication with excellent RF performance.4. Utilizes a USB Type-C interface, eliminating worry about plug orientation, and supporting convenient power supply, development, and debugging.5. Onboard MP1605GTF-Z high-efficiency DC-DC power supply chip, delivering load current up to 2A.6. Onboard ETA6098 power management circuit, supporting lithium battery power supply, charging status indication, and battery voltage sampling.7. Routes out multiple GPIOs and expands 6 additional IOs via TCA9554 for easy peripheral connection. Features rich peripheral interfaces including USB, UART, I2C, SPI, ADC, and PWM for flexible functional implementations.8. Stamp-hole (castellated hole) design allows direct soldering and integration onto user-designed baseboards.9. Supports multiple low-power operating modes to balance communication distance, data rate, and power consumption, meeting energy requirements for various application scenarios.10. Compatible with most of the Raspberry Pi Pico expansion board ecosystem, ideal for AIoT (Artificial Intelligence of Things) application development.Specification: Package Weight One Package Weight 0.02kgs / 0.05lb One Package Size 10cm * 8cm * 5cm / 3.94inch * 3.15inch * 1.97inch Qty per Carton 120 Carton Weight 3.50kgs / 7.72lb Carton Size 42cm * 37cm * 32cm / 16.54inch * 14.57inch * 12.6inch Loading Container 20GP: 536 cartons * 120 pcs = 64320 pcs40HQ: 1244 cartons * 120 pcs = 149280 pcs
£8.99 - £9.99
-
WAVESHARE WAVESHARE 256MB Luckfox Core1106 Core Board Based On Rockchip RV1106 Chip, No WiFi, With WiFi
1. Single-core ARM Cortex-A7 32-bit core, integrating NEON and FPU2. Built-in Rensselaer Micro's self-developed 4th generation NPU, with high precision, supporting mixed quantization of int4, int8, and int16, the int8 computing power of RV1106G3 is 1TOPS, and that of RV1106G2 is 0.5TOPS3. Built-in Rensselaer Micro's self-developed 3rd generation ISP3.2, supporting 5 million pixels, supporting various image enhancement and correction algorithms such as HDR, WDR, and multi-level noise reduction4. Has strong encoding performance, supporting intelligent encoding, adapting to the scene to save the bitstream automatically, saving more than 50% of the bit rate compared to the conventional CBR mode, achieving high-definition picture quality while efficiently utilizing storage space5. The built-in 16-bit DRAM DDR3L can meet the demanding memory bandwidth requirementsParameters1. Processor: Cortex A7, 1.2GHz2. ISP input support: 5M at 30fps3. Video encoding: hardware encoding, supports MJPEG, H264, H2654. Display interface: parallel RGB 18-bit x 15. Camera interface: MIPI CSI 2-lane x 2 or MIPI CSI 4-lane x 16. Microphone interface: analog differential MIC interface x 27. Audio output interface: LINEOUT x 18. USB interface: USB 2.0 Host/Device9. Ethernet interface: 10/100M Ethernet controller and embedded PHY10. Other resources: I2S x 3, I2C x 5, SPI x 2, SDIO x 2, ADC x 2, UART x 6, PWM x 1211. Core board size: 3 x 3cm12. Stamps hole: 112 PinSpecification: Package Weight One Package Weight 0.02kgs / 0.05lb One Package Size 6cm * 6cm * 4cm / 2.36inch * 2.36inch * 1.57inch Qty per Carton 360 Carton Weight 9.00kgs / 19.84lb Carton Size 50cm * 38cm * 32cm / 19.69inch * 14.96inch * 12.6inch Loading Container 20GP: 438 cartons * 360 pcs = 157680 pcs40HQ: 1018 cartons * 360 pcs = 366480 pcs
£35.99 - £50.99
-
WAVESHARE WAVESHARE 128MB Luckfox Core1106 Core Board Based On Rockchip RV1106 Chip, No WiFi, With WiFi
1. Single-core ARM Cortex-A7 32-bit core, integrating NEON and FPU2. Built-in Rensselaer Micro's self-developed 4th generation NPU, with high precision, supporting mixed quantization of int4, int8, and int16, the int8 computing power of RV1106G3 is 1TOPS, and that of RV1106G2 is 0.5TOPS3. Built-in Rensselaer Micro's self-developed 3rd generation ISP3.2, supporting 5 million pixels, supporting various image enhancement and correction algorithms such as HDR, WDR, and multi-level noise reduction4. Has strong encoding performance, supporting intelligent encoding, adapting to the scene to save the bitstream automatically, saving more than 50% of the bit rate compared to the conventional CBR mode, achieving high-definition picture quality while efficiently utilizing storage space5. The built-in 16-bit DRAM DDR3L can meet the demanding memory bandwidth requirementsParameters1. Processor: Cortex A7, 1.2GHz2. ISP input support: 5M at 30fps3. Video encoding: hardware encoding, supports MJPEG, H264, H2654. Display interface: parallel RGB 18-bit x 15. Camera interface: MIPI CSI 2-lane x 2 or MIPI CSI 4-lane x 16. Microphone interface: analog differential MIC interface x 27. Audio output interface: LINEOUT x 18. USB interface: USB 2.0 Host/Device9. Ethernet interface: 10/100M Ethernet controller and embedded PHY10. Other resources: I2S x 3, I2C x 5, SPI x 2, SDIO x 2, ADC x 2, UART x 6, PWM x 1211. Core board size: 3 x 3cm12. Stamps hole: 112 PinSpecification: Package Weight One Package Weight 0.02kgs / 0.05lb One Package Size 6cm * 6cm * 4cm / 2.36inch * 2.36inch * 1.57inch Qty per Carton 360 Carton Weight 9.00kgs / 19.84lb Carton Size 50cm * 38cm * 32cm / 19.69inch * 14.96inch * 12.6inch Loading Container 20GP: 438 cartons * 360 pcs = 157680 pcs40HQ: 1018 cartons * 360 pcs = 366480 pcs
£29.99 - £44.99
-
WAVESHARE WAVESHARE Luckfox Lyra PLC RK3506B Programmable Logic Controller Onboard Dual 100Mbps Ethernet Ports, Standard, POE
1. It is equipped with multiple remote networking solutions, enabling remote management and debugging2. It supports opening the device management backend through a browser, allowing for quick system configuration3. It runs on the Linux system, with a complete ecosystem and support for multiple language development4. It has multiple peripheral interface options, supporting wired and wireless network connections, and providing interfaces such as RS232/RS422/RS485/CAN/USB, suitable for various scenarios including data acquisition and reporting, linkage control, and protocol conversion5. It has a wide range of application scenarios, including industrial control, smart home, and smart agricultureParameters1. Main controller: RK3506B2. Core: triple-core ARM cortex-A7 (1.2GHz)3. Memory: built-in 512MB DDR3L4. Storage: eMMC (8GB)5. Screen: 1.9-inch LCD touchscreen, resolution 170 × 3206. USB: native USB OTG 2.0 x 17. Hub: expansion USB HOST 2.0 x 18. Network port: 10/100M ethernet port x 29. Wireless communication: built-in 2.4GHz Wi-Fi 6 / Bluetooth 5.2 / BLE10. CAN: CAN x 111. Serial port: RS232 x 1, RS422/RS485 x 1 (function determined by wiring)12. Relay channels: 2 channels13. Relay contact Type: normally open (NO) x 1, normally closed (NC) x 114. Relay contact load: less than or equal to 10A 250V AC or less than or equal to 10A 30V DC15. Buttons: customized button x 1 (used for default firmware upgrade), RESET button x 1Standard version packaging list:- Luckfox Lyra PLC x 1- Glue stick antenna x 1- USB Type-A to Type-C cable approximately 1 meter x 1- SH1.0 3PIN connection cable approximately 100mm x 2- SH1.0 4PIN connection cable 100mm x 4- Snap-on plug 6mm x 1Specification: Package Weight One Package Weight 0.24kgs / 0.53lb One Package Size 14cm * 12cm * 10cm / 5.51inch * 4.72inch * 3.94inch Qty per Carton 24 Carton Weight 7.00kgs / 15.43lb Carton Size 50cm * 32cm * 30cm / 19.69inch * 12.6inch * 11.81inch Loading Container 20GP: 555 cartons * 24 pcs = 13320 pcs40HQ: 1289 cartons * 24 pcs = 30936 pcs
£93.99 - £100.99
-
Waveshare Waveshare 5/CM5 Dedicated PoE(+) Expansion Board For Raspberry Pi, 34611, 34612+ Case
1. PoE power Input: 38V ~ 57V DC input2. Power output: GPIO header 5V 5A (MAX)3. Product dimensions: 64.98 x 64.98mm4. Network standard: supports IEEE 802.3af/at (PoE / PoE+)5. For Raspberry Pi 5 / CM 5, onboard 5V interface, compatible with official enclosureSupports IEEE 802.3af/at network standard6. When used with PoE routers or switches supporting the IEEE 802.3af/at network standard, only one network cable is needed for the Raspberry Pi to connect to the network and be powered.Specification: Package Weight One Package Weight 0.05kgs / 0.12lb One Package Size 11cm * 11cm * 5cm / 4.33inch * 4.33inch * 1.97inch Qty per Carton 72 Carton Weight 4.70kgs / 10.36lb Carton Size 46cm * 35cm * 32cm / 18.11inch * 13.78inch * 12.6inch Loading Container 20GP: 517 cartons * 72 pcs = 37224 pcs40HQ: 1201 cartons * 72 pcs = 86472 pcs
£20.99 - £29.99
-

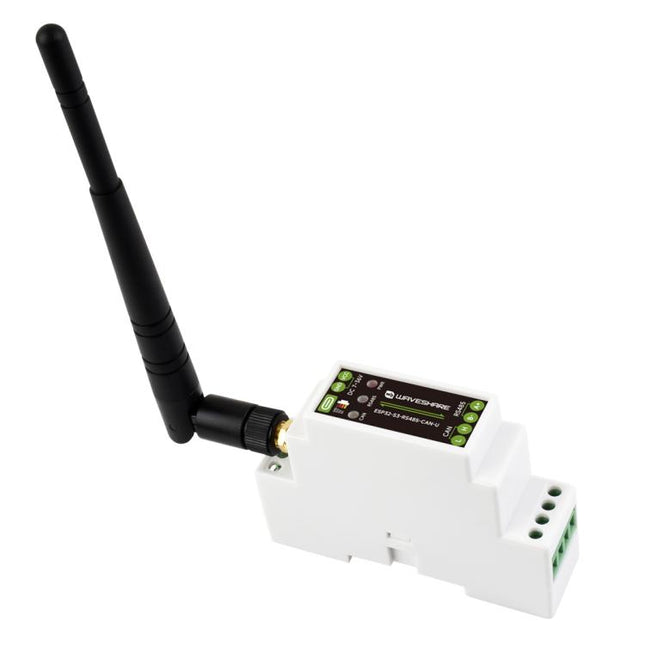

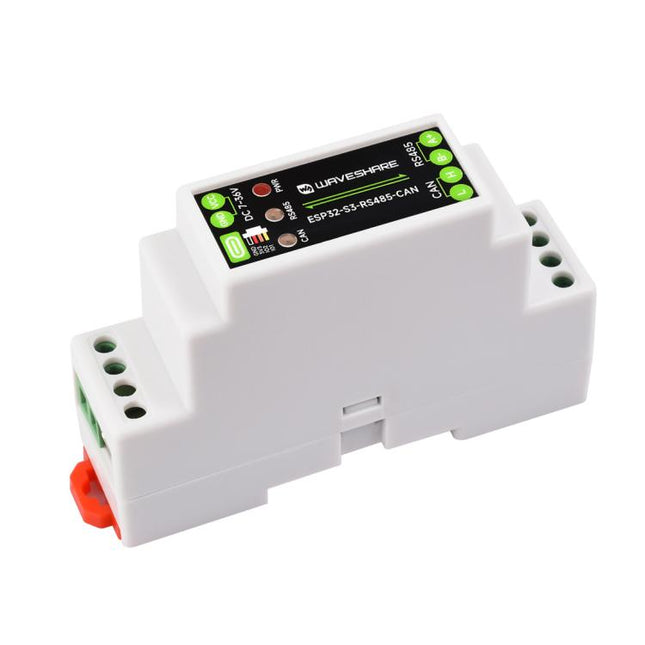

Waveshare Waveshare Industrial ESP32-S3 Control Board With RS485 And CAN Communication Interfaces, External Antenna, Onboard Antenna
1. Based on the ESP32-S3 microcontroller, featuring an integrated Xtensa 32-bit LX7 dual-core processor with a clock speed of up to 240 MHz.2. Integrates 2.4 GHz Wi-Fi and Bluetooth 5 (LE) dual-mode wireless communication, offering excellent RF performance.3. Features an onboard isolated RS485 interface for easy expansion and connection to various RS485 Modbus industrial modules or sensors.4. Features an onboard isolated CAN interface for easy expansion and connection to various CAN devices.5. Includes onboard pin headers for connecting to other devices.6. Equipped with an onboard USB Type-C interface for power supply, firmware downloading, and debugging; also includes a terminal block power input supporting a wide 7V–36V voltage range, suitable for industrial power applications.7. Features an onboard RTC (Real-Time Clock) chip to support scheduled tasks.8. Incorporates onboard digital isolation to protect the control chip from external signal interference.9. Features onboard integrated power isolation to provide stable isolated voltage, eliminating the need for an external power supply on the isolated side.10. Includes onboard RS485 transceiver indicators and CAN status indicators for easy monitoring of device operation.11. Housed in a DIN-rail mountable protective enclosure for convenient installation and enhanced safety.Specification: Package Weight One Package Weight 0.10kgs / 0.23lb One Package Size 12cm * 8cm * 5cm / 4.72inch * 3.15inch * 1.97inch Qty per Carton 100 Carton Weight 11.00kgs / 24.25lb Carton Size 50cm * 32cm * 30cm / 19.69inch * 12.6inch * 11.81inch Loading Container 20GP: 555 cartons * 100 pcs = 55500 pcs40HQ: 1289 cartons * 100 pcs = 128900 pcs
£18.99 - £20.99
-

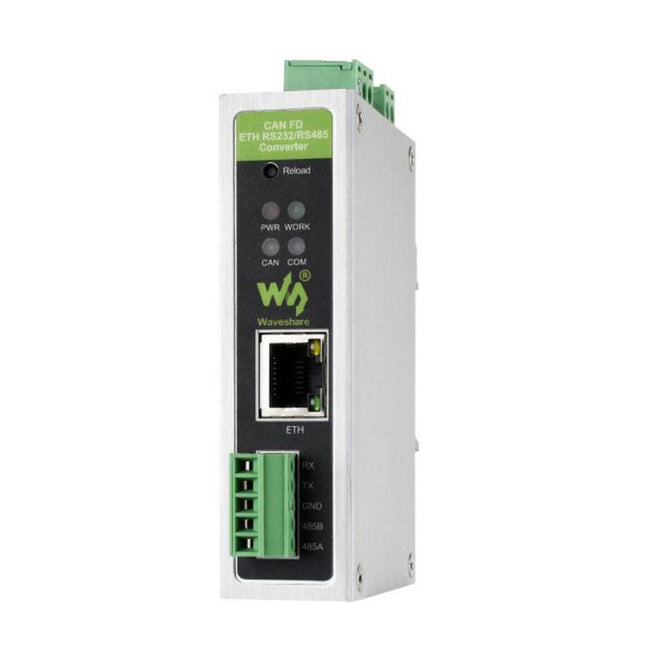

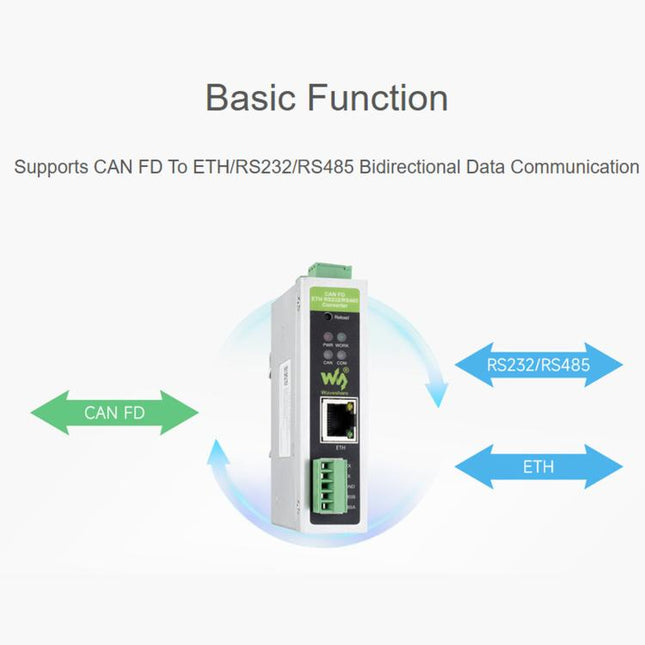

Waveshare Waveshare CAN FD Protocol Converter CAN FD To ETH/RS232/RS485 Bidirectional Data Communication, CAN FD To ETH/RS232/RS485
1. The CAN FD ETH RS232/RS485 Converter is a DIN-rail mountable device designed for bidirectional conversion between CAN FD and Ethernet/RS485/RS232 interfaces. It features high speed, low latency, stable performance, ease of use, and excellent cost-effectiveness. Supporting five data conversion modes—Transparent, Transparent with ID, Standard Protocol, Modbus, and Custom Frame Header/Footer—it enables interconnection between CAN networks and Ethernet or serial devices and is compatible with CAN FD and CAN 2.0A/2.0B protocols.2. Built with an industrial-grade design, the device operates reliably within a temperature range of -40C to 85C and supports a wide power input range of 9V to 36V. It accommodates baud rates of 5 Kbps to 1 Mbps for the arbitration field and 100 Kbps to 5 Mbps for the data field.3. The device supports configuration via host-side software and features a built-in 120Ω bus resistor (selectable via DIP switch) and DIN-rail mounting capability, ensuring convenient and efficient setup and installation. Basic Specifications:1. Operating Voltage: DC 9V–36V2. Dimensions: 110 × 27 × 85.6 mm3. Mounting: DIN-rail mounting4. Reload Button: Long press to restore factory settings5. Indicators: POWER, WORK, COM, and CANInterface Specifications:1. CAN Port: 1 CAN port; supports CAN FD; compatible with CAN 2.0A/2.0B2. CAN Baud Rate: Arbitration phase: 5 Kbps–1 Mbps; Data phase: 100 Kbps–5 Mbps3. Termination Resistor: Two built-in 120Ω resistors; setting either DIP switch to ON connects one 120Ω resistor in parallel; setting both to ON connects two 120Ω resistors in parallel4. Ethernet Port: RJ45, 10/100 Mbps, auto-MDI/MDIX5. Serial Port: Supports one RS485 or RS232 connectionSoftware Functions:1. Modbus Gateway: Ethernet: CAN (FD) to Modbus TCP (Master/Slave); Serial: CAN (FD) to Modbus RTU (Master/Slave)2. Transmit Messages: Supports configuration of up to 64 transmit messages3. Receive Messages: Supports configuration of up to 64 receive messages4. Conversion Modes: Transparent conversion, transparent conversion with ID, standard conversion, Modbus conversion, and custom frame header/footer conversion5. CAN ID: Supports standard frames and extended frames6. Frame ID Filtering: Supports standard frames only, extended frames only, and custom input frame IDs (up to 32 groups)7. Packetization (Frame Count/Time): Supports custom frame count and custom time interval for packetization (Ethernet port)8. Conversion Direction: Supports bidirectional conversion, Serial/Ethernet to CAN only, or CAN to Serial/Ethernet only9. Firmware Upgrade: Supports firmware upgrades via host software10. Parameter Configuration: AT commands Configuration via commands and host-side software11. Other functions: Supports heartbeat packets and registration packets; operating modes include normal, loopback, and listen-only (for the Ethernet port)Protection parameters:1. Electrostatic discharge (ESD) protection: Air discharge 8 kV, contact discharge 6 kV2. Electrical fast transient (EFT) immunity: Power circuit 2 kV; RS485/RS232 circuit 1 kV; CAN circuit 1 kV; Ethernet port circuit 1 kV3. Surge immunity test: Power circuit (differential mode 1 kV, common mode 2 kV); CAN circuit (common mode 2 kV); serial port circuit (common mode 2 kV); Ethernet port circuit (common mode 2 kV)Specification: Package Weight One Package Weight 0.15kgs / 0.34lb One Package Size 14cm * 12cm * 5cm / 5.51inch * 4.72inch * 1.97inch Qty per Carton 54 Carton Weight 9.20kgs / 20.28lb Carton Size 42cm * 32cm * 35cm / 16.54inch * 12.6inch * 13.78inch Loading Container 20GP: 566 cartons * 54 pcs = 30564 pcs40HQ: 1316 cartons * 54 pcs = 71064 pcs
£62.99
-

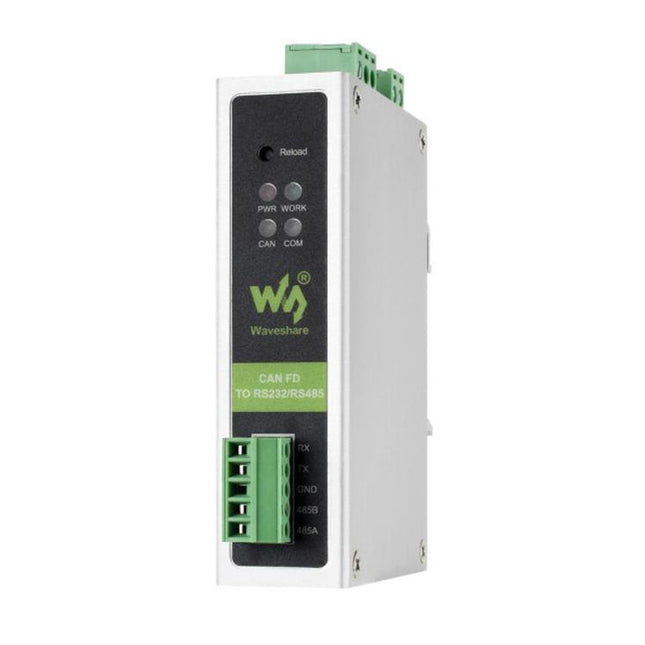

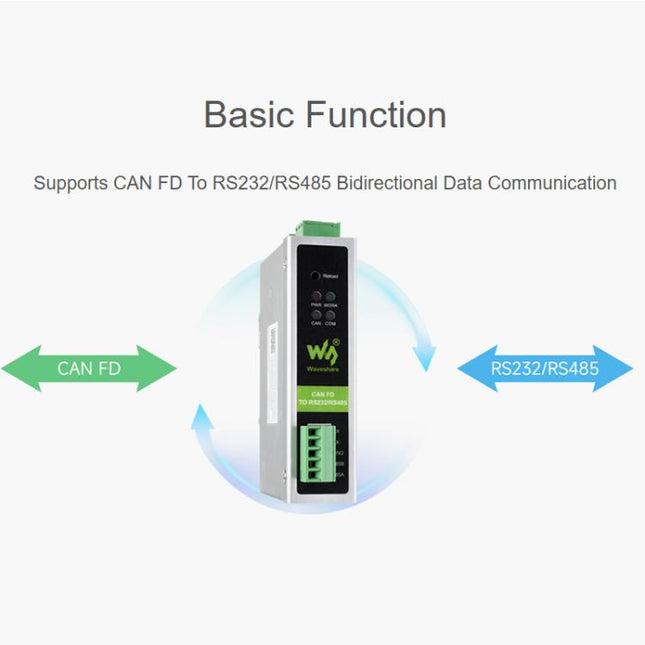

Waveshare Waveshare CAN FD Protocol Converter CAN FD To RS232/RS485 Bidirectional Data Communication, CAN FD To RS232/RS485
1. The CAN FD to RS232/RS485 converter is a DIN-rail mountable device designed for bidirectional data conversion between CAN FD and RS232/RS485 interfaces. It features high speed, low latency, stable performance, ease of use, and cost-effectiveness. It supports five data conversion modes—Transparent, Transparent with ID, Standard Protocol, Modbus, and Custom Frame Header/Footer—enabling interconnection between CAN and serial devices, while remaining compatible with CAN FD and CAN 2.0A/2.0B protocols.2. Built with an industrial-grade design, the device operates reliably within a temperature range of -40C to 85C and supports a wide input voltage range of 9V to 36V. It accommodates baud rates of 5 Kbps to 1 Mbps for the arbitration field and 100 Kbps to 5 Mbps for the data field.3. The device supports configuration via host software and features a built-in 120Ω bus resistor (selectable via DIP switch). Designed for DIN-rail mounting, it offers convenient configuration and efficient installation. Basic Parameters:1. Operating Voltage: DC 9V–36V2. Dimensions: 110 × 27 × 85.6 mm3. Mounting Method: DIN-rail mounting4. Reload Button: Long press to restore factory settings5. Indicators: POWER, WORK, COM, and CANInterface Parameters:1. CAN Port Specifications: 1 CAN port; supports CAN FD; compatible with CAN 2.0A/2.0B2. CAN Port Baud Rate: Arbitration phase: 5 Kbps–1 Mbps; Data phase: 100 Kbps–5 Mbps3. Termination Resistors: Two built-in 120Ω resistors; setting either DIP switch to ON connects one 120Ω resistor in parallel; setting both to ON connects two 120Ω resistors in parallel4. Serial Port Specifications: Supports one RS485 or RS232 connectionSoftware Functions:1. Modbus Gateway: CAN FD to Modbus RTU (Master/Slave)2. Transmit Messages: Supports configuration of up to 64 transmit messages3. Receive Messages: Supports configuration of up to 64 receive messages4. Conversion Modes: Transparent conversion, transparent conversion with ID, standard conversion, Modbus conversion, and custom frame header/footer conversion5. CAN ID: Supports standard frames and extended frames6. Frame ID Filtering: Supports standard frames only, extended frames only, and custom input frame IDs (up to 32 groups)7. Conversion Direction: Supports bidirectional conversion, serial-to-CAN only, and CAN-to-serial only8. Firmware Upgrade: Supports firmware upgrades via host PC software9. Parameter Configuration: AT commands or host PC software configurationProtection Parameters:1. ESD Protection: Air discharge 8 kV, contact discharge 6 kV2. Electrical Fast Transient (EFT): Power circuit 2 kV; RS485/RS232 circuit 1 kV; CAN circuit 1 kV3. Surge immunity test: Power supply circuit—differential mode 1 kV, common mode 2 kV; CAN circuit—common mode 2 kV.Specification: Package Weight One Package Weight 0.15kgs / 0.34lb One Package Size 14cm * 12cm * 5cm / 5.51inch * 4.72inch * 1.97inch Qty per Carton 54 Carton Weight 9.20kgs / 20.28lb Carton Size 42cm * 32cm * 35cm / 16.54inch * 12.6inch * 13.78inch Loading Container 20GP: 566 cartons * 54 pcs = 30564 pcs40HQ: 1316 cartons * 54 pcs = 71064 pcs
£39.99
-
Waveshare Waveshare For Raspberry Pi LoRaWAN Gateway Module Standard Mini-PCIe Socket, SX1302 868M, SX1302 868M With Expansion Board, SX1303 868M, SX1303 868M With Expansion Board, SX1302 915M, SX1302 915M With Expansion Board, SX1303 915M ...
Gateway module features:1. On-board Semtech SX1302/3 baseband processor and SX1250 RF front-end chipset2. On-board PA and LNA, with +26 dBm transmit power and -141 dBm receive sensitivity3. The SX1303 supports fine-grained timestamping, enabling network positioning based on Time Difference of Arrival (TDOA)4. Mini-PCIe form factor with 52-pin header, facilitating integration into various embedded systems5. Four onboard LED indicators for easy monitoring of module operating statusExpansion board features:1. Based on the Raspberry Pi 40-pin GPIO interface, compatible with Raspberry Pi series motherboards2. On-board L76K module supporting GPS and Beidou, providing precise clock and positioning coordinates for the gateway moduleModule specifications1. Baseband chip: SX1302: 868 MHz, 915 MHz; SX1303: 868 MHz, 915 MHz2. Frequency bands: 868 MHz: EU868, IN865, RU864; 915 MHz: US915, AU915, KR9203. Supply voltage: 5V4. Modulation: LoRa/(G)FSK5. Transmit power: +26 dBm at 5V6. Receive sensitivity: -141 dBm at 125 kHz/SF12; -121 dBm at 125 kHz/SF57. Communication interfaces: SPI, I2C8. Form factor: Mini-PCIe9. Operating temperature: -40–85°C10. Total power consumption: SX1302: Transmit: 454mA at 5V; Receive: 42mA at 5V; Sleep: 11mA at 5V; SX1303: Transmit: 427mA at 5V; Receive: 40mA at 5V; Sleep: 8mA at 5V11. Size: about 5.095 x 3 cmPackage contents (Without expansion board):- SX130x module x 1- IPEX-to-SMA adapter (Male-to-Female, about 17 cm) x 1- 868 MHz/915 MHz rubber rod antenna x 1Package contents (With expansion board):- SX130x module x 1- 868 MHz/915 MHz rubber rod antenna x 1- Expansion board x 1- GPS antenna x 1- 2x20-pin header x 1- IPEX-1 (black) dual-ended cable x 1- Screw pack x 1Specification: Package Weight One Package Weight 0.04kgs / 0.10lb One Package Size 10cm * 5cm * 4cm / 3.94inch * 1.97inch * 1.57inch Qty per Carton 252 Carton Weight 12.00kgs / 26.46lb Carton Size 50cm * 37cm * 32cm / 19.69inch * 14.57inch * 12.6inch Loading Container 20GP: 450 cartons * 252 pcs = 113400 pcs40HQ: 1045 cartons * 252 pcs = 263340 pcs
£83.99 - £106.99
-
Waveshare Waveshare For Raspberry Pi Pico 2 Microcontroller Board Based On Official RP2350 Chip Dual-Core & Dual-Architecture Design, Original, Starter Kit, Sensor Kit
1. The official Raspberry Pi self-designed RP2350 microcontroller chip was adopted2. It features a unique dual-core, dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, with operating frequencies reaching up to 150 MHz flexible clock3. It is equipped with 520KB SRAM and 4MB on-chip Flash4. The stamp hole design allows for direct soldering integration onto the user self-designed baseboard5. Supports USB1.1 host and device6. Supports low-power sleep and hibernation modes7. Can be recognized as a large-capacity storage device via USB for drag-and-drop program download8. Up to 26 multi-functional GPIO pins, 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, and 16 controllable PWM channels9. Comes with a temperature sensor10. 12 programmable I/O (PIO) state machines for custom peripheral supportParameters1. Processor: dual-core ARM Cortex-M33; Dual-core Hazard3 RISC-V 150MHz2. SRAM: 520KB3. Flash: 4MB4. Security features: boot signature, OTP storage for decryption, hardware SHA-256 accelerator, etc.5. GPIO pins: 266. Peripherals:- UART x 2- SPI x 2- I2C x 2- ADC x 3- USB 1.1 and PHY x 1- PWM x 16- PIO state machines x 12- HSTX x 1Entry-level kit packaging list:- Raspberry Pi Pico 2 (with soldered yellow pin headers) x 1- Acrylic transparent protective cover x 1- Large breadboard + breadline x 1- USB cable Type A male to Micro male, about 1.2 meters long x 1Sensor kit packaging list:- Sensor kit x 1- Raspberry Pi Pico 2 (with soldered yellow pin headers) x 1- Acrylic transparent protective cover x 1- PH2.0 4PIN connection cable 300mm (5pcs) × 1- PH2.0 double-ended connection cable 4PIN opposite direction (15pcs) x 1- Infrared remote control x 1- USB cable Type A male to Micro male about 1.2 meters x 1Specification: Package Weight One Package Weight 0.02kgs / 0.05lb One Package Size 8cm * 4cm * 4cm / 3.15inch * 1.57inch * 1.57inch Qty per Carton 432 Carton Weight 10.00kgs / 22.05lb Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch Loading Container 20GP: 412 cartons * 432 pcs = 177984 pcs40HQ: 958 cartons * 432 pcs = 413856 pcs
£7.99 - £50.99
-

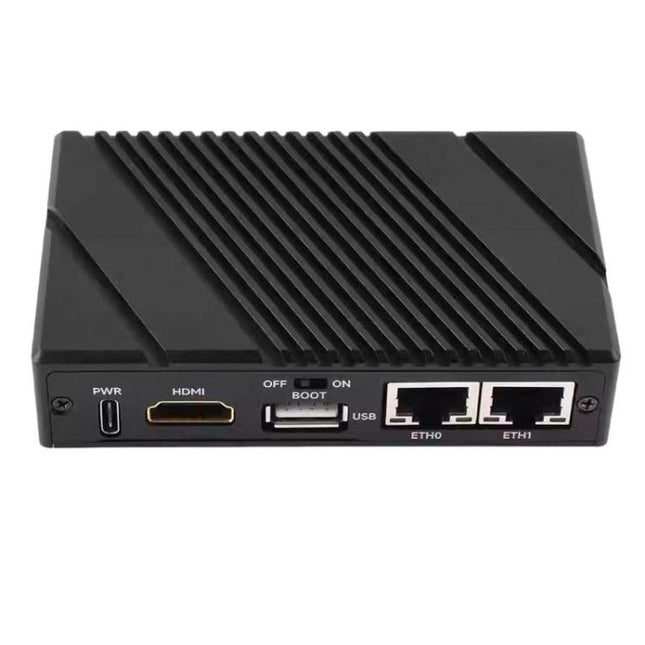

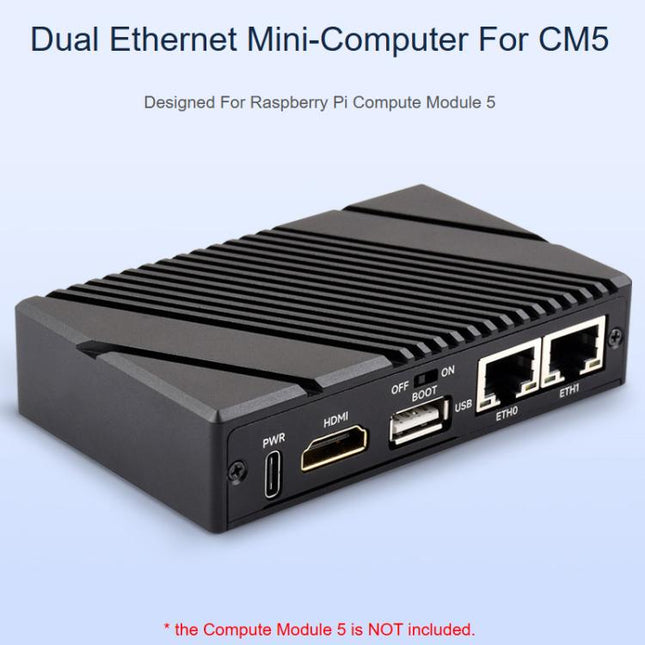

Waveshare For Raspberry Pi CM5 Gigabit / 2.5G Dual Ethernet Mini-Computer Supports Dual RJ45 Ethernet Ports, 4K Display Output And Dual MIPI Interfaces, Waveshare 34180
1. CM5 card slot: compatible with all versions of Compute Module 52. Networking: 1000M Ethernet RJ45 port; 2500M Ethernet RJ45 port3. Connectors: Raspberry Pi 40-pin GPIO interface4. MIPI: 4-lane MIPI interface x 2 (22-pin 0.5mm FFC connector)5. Video: HDMI port x 1, supporting 4K output6. M.2: M.2 M KEY (PCIe Gen2/3 x 1)7. Storage: onboard Micro SD card slot (for CM5 versions without eMMC)8. Fan interface: 5V, 4-pin JST-SH PWM fan connector9. Power input: DC 5V 5A10. Size: about 10.1 x 6.2 x 2.34 cmPackaging list:- Metal casing (upper and lower boxes) x 1- CM5-DUAL-ETH-BASE-B x 1- Thermal conductive silicone sheet x 1- Screwdriver x 1- Pink high thermal conductive silicone sheets (5 pieces) x 1- Screw pack x 1Specification: Package Weight One Package Weight 0.81kgs / 1.79lb One Package Size 14cm * 10cm * 5cm / 5.51inch * 3.94inch * 1.97inch Qty per Carton 63 Carton Weight 53.00kgs / 116.84lb Carton Size 44cm * 37cm * 32cm / 17.32inch * 14.57inch * 12.6inch Loading Container 20GP: 511 cartons * 63 pcs = 32193 pcs40HQ: 1188 cartons * 63 pcs = 74844 pcs
£72.99
-

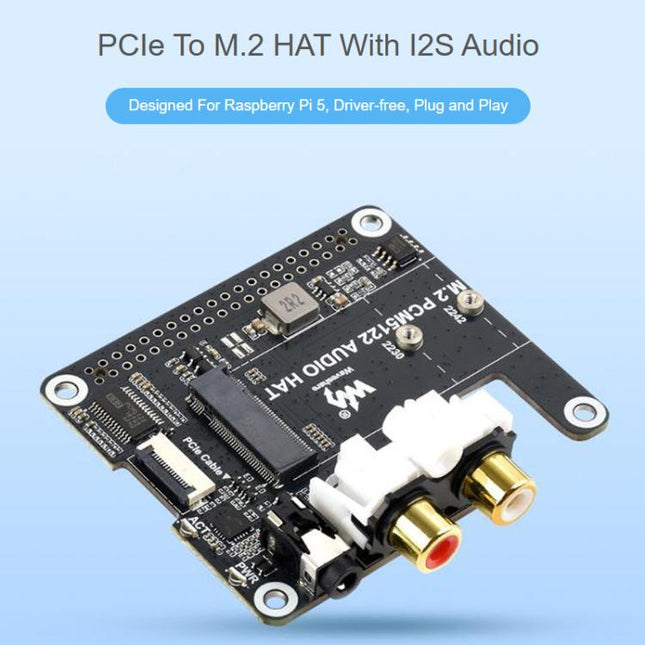

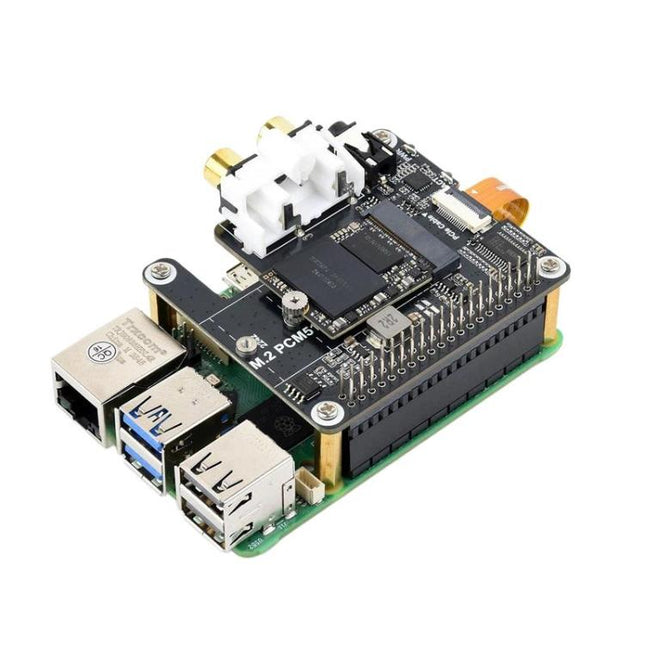

Waveshare For Raspberry Pi 5 PCIe To M.2 HAT With I2S Audio Extension Supports NVMe Protocol Solid State Drive, Waveshare 34170
1. Based on the 40-pin GPIO interface of Raspberry Pi, specially designed for Raspberry Pi 5 2. Utilizing the PCM5122 professional stereo codec chip, controlled via I2C interface and transmitting audio through I2S interface 3. Built-in standard 3.5mm headphone jack, allowing music playback through an external headphone 4. Built-in RCA port, suitable for various working scenarios such as speaker amplifiers 5. Supports the highest sampling frequency of 384KHz 6. Supports the highest resolution of 32bit 7. Supports 2230 / 2242 size NVMe M.2 hard drives or M.2 M KEY AI modules 8. The M.2 M KEY module supports a maximum transfer rate of 8Gbps 9. Size: about 6.5 x 5.65cm Packaging list: - M.2-PCM5122-AUDIO-HAT x 1 - Flush-mounted seats: 2 x 20, 2.54mm x 1 - 16P-Cable-40mm x 1 - Screw cap x 1Specification: Package Weight One Package Weight 0.05kgs / 0.12lb One Package Size 9cm * 8cm * 4cm / 3.54inch * 3.15inch * 1.57inch Qty per Carton 192 Carton Weight 11.00kgs / 24.25lb Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch Loading Container 20GP: 412 cartons * 192 pcs = 79104 pcs40HQ: 958 cartons * 192 pcs = 183936 pcs
£14.99
-

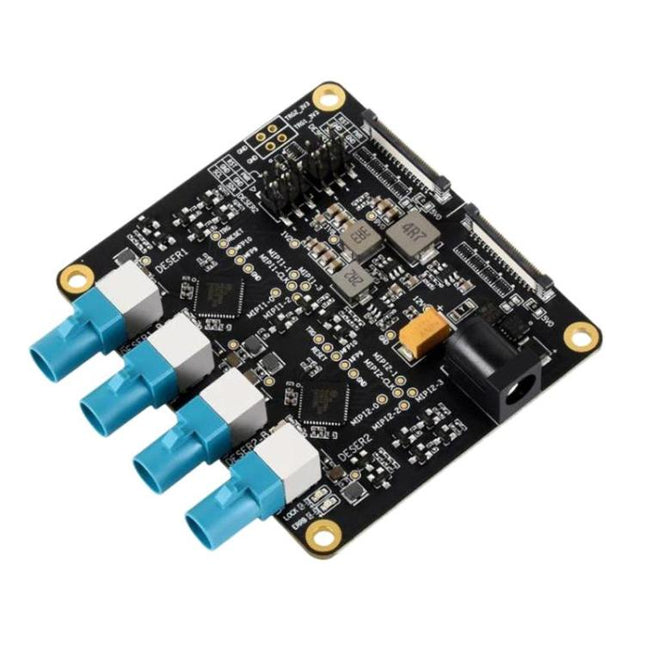

Waveshare Waveshare 34128 4-Ch GMSL Camera Adapter Board, Equipped With MAX9296 Deserializer, For Raspberry Pi 5, EU Plug, UK Plug, US Plug
1. Support simultaneous connection of up to four GMSL cameras2. Support up to 2 x 8M resolution (3840 x 2160) or 4 x 3M resolution (1920 x 1536) video signals3. Adopt the MAX9296 deserializer solution4. Support synchronous signal connection of cameras via GPIO5. Support Raspberry Pi 5 motherboardParameters1. Demultiplexer: MAXIM (ADI) MAX92962. Supports master control: Raspberry Pi 53. Supports serial converter models: MAX9295, MAX96717 and MAX96705, etc.4. Input: GMSL 1/2 (FAKRA Z connector x 4)5. Output: MIPI CSI (22PIN CSI interface x 2)6. Supported: GMSL camera models: ISX031, etc.7. Power input: 12V/1A (5.5 x 2.1mm)8. Operating temperature: -20°C - 65°CPackaging list:- GMSL-Module-Board-4CH-A x 1- 22-pin FPC connector x 2- Power adapter 12V/2A x 1Specification: Package Weight One Package Weight 0.19kgs / 0.43lb One Package Size 10cm * 10cm * 4cm / 3.94inch * 3.94inch * 1.57inch Qty per Carton 108 Carton Weight 22.00kgs / 48.50lb Carton Size 50cm * 32cm * 32cm / 19.69inch * 12.6inch * 12.6inch Loading Container 20GP: 520 cartons * 108 pcs = 56160 pcs40HQ: 1209 cartons * 108 pcs = 130572 pcs
£265.99
-

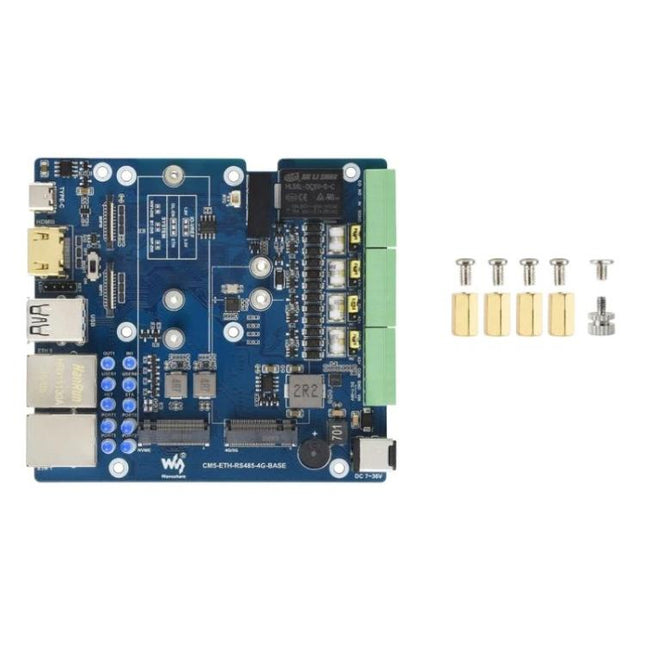

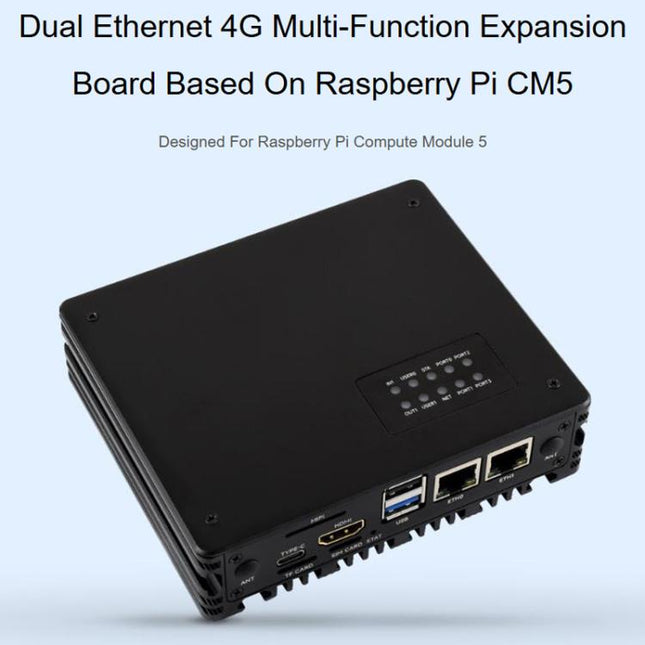

Waveshare CM5 Gigabit/2.5G Dual Ethernet Multi-Function Expansion Board Supports RS485 Industrial Communication, 4G / 5G Module And 4K Display Output, Waveshare 34251
1. CM5 card slot: compatible with all versions of Compute Module 52. Networking: 1000M Ethernet RJ45 port x 1; 2500M Ethernet RJ45 port x 13. Video: HDMI port x 1, supporting 4K output4. USB: USB 2.0 port (Type-C) x 1; USB 2.0 port (Type-A) x 1; USB 3.2 Gen1 port (Type-A) x 15. M.2: M.2 M KEY (PCIe Gen2/3 x 1, supporting 2230 / 2242 / 2280 NVMe or AI modules); M.2 B KEY, supporting 4G / 5G communication modules6. Storage: onboard Micro SD card slot (for CM5 versions without eMMC)7. Serial interface: RS485 x 48. Digital input: digital input x 1 (input voltage: 5V - 36V)9. Relay: allowable load: less than or equal to 10A 250V AC or less than or equal to 10A 30V DC10. Fan interface: 5V, 4-pin JST-SH PWM fan connector11. Beeper: single-channel controllable12. Others: onboard encryption chip13. Power input: 7V - 36V wide voltage (terminal block + round hole) or 5V 5A (Type-C)14. Size: about 13.25 x 11.22 x 3.45 cmBase plate packing list:- CM5-ETH-RS485-4G-BASE x 1- Screw cap x 1Specification: Package Weight One Package Weight 0.12kgs / 0.26lb One Package Size 16cm * 14cm * 6cm / 6.3inch * 5.51inch * 2.36inch Qty per Carton 96 Carton Weight 13.00kgs / 28.66lb Carton Size 50cm * 38cm * 30cm / 19.69inch * 14.96inch * 11.81inch Loading Container 20GP: 467 cartons * 96 pcs = 44832 pcs40HQ: 1086 cartons * 96 pcs = 104256 pcs
£55.99
-

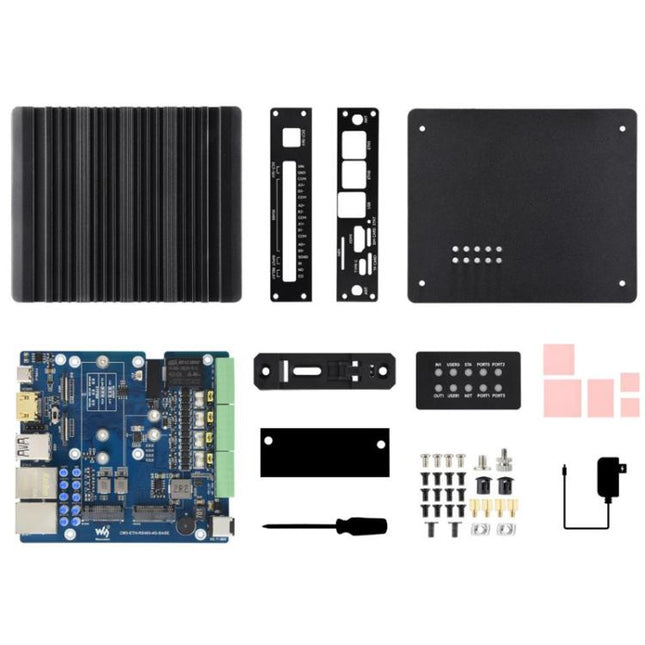

Waveshare Waveshare 34252 CM5 Gigabit/2.5G Dual Ethernet Multi-Function Expansion Board Supports RS485 Industrial Communication, 4G / 5G Module And 4K Display Output, EU Plug, UK Plug, US Plug
1. The entire casing is made of aluminum alloy, which can conduct and dissipate heat over a large area. Coupled with heat dissipation fins, the heat dissipation is more efficient2. The detailed hole layout ensures that each interface can fit tightly to the motherboard, and the interface areas are marked with clear silk-screening for easy viewing3. There are more abundant interfaces, equipped with ETH / MIPI / HDMI / Micro SD / USB / M.2 B KEY / M KEY and other various interfaces. They are more convenient to use4. It supports rail brackets. The back of the host is reserved for installation screw holes, allowing it to be fixed on the rail5. It is equipped with a standard CM5 connector, supporting the connection of Compute Module 5 Lite / eMMC series core boardsParameters1. CM5 slot: suitable for all versions of Compute Module 52. Networking: 1000M Ethernet RJ45 interface x 1; 2500M Ethernet RJ45 interface x 13. Video: HDMI interface x 1, supporting 4K output4. USB: USB 2.0 interface (Type-C) x 1; USB 2.0 interface (Type-A) x 1; USB 3.2 Gen1 interface (Type-A) x 15. M.2: M.2 M KEY (PCIe Gen2/3 x 1, supporting 2230/2242/2280 NVMe or AI module); M.2 B KEY, supporting 4G/5G communication module6. Storage: built-in Micro SD card slot (applicable to CM5 versions without eMMC)7. Serial interface: RS485 x 48. Digital input: digital input x 1 (input voltage: 5V - 36V)9. Relay: allows connection of loads: less than or equal to 10A 250V AC or less than or equal to 10A 30V DC10. Fan interface: 5V, 4PIN JST-SH PWM fan connector11. Beeper: single-channel controllable12. Others: built-in encryption chip13. Power input: 7V - 36V wide voltage (terminal + round hole) or 5V 5A (Type-C)14. Size: about 13.25 x 11.22 x 3.45 cmPackaging list:- Metal casing (top cover + bottom shell) and two baffles- CM5-ETH-RS485-4G-BASE x 1- Guide clip (20 x 76mm) x 1- Label x 1- Pink high thermal conductivity silicone sheet x 5- PC insulating sheet (104 x 40 x 0.2mm) x 1- Cross-head screwdriver x 1- Screw pack x 1- 12V 4A power supply x 1Specification: Package Weight One Package Weight 0.71kgs / 1.56lb One Package Size 20cm * 16cm * 8cm / 7.87inch * 6.3inch * 3.15inch Qty per Carton 16 Carton Weight 13.00kgs / 28.66lb Carton Size 42cm * 34cm * 34cm / 16.54inch * 13.39inch * 13.39inch Loading Container 20GP: 549 cartons * 16 pcs = 8784 pcs40HQ: 1275 cartons * 16 pcs = 20400 pcs
£72.99
-

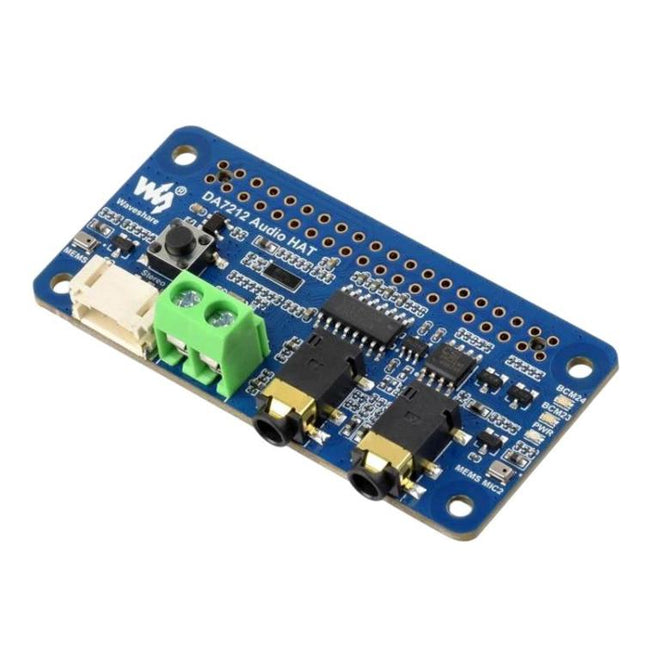

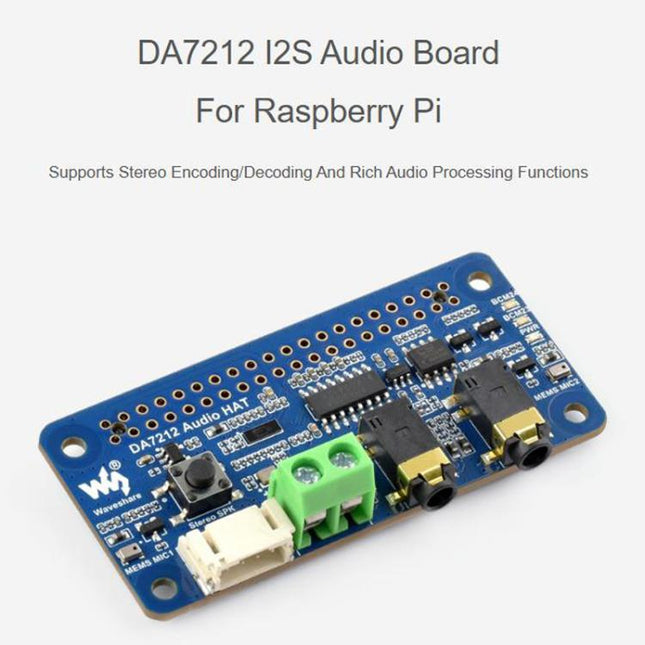

Waveshare DA7212 I2S Audio Board For Raspberry Pi, Stereo Encoding/Decoding, Waveshare 34213
1. Based on the 40-pin GPIO interface of Raspberry Pi, suitable for Raspberry Pi series motherboards2. Utilizing the DA7212 professional stereo codec chip, controlled via I2C interface and transmitting audio through I2S interface3. Built-in standard 3.5mm headphone jack, allowing music playback through an external headphone4. Built-in AUX input interface, facilitating the expansion connection of other devices5. Built-in speaker terminals and PH2.0 dual-channel speaker interface, supporting multiple types of interfaces for more versatile usage scenarios6. Built-in dual microphones, enabling recording without the need for additional device connections7. Built-in custom function keys and custom function indicator lights8. Supports the highest sampling frequency of 96KHz9. Supports the highest resolution of 24-bitParameters1. Audio codec chip: DA72122. Supply voltage: 5V3. Logic voltage: 3.3V4. Control interface: I2C5. Audio interface: I2S6. DAC signal-to-noise ratio: 100dB7. ADC signal-to-noise ratio: 90dB8. Headphone driver: 160mW (16 ohms, 5V)9. Speaker driver: 2.6W per channel (4 ohms, BTL)Specification: Package Weight One Package Weight 0.19kgs / 0.42lb One Package Size 9cm * 5cm * 3cm / 3.54inch * 1.97inch * 1.18inch Qty per Carton 360 Carton Weight 68.00kgs / 149.91lb Carton Size 47cm * 38cm * 32cm / 18.5inch * 14.96inch * 12.6inch Loading Container 20GP: 466 cartons * 360 pcs = 167760 pcs40HQ: 1083 cartons * 360 pcs = 389880 pcs
£15.99
-

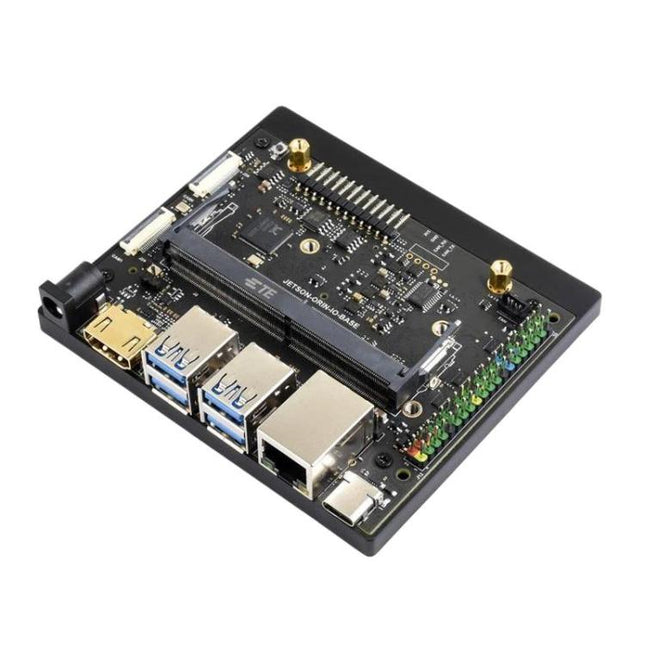

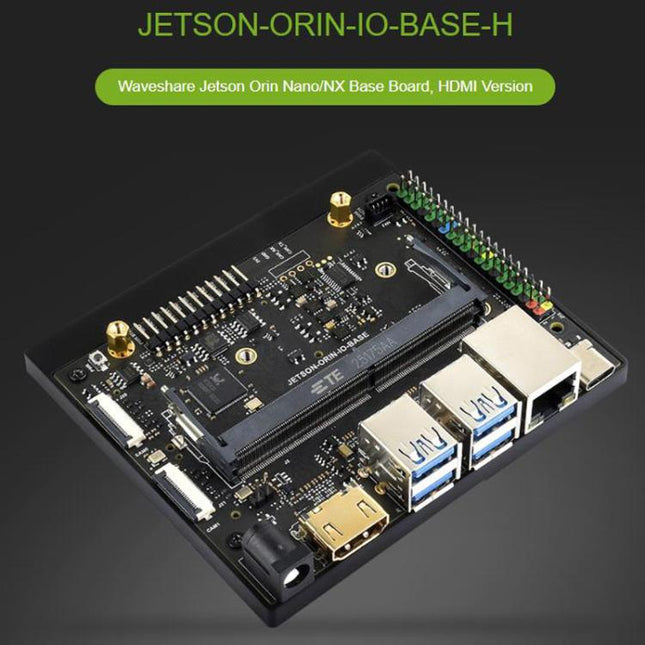

Waveshare Jetson Orin Nano / NX Super Base Board Based On Jetson Orin Nano/NX AI Module, 33495
1. Supports Orin core module, compatible with NVIDIA Jetson Orin Nano and Jetson Orin NX core boards2. Connects to cameras, expands two CSI interfaces, suitable for AI intelligent application scenarios such as face recognition, road marking line recognition, and license plate recognition3. Five USB interfaces, four Type-A and one Type-C. Can connect more and more external devices. The USB 3.2 Gen 2 interface can support up to 10Gbps data transmission, and the Type-C interface can be used for system burning4. Color 40PIN GPIO interface, uses colors for distinction, expands I2C, SPI, I2S, UART and GPIO resources5. Flexible storage and wireless expansion. The base board expands two M.2 Key M interfaces to facilitate users to connect solid-state hard drives, and the M.2 Key E interface is provided for users to connect wireless network cards, reducing the constraints of wires for the device6. Size: about 10.3 x 9.05cm7. Note: this product is only the base board and needs to be used in combination with the core boardPackaging list: - JETSON-ORIN-IO-BASE-H x 1- Screw cap x 1Specification: Package Weight One Package Weight 0.12kgs / 0.27lb One Package Size 14cm * 13cm * 4cm / 5.51inch * 5.12inch * 1.57inch Qty per Carton 48 Carton Weight 7.00kgs / 15.43lb Carton Size 50cm * 3cm * 28cm / 19.69inch * 1.18inch * 11.02inch Loading Container 20GP: 6349 cartons * 48 pcs = 304752 pcs40HQ: 14739 cartons * 48 pcs = 707472 pcs
£91.99
-

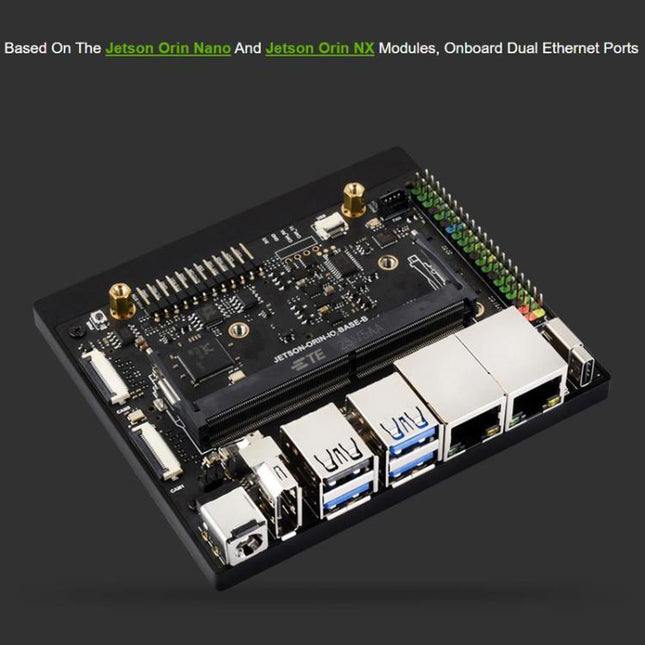

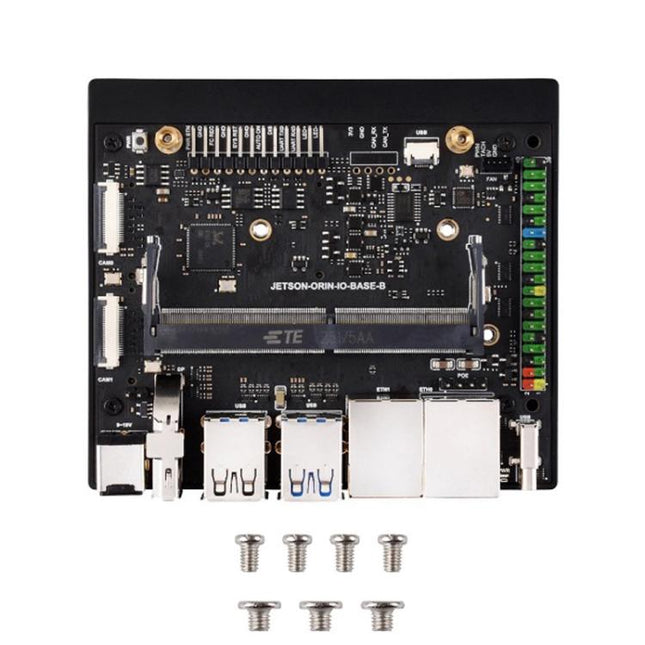

WAVESHARE For Jetson Orin Nano / NX Super Dual Ethernet Base Board, 24359
1. Camera input: expands two CSI interfaces for AI applications such as facial recognition, road sign detection, line recognition, and license plate recognition2. 7 USB Ports: 4 Type-A + 1 Type-C + 2 USB 2.0 ribbon cables for diverse peripherals. USB 3.2 Gen 2 port supports up to 10Gbps data transfer; Type-C port enables system flashing3. 4K HD Output via DisplayPort interface4. Color-coded 40-pin GPIO interface for expanding I2C, SPI, I2S, UART, and GPIO resources5. Flexible storage and wireless expansion: Base board features two M.2 Key M slots for SSDs and an M.2 Key E interface for wireless network cards, minimizing cable clutter6. Size: about 10.3 x 9.05 cmSpecification: Package Weight One Package Weight 0.09kgs / 0.21lb One Package Size 12cm * 12cm * 2cm / 4.72inch * 4.72inch * 0.79inch Qty per Carton 210 Carton Weight 20.00kgs / 44.09lb Carton Size 50cm * 38cm * 35cm / 19.69inch * 14.96inch * 13.78inch Loading Container 20GP: 401 cartons * 210 pcs = 84210 pcs40HQ: 930 cartons * 210 pcs = 195300 pcs
£98.99
-

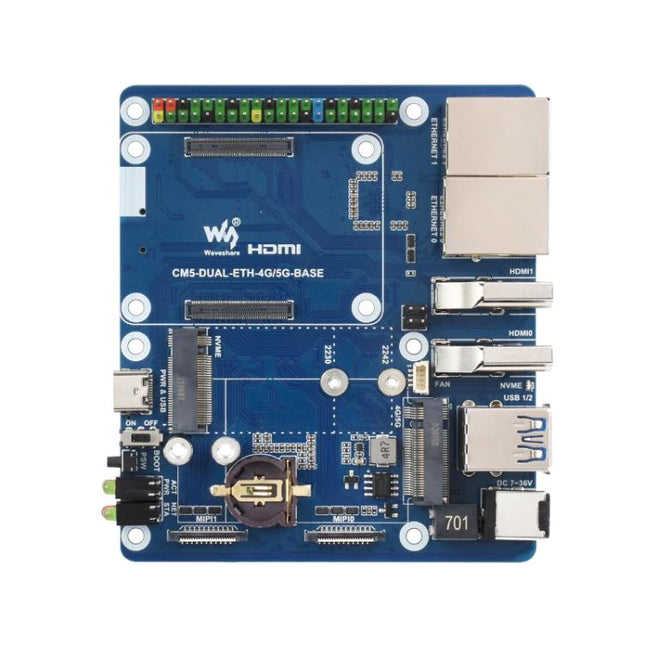

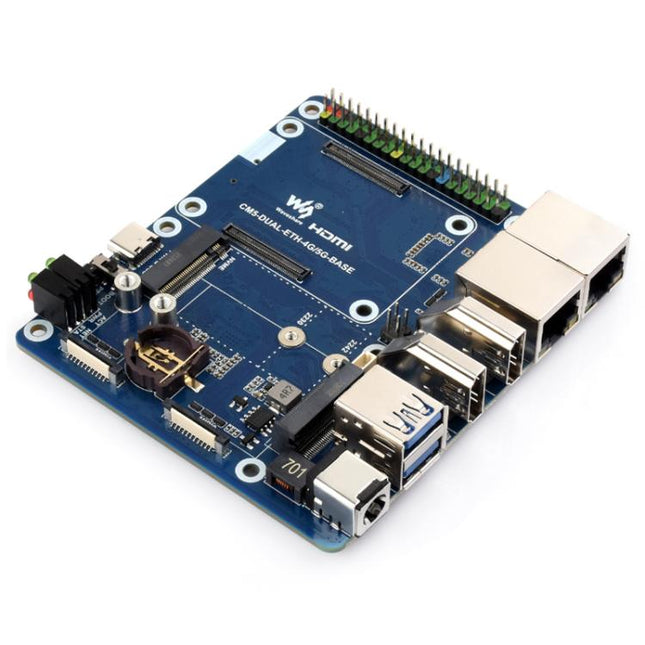

WAVESHARE WAVESHARE CM5 Dual Network Port Expansion Board Onboard USB 3.2 Gen1 X 2, Supports PoE Module Connection, 32580
1. Networking: 1000M Ethernet RJ45 interface; 2500M Ethernet RJ45 interface2. Connector: Raspberry Pi 40PIN GPIO interface3. USB: USB 3.2 Gen1 x 24. MIPI: 4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector)5. Video: HDMI interface x 2, supports dual 4K output6. M.2: M.2 M KEY (PCIe Gen2/3 x1)7. M.2 (4G/5G): B KEY, supports 4G/5G communication module8. Storage: Onboard Micro SD card slot (for CM5 versions without eMMC)9. Fan Interface: 5V, 4PIN JST-SH PWM fan connector10. Power Input: 7V ~36V wide voltage (round terminal), 5V 5A (Type-C)11. Supports 4-screen display, with added MIPI DSI driver; the system will default to connecting to the screens regardless of whether they are connected, and the screens will display in split-screen mode (this depends on the system version).12. Dimensions: 99.60 x 87.00 mmSpecification: Package Weight One Package Weight 0.06kgs / 0.14lb One Package Size 12cm * 12cm * 4cm / 4.72inch * 4.72inch * 1.57inch Qty per Carton 96 Carton Weight 6.90kgs / 15.21lb Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch Loading Container 20GP: 412 cartons * 96 pcs = 39552 pcs40HQ: 958 cartons * 96 pcs = 91968 pcs
£57.99
-
15W 3A High-power UPS18650 Lithium Battery Boost Charging Module, 5V, 9V, 12V
Notes:1. There are MOS and other components on the board, which are easily damaged by soldering iron induction electricity or static electricity. Please make sure that the soldering iron used is grounded (and the ground wire of the power strip is connected). It is best to wear anti-static gloves when operating.2. Be careful not to install the battery upside down, otherwise the board may burn.3. Please choose a power supply with sufficient power. Only in this way can the board work properly.4. The board power supply should not be higher than 5V.5. Please do not modify the board without technical confirmation.6. It is normal for the module to heat up when working at high power, just pay attention to fanning.Product Introduction:1. This product is suitable for power-off equipment without power outages. When there is power, use external power supply, and automatically switch to battery power supply seamlessly when there is a power outage.2. If the USB interface is used for power supply, it is recommended to use the Type-c interface. Compared with the microUSB interface, the current that can pass is much larger, and the maximum current that can pass is 5A.3. Suitable for routers, cameras, development boards and other devices, seamlessly switch to battery power when power is off, and keep the network connected when power is off.4. Seamless switching between external power supply and battery dual power supply (no delay)5. Uninterrupted power supply, automatic start when power is off, automatic charging when incoming call.6. Output voltage 5V/9V/12V optional, other voltages can be customized.7. Four practical functions: lithium battery charging, lithium battery protection, boost output, and UPS switching.8. Two-color LED indicates charging status, the green light is always on when full, and charging stops automatically.9. Type-C interface, large current.10. Product size: 89 x 42mm11. Weight: about 37gFunction description:1. UPS function: When the power supply is powered, the power supply directly supplies power to the load through the boost circuit, and charges the lithium battery at the same time. Once the power supply is off, the battery path is automatically started to supply power to the load through the boost circuit.2. Boost circuit: peak power up to 20W, rated power up to 15W, BOST boost circuit, built-in 12A high current MOS, efficiency up to 96%, module static power consumption 25mA, optional 5V/9V/12V output.(Load normal recommendation <15W. Output 5V: current 3A, output 9V: current 1.6A, output 12V: current 1.2A)3. Lithium battery protection overcharge, over discharge, over temperature, over current protection (if short-circuited by mistake, it will enter the protection state and no output, and it will automatically activate and restore output when connected to 5V charging)Specification: Package Weight One Package Weight 0.06kgs / 0.14lb One Package Size 12cm * 7cm * 4cm / 4.72inch * 2.76inch * 1.57inch Qty per Carton 144 Carton Weight 9.80kgs / 21.61lb Carton Size 38cm * 30cm * 50cm / 14.96inch * 11.81inch * 19.69inch Loading Container 20GP: 467 cartons * 144 pcs = 67248 pcs40HQ: 1086 cartons * 144 pcs = 156384 pcs
£4.99 £1.99
