WAVESHARE
-
WAVESHARE Waveshare RP2040-Plus Pico-like MCU Board Based on Raspberry Pi MCU RP2040, with Pinheader, RP2040-Plus with Pinheader
Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now. As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins. What is different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip. Key features include: 1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom 2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 3. 264KB of SRAM, and 4MB of on-board Flash memory 4. USB-C connector, keeps it up to date, easier to use 5. Lithium battery recharge/discharge header, suitable for mobile devices 6. Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch 7. Castellated module allows soldering direct to carrier boards 8. USB 1.1 with device and host support 9. Low-power sleep and dormant modes 10. Drag-and-drop programming using mass storage over USB 11. 26 x multi-function GPIO pins 12. 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels 13. Accurate clock and timer on-chip 14. Temperature sensor 15. Accelerated floating-point libraries on-chip 16. 8 x Programmable I/O (PIO) state machines for custom peripheral supportSpecification: Package Weight One Package Weight 0.02kgs / 0.05lb One Package Size 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch Qty per Carton 500 Carton Weight 8.00kgs / 17.64lb Carton Size 52cm * 40cm * 39cm / 20.47inch * 15.75inch * 15.35inch Loading Container 20GP: 328 cartons * 500 pcs = 164000 pcs40HQ: 763 cartons * 500 pcs = 381500 pcs
£6.99
-
WAVESHARE Waveshare Metal Case Gigabit PoE Splitter, 5V 2.5A Type-C Out
Features1. Incorporates original chip Si3404, high-efficiency, high-safety, stable-performance 2. 10/100/1000Mbps auto-negotiation Ethernet port 3. 802.3af/at-compliant PoE (Power over Ethernet) standard 4. Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device 5. 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices 6. Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipationSpecifications1. Power Supply: Support 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering 2. POE input voltage: 37V ~ 57V 3. Type-C output: 5V 2.5A (MAX) 4. Cable: Cat-5 UTP 5. Standard: IEEE 802.3 af/at PoE Ethernet 6. Data rate: 10/100/1000Mbps 7. LED indicator: PoE power input indicator 8. Size: 86 x 30 x 25mm (l x w x h) 9. Operation temperature: -40 degree C ~ 85 degree CSpecification: Package Weight One Package Weight 0.10kgs / 0.22lb One Package Size 15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch Qty per Carton 100 Carton Weight 10.00kgs / 22.05lb Carton Size 46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch Loading Container 20GP: 566 cartons * 100 pcs = 56600 pcs40HQ: 1314 cartons * 100 pcs = 131400 pcs
£13.99
-
WAVESHARE WAVESHARE 1.44 inch LCD 65K Colors 128 x 128 Display Module for Raspberry Pi Pico, SPI Interface, 1.44 inch
Features1. 128 x 128 resolution, 65K RGB colors, clear and colorful displaying effect 2. SPI interface, requires minimal IO pins 3. 4x user buttons for easy interacting 4. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)Specification1. Operating voltage: 3.15V ~ 5V 2. Communication Interface: 4-wire SPI 3. Resolution: 128 x 128 pixels 4. Display color: 65K colorful 5. Communication BUS: SPI 6. Display panel: TFT 7. Display size: 25.50 x 26.50 mm 8. Pixel size: 0.20 x 0.20 mm 9. Driver: ST7735S 10. Size: 52.0 x 30.0 mmSpecification: Package Weight One Package Weight 0.03kgs / 0.06lb One Package Size 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch Qty per Carton 200 Carton Weight 5.00kgs / 11.02lb Carton Size 42cm * 26cm * 26cm / 16.54inch * 10.24inch * 10.24inch Loading Container 20GP: 939 cartons * 200 pcs = 187800 pcs40HQ: 2180 cartons * 200 pcs = 436000 pcs
£6.99
-
WAVESHARE WAVESHARE 5 Inch HDMI LCD (B) 800x480 Touch Screen for Raspberry Pi Supports Various Systems, 5 Inch HDMI LCD (B)
1. 800 x 480 high resolution,Resistive touch control 2. Supports Raspberry Pi 3. Supports popular mini-PCs like Raspberry Pi, BB Black, etc. 4. Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen 5. Backlight can be turned off to lower power consumption Specification: Package Weight One Package Weight 0.26kgs / 0.58lb One Package Size 15cm * 10cm * 2cm / 5.91inch * 3.94inch * 0.79inch Qty per Carton 90 Carton Weight 21.80kgs / 48.06lb Carton Size 32cm * 32cm * 32cm / 12.6inch * 12.6inch * 12.6inch Loading Container 20GP: 813 cartons * 90 pcs = 73170 pcs40HQ: 1889 cartons * 90 pcs = 170010 pcs
£34.99
-
Waveshare Waveshare LoRa HAT 433MHz Frequency Band for Raspberry Pi, Applicable for Europe / Asia / Africa, 433MHz
Overview1. This is a Raspberry Pi LoRa HAT based on SX1268, covers 433MHz frequency band. It allows data transmission up to 5km through serial port.2. By utilizing the new generation LoRa spread spectrum modulation technology, the communication distance of the module is as long as 5km, also supports auto repeating to transmit longer. Other features include Wake on Radio, wireless config, carrier sensing, communication key, and so on.3. Comparing with normal LoRa modules, the SX1268 LoRa HAT achieves longer communication distance, higher rate, lower consumption, better safety and anti-interference. It is suitable for various applications such as industrial control, smart home, data collection, etc.Features1.Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards2. Onboard CP2102 USB TO UART converter, for serial debugging3. Bring the UART control interface, for connecting host boards like Arduino/STM324. 4x LED indicators, easy to check the module status5. LoRa spread spectrum modulation technology, up to 84 available signal channel, longer communication distance, more robust to interference6. Auto multi-level repeating, suit for ultra long range communication, allows multi network on the same region7. Low power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applications8. Customizable communication key which wont be retrieved, greatly improves the security of user data9. Support LBT, monitoring the signal channel noise before transmitting, greatly improves the success ratio under extreme environment10. Support RSSI signal intensity indicating, for evaluating signal quality, tuning the network11. Support wireless parameter configuration, by sending wireless command/data packet, remotely configure or retrieve the module parameter12. Support fixed-point transmission, broadcast, signal channel monitor13. Come with development resources and manual (examples for Raspberry Pi/STM32)What is on Board1. SX1268 LoRa module2. 74HC125V: voltage level translator3. CP2102: USB TO UART converter4. Raspberry Pi GPIO connector: for connecting with Raspberry Pi5. USB TO UART port6. UART header: for connecting host boards like STM32/Arduino7. SMA antenna connector8. IPEX antenna connector9. Indicators:- RXD/TXD: UART RX/TX indicator- AUX: auxiliary indicator- PWR: power indicator10. UART selection jumpers- A: Control the LoRa module through USB TO UART- B: Control the LoRa module through Raspberry Pi- C: Access Raspberry Pi through USB TO UART11. LoRa mode selection jumpers- Short M0, short M1: Transmission mode- Short M0, open M1: Configuration mode- Open M0, short M1: WOR mode- Open M0, open M1: deep sleep modeSpecification1. RF module: SX12682. Frequency band: 410.125 ~ 493.125MHz3. Radio rate: 0.3kbps ~ 62.5kbps (programmable)4. Transmit power: 22.0dBm (10/13/17/22dBm programmable)5. Receive sensitivity: -147dBm (radio rate 2.4kbps)6. Power consumption: - Transmit current: 110mA (transient consumption)- Receive current: 11mA- Sleep current: 2uA (LoRa module software shutoff)7. Communication interface: UART (TTL level)8. Baudrate: 1200bps ~ 115200bps (9600bps by default)9. Packet length: 240 Byte (32/64/128/240 Byte programmable)10. Cache: 1000 Byte11. Experimental range: 5km (condition: cloudless and wild, altitude 2.5m, antenna gain 5dBi, radio rate 2.4kbps)12. Power supply: 5V13. Logic level: 3.3V/5V14. Operating temperature: -40~85 degree C15. Applications: Smart home, industrial sensors, building automation, smart meters, and more other IoT applications16. Dimensions: 7cm x 12cm x 2cm17. Weight: 69g18. Packing List:- SX1268 433MHz LoRa HAT x1- USB type A plug to micro plug cable x1- 433MHz antenna x1Specification: Package Weight One Package Weight 0.09kgs / 0.19lb One Package Size 15cm * 8cm * 2cm / 5.91inch * 3.15inch * 0.79inch Qty per Carton 400 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch Loading Container 20GP: 277 cartons * 400 pcs = 110800 pcs40HQ: 644 cartons * 400 pcs = 257600 pcs
£17.99
-
WAVESHARE Waveshare 2.8 inch 480x640 HDMI IPS LCD Display (H) Fully Laminated Screen
Compatible ModelsFor Raspberry Pi 1. Support Raspberry Pi OS / Ubuntu / Kali / WIN10 IoT / Retropie 2. Driver free for USB-C touch 3. Config file is required for I2C touch 4. Supports all versions of Raspberry Pi For Jetson Nano 1. Support Ubuntu 2. PC 3. Support Windows 11 / 10 / 8.1 / 8 / 7 4. For Jetson Nano and PC, only USB-C touch is availablePackage List1. 2.8 inch HDMI LCD (H) x 1 2. HDMI Adapter (C) x 1 3. HDMI Adapter (B) x 1 4. HDMI cable x 1 5. USB-A to USB-C cable x 1 6. Screws pack x 1Specification: Package Weight One Package Weight 0.20kgs / 0.45lb One Package Size 20cm * 12cm * 5cm / 7.87inch * 4.72inch * 1.97inch Qty per Carton 72 Carton Weight 13.00kgs / 28.66lb Carton Size 60cm * 36cm * 40cm / 23.62inch * 14.17inch * 15.75inch Loading Container 20GP: 308 cartons * 72 pcs = 22176 pcs40HQ: 716 cartons * 72 pcs = 51552 pcs
£37.99
-
WAVESHARE Waveshare Din Rail RS485 to RJ45 Serial Server with POE Function, 23273
1. Power supply: 9-24V2. Communication interface: RS485 port x 1, Ethernet port x 13. Baud rate: 300-115200 bps4. Data bits: 5-9 bits5. Configuration: host, web browser, device management function library6. Communication method: TCP/IP direct communication, VCOM7. Working temperature: -40 degrees to 85 degrees8. Main function: Bidirectional transparent data transmission between RS485 and Ethernet9. It is easy to combine multi-rail installed serial servers together, more freedom.10. It is suitable for Modbus grid upgrade and can be used in conjunction with 3D configuration software.11. Support TCP server / TCP client / UDP mode / UDP multicast.12. Multi-host rolling polling support, easy for cloud communication and device identification.Specification: Package Weight One Package Weight 0.14kgs / 0.30lb One Package Size 12cm * 8cm * 6cm / 4.72inch * 3.15inch * 2.36inch Qty per Carton 100 Carton Weight 16.00kgs / 35.27lb Carton Size 50cm * 42cm * 32cm / 19.69inch * 16.54inch * 12.6inch Loading Container 20GP: 396 cartons * 100 pcs = 39600 pcs40HQ: 921 cartons * 100 pcs = 92100 pcs
£19.99
-
WAVESHARE Waveshare Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount
Features1. Onboard switch chip, 5x ports 10/100/1000M non-blocking switch architecture 2. Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode) 3. Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support 4. Allow forwarding 9216 bytes huge data packet on linear speed 5. Over-voltage protection, effectively preventing damages caused by other high voltage power supply 6. Industrial grade alloy case, solid and durable, with DIN rail mount support for easy installing 7. 5~36V wide voltage power supply, dual power interface (DC interface and terminal block) onboard overvoltage protection, reverse connection protection. 8. Support 25mm standard rail.Package List1. Gigabit-Switch-5P x 1 2. Power supply screw terminal x 1 3. 12V 1A power adapter x 1Specification: Package Weight One Package Weight 0.24kgs / 0.52lb One Package Size 15cm * 12cm * 5cm / 5.91inch * 4.72inch * 1.97inch Qty per Carton 80 Carton Weight 18.50kgs / 40.79lb Carton Size 50cm * 52cm * 32cm / 19.69inch * 20.47inch * 12.6inch Loading Container 20GP: 320 cartons * 80 pcs = 25600 pcs40HQ: 744 cartons * 80 pcs = 59520 pcs
£20.99
-
WAVESHARE Waveshare Solar Power Manager, Embedded 10000mAh Li-Po Battery, Support 6V~24V Solar Panels, 19799
FeaturesThe Solar Power Manager (B) is compatible with general 6V~24V solar panels. It can recharge the 3.7V rechargeable Li-po battery through solar panel or USB TYPE-C connection, and provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP). The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep operating with high-efficiency, stability, and safety. It is suitable for solar powered, low-power IoT, and other environmental protection projects. 1. Support MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel 2. Flexible battery recharging: from solar panel or USB TYPE-C power adapter 3. Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input 4. Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency 5. Onboard aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance 6. PH2.0 battery connector, with embedded 10000mAh 3.7V rechargeable Li-po battery 7. Several LED indicators, for monitoring the status of solar panel and battery 8. Multi protection circuits: over charge / over discharge / reverse-proof / over heat / over current, stable and safe to useSpecification: Package Weight One Package Weight 0.35kgs / 0.77lb One Package Size 20cm * 15cm * 5cm / 7.87inch * 5.91inch * 1.97inch Qty per Carton 40 Carton Weight 13.00kgs / 28.66lb Carton Size 42cm * 32cm * 27cm / 16.54inch * 12.6inch * 10.63inch Loading Container 20GP: 734 cartons * 40 pcs = 29360 pcs40HQ: 1705 cartons * 40 pcs = 68200 pcs
£19.99
-
WAVESHARE Waveshare Solar Power Manager (C)
Safety Cautions1. Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they are not properly recharged or used. 2. Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery. 3. Do not mix use old batteries with new ones, avoid using batteries of different brands. 4. When buying lithium battery, should make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test. 5. Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first. 6. Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.FeaturesThe Solar Power Manager (C) is compatible with general 6V~24V solar panels. It can recharge the 18650 rechargeable Li-ion batteries through solar panel or USB TYPE-C connection, and provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP). The module features MPPT (MAX Power Point Tracking) function and multi protection circuits, therefore, it is able to keep operating with high-efficiency, stability, and safety. It is suitable for solar powered, low-power IoT, and other environmental protection projects. 1. Support MPPT (MAX Power Point Tracking) function, MAX the efficiency of the solar panel 2. Flexible battery recharging: from solar panel or USB TYPE-C power adapter 3. Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input 4. Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency 5. Onboard aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance 6. Embedded battery holder, supports 3x 18650 rechargeable Li-ion batteries 7. Several LED indicators, for monitoring the status of solar panel and battery 8. Multi protection circuits: over charge / over discharge / reverse-proof / over heat / over current, stable and safe to useSpecifications1. Solar in: 6V ~ 24V (18V by default) 2. Recharging: Solar panel, power adapter, USB 3. Battery: 3 x 18650 Li-ion battery (Not included) 4. USB input: 5V (Type-C, with PD quick charge support) 5. 5V output: 5V / 3A (USB-out, Type-C) 6. Recharging cutoff voltage: 4.2V +/- 1% 7. Over discharge protection voltage: 3.0V +/- 1% 8. Solar panel recharging effeciency: ~78% 9. USB recharging effeciency: ~93% 10. Batteries boost out effeciency: ~92% 11. Case: Metal case 12. Size: 119.0 x 71.0 x 25.2mm 13. Package list: - Solar Power Manager (C) x1 - Adapter x1Specification: Package Weight One Package Weight 0.24kgs / 0.54lb One Package Size 20cm * 15cm * 5cm / 7.87inch * 5.91inch * 1.97inch Qty per Carton 40 Carton Weight 9.00kgs / 19.84lb Carton Size 42cm * 32cm * 27cm / 16.54inch * 12.6inch * 10.63inch Loading Container 20GP: 734 cartons * 40 pcs = 29360 pcs40HQ: 1705 cartons * 40 pcs = 68200 pcs
£20.99
-
WAVESHARE WAVESHARE Dual-Core RISC-V Development Board With Integrated ESP32-C5, Supporting 2.4GHz & 5GHz Wi-Fi 6, PCB Antenna Standard, PCB Antenna With Pre-soldered Headers, PCB Antenna Kit A, PCB Antenna Kit B, External FPC Antenna Standard ...
1. High-performance MCUs featuring RISC-V 32-bit dual-core and single-core processors2. 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, 8KB TCM3. Powerful image and audio processing capabilities; image and audio processing interfaces include a JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), and H.264 video encoder4. 32MB PSRAM stacked within the chip package, with 32MB NOR Flash integrated externally5. Common peripheral interfaces brought out on the board, including MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 SD card slot, and microphone and speaker terminals6. On-board 2 × 20-pin header providing access to 27 remaining programmable GPIOs7. Security mechanisms: secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. Also supports hardware access protection, enabling access permission management (APM) and privilege separationDisplay (included only in kit B):1. Model: 10.1-DSI-TOUCH-A 2. Resolution: 800 x 12803. Communication Interface: MIPI-DSI (2-lane) 4. Brightness: 400 cd/m25. Touch Controller: GT9271 6. Contrast Ratio: 800:1 7. Operating Temperature: 0 to 60 degrees Celsius8. Pixel Size: 0.1692 (H) x 0.1692 (V) (mm)9. Display Size: 135.36 x 216.58 mm10. Dimensions: 147.0 x 239.0 mmCamera (included in kit A/B):1. Image Sensor: OV5647 2. Megapixels: 5.0 3. Focal Length: 6 mm 4. Infrared Night Vision: Not supported5. CMOS Size: 1/4 inch 6. Aperture: F2.0 7. Diagonal Field of View: 60.6 degrees8. Focusing Method: Manual FocusPackage A Contents:1. Development Board x 12. Speaker x 13. Camera x 14. 15-pin FFC ribbon cable x 15. 15-pin to 22-pin ribbon cable x 1 6. MX1.25 4-pin to USB adapter x 1Package B Contents:1. Development board x 12. 10.1-inch display x 1 3. Speaker x 1 4. Camera x 1 5. 15-pin FFC ribbon cable x 16. 15-pin to 22-pin ribbon cable x 17. MX1.25 4-pin to USB adapter x 18. DSI ribbon cable x 1 9. FFC 22-pin ribbon cable x 2 10. MX 1.25 2-pin to 2.54 3-pin adapter x 1 11. MX 1.25 2-pin to MX 1.25 4-pin adapter x 1 12. Pack of copper pillars x 4Specification: Package Weight One Package Weight 0.03kgs / 0.07lb One Package Size 10cm * 6cm * 2cm / 3.94inch * 2.36inch * 0.79inch Qty per Carton 200 Carton Weight 6.50kgs / 14.33lb Carton Size 35cm * 25cm * 22cm / 13.78inch * 9.84inch * 8.66inch Loading Container 20GP: 1385 cartons * 200 pcs = 277000 pcs40HQ: 3215 cartons * 200 pcs = 643000 pcs
£16.99 - £76.99
-

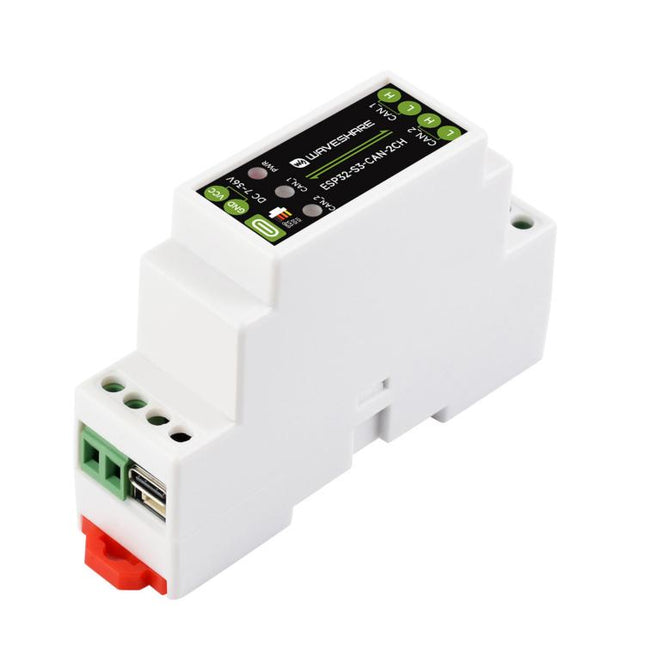

WAVESHARE WAVESHARE Industrial ESP32-S3 Control Board With 2-Ch CAN Communication Interfaces, Onboard Antenna, External Antenna
1. Antenna Interface: On-board surface-mount ceramic antenna / external antenna2. Microcontroller: ESP32-S3R8 chip3. Wireless Communication: 2.4 GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE)4. Interface: Type-C5. Supply Voltage: 5 V6. Interface Functions: Device power supply, USB communication, firmware download, etc.7. Isolated CAN Communication Interface:- Interface Type: Terminal blocks- Communication Protocol: Supports CAN 2.0A / CAN 2.0B, with a maximum communication rate of 1 Mbps- Interface Protection: Provides TVS diode protection, surge protection, and ESD protection- Matching Resistor: Default NC; 120R matching resistor reserved; can be enabled via a jumper cap8. Indicator Lights:- PWR: Power indicator; lights up red when connected to USB and voltage is detected- CAN Indicator: Flashes when data communication is active on the CAN interface9. Terminal Supply Voltage Range: 7V – 36V10. Enclosure: DIN-rail mounting enclosure11. Dimensions: Approx. 9.16 x 2.33 x 5.87 cmFeatures:1. Based on the ESP32-S3 microcontroller, featuring a built-in Xtensa 32-bit LX7 dual-core processor with a clock speed of up to 240 MHz2. Integrates dual-mode 2.4 GHz Wi-Fi and Bluetooth 5 (LE) wireless communication with excellent RF performance3. Features two onboard isolated CAN interfaces for easy expansion and connection to various CAN devices4. On-board pin header interfaces allow connection to other devices5. On-board USB Type-C interface for power supply and programming/debugging, facilitating development6. On-board terminal block power supply interface supports a wide voltage range of 7V–36V, suitable for industrial power applications7. On-board RTC clock chip supports scheduled tasks8. On-board digital isolation prevents external signals from interfering with the control chip9. On-board integrated power isolation provides a stable isolated voltage; the isolated side requires no additional power supply10. On-board CAN activity indicator light makes it easy to monitor the device’s operating status11. DIN-rail mounting enclosure facilitates installation and use; the enclosure provides added safetySpecification: Package Weight One Package Weight 0.12kgs / 0.27lb One Package Size 11cm * 8cm * 4cm / 4.33inch * 3.15inch * 1.57inch Qty per Carton 100 Carton Weight 13.00kgs / 28.66lb Carton Size 45cm * 35cm * 30cm / 17.72inch * 13.78inch * 11.81inch Loading Container 20GP: 564 cartons * 100 pcs = 56400 pcs40HQ: 1310 cartons * 100 pcs = 131000 pcs
£20.99 - £22.99
-

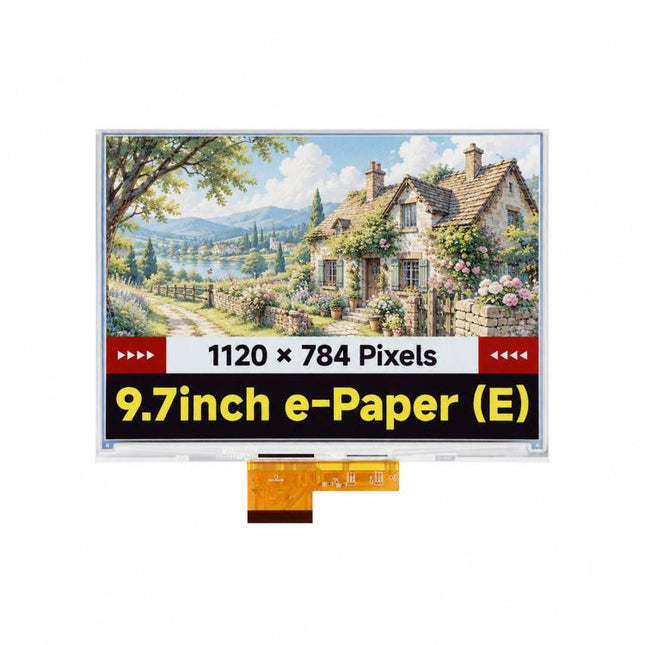

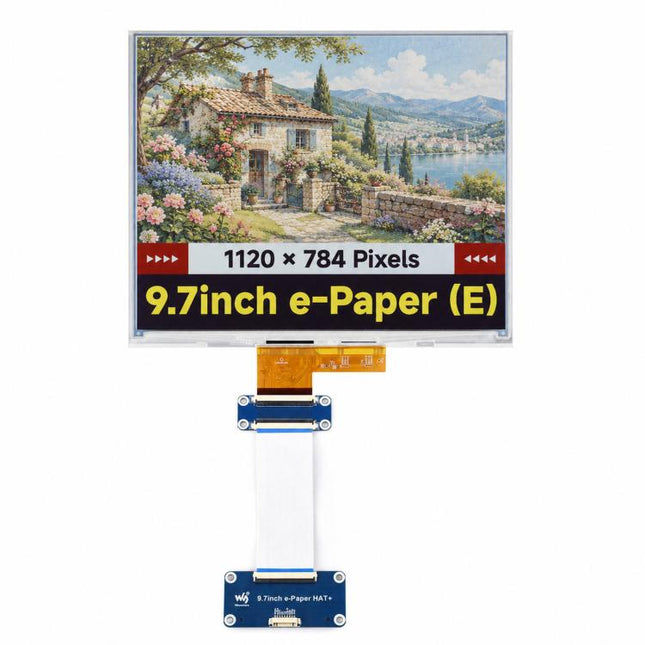

WAVESHARE WAVESHARE 9.7 Inch E Ink Spectra E6 Full Color Display, Raw Display, With Driver HAT
1. Operating Voltage: 3.3V for the bare screen version; 3.3V / 5V for the module version2. Communication Interfaces: 3-wire SPI, 4-wire SPI3. Dot Pitch: 0.18 x 0.18 mm4. Resolution: 1120 x 784 pixels5. Display Colors: E6 full color (E Ink Spectra 6)6. Grayscale Levels: 27. Full Refresh: 30s8. Refresh Power Consumption: Less than 0.6 W9. Sleep current: Less than 0.01 μA (close to 0)10. Viewing angle: Greater than 170 degrees11. Display Size: Approx. 20 x 14 cm12. Dimensions: Approx. 21 x 14 cm Features:1. Uses E Ink Spectra 6 (E6) technology for high-contrast, high-saturation color display2. No backlight required; retains the last screen’s content for an extended period when power is off3. Extremely low power consumption; power is consumed primarily during screen refreshes4. Includes supporting documentation (driver board schematics, example programs for Raspberry Pi, Jetson Nano, Arduino, STM32, ESP32, etc.)The following applies only to the module version:5. Designed around the Raspberry Pi 40-pin GPIO interface, compatible with Raspberry Pi and Jetson Nano series motherboards6. Adheres to the Raspberry Pi HAT+ standard, enhancing expansion board interoperability, helping developers design and develop faster, and making it easier to use various external devices to expand the Raspberry Pi’s functionality and performance7. Includes a reserved SPI communication interface for connecting to control boards such as Raspberry Pi, Jetson Nano, Arduino, STM32, and ESP328. Features an onboard level-shifting chip, ensuring compatibility with both 3.3V and 5V interfacesSpecification: Package Weight One Package Weight 0.22kgs / 0.49lb One Package Size 25cm * 20cm * 4cm / 9.84inch * 7.87inch * 1.57inch Qty per Carton 30 Carton Weight 7.50kgs / 16.53lb Carton Size 52cm * 40cm * 21cm / 20.47inch * 15.75inch * 8.27inch Loading Container 20GP: 610 cartons * 30 pcs = 18300 pcs40HQ: 1417 cartons * 30 pcs = 42510 pcs
£116.99 - £125.99
-
WAVESHARE WAVESHARE 8MP USB Camera Module Type B, IMX415 Sensor Chip, USB2.0 Port, Onboard Dual Microphones, 35834
1. Pixels: 8 million 2. Image Sensor: IMX415 3. Interface Type: USB 2.0 Type-C 4. Image:- Supported Formats: MJPG - Still Image Resolution: 3840 x 2160 - Video Recording Support: 30 FPS at 3840 x 2160, 30 FPS at 2880 x 2160, 30 FPS at 2048 x 1536, 60 FPS at 1920 x 1080 5. Audio: On-board dual microphones 6. Operating Voltage: 5V7. Operating Temperature: 0 to 50 degrees Celsius8. Dimensions: Approx. 3.8 x 3.8 cm Camera:1. Image Sensor Size: 1/2.8 inches2. Aperture: 2.23. Focal Length: 3.3 mm4. Field of View: 93.5 degrees (D) x 85.2 degrees (H) x 55.5 degrees (V)5. Television Distortion: -0.4%6. Focusing Method: Auto FocusSpecification: Package Weight One Package Weight 0.05kgs / 0.12lb One Package Size 9cm * 7cm * 3cm / 3.54inch * 2.76inch * 1.18inch Qty per Carton 100 Carton Weight 5.80kgs / 12.79lb Carton Size 45cm * 32cm * 22cm / 17.72inch * 12.6inch * 8.66inch Loading Container 20GP: 841 cartons * 100 pcs = 84100 pcs40HQ: 1954 cartons * 100 pcs = 195400 pcs
£62.99
-

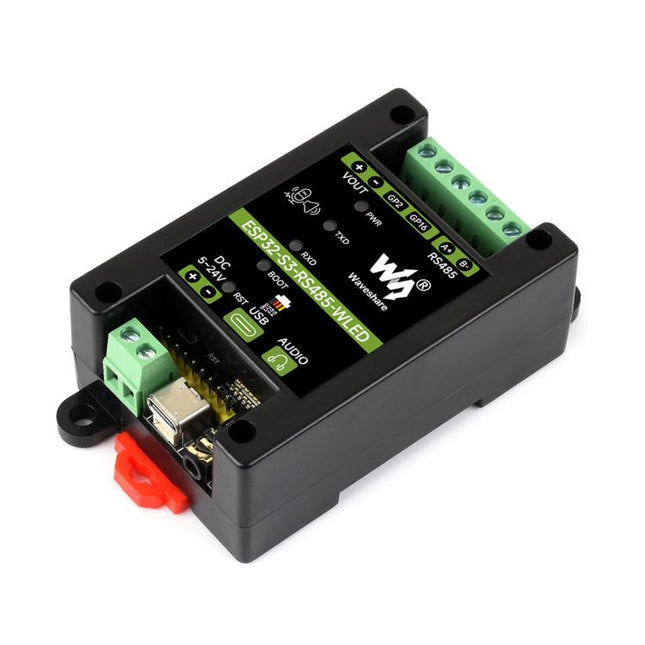

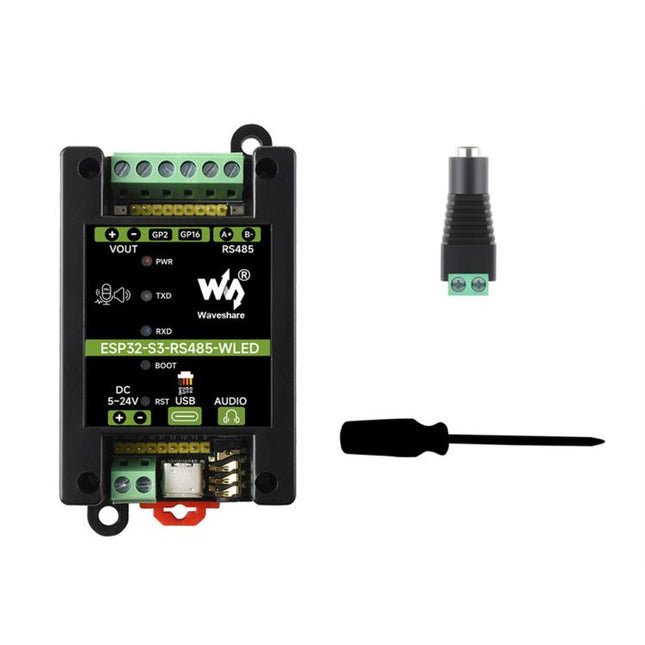

WAVESHARE WAVESHARE ESP32-S3 RS485 Development Board, LX7 240MHz Dual-Core Processor, WLED Strip Control, 35580
1. Microcontroller: ESP32-S3-WROOM-1-N16R8 2. Antenna Interface: On-board PCB antenna 3. Wireless Communication: 2.4 GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (BLE) 4. Input Voltage: Supply Range: 5 V – 24 V 5. WLED Light Output:- Maximum Output Current: 8 A (adequate heat dissipation required) - Output Channels: 2 LED output channels (GPIO2, GPIO16) - Supported LED Strips: WS2812B / WS2811 / SK6812 / TM1814 / SM16704 / APA102 / SK9822 / monochrome LED strips, etc. - Control Methods: WLED open-source firmware (web-based control); supports color, brightness, dynamic effects, zone control, scene presets, and other functions 6. USB Interface:- Interface Type: USB Type-C - Supply Voltage: 5V - Functions: USB communication, firmware download, etc. 7. Isolated RS485 Communication Interface:- Interface Type: Terminal blocks - Direction Control: Automatic control via master hardware flow settings - Interface Protection: Provides TVS diode protection, surge protection, and ESD protection - Matching Resistor: Default NC; 120R matching resistor reserved; can be enabled via jumper cap 8. Indicator Lights:- PWR: Power indicator; lights up red when connected to USB and voltage is detected - RS485: RS485 indicator: Lights up green when data is transmitted from the RS485 interface via TXD; lights up blue when data is received from the RS485 interface via RXD 9. Enclosure: DIN-rail mounting enclosure10. Dimensions: Approx. 8.19 x 5.4 x 3.2 cm Features:1. Based on the ESP32-S3-WROOM-1-N16R8 module, featuring an Xtensa 32-bit LX7 dual-core processor with a clock speed of up to 240 MHz2. Integrates 2.4 GHz Wi-Fi and Bluetooth 5 (LE) wireless communication, facilitating the development of wireless control, device networking, and IoT applications3. Equipped with 16 MB of Flash and 8 MB of PSRAM, providing ample storage and runtime capacity for lighting control, audio processing, and complex application development4. On-board LED strip data output interface; through 5V level conversion, it can connect to a variety of digital LED strips, facilitating the development of WLED, ambient lighting, and personalized lighting effects5. Integrated isolated RS485 communication interface, facilitating communication with devices such as sensors, PLCs, and Modbus systems6. On-board RS485 transmit/receive status indicator lights, facilitating monitoring of data transmission/reception and program debugging7. On-board integrated isolated power supply provides stable isolated voltage; no additional power supply is required for the isolated side8. Integrated ES7210 audio ADC and ES8389 audio codec support multi-channel microphone input and stereo audio output, enabling development of AI voice and voice interaction applications9. On-board 3.5mm audio jack and PH2.0 4-pin speaker connector, facilitating the development of audio input/output applications10. Supports a wide voltage range of 5–24V11. On-board Type-C port for program upload and debugging12. Provides multiple sets of GPIO expansion ports and user buttons, facilitating the connection of sensors, actuators, and other peripherals for functional expansion13. Supports development environments such as ESP-IDF and Arduino, with accompanying example programs and development resources to facilitate quick setup and secondary development14. Equipped with a rail-mounted protective enclosure, suitable for both development and debugging as well as installation in actual projectsSpecification: Package Weight One Package Weight 0.12kgs / 0.27lb One Package Size 12cm * 7cm * 5cm / 4.72inch * 2.76inch * 1.97inch Qty per Carton 100 Carton Weight 13.00kgs / 28.66lb Carton Size 45cm * 32cm * 30cm / 17.72inch * 12.6inch * 11.81inch Loading Container 20GP: 617 cartons * 100 pcs = 61700 pcs40HQ: 1432 cartons * 100 pcs = 143200 pcs
£24.99
-
WAVESHARE WAVESHARE IMX415 8MP MIPI Camera Module Type B, Autofocus, 93.5 Degrees D-FoV, Distortion-free, Supports for Raspberry Pi 5 / 4B / 3 / Zero, 35864
1. Image Sensor: Sony IMX415 2. CMOS Size: 1/2.9 inches 3. Camera Type: Color4. Effective Pixels: Approx. 8.29 MP (3840 x 2160) 5. Diagonal Size: 6.43 mm 6. Pixel size: 1.45 μm (H) x 1.45 μm (V) 7. Aperture: F2.2 8. Focal length: 3.3 mm 9. Field of View: 93.5 degrees (D) x 85.2 degrees (H) x 55.5 degrees (V) 10. Distortion: -0.4% 11. Application Scenarios: AI applications such as facial recognition, road sign recognition, and license plate recognition 12. Compatible Boards: Compatible with Raspberry Pi 5 / Zero series / Zero 2W series boards (4B / 3B+ / 3B series require an additional FPC cable)13. Dimensions: Approx. 3.8 x 1.63 cm Features:1. 8MP High-Definition Image Quality: Equipped with an IMX415 sensor, it delivers high-resolution imaging with approximately 8.29 million pixels (3840 x 2160).2. Flexible Autofocus: Supports smooth, lag-free autofocus for more precise and flexible shooting and capture (requires the host device to support autofocus).3. Wide-Angle Field of View: Features a built-in 93.5-degree wide-angle lens, providing a broader field of view and a wider viewing angle4. High Signal-to-Noise Ratio and Excellent Low-Light Performance: Delivers superior imaging results in low-light environments, producing more realistic and detailed images5. Low-Distortion Design: Equipped with a distortion-free lens featuring a distortion rate of only -0.4%, delivering distortion-free imaging and more accurately reproducing real-world scenesSpecification: Package Weight One Package Weight 0.05kgs / 0.12lb One Package Size 8cm * 6cm * 3cm / 3.15inch * 2.36inch * 1.18inch Qty per Carton 100 Carton Weight 5.80kgs / 12.79lb Carton Size 42cm * 33cm * 20cm / 16.54inch * 12.99inch * 7.87inch Loading Container 20GP: 962 cartons * 100 pcs = 96200 pcs40HQ: 2233 cartons * 100 pcs = 223300 pcs
£50.99
-

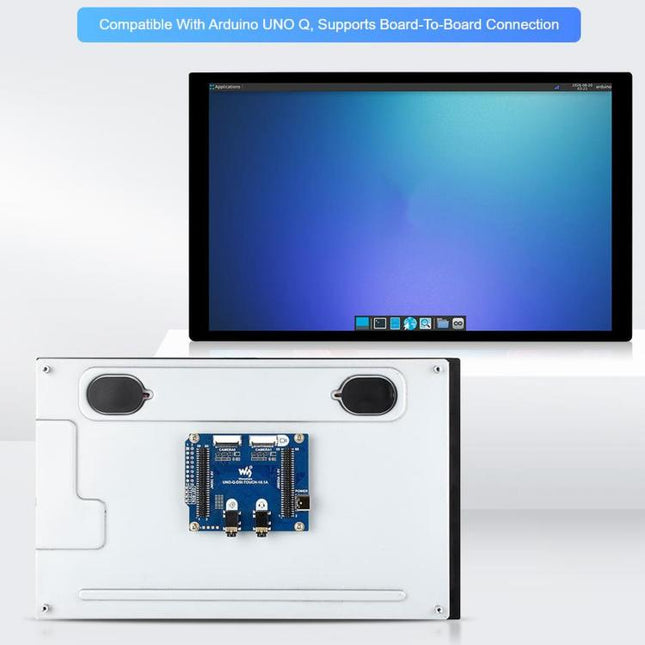

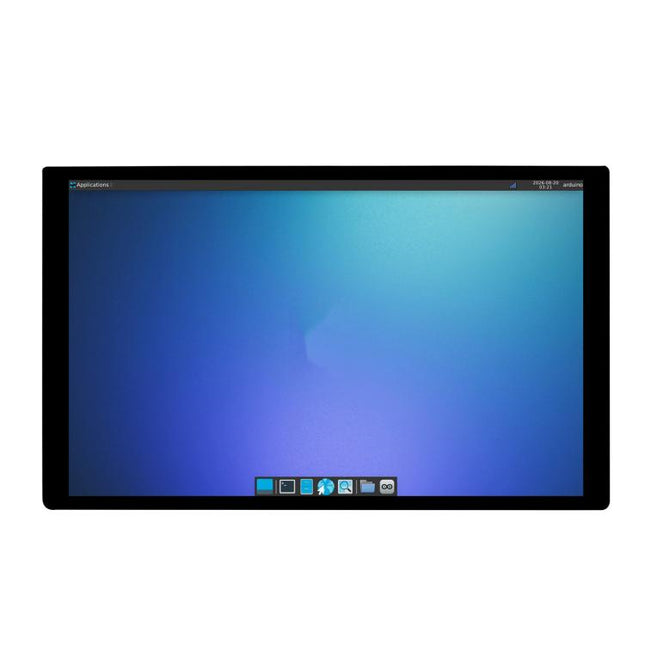

WAVESHARE WAVESHARE 10.1 Inch DSI Capacitive Touch Screen, 800 X 1280 Resolution, IPS Panel, Compatible With Arduino UNO Q, Supports Board-To-Board Connection
1. Screen Size: 10.1 inches 2. Resolution: 800 x 1280 (default portrait orientation; can be switched to landscape orientation by modifying software settings) 3. Display Panel: IPS display panel with a 178-degree wide viewing angle and excellent display performance 4. Brightness: 300 cd/m25. Touch Type: Capacitive touch6. Touch Interface: I2C 7. Number of Touch Points: Multi-touch (supports multi-touch, depending on the operating system) 8. Touch Panel: High-hardness tempered glass (up to 6H hardness) 9. Touch Panel Technology: Optical Full Lamination (provides excellent display quality and dust resistance) 10. Compatible Board: Compatible with Arduino UNO Q 11. Connection Method: Board-to-board connection; supports direct stacking onto the UNO Q board via JMEDIA and JMISC interfaces without additional wiring 12. Camera: Dual-camera interface, equipped with two 22-pin CSI camera connectors, compatible with IMX219 camera modules 13. Audio: Dual 3.5mm audio jacks 14. Audio: Dual speakers 15. Dimensions: Approx. 23.9 x 14.7 x 1.15 cm Features:1. High-Definition Wide-Viewing-Angle Large Screen: Features a 10.1-inch IPS display panel with a resolution of 800 x 1280, offering a 178-degree wide viewing angle and 300 cd/m2 brightness2. Rugged and Durable Touch Experience: Supports capacitive multi-touch; the panel features tempered glass with a hardness of up to 6H and utilizes optical full-lamination technology, delivering excellent display quality and dust resistance3. Convenient Stacking and Integration Design: Adheres to standard UNO form factors and supports direct board-to-board stacking onto the Arduino UNO Q mainboard, eliminating the need for additional cumbersome wiring and enabling compact, efficient integration4. Extensive Expansion and Multimedia Support: Features dual onboard 22-pin CSI camera interfaces (compatible with the IMX219 module, supporting stereovision, multi-angle capture, and object tracking), dual 3.5mm audio jacks, and dual speakers to meet the needs of machine vision and multimedia applicationsSpecification: Package Weight One Package Weight 0.60kgs / 1.33lb One Package Size 28cm * 18cm * 5cm / 11.02inch * 7.09inch * 1.97inch Qty per Carton 20 Carton Weight 13.00kgs / 28.66lb Carton Size 58cm * 38cm * 30cm / 22.83inch * 14.96inch * 11.81inch Loading Container 20GP: 403 cartons * 20 pcs = 8060 pcs40HQ: 936 cartons * 20 pcs = 18720 pcs
£87.99
-
WAVESHARE WAVESHARE For Arduino VENTUNO Q Edge AI Computer Qualcomm And STM32 Dual Architecture, 40 Dense TOPS, Extensive Industrial / Robotics Expansion Options, 35981
1. Microprocessor (MPU): Qualcomm Dragonwing IQ8 (QCS8275); octa-core Arm Cortex CPU; Adreno 623 GPU; Adreno VPU 623; Hexagon NPU; Qualcomm Spectra 692 ISP 2. AI Acceleration: Hexagon Tensor AI Processor, up to 40 dense TOPS 3. Microcontroller (MCU): STM32H5F5, Arm Cortex-M33, up to 250 MHz; 4 MB Flash; 1.5 MB RAM 4. System: MPU pre-installed with Ubuntu Linux, with support for Debian; MCU based on Arduino Core running Zephyr OS 5. Memory / Storage: 16GB LPDDR5 (2 x 8GB) / 64GB eMMC 6. Expandable Storage: M.2 Key M 2230, PCIe Gen 4 x 4, NVMe-compatible; for expandable storage only; does not support booting from NVMe 7. Wireless Connectivity: Tri-band Wi-Fi 6 (2.4/5/6 GHz) with 2 onboard antennas; Bluetooth 5.3 with an onboard antenna 8. Wired Networking: 1 x 2.5 Gbit RJ45 Ethernet 9. USB: 1 x USB-C, supports host/device role switching, power delivery role switching, and video output; 2 x USB 3.0 Type-A; JOMEGA provides 2 USB 3.0 ports 10. Cameras: 3 x MIPI CSI interfaces; JMEDIA provides 2 multiplexed MIPI CSI channels; supports USB cameras 11. Video Output: 1 x HDMI; USB-C DisplayPort Alt Mode; JMEDIA MIPI DSI (shared with HDMI) 12. Audio: MAX98091 audio decoder; JMISC provides microphone input, stereo headphone output, mono speaker output, and line-out; JOMEGA provides microphone input 13. CAN-FD: 1 channel via terminal blocks with PHY; 3 channels via JOMEGA without PHY; 1 channel via UNO Shield header without PHY 14. On-board Interaction: 8 x 13 monochrome blue LED dot matrix; 4 user-programmable RGB LEDs; power indicator; USB-C PD fault indicator; user button; reset button 15. Power: USB-C PD: 9–20 V, up to 3 A; DC power connector: 7–24 V, up to 5 A; screw terminal blocks: 7–24 V, up to 10 A 16. Operating Temperature: -10 to +60 degrees Celsius 17. PCBA Dimensions: Approximately 16 x 10 x 2.58 cm (height excludes heat sink and fan)Dual-Architecture Design:1. Processor: AI computing core uses Qualcomm Dragonwing IQ8 (QCS8275); real-time control core uses STM32H5F52. Key Resources: The AI computing core includes an octa-core Arm Cortex CPU, Adreno 623 GPU, Adreno VPU 623, Hexagon NPU, and Qualcomm Spectra 692 ISP; the real-time control core includes an Arm Cortex-M33 at 250 MHz, 4 MB of Flash, and 1.5 MB of RAM3. Software System: The AI computing core runs Ubuntu Linux and also supports Debian; the real-time control core runs Arduino Core based on Zephyr OS4. Primary Tasks: The AI computing core handles local AI, machine vision, network communication, multimedia processing, and Linux applications; the real-time control core handles real-time control of GPIO, PWM, CAN-FD, ADC, sensors, and actuators5. Collaboration Method: Commands, status, and data are exchanged via the Arduino Bridge (RPC)Features:1. MPU + MCU dual-processor architecture: The Qualcomm Dragonwing IQ8 (QCS8275) handles Linux, AI, vision, networking, and multimedia tasks; the STM32H5F5 MCU provides deterministic real-time I/O and control capabilities2. Up to 40 dense TOPS of edge AI performance: The Hexagon NPU supports local execution of computer vision, speech processing, LLM/VLM, and multimodal applications. Onboard 16 GB LPDDR5 and 64 GB eMMC meet storage requirements for the system, models, and application data3. Extensive expansion options for robotics and industrial control: Features tri-band Wi-Fi 6, Bluetooth 5.3, 2.5 Gbit RJ45, M.2 2230 NVMe, HDMI, three MIPI CSI lanes, CAN-FD, UNO Shield, 40-pin JHAT, and Qwiic interfaces, among othersSpecification: Package Weight One Package Weight 0.45kgs / 1.00lb One Package Size 21cm * 15cm * 6cm / 8.27inch * 5.91inch * 2.36inch Qty per Carton 20 Carton Weight 10.00kgs / 22.05lb Carton Size 44cm * 32cm * 32cm / 17.32inch * 12.6inch * 12.6inch Loading Container 20GP: 591 cartons * 20 pcs = 11820 pcs40HQ: 1373 cartons * 20 pcs = 27460 pcs
£481.99
-
WAVESHARE WAVESHARE For Raspberry Pi Compute Module 5 Industrial Computer 1000M Ethernet RJ45 Port, 4 x RS485, 2×RS485+2×RS232
1. The entire chassis is made of aluminum alloy, which provides extensive heat conduction and dissipation. Combined with heat sink fins, it ensures more efficient heat dissipation2. Suitable for Raspberry Pi applications in remote communication or other industrial settings3. Supports DIN rail mounting; pre-drilled mounting screw holes on the side allow for secure attachment to the rail, making installation and mounting more convenient4. The precise hole layout ensures that each port fits snugly against the motherboard, and clear silkscreen markings on the ports facilitate easy identification5. Supports M.2 NVMe drives, significantly boosting system and file read/write speeds, and supports booting the Raspberry Pi from an NVMe SSDParameters1. CM5 enclosure: suitable for all versions of Compute Module 52. Networking: 1000M Ethernet RJ45 interface3. USB: 2 x USB 3.2 Gen1 x 2, 2 x USB 2.0 interfaces x 24. Video: for HDMI interface x 1, suitable for 4K output5. M.2: M.2 M KEY (PCIe Gen2/3 x 1, 2230 / 2242 / 2260 / 2280); M.2 B KEY, supporting access to 4G / 5G communication modules6. Storage: built-in TF Card slot (suitable for CM5 versions without eMMC)7. Serial interfaces: 2 x RS485 + 2 x RS232 or 4 x RS485 options available; 1 x CAN supports 1Mbps communication rate8. Digital inputs and outputs: 2 x digital outputs + 2 x digital inputs9. Analog input: 2 x ADC analog input (can achieve 4 - 20mA current collection by removing components)10. Fan interface: 5V, 4PIN JST-SH PWM fan connector11. Beeper: single-channel controllable beeper12. Others: built-in EEPROM and encryption chip13. Power input: 7V - 36V wide voltage (terminal), 5V 5A (Type-C)14. Size: about 13.25 x 9.2 x 3.45cm2×RS485+2×RS232 packaging list:- CM5-IPC-BASE-B-2RS485 base plate x 1- CM5-HMI-BOX-B metal casing x 1- 6mm snap-on plug x 2- 2PIN 3.5mm spacing connector x 1- Power adapter 15cm x 1- Rail clip x 1- 6PIN 3.5mm spacing double-layer connector (2PCS) x 1- 12V 4A power supply x 1- Pink silicone sheet (5PCS) x 1- Screwdriver x 1- Screw pack x 1Specification: Package Weight One Package Weight 0.56kgs / 1.24lb One Package Size 18cm * 14cm * 6cm / 7.09inch * 5.51inch * 2.36inch Qty per Carton 32 Carton Weight 20.00kgs / 44.09lb Carton Size 50cm * 38cm * 30cm / 19.69inch * 14.96inch * 11.81inch Loading Container 20GP: 467 cartons * 32 pcs = 14944 pcs40HQ: 1086 cartons * 32 pcs = 34752 pcs
£84.99
-
Waveshare Waveshare Micro HDMI-Compatible Adapter For DIY HDMI-Compatible Cable, Vertical, Vertical B, Horizontal, Horizontal B
1. Provides both vertical and horizontal mounting orientations to satisfy diverse spatial layouts and wiring requirements. Please select male-to-female or female-to-female interface types based on your project environment to effectively optimize the connection structure between display devices and adapter boards.2. Ultra-compact dimensional design, ideal for space-constrained embedded devices, DIY display screens, and development board projects.3. When used as an HDMI adapter cable assembly, it requires purchasing 2 adapter boards and 1 FFC flexible ribbon cable or FPC flexible ribbon cable.4. Premium PCB material and precision soldering technology ensure wear resistance and long-lasting durability.5. Features high-quality Micro HDMI connectors with excellent contact performance, ensuring stable and lossless transmission of high-definition video and audio signals.Specification: Package Weight One Package Weight 0.05kgs / 0.12lb One Package Size 8cm * 5cm * 5cm / 3.15inch * 1.97inch * 1.97inch Qty per Carton 240 Carton Weight 13.10kgs / 28.88lb Carton Size 34cm * 32cm * 42cm / 13.39inch * 12.6inch * 16.54inch Loading Container 20GP: 583 cartons * 240 pcs = 139920 pcs40HQ: 1354 cartons * 240 pcs = 324960 pcs
£2.99
-
Waveshare Waveshare Mini HDMI-Compatible Adapter For DIY HDMI-Compatible Cable, Vertical, Horizontal, Horizontal B
1. Provides both vertical and horizontal mounting orientations to satisfy diverse spatial layouts and wiring requirements. Please select male-to-female or female-to-female interface types based on your project environment to effectively optimize the connection structure between display devices and adapter boards.2. Ultra-compact dimensional design, ideal for space-constrained embedded devices, DIY display screens, and development board projects.3. When used as an HDMI adapter cable assembly, it requires purchasing 2 adapter boards and 1 FFC flexible ribbon cable or FPC flexible ribbon cable.4. Premium PCB material and precision soldering technology ensure wear resistance and long-lasting durability.5. Features high-quality Mini HDMI connectors with excellent contact performance, ensuring stable and lossless transmission of high-definition video and audio signals.Specification: Package Weight One Package Weight 0.05kgs / 0.12lb One Package Size 8cm * 5cm * 5cm / 3.15inch * 1.97inch * 1.97inch Qty per Carton 240 Carton Weight 13.10kgs / 28.88lb Carton Size 34cm * 32cm * 42cm / 13.39inch * 12.6inch * 16.54inch Loading Container 20GP: 583 cartons * 240 pcs = 139920 pcs40HQ: 1354 cartons * 240 pcs = 324960 pcs
£2.99
-

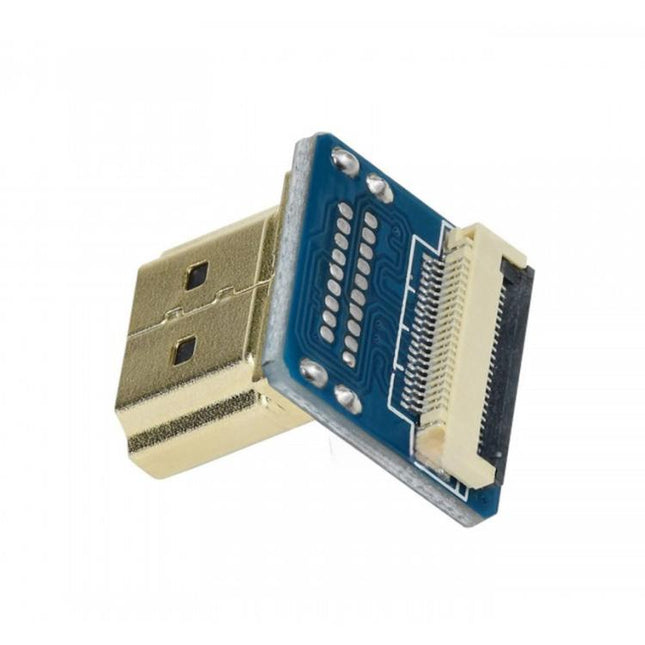

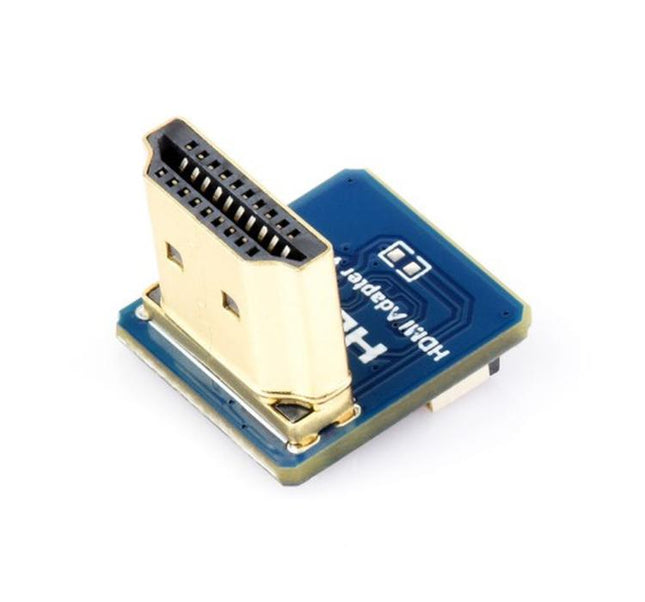

Waveshare Waveshare HDMI-Compatible Adapter For DIY HDMI-Compatible Cable, Vertical, Vertical B, Horizontal, Horizontal B
1. Provides both vertical and horizontal mounting orientations to satisfy diverse spatial layouts and wiring requirements. Please select male-to-female or female-to-female interface types based on your project environment to effectively optimize the connection structure between display devices and adapter boards.2. Ultra-compact dimensional design, ideal for space-constrained embedded devices, DIY display screens, and development board projects.3. When used as an HDMI adapter cable assembly, it requires purchasing 2 adapter boards and 1 FFC flexible ribbon cable or FPC flexible ribbon cable.4. Premium PCB material and precision soldering technology ensure wear resistance and long-lasting durability.5. Features high-quality HDMI connectors with excellent contact performance, ensuring stable and lossless transmission of high-definition video and audio signals.Specification: Package Weight One Package Weight 0.05kgs / 0.12lb One Package Size 8cm * 5cm * 5cm / 3.15inch * 1.97inch * 1.97inch Qty per Carton 240 Carton Weight 13.10kgs / 28.88lb Carton Size 34cm * 32cm * 42cm / 13.39inch * 12.6inch * 16.54inch Loading Container 20GP: 583 cartons * 240 pcs = 139920 pcs40HQ: 1354 cartons * 240 pcs = 324960 pcs
£1.99 - £2.99
-
Waveshare FPC Cable 0.5mm Pitch Opposite-Side Gold-Plated Contacts, EMI Shielding, Waveshare 20PIN 60mm, Waveshare 20PIN 120mm
1. Both sides of the cable are covered with black electromagnetic shielding film to enhance anti-interference performance and ensure more stable signal transmission.2. High-quality gold-plated contacts: Gold finger connectors are processed with gold-plating technology, offering anti-oxidation, wear resistance for repeated plugging/unplugging, greatly reducing contact resistance, and extending service life.3. Good flexibility and flexible wiring.4. Opposite-side 0.5mm pitch design: Features 20 Pin specification with 0.5mm fine pitch, combined with opposite-side (reverse) contact surface design, meeting the interface layout requirements of various compact electronic devices.5. Note: The product needs to be used with the corresponding HDMI adapter board.Specification: Package Weight One Package Weight 0.02kgs / 0.05lb One Package Size 14cm * 5cm * 4cm / 5.51inch * 1.97inch * 1.57inch Qty per Carton 120 Carton Weight 3.50kgs / 7.72lb Carton Size 30cm * 32cm * 42cm / 11.81inch * 12.6inch * 16.54inch Loading Container 20GP: 661 cartons * 120 pcs = 79320 pcs40HQ: 1535 cartons * 120 pcs = 184200 pcs
£1.99
-
Waveshare Waveshare ESP32-C5 3.5inch Rounded Corner LCD Development Board, IPS Panel, 320 × 480 Resolution, 262K Color, Without Camera, With Built-in Camera
1. ESP32-C5-Touch-LCD-3.5 is a microcontroller development board designed by Waveshare. Onboard 3.5-inch LCD screen, power management chip, 6-axis sensor, temperature and humidity sensor, Micro SD card slot, etc., providing hardware foundation for display, sensing, voice, and multimedia storage. Relying on these hardware, the product can connect to online AI LLM platforms to achieve intelligent voice interaction and visual interaction.2. Adopts ESP32-C5-WROOM-1U series module, equipped with a RISC-V 32-bit processor, main frequency up to 240 MHz.3. Integrated 384 KB SRAM, 320 KB ROM, 8 MB PSRAM, and 32 MB Flash, meeting the needs for program execution, graphical user interfaces, and data storage.4. Integrated 2.4 GHz and 5 GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (supporting Zigbee 3.0 and Thread) wireless communication, featuring excellent RF performance.5. Onboard camera interface, supporting BF3901 camera.6. Onboard battery charge management module, with a reserved 3.7V MX1.25 lithium battery interface for external battery power supply.7. Uses Type-C interface, improving user convenience and device compatibility.8. Onboard 3.5-inch capacitive touch HD IPS screen, 320 x 480 resolution, 262K colors, capable of displaying color images clearly.9. Built-in ST7796 driver chip and FT6336 capacitive touch chip, using SPI and I2C interfaces for communication respectively, saving interface pin resources.10. Leads out UART, I2C, and some IO interfaces, integrated full-speed USB serial port.11. Onboard QMI8658 6-axis sensor, RTC clock sensor, SHTC3 temperature and humidity sensor, and TF card slot, etc.12. Onboard PWR and BOOT customizable side buttons, convenient for custom feature development using buttons.13. Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker, easily playing with Xiaozhi AI.14. Supports ESP-IDF / Arduino development environments, rich resources, easy to get started.LCD Screen Specifications:1. Display panel: IPS2. Display size: 3.5 inch3. Display resolution: 320 x 480 pixels4. Display color: 262K5. Display brightness: 450 cd/m26. Contrast ratio: 1100:17. Communication interface: SPI8. Driver IC: ST77969. Touch type: Capacitive sensing10. Touch IC: FT6336Specification: Package Weight One Package Weight 0.13kgs / 0.30lb One Package Size 13cm * 10cm * 5cm / 5.12inch * 3.94inch * 1.97inch Qty per Carton 100 Carton Weight 14.00kgs / 30.86lb Carton Size 45cm * 26cm * 38cm / 17.72inch * 10.24inch * 14.96inch Loading Container 20GP: 599 cartons * 100 pcs = 59900 pcs40HQ: 1392 cartons * 100 pcs = 139200 pcs
£32.99 - £35.99
You have seen 48 out of 424 products
