Motor & Controller

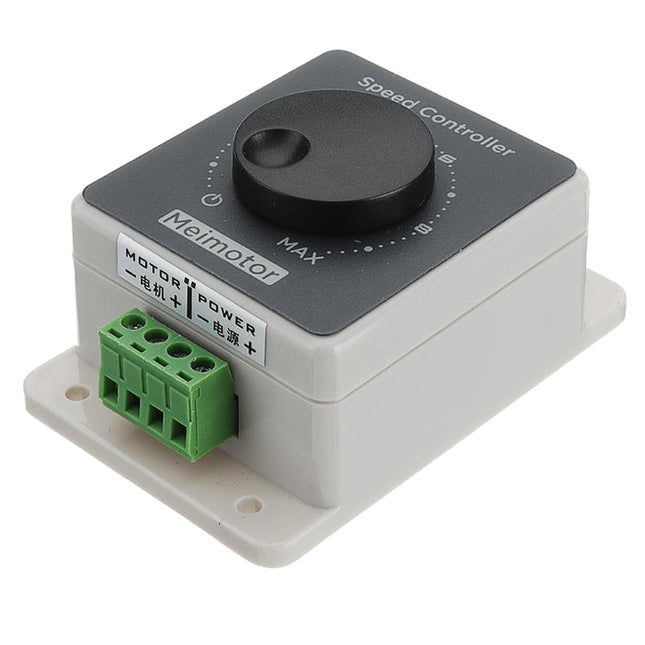

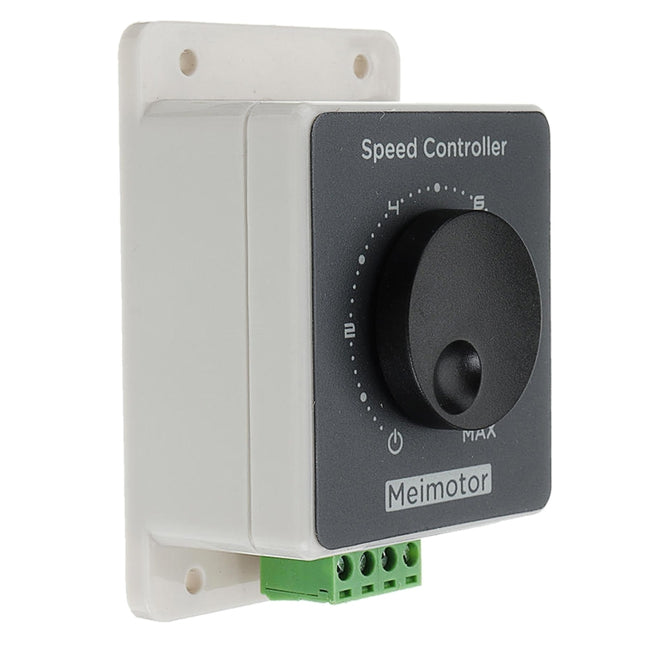

Technical Parameters1. Model: LDTR-WG02672. Potentiometer: Resistance B100K; opening 8mm3. Input voltage: DC10-60V4. Output voltage: 0-100% of input voltage5. Control power: 12V*10A=120W, 24V*10A=240W,...6. Rated current: 10A7. Maximum current: 20A8. Speed range: 5%-100%9. Size: 88mm*59mm*35mm10. PWM frequency: 25kHz11. Package included: 1 x DC 12V 24V 36V 48V PWM DC Motor Speed ControllerPrecautions and instructions for use1. DC motor speed controller input is DC, not directly connected to AC, otherwise it will burn out2. The positive and negative DC power supply can not be reversed, otherwise the governor will be damaged.3. The motor can be divided into positive and negative. When the direction of movement is inconsistent with the expectation,4. the direction can be changed by adjusting the line sequence.5. The potentiometer knob can change the duty cycle of the speed control output, thus changing the motor speed.Specification: Package Weight One Package Weight 0.11kgs / 0.23lb One Package Size 10cm * 7cm * 4cm / 3.94inch * 2.76inch * 1.57inch Qty per Carton 300 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 35cm * 40cm / 23.62inch * 13.78inch * 15.75inch Loading Container 20GP: 317 cartons * 300 pcs = 95100 pcs40HQ: 736 cartons * 300 pcs = 220800 pcs

Read more less

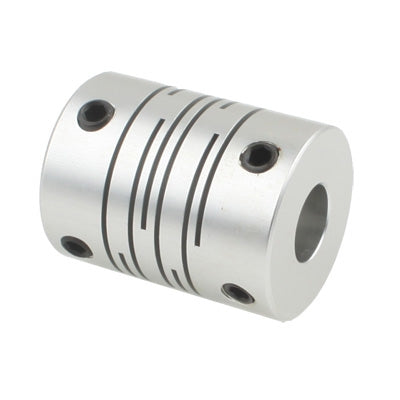

1. Shaft: 8 x 10mm 2. Length: 26mm 3. Diameter: 20mm 4. Material: aluminiumSpecification: Package Weight One Package Weight 0.07kgs / 0.14lb Qty per Carton 500 Carton Weight 9.00kgs / 19.84lb Carton Size 30cm * 20cm * 11cm / 11.81inch * 7.87inch * 4.33inch Loading Container 20GP: 4040 cartons * 500 pcs = 2020000 pcs40HQ: 9379 cartons * 500 pcs = 4689500 pcs

Read more less

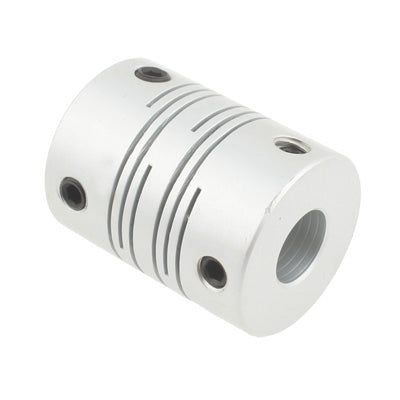

1. Shaft: 6.35 x 8mm 2. Length: 26mm 3. Diameter: 20mm 4. Material: aluminiumSpecification: Package Weight One Package Weight 0.06kgs / 0.13lb Qty per Carton 500 Carton Weight 11.00kgs / 24.25lb Carton Size 30cm * 20cm * 11cm / 11.81inch * 7.87inch * 4.33inch Loading Container 20GP: 4040 cartons * 500 pcs = 2020000 pcs40HQ: 9379 cartons * 500 pcs = 4689500 pcs

Read more less

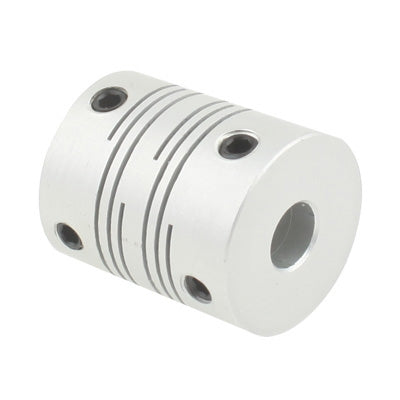

1. Shaft usage: 6.35mm x 6.35mm 2. Length: 25mm 3. Diameter: 20mm 4. Material: AluminumSpecification: Package Weight One Package Weight 0.07kgs / 0.14lb Qty per Carton 500 Carton Weight 10.00kgs / 22.05lb Carton Size 30cm * 20cm * 11cm / 11.81inch * 7.87inch * 4.33inch Loading Container 20GP: 4040 cartons * 500 pcs = 2020000 pcs40HQ: 9379 cartons * 500 pcs = 4689500 pcs

Read more less

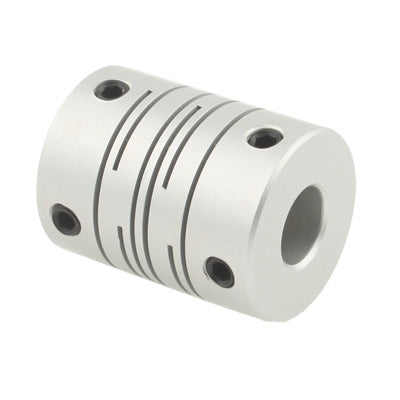

1. Shaft usage: 8mm x 8mm 2. Length: 25mm 3. Diameter: 20mm 4. Material: AluminumSpecification: Package Weight One Package Weight 0.07kgs / 0.14lb Qty per Carton 500 Carton Weight 10.00kgs / 22.05lb Carton Size 30cm * 20cm * 11cm / 11.81inch * 7.87inch * 4.33inch Loading Container 20GP: 4040 cartons * 500 pcs = 2020000 pcs40HQ: 9379 cartons * 500 pcs = 4689500 pcs

Read more less

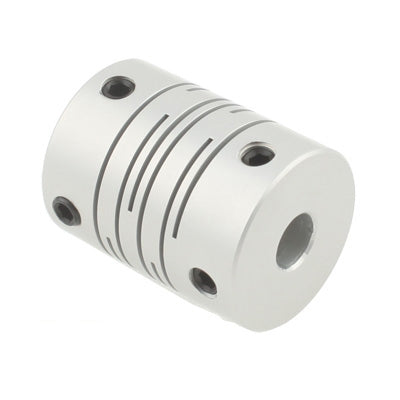

1. Shaft usage: 6mm x 10mm 2. Length: 25mm 3. Diameter: 20mm 4. Material: AluminumSpecification: Package Weight One Package Weight 0.07kgs / 0.14lb Qty per Carton 400 Carton Weight 8.00kgs / 17.64lb Carton Size 30cm * 20cm * 11cm / 11.81inch * 7.87inch * 4.33inch Loading Container 20GP: 4040 cartons * 400 pcs = 1616000 pcs40HQ: 9379 cartons * 400 pcs = 3751600 pcs

Read more less

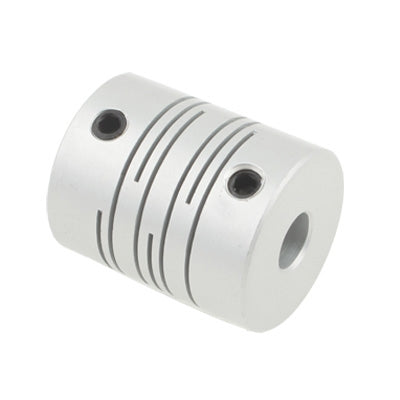

1. Shaft usage: 6mmx6mm 2. Length: 25mm 3. Diameter:20mm 4. Material: aluminumSpecification: Package Weight One Package Weight 0.07kgs / 0.14lb Qty per Carton 400 Carton Weight 8.00kgs / 17.64lb Carton Size 30cm * 20cm * 11cm / 11.81inch * 7.87inch * 4.33inch Loading Container 20GP: 4040 cartons * 400 pcs = 1616000 pcs40HQ: 9379 cartons * 400 pcs = 3751600 pcs
