Arduino Nucleo Accessories

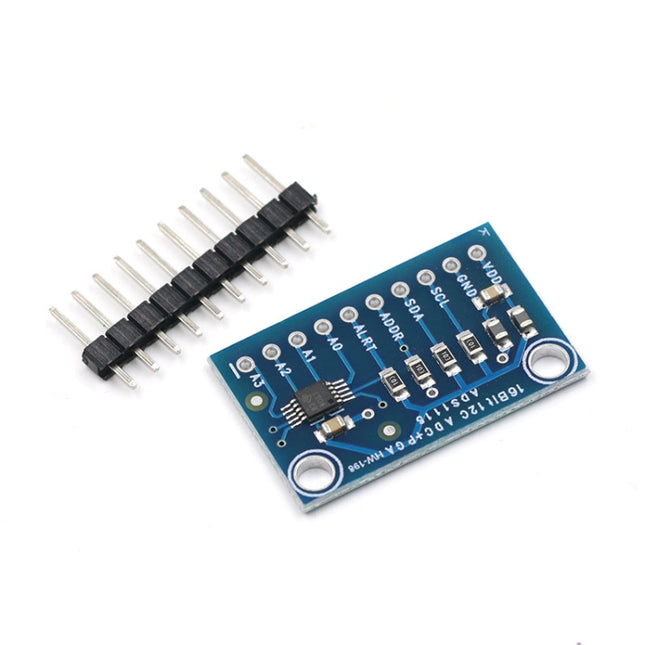

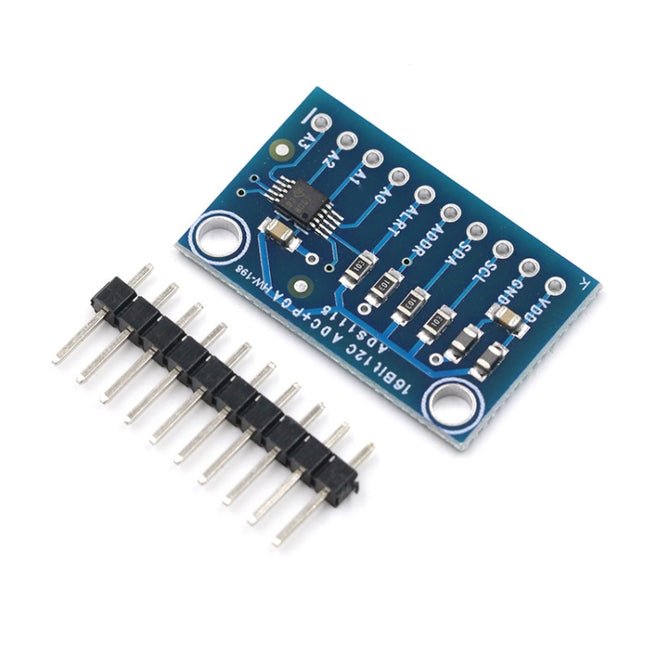

1. The portable instrument is automatically powered off after conversion and greatly reduces current consumption during idle periods2. Features: easy to implement, high precision, low current consumption, multi-mode conversion3. Power supply voltage: 2-5.5v4. Working temperature: -40 to 125 degrees celsius5. Programmable data rate: Transmission via I2C compatible serial interface6. Single mode: Automatic shutdown with onboard reference and oscillator7. Size: about 16 x 28mm8. Weight: about 2.5gSpecification: Package Weight One Package Weight 0.03kgs / 0.07lb One Package Size 6cm * 6cm * 2cm / 2.36inch * 2.36inch * 0.79inch Qty per Carton 500 Carton Weight 13.00kgs / 28.66lb Carton Size 47cm * 47cm * 15cm / 18.5inch * 18.5inch * 5.91inch Loading Container 20GP: 804 cartons * 500 pcs = 402000 pcs40HQ: 1868 cartons * 500 pcs = 934000 pcs

Read more less

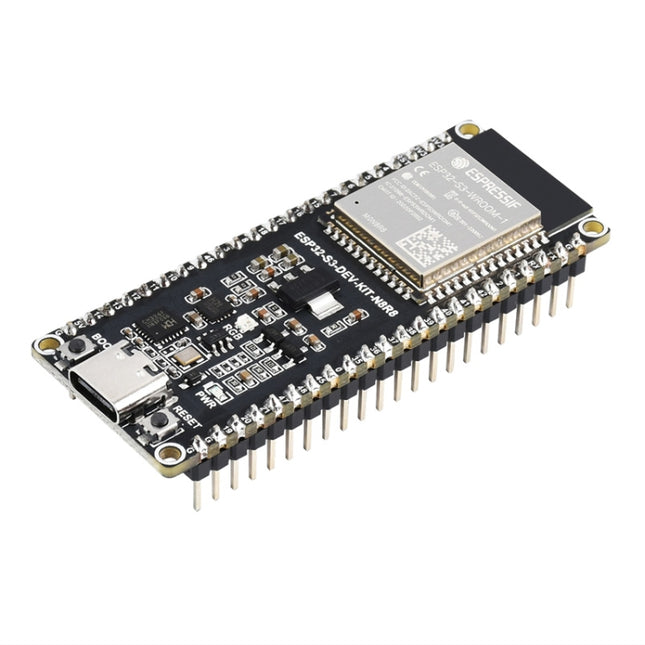

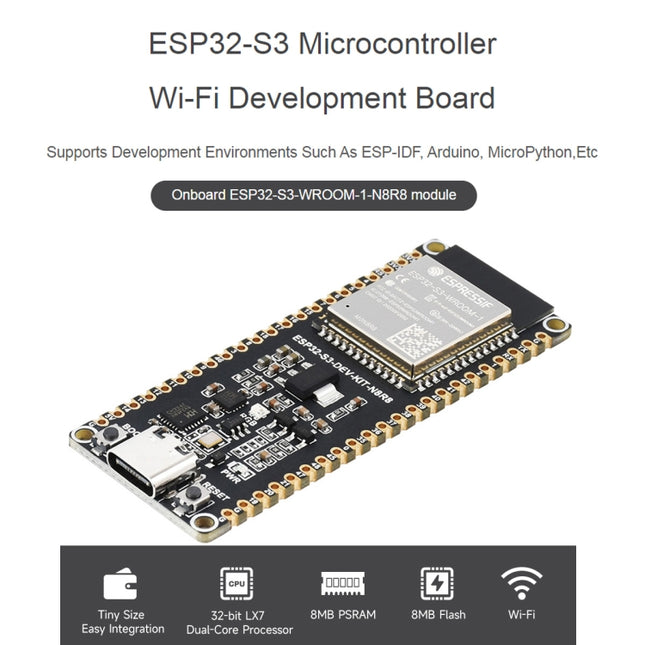

1. ESP32-S3-DEV-KIT-N8R8 is a microcontroller development board with a small size and a variety of digital interfaces.2. In terms of software, you can choose ESP-IDF, Arduino, MicroPython and other development environments for development, so that you can get started easily and quickly, and apply them to products.3. Using ESP32-S3-WROOM-1-N8R8 module, equipped with Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240MHz4. Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory5. Integrated 2.4GHz Wi-Fi and Bluetooth Low Energy (Bluetooth LE) dual-mode wireless communication with superior RF performance6. Using the USB Type-C interface, no need to tangle with the front and back plugs7. The onboard CH343 and CH334 chips can meet the development and use requirements of USB and UART through a Type-C interface8. Lead out rich peripheral interfaces, pin compatible with ESP32-S3-DevKitC-1 development board, strong compatibility and expandability9. Stamp hole design, can be directly welded and integrated into the bottom plate designed by the user10. Support a variety of low-power working states, adjust the balance between communication distance, data rate and power consumption, and meet the power consumption requirements of various application scenariosSpecification: Package Weight One Package Weight 0.03kgs / 0.06lb One Package Size 8cm * 5cm * 4cm / 3.15inch * 1.97inch * 1.57inch Qty per Carton 500 Carton Weight 12.00kgs / 26.46lb Carton Size 30cm * 50cm * 40cm / 11.81inch * 19.69inch * 15.75inch Loading Container 20GP: 444 cartons * 500 pcs = 222000 pcs40HQ: 1031 cartons * 500 pcs = 515500 pcs

Read more less

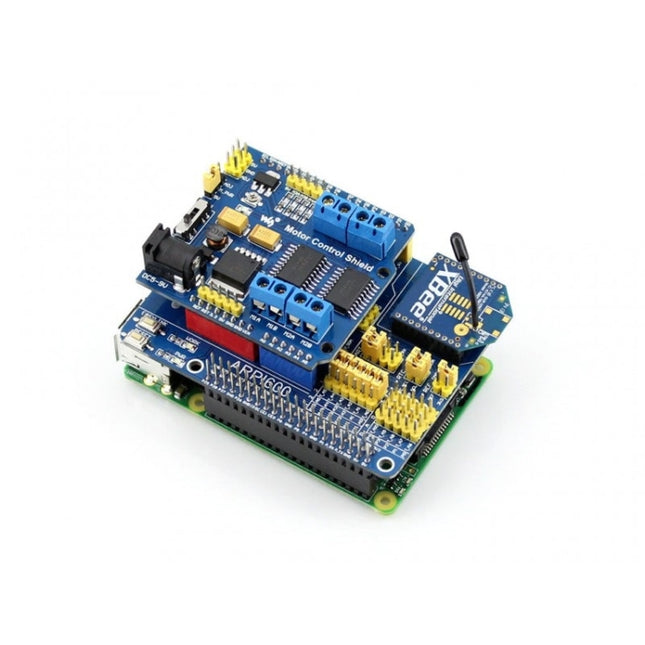

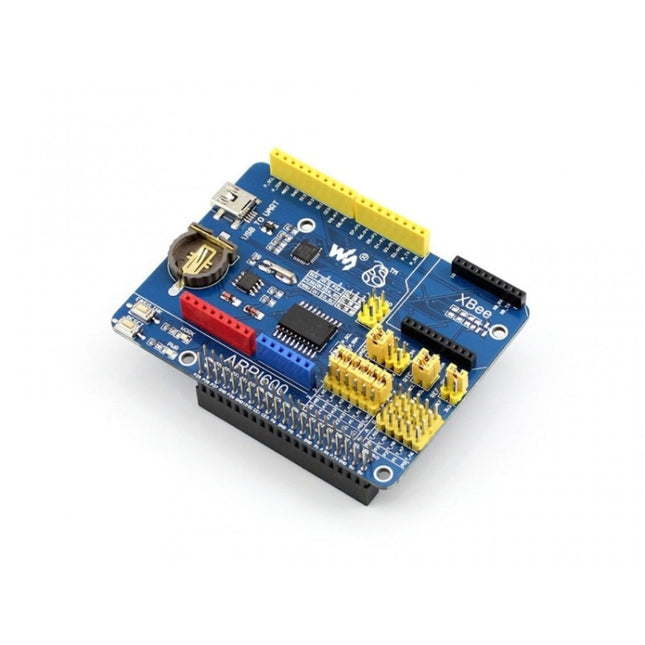

OverviewArduino is a massive ecosystem, if there is a way for the Raspberry Pi GPIO interface to adapt to Arduino pinouts, it is possible to use the Pi together with vast Arduino shields and hardware/software resources. The ARPI600 is just intended for this.What is more, the ARPI600 also support XBee modules, make it easy to add wireless feature to your great project.Supported Pi1. Raspberry Pi 1 Model A+2. Raspberry Pi 1 Model B+3. Raspberry Pi 2 Model B4. Raspberry Pi 3 Model B5. Raspberry Pi 3 Model B+ARPI600 Features1. Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields2. XBee connector for connecting various XBee modules3. Sensor interface for connecting various sensors4. Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter5. Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)6. Onboard RTCWhat is on the ARPI6001. Arduino connector: For connecting Arduino shields2. ICSP interface: Arduino ICSP3. XBee connector: For connecting XBee communication modules4. Sensor interface: For connecting sensors5. Raspberry Pi connector: For connecting Raspberry Pi6. USB TO UART7. TLC1543: AD converter8. PCF8563: RTC9. CP210210. 32.768KHz crystal: For RTC11. Power indicator12. XBee state LED13. XBee and Arduino interface RESET button14. XBee EASYLINK button15. RTC battery holder: For CR1220 button battery16. TLC1543 reference voltage configuration jumper17. RTC jumper18. UART jumper- When connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port- When connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port- When connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port19. Arduino AD selection jumper- Short 2 and 3: Arduino A0-A5 as AD input- Short 1 and 2: Arduino A0-A5 as digital control20. Arduino I2C selection jumper- Short the jumper : Arduino A4-A5 as I2C control (the A4-A5 of Arduino AD selection jumper should be opened)21. Arduino SPI selection jumper- Short 1 and 2: Arduino D11-D13 as SPI control (default)- Short 2 and 3: Arduino D11-D13 as digital controlPackage Contents1. ARPI600 x 12. USB type A plug to mini-B plug cable x 13. RPi screws pack (2pcs) x 1Specification: Package Weight One Package Weight 0.12kgs / 0.26lb One Package Size 10cm * 7cm * 3cm / 3.94inch * 2.76inch * 1.18inch Qty per Carton 390 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 35cm * 39cm / 23.62inch * 13.78inch * 15.35inch Loading Container 20GP: 325 cartons * 390 pcs = 126750 pcs40HQ: 755 cartons * 390 pcs = 294450 pcs

Read more less

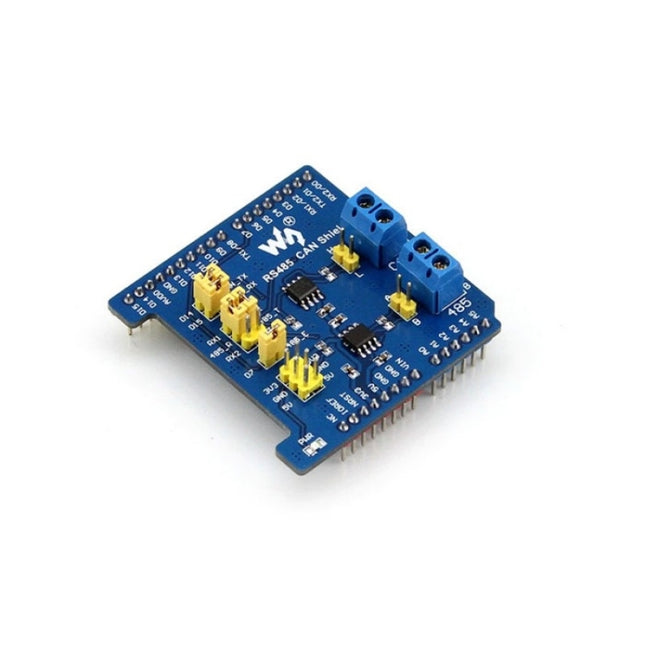

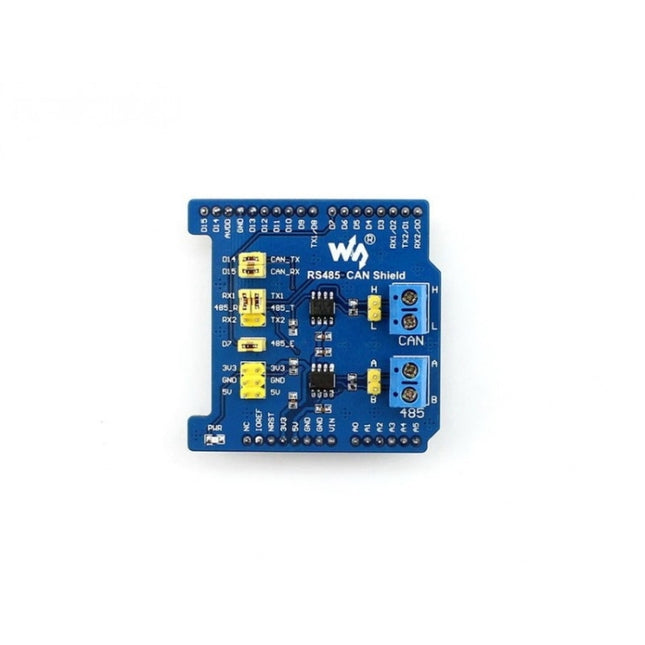

OverviewThe RS485 CAN Shield will easily enable RS485/CAN communication functions for your NUCLEO/XNUCLEO Arduino boards.Features1. Arduino standard interfaces, compatible with Arduino boards like Arduino UNO, Leonardo, NUCLEO, XNUCLEO- When using with Arduino UNO, Leonardo, the CAN function is unavailable due to hardware limitation2. RS485 function, onboard transceiver SP3485/MAX3485, 3.3V power supply3. CAN function, onboard transceiver SN65HVD230, 3.3V power supplySpecification: Package Weight One Package Weight 0.03kgs / 0.07lb One Package Size 7cm * 6cm * 2cm / 2.76inch * 2.36inch * 0.79inch Qty per Carton 960 Carton Weight 15.00kgs / 33.07lb Carton Size 56cm * 36cm * 40cm / 22.05inch * 14.17inch * 15.75inch Loading Container 20GP: 330 cartons * 960 pcs = 316800 pcs40HQ: 767 cartons * 960 pcs = 736320 pcs

Read more less

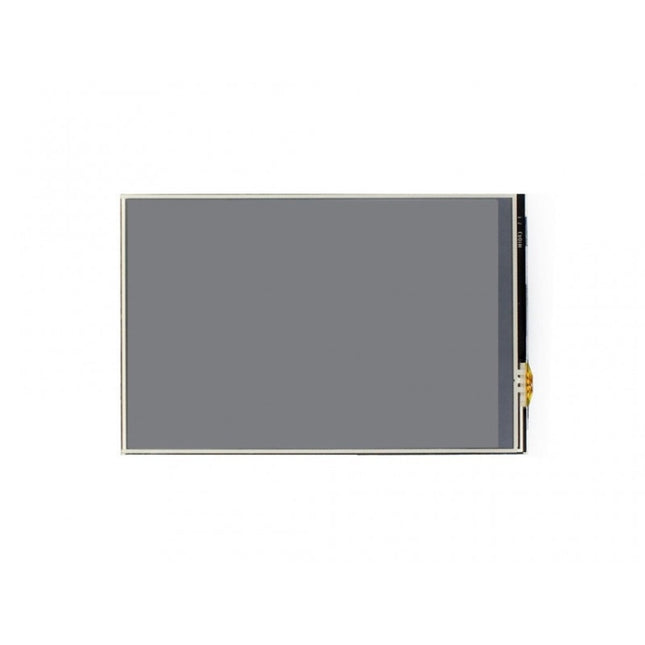

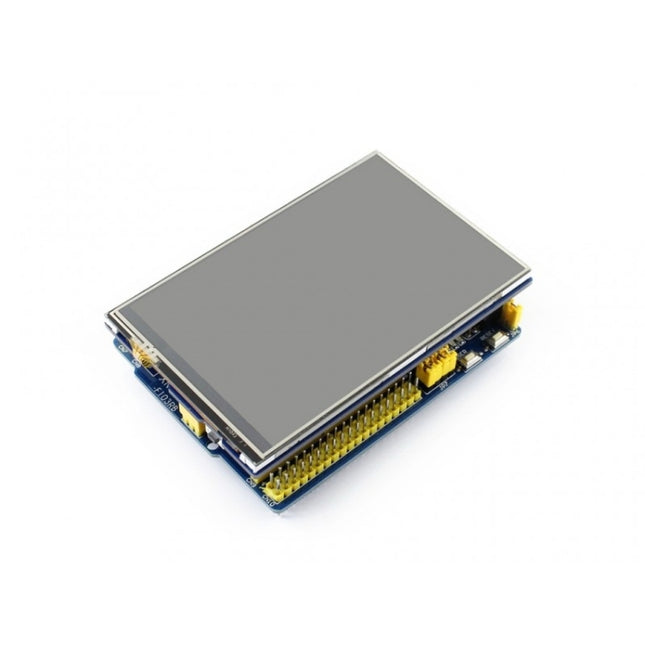

Features1. Resistive touch screen TFT LCD, 4inch, 480x320 resolution2. Standard Arduino interface, compatible with development boards like : Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO3. Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control4. PWM backlight control, allows to adjust the backlight to a comfortable level5. Micro SD slot, provides an easy way to store photos for displaying6. Controlled via SPI, only a few Arduino pins are used7. Comes with STM32 and Arduino examples, convenient for portingKey Parameters1. LCD Type: TFT2. LCD Interface: SPI3. LCD Controller: ILI94864. Touch Screen Type: Resistive5. Touch Screen Controller: XPT20466. Colors: RGB, 65K colors7. Resolution: 480x320 (Pixel)8. Aspect Ratio: 8:59. I/O Voltage: 3.3V/5VWiki : www.waveshare.com/wiki/4inch_TFT_Touch_ShieldSpecification: Package Weight One Package Weight 0.11kgs / 0.24lb One Package Size 10cm * 7cm * 2cm / 3.94inch * 2.76inch * 0.79inch Qty per Carton 600 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 35cm * 40cm / 23.62inch * 13.78inch * 15.75inch Loading Container 20GP: 317 cartons * 600 pcs = 190200 pcs40HQ: 736 cartons * 600 pcs = 441600 pcs

Read more less

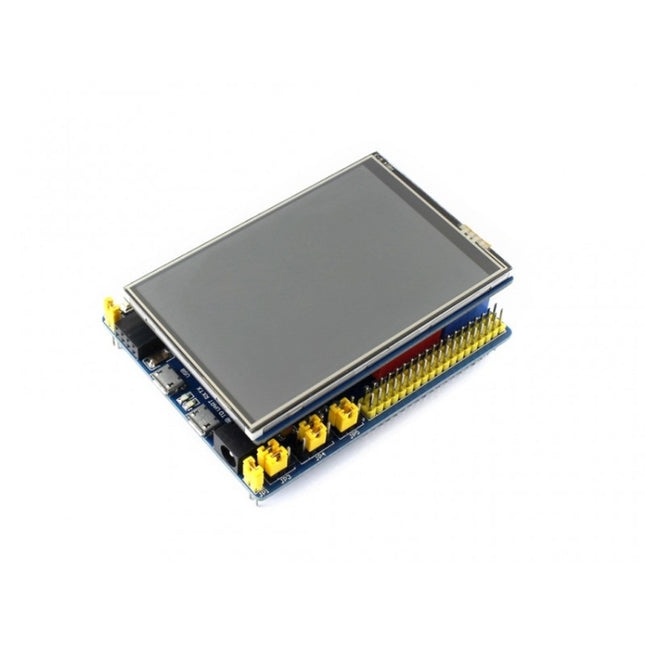

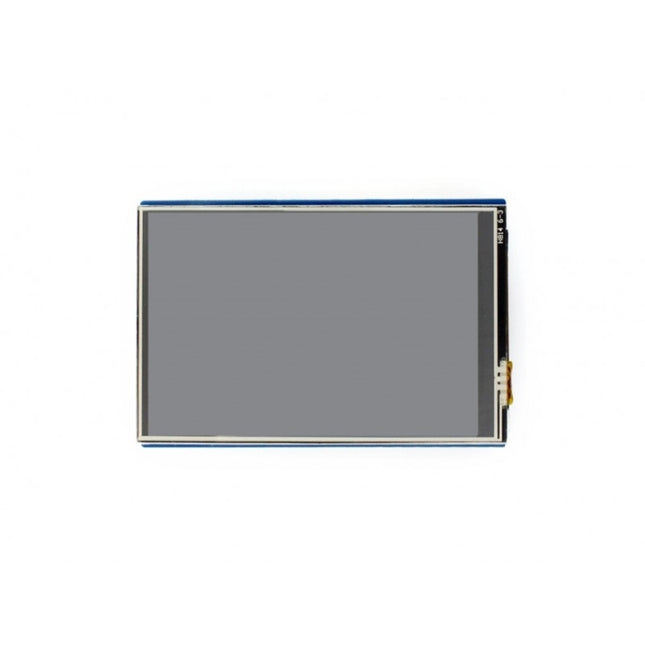

Features1. Resistive touch screen TFT LCD, 3.5inch, 480x320 resolution2. Standard Arduino interface, compatible with development boards like : Arduino UNO, 3. Leonardo, UNO PLUS, NUCLEO, XNUCLEO3. Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control4. PWM backlight control, allows to adjust the backlight to a comfortable level5. Micro SD slot, provides an easy way to store photos for displaying6. Controlled via SPI, only a few Arduino pins are used7. Comes with STM32 and Arduino examples, convenient for portingKey Parameters1. LCD Type: TFT2. LCD Interface: SPI3. LCD Controller: ILI94864. Touch Screen Type: Resistive5. Touch Screen Controller: XPT20466. Colors: RGB, 65K colors7. Resolution: 480x320 (Pixel)8. Aspect Ratio: 8:59. I/O Voltage: 3.3V/5VWiki : www.waveshare.com/wiki/3.5inch_TFT_Touch_ShieldSpecification: Package Weight One Package Weight 0.08kgs / 0.18lb One Package Size 9cm * 6cm * 2cm / 3.54inch * 2.36inch * 0.79inch Qty per Carton 720 Carton Weight 15.00kgs / 33.07lb Carton Size 54cm * 36cm * 40cm / 21.26inch * 14.17inch * 15.75inch Loading Container 20GP: 342 cartons * 720 pcs = 246240 pcs40HQ: 796 cartons * 720 pcs = 573120 pcs

Read more less

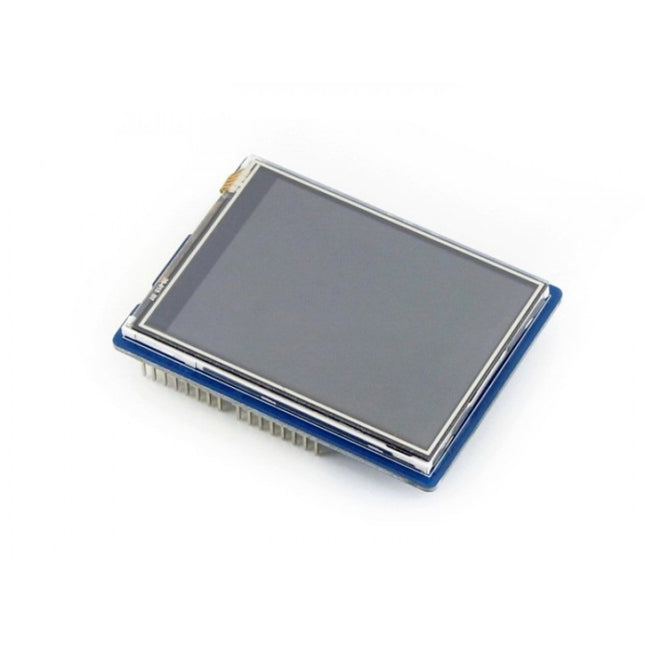

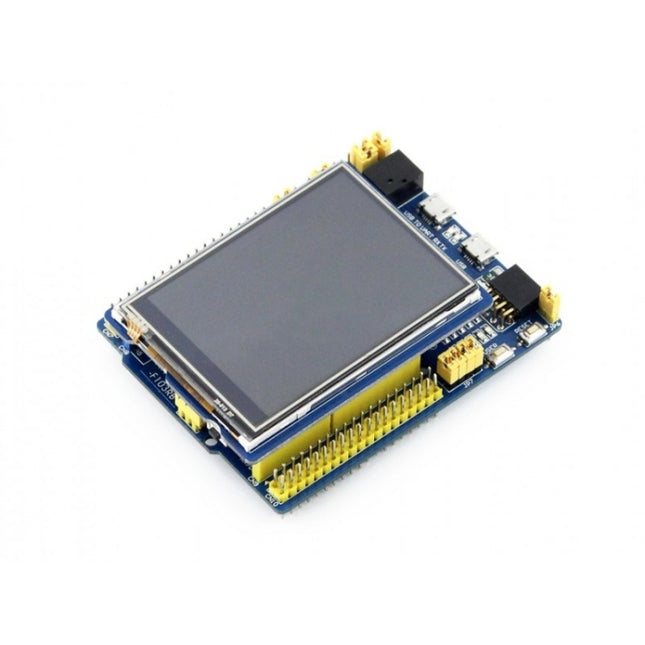

Features1. Resistive touch screen TFT LCD, 2.8inch, 320x240 resolution2. Standard Arduino interface, compatible with development boards like : Arduino UNO, 3. Leonardo, UNO PLUS, NUCLEO, XNUCLEO4. Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control5. Micro SD slot, provides an easy way to store photos for displaying6. Controlled via SPI, only a few Arduino pins are used7. Backlight adjustable by program, lower power consumptionKey Parameters1. LCD Type: TFT2. LCD Interface: SPI4. LCD Controller: HX8347D5. Touch Screen Type: Resistive6. Touch Screen Controller: XPT20467. Colors: RGB, 65K colors8. Resolution: 320x240 (Pixel)9. I/O Voltage: 3.3V/5VWiki : www.waveshare.com/wiki/2.8inch_TFT_Touch_ShieldSpecification: Package Weight One Package Weight 0.08kgs / 0.18lb One Package Size 8cm * 6cm * 2cm / 3.15inch * 2.36inch * 0.79inch Qty per Carton 840 Carton Weight 15.00kgs / 33.07lb Carton Size 56cm * 36cm * 40cm / 22.05inch * 14.17inch * 15.75inch Loading Container 20GP: 330 cartons * 840 pcs = 277200 pcs40HQ: 767 cartons * 840 pcs = 644280 pcs

Read more less

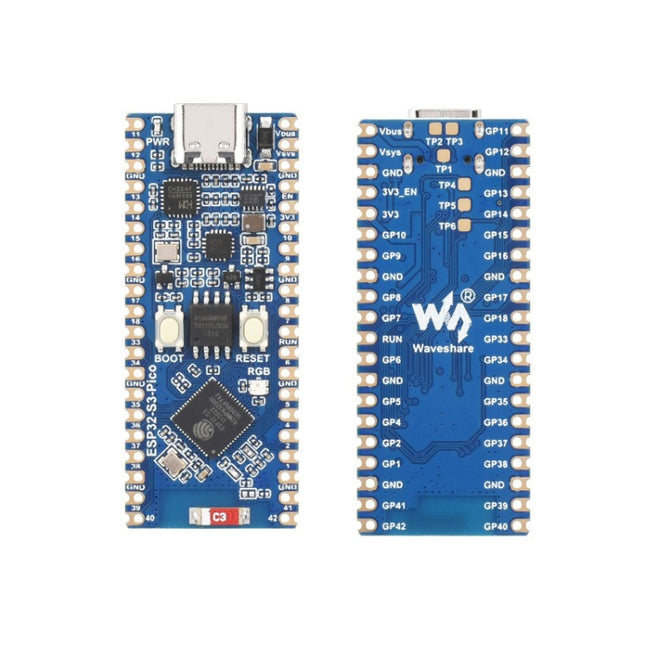

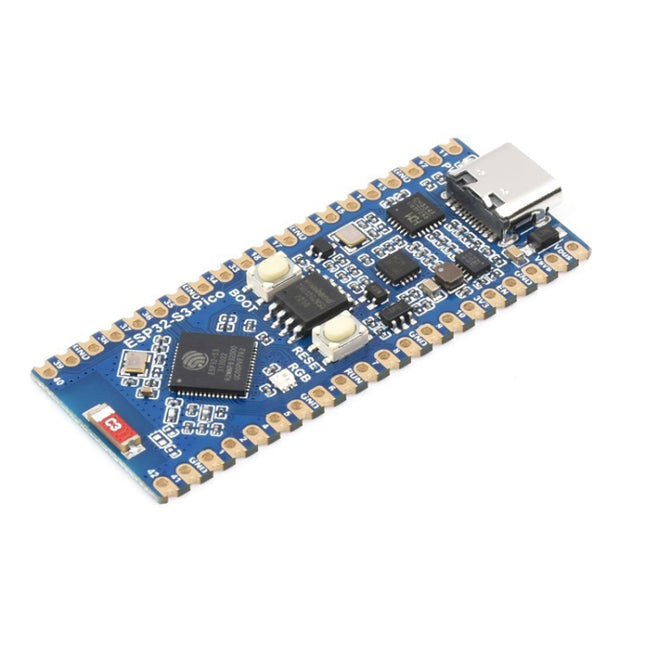

1. Support development environment, such as ESP-IDF, Arduino, MicroPython, etc.2. 240MHz Xtensa 32-bit LX7 dual-core processor3. Easy to integrate, 32-bit LX7, 2MB PSRAM, wireless network, dual-core processor4. Using ESP32-S3R2 chip, Xtensa 32-bit LX7 dual-core processor, running frequency 240mhz5. Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 16MB flash memory6. Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with excellent RF performance7. Type-C connector, more convenient to use8. The onboard CH343 and CH334 chips can meet the needs of USB and UART development through the Type-C interface9. Onboard DC-DC chip MP28164, high-efficiency DC-DC step-down boost chip, the load current can reach 2A10. 27 x multi-function GPIO pins, configurable pin functions, allowing flexible development and integration11. Abundant external interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM and DVP (8-16-bit camera interface), LCD interface (8-16-bit parallel RGB, 18080, MOTO6800), etc., Flexible realization of various functions12. Castellated modules allow direct soldering to the carrier board13. Support a variety of low-power working states, adjustable communication distance, data rate and power consumption balance, to meet the power consumption requirements of various application scenarios14. Support the ecosystem of Raspberry Pi Pico expansion board, suitable for artificial intelligence loT application development15. Support ESP-IDF, Arduino, MicroPython comprehensive SDK, development resources, tutorials, help you get started easily16. ESP32-S3 is specially designed for AloT applications, using Xtensa 32-bit LX7 dual-core processor with a frequency up to 240 MHz, powerful aluminum computing capability and reliable security features17. WIFI and BLE 5 support, ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 B/G/N) and 40mhz bandwidth to support its Bluetooth low energy subsystem to support Bluetooth 5 (LE) and Bluetooth Mesh18. ESP32-S3: Xtensa 32-bit LX7 dual-core processor19. 2.4G monopole ceramic antenna20. W25Q128JVSIQ: 16MB Flash21. Start button: press to enter download mode when reset22. CH334F: USB HUB controller23. CH343P: USB to UART chip24. MP28164: High-efficiency DC-DC step-down boost chip25. Support more Pico expansion modules: Eval-Board, 3.5-inch LCD, 1.3-inch OLED, 8-segment LED, e-paper, NB-IoT module, GPIO expander, sensor module, RTC module, UPS moduleSpecification: Package Weight One Package Weight 0.03kgs / 0.07lb One Package Size 8cm * 5cm * 4cm / 3.15inch * 1.97inch * 1.57inch Qty per Carton 500 Carton Weight 17.00kgs / 37.48lb Carton Size 52cm * 42cm * 42cm / 20.47inch * 16.54inch * 16.54inch Loading Container 20GP: 290 cartons * 500 pcs = 145000 pcs40HQ: 674 cartons * 500 pcs = 337000 pcs
