MCU Tools

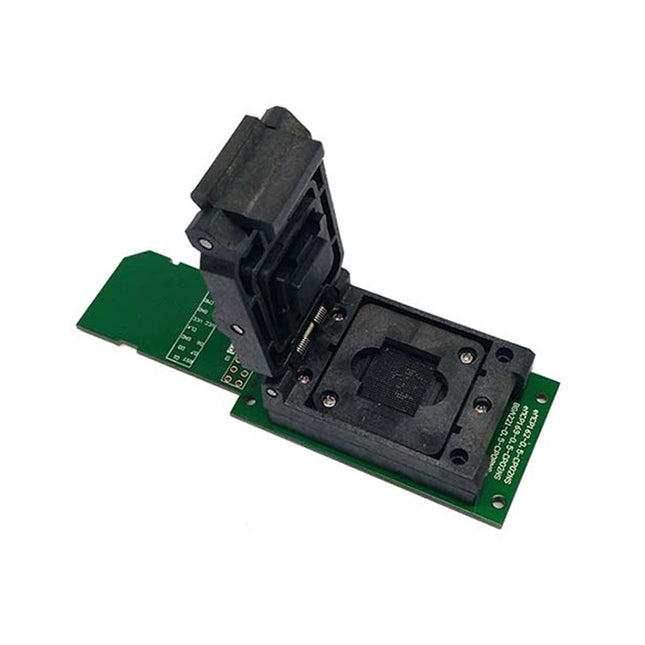

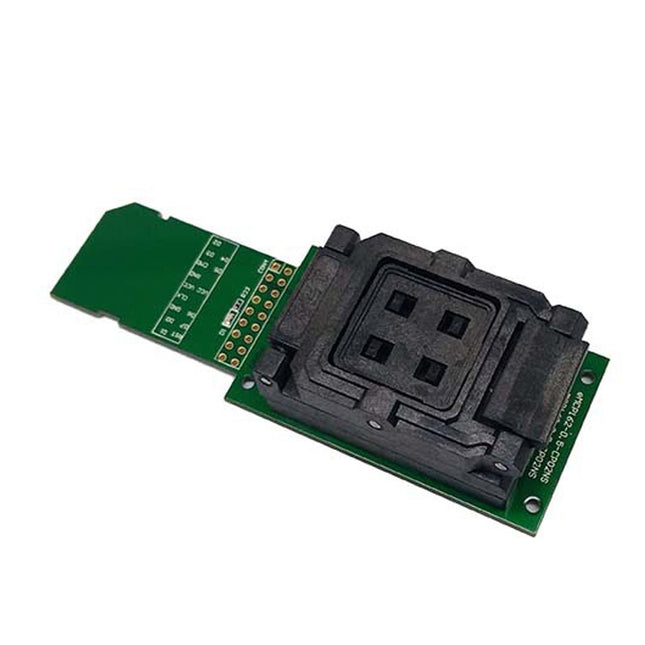

1. Type: Test block2. Interface type: SD3. Application: Integrated circuit IC4. Test method:A. Select the limit frame that matches the IC, and place the IC flat in the SOCKET according to the directionB. Insert the SD interface into the card reader and then connect to the computer, select the corresponding test programFeatures:1. SOCKET is compatible with the ball and no ball test, and the IC limit frame can be replaced. Compared with similar products, it has a long service life and wide versatility.2. Compatible with 169-FBGA 153-FBGA at the same time3. The shrapnel is made of imported beryllium copper by high-precision die stamping, and the head shape is imitated by the probe design, and the latter is hardened and thickened with gold plating to ensure product stability and durability4. The contact module adopts an overall structure to reduce the problem of repeated positioning, ensure that its contact point is accurately aligned with the IC PAD, and has a high pass rate in one test5. Use welding structure to ensure good contact and stable testing6. Flip cover structure, more convenient for manual testing, convenient and simple operation7. The pressure IC adopts a mold integral molding and a spring self-adaptive structure to ensure that ICs of different thicknesses do not need any adjustments to have good contact. The tested ICs are versatile (the thickness range of 0.6-2.0MM can be tested)8. The structure adopts injection molding, precise positioning, convenient access to IC, and higher work efficiencyRepair and maintenance:1. Use an air gun or anti-static brush to remove impurities in the SOCKET seat to make it contact well;2. Clean the SOCKET with absolute alcohol to clean the attached impurities on the top of the shrapnel and make it contact well;3. If you find that the shrapnel inside the SOCKET is burned or broken, please purchase the corresponding SOCKET to replace it;4. It cannot be detected when the USB interface is plugged in. Please check whether the power switch is turned on or whether the computer USB connection is normal;5. It is strictly forbidden to soak and clean with organic solvents such as thinner water and board washing water to avoid damage to the internal structure of SOCKET;6. When not in use for a long time, please seal it with an anti-static bag to prevent dust from falling in and affect the product test performance.Specification: Package Weight One Package Weight 0.12kgs / 0.27lb One Package Size 13cm * 10cm * 6cm / 5.12inch * 3.94inch * 2.36inch Qty per Carton 50 Carton Weight 7.00kgs / 15.43lb Carton Size 52cm * 32cm * 27cm / 20.47inch * 12.6inch * 10.63inch Loading Container 20GP: 593 cartons * 50 pcs = 29650 pcs40HQ: 1377 cartons * 50 pcs = 68850 pcs

Read more less

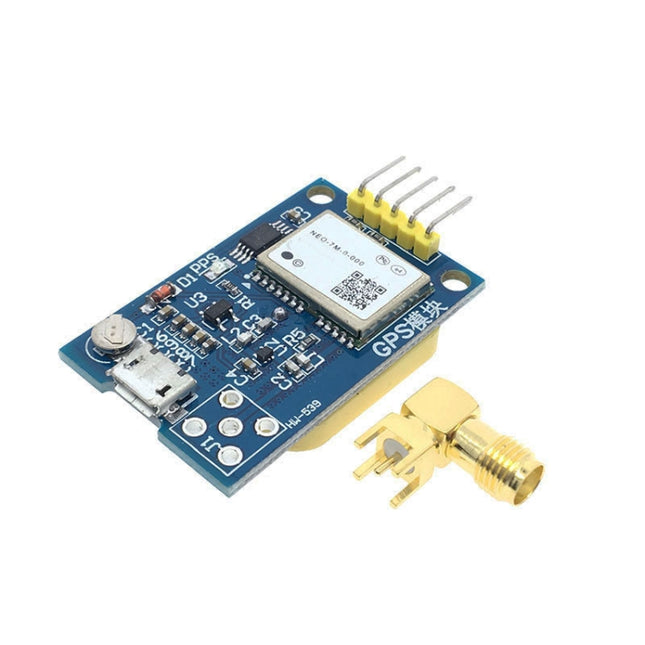

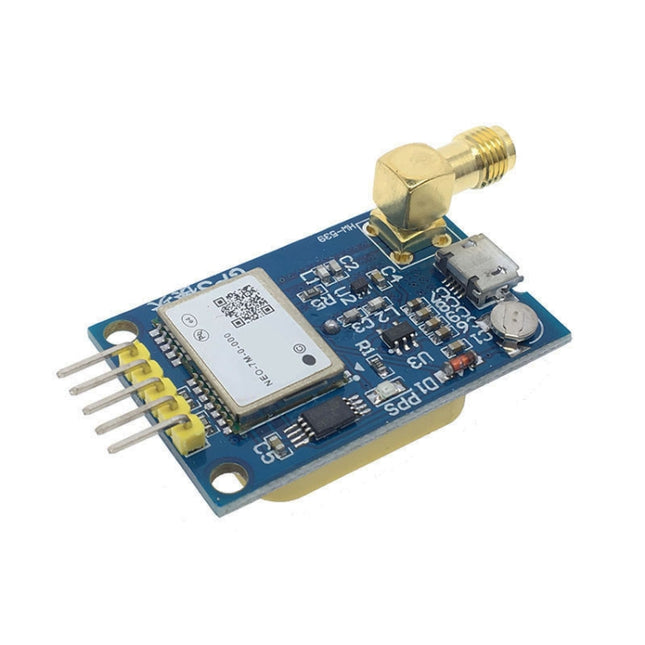

1. Get 51 Arduino STM32 microcontroller routine.2. With a USB interface, you can watch the computer positioning effect directly phone line.3. With the passive ceramic antenna and passive antenna amplifier, make better use of the individual effects.4. With SMA interface can be directly connected to an active antenna SMA.5. TTL level, compatible with 3.3V/5V systems.(Size: 39 x 25.5mm)6. Frequency: 1575.42MHz7. Features: Low electrode consumption. The system clock frequency is controlled by software to achieve a balance between system performance and power consumption, and it has also been widely usedSpecification: Package Weight One Package Weight 0.03kgs / 0.06lb One Package Size 6cm * 6cm * 3cm / 2.36inch * 2.36inch * 1.18inch Qty per Carton 200 Carton Weight 7.00kgs / 15.43lb Carton Size 32cm * 22cm * 22cm / 12.6inch * 8.66inch * 8.66inch Loading Container 20GP: 1721 cartons * 200 pcs = 344200 pcs40HQ: 3996 cartons * 200 pcs = 799200 pcs

Read more less

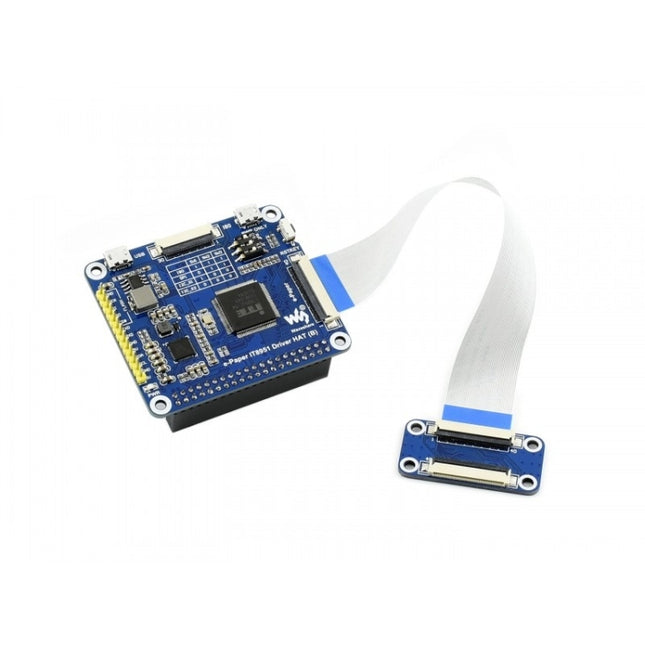

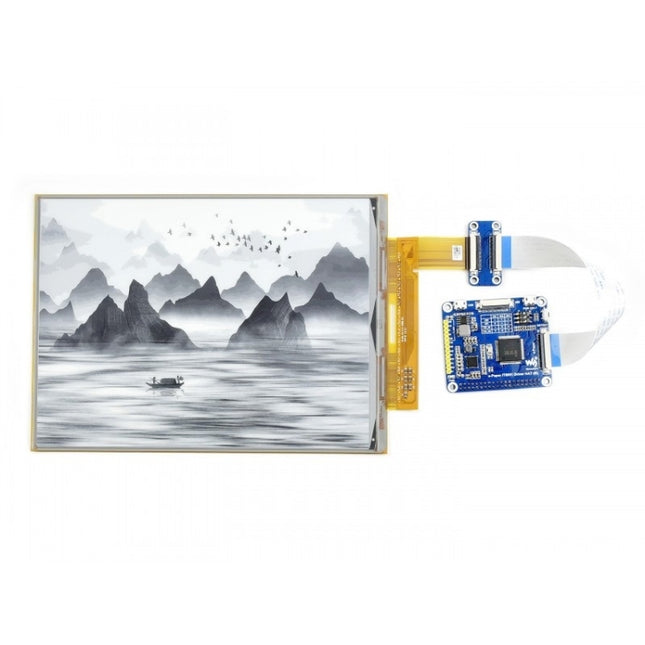

Overview1. This is a flexible E-Ink display HAT for Raspberry Pi, 10.3inch, 1872×1404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface, supports partial refresh.2. Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and its thinner and lighter.3. Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.Features1. Flexible e-Paper, the display section is bendable (DONT bend the FPC section)2. No backlight, keeps displaying last content for a long time even when power down3. Low power consumption, basically power is only required for refreshing4.Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards5. USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.6. Comes with development resources and manual (examples for Raspberry Pi/STM32)Specifications1. Operating voltage: 5V2. Interface: USB/SPI/I80/I2C3. Outline dimension: 227.7mm x 165.8mm x 0.647mm4. Display size: 209.664mm x 157.248mm5. Dot pitch: 0.112mm x 0.112mm6. Resolution: 1872 x 14047. Display color: Black, white8. Gray scale: 2-16 (1-4 bit)9. Full refresh time: 450ms10. Total refresh power: 1.2W(typ.)11. Total standby power: 0.1W(typ.)12. Viewing angle: >170 degree13. Weight: 77gPacking List1. 10.3inch e-Paper (D) x12. e-Paper IT8951 Driver HAT (B) x13. 10.3inch e-Paper Adapter x14. 33PIN FFC (same side contact) x15. USB type A plug to micro B plug cable x26. PH2.0 20cm 8Pin x17. RPi screws pack (2pcs) x1Specification: Package Weight One Package Weight 0.09kgs / 0.20lb One Package Size 23cm * 17cm * 2cm / 9.06inch * 6.69inch * 0.79inch Qty per Carton 80 Carton Weight 7.20kgs / 15.87lb Carton Size 46cm * 34cm * 40cm / 18.11inch * 13.39inch * 15.75inch Loading Container 20GP: 426 cartons * 80 pcs = 34080 pcs40HQ: 989 cartons * 80 pcs = 79120 pcs

Read more less

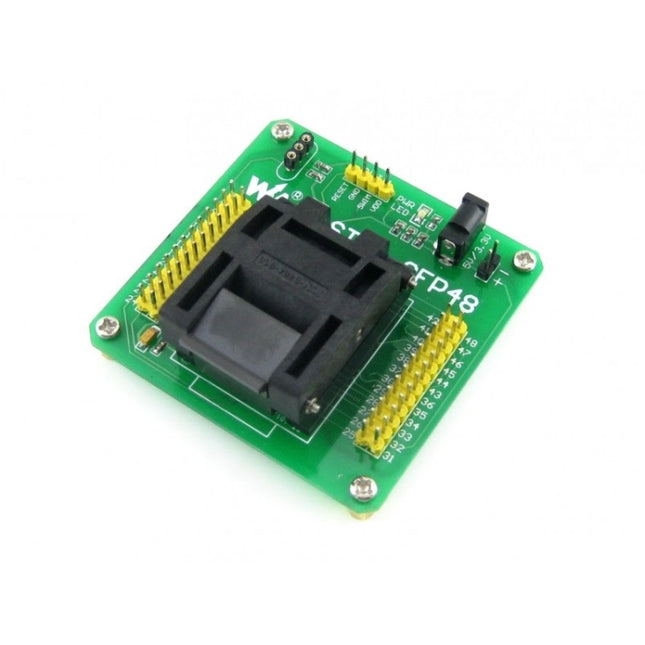

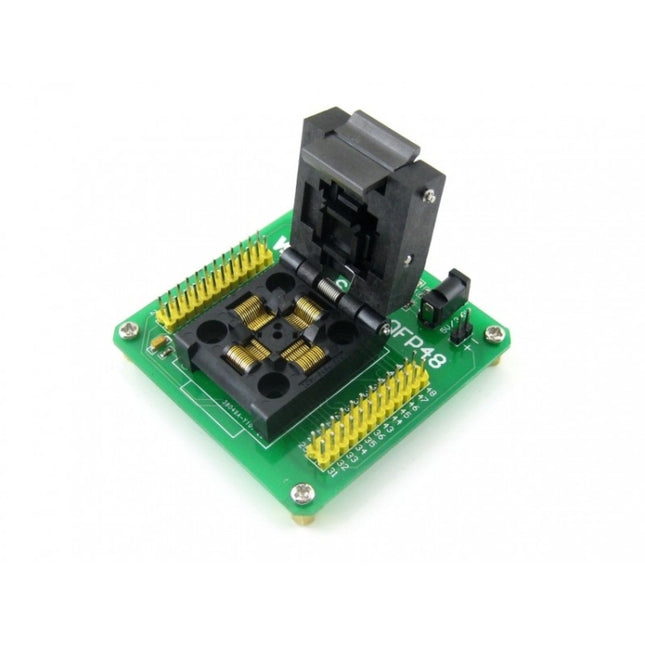

Yamaichi IC Test & Burn-in Socket with a simple board, especially for STM8 microcontroller in QFP48(0.5mm pitch) packageFeatures1. 4-pin SWIM Port for programming or testing2. External crystal can be connected via on board socket3. All the MCU pins are accessible on expansion connectorsSupported DevicesSTM8 microcontroller in QFP48(0.5mm pitch) package with compatible pinouts- STM8S105CxTx / STM8S207CxTx / STM8S208CxTx- STM8AF51x8T / STM8AF52x8T / STM8AF61x8T / STM8AF62x8TPackage Contents1. STM8-QFP48 × 12. USB power cable × 1Specification: Package Weight One Package Weight 0.10kgs / 0.22lb One Package Size 10cm * 6cm * 2cm / 3.94inch * 2.36inch * 0.79inch Qty per Carton 720 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 36cm * 40cm / 23.62inch * 14.17inch * 15.75inch Loading Container 20GP: 308 cartons * 720 pcs = 221760 pcs40HQ: 716 cartons * 720 pcs = 515520 pcs

Read more less

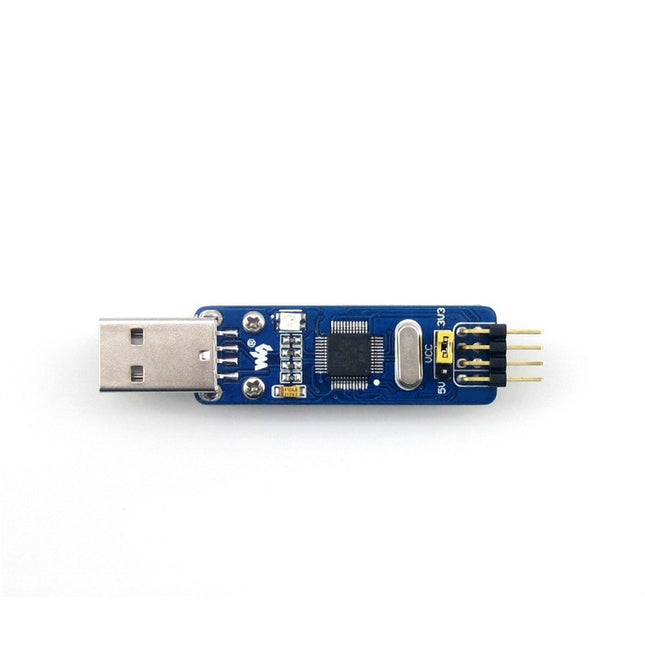

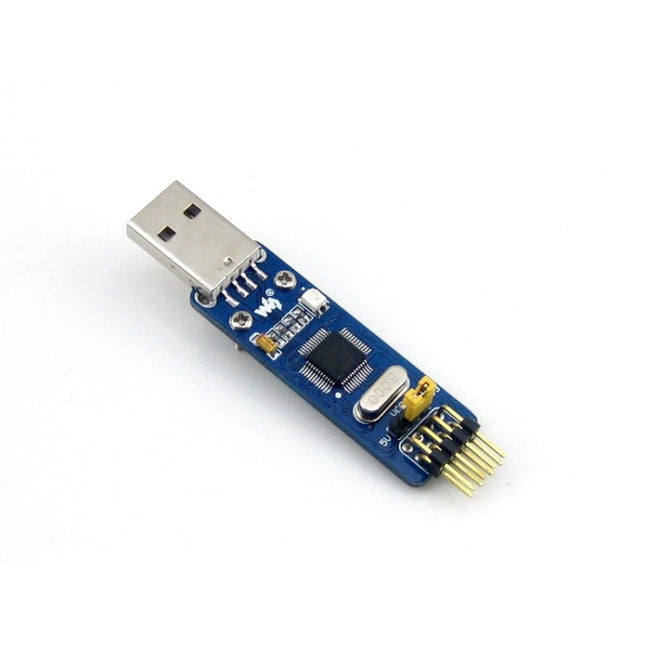

DescriptionMini ST-LINK/V2 on a small single board, an extreme low cost solution for in-circuit debugger/programmer for STM8 and STM32.Features1. Onboard 500mA self-recovery fuse to avoid harming by short circuit2. Dual voltage output (3.3V/5V), easy for debugging/programming3. Standard USB interface for direct connection to PC4. Debugging/Programing performance- Debugging : run at full-speed, single-stepped, breakpoints, viewing variables and registers, etc.- Programming : supports FLASH ROM, EEPROM, AFR, etc.- USB2.0 combined with SWIM/SWD interfaces : quick response for debugging & fast speed for programming5. Upgradable firmware- The firmware is upgradable to support more devices in the future- Automatically upgraded6. Supported software- ST-LINK Utility v2.0 (or higher ver.)- STVD Version 4.2.1 (or higher ver.)- STVP Version 3.2.3 (or higher ver.)- IAR EWARM Revision v6.20 (or higher ver.)- IAR EWSTM8 Revision v1.30 (or higher ver.)- KEIL RVMDK Revision v4.21 (or higher ver.)- ATOLLIC- TASKING7. Supported devices- All the STM8 devices with SWIM interface- All the STM32 devices with SWD interfacePackage Contents1. ST-LINK/V2 (mini) × 12. 4-pin custom connector cable × 13. USB type A plug to receptacle cable × 1Specification: Package Weight One Package Weight 0.02kgs / 0.04lb One Package Size 8cm * 4cm * 1cm / 3.15inch * 1.57inch * 0.39inch Qty per Carton 2800 Carton Weight 15.00kgs / 33.07lb Carton Size 56cm * 40cm * 40cm / 22.05inch * 15.75inch * 15.75inch Loading Container 20GP: 297 cartons * 2800 pcs = 831600 pcs40HQ: 690 cartons * 2800 pcs = 1932000 pcs

Read more less

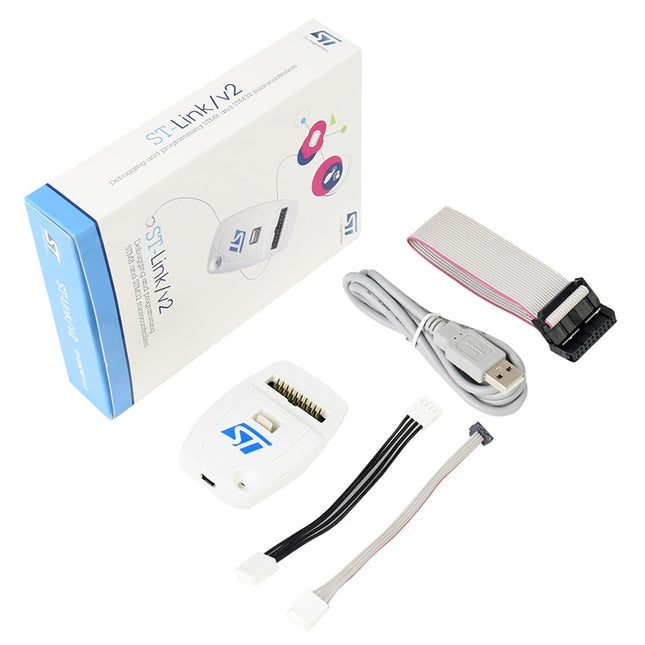

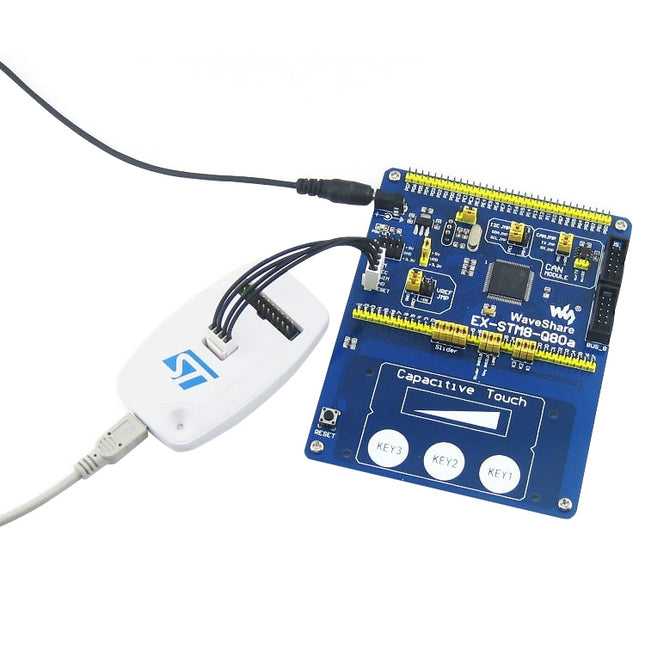

Description1. The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.2. STM8 applications use the USB full speed interface to communicate with STMicroelectronics ST Visual Develop (STVD) or ST Visual Program (STVP) software.3. STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.Key Features1. 5V power supplied by a USB connector2. USB 2.0 full speed compatible interface3. USB standard A to mini B cable4. SWIM specific features5. 1.65 V to 5.5 V application voltage supported on SWIM interface6. SWIM low-speed and high-speed modes supported7. SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed8. SWIM cable for connection to the application via an ERNI standard vertical (ref: 284697 or 214017) or horizontal (ref: 214012) connector9. SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector10. JTAG specific features11. 1.65 V to 3.6 V application voltage supported on the JTAG interface and 5 V tolerant inputs12. JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector13. Direct firmware update feature supported (DFU)14. Status LED which blinks during communication with the PC15. Operating temperature 0 to 50 °CApplication ExampleConnecting the PC and STM8/STM32 application board through ST-LINK/V2 to establish hardware connectionConnection with STM8 applicationsThe ST-LINK/V2 should be connected to the STM8 application via the SWIM cable. Two SWIM cables are delivered with the product:- SWIM flat ribbon with a standard ERNI connector at one end and a 4-pin connector at the other end- SWIM flat ribbon ended with a 4-pin, 2.54 mm, low-cost connector on two sidesConnection with STM32 applicationsFor STM32 developments the ST-LINK/V2 must be connected to the application using the standard 20-pin female-female JTAG flat ribbon provided.ST-LINK/V2 StatusThe LED labeled COM on top of the ST-LINK/V2 shows the ST-LINK/V2 status (whatever the connection type). When the:1. LED is blinking RED: the first USB enumeration with the PC is taking place. If it keeps blinking RED, maybe the USB driver is NOT found.2. LED is RED: communication between ST-LINK/V2 and the PC is established (end of enumeration).3. LED is blinking GREEN/RED: data are being exchanged between the target and the PC.4. LED is GREEN: the last communication has been successful.5. LED is ORANGE: ST-LINK/V2 communication with the target has failed.Specification: Package Weight One Package Weight 0.10kgs / 0.23lb One Package Size 16cm * 9cm * 5cm / 6.3inch * 3.54inch * 1.97inch Qty per Carton 96 Carton Weight 9.60kgs / 21.16lb Carton Size 48cm * 36cm * 40cm / 18.9inch * 14.17inch * 15.75inch Loading Container 20GP: 385 cartons * 96 pcs = 36960 pcs40HQ: 895 cartons * 96 pcs = 85920 pcs

Read more less

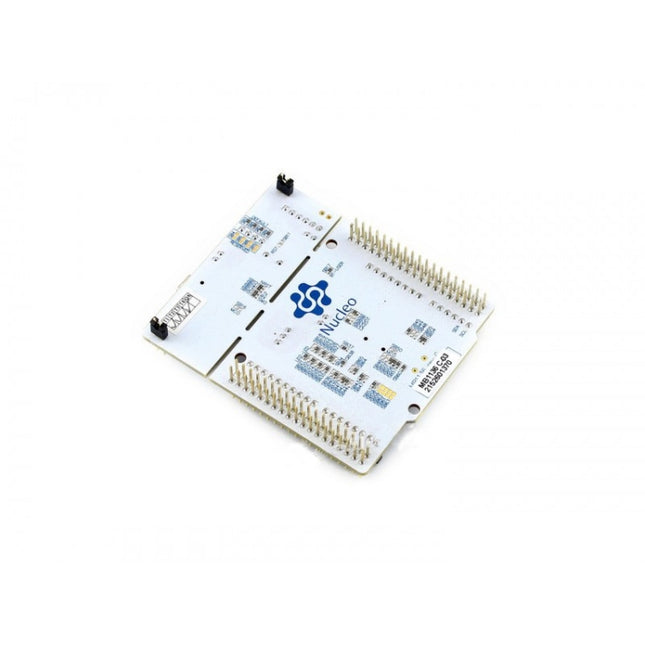

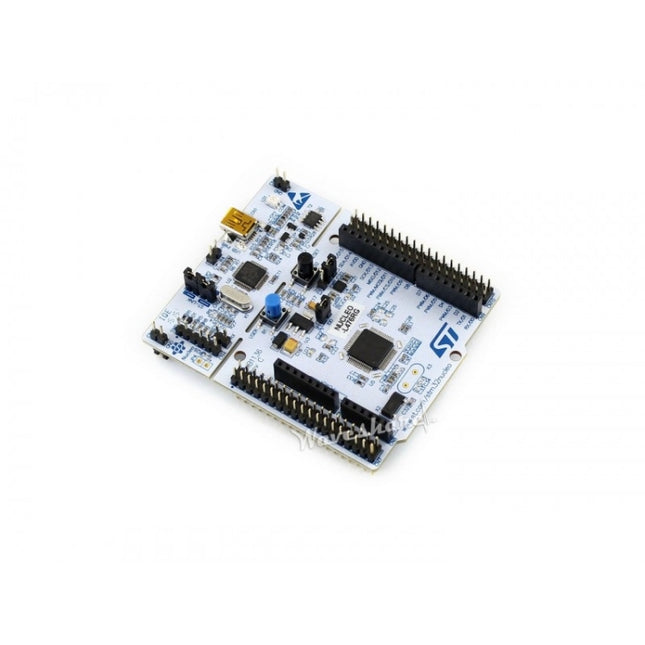

NUCLEO-L476RG DescriptionThe STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features. The Arduino? connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.NUCLEO-L476RG Key FeaturesSTM32 microcontroller with LQFP64 packageTwo types of extension resourcesArduino Uno Revision 3 connectivitySTMicroelectronics Morpho extension pin headers for full access to all STM32 I/Osmbed-enabled (http://mbed.org)On-board ST-LINK/V2-1 debugger/programmer with SWD connectorselection-mode switch to use the kit as a standalone ST-LINK/V2-1Flexible board power supplyUSB VBUS or external source(3.3 V, 5 V, 7 - 12 V)Power management access pointThree LEDsUSB communication (LD1), user LED (LD2), power LED (LD3)Two push buttons: USER and RESETUSB re-enumeration capability: three different interfaces supported on USBVirtual Com portMass storageDebug portSupported by wide choice of Integrated Development Environments (IDEs) including IAR?, Keil?, GCC-based IDEsSpecification: Package Weight One Package Weight 0.11kgs / 0.25lb One Package Size 10cm * 9cm * 5cm / 3.94inch * 3.54inch * 1.97inch Qty per Carton 192 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 36cm * 40cm / 23.62inch * 14.17inch * 15.75inch Loading Container 20GP: 308 cartons * 192 pcs = 59136 pcs40HQ: 716 cartons * 192 pcs = 137472 pcs

Read more less

Overview1. Core405R is an STM32 MCU core board designed for STM32F405RGT6, supports further expansion. It is ideal for starting application development with STM32F family.2. Minimal ready-to-run system, integrates clock circuit, USB control circuit, USB connector, 3. etc.3. All the I/O ports are accessible on the pin headers4. JTAG/SWD programming/debugging interface5. 2.54mm header pitch, allowed to be plugged-in your application boardWhat has On Board1. STM32F405RGT6: The high performance STM32 MCU which features:- Core: Cortex-M4 32-bit RISC- Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz- Operating Voltage: 1.8V-3.6V- Package: LQFP64- Memories: 1MB Flash, 192+4kB SRAM- MCU communication Interfaces:-- 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C, 1 x SDIO, 2 x CAN--1 x USB 2.0 HS/FS device/host/OTG controller with dedicated DMA, on-chip full-speed PHY--1 x USB HS ULPI (external PHY required)- AD & DA converters: 3 x AD (12-bit, 1μs, shares 16 channels); 2 x DA (12-bit)- Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP2. AMS1117-3.3: 3.3V voltage regulator3. MIC2075-2: onboard USB power management device4. Power supply switch, powered from 5Vin or USB connection5. Boot mode selection, for configuring BOOT0 pin6. Power indicator7. VBUS LED8. Reset button9. 8M crystal10. 32.768K crystal, for internal RTC with calibration11. JTAG/SWD interface: for debugging/programming12. USB connector, used for establishing USB communication between PC and the STM32 development board13. MCU pins expander, VCC, GND and all the I/O pins are accessible on expansion connectors for further expansion14. 5Vin pinheader, 5V power supply is required when using USB HOST/OTG15. USB jumper- Short the jumper when using USB- Open the jumper to disconnect from related I/O port16. VBAT selection jumper- Short the jumper to use system power supply- Open the jumper to connect the VBAT to external power, such as batteryPackage Contents1. Core405R x 12. USB type A to Mini-B cable x 13. Software CD x 1Specification: Package Weight One Package Weight 0.12kgs / 0.26lb One Package Size 10cm * 8cm * 3cm / 3.94inch * 3.15inch * 1.18inch Qty per Carton 390 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 40cm * 39cm / 23.62inch * 15.75inch * 15.35inch Loading Container 20GP: 284 cartons * 390 pcs = 110760 pcs40HQ: 661 cartons * 390 pcs = 257790 pcs

Read more less

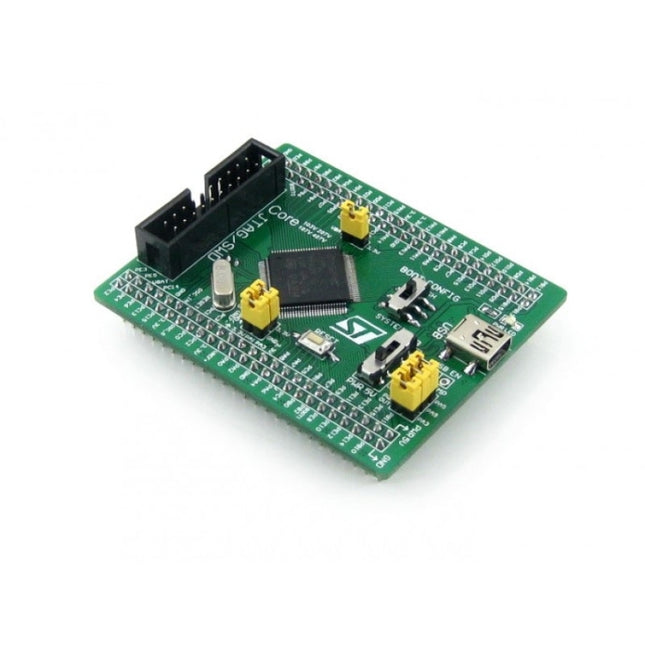

Overview1. Core407V is a small STM32 development board that features an STM32F407VET6 device as the microcontroller, supports further expansion. It is ideal for starting application development with STM32F family.2. As a minimal ready-to-run system, the Core407V integrates USB communication interface, JTAG/SWD programming/debugging interface, clock circuit, USB power management, boot mode selection, and so on.3. Furthermore, pin headers on the backside allow the Core407V to be plugged-in your application board and act as the MCU core circuit in your system. All the I/O ports are accessible on the pin headers, and the header pitch is designed as 2.54mm.What has On Board1. STM32F407VET6: The high performance STM32 MCU which features:- Core: Cortex-M4 32-bit RISC- Feature: a full set of single-cycle DSP instructions- Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz- Operating Voltage: 1.8V-3.6V- Package: LQFP100- Memories: 512kB Flash, 192+4kB SRAM- MCU communication Interfaces:-- 3 x SPI, 3 x USART, 2 x UART, 2 x I2S, 3 x I2C-- 1 x FSMC, 1 x SDIO, 2 x CAN-- 1 x USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI and on-chip full-speed PHY-- 1 x 10/100 Ethernet MAC-- 1 x 8 to 12-bit parallel camera interface- AD & DA converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)- Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP2. AMS1117-3.3 (on bottom side): 3.3V voltage regulator3. MIC2075 (on bottom side): onboard USB power management device4. Power supply switch, powered from 5Vin or USB connection5. Boot mode switch, for configuring BOOT0 pin6. Power indicator7. Reset button8. 8M crystal oscillator9. 32.768K crystal (on bottom side), for internal RTC with calibration10. JTAG/SWD interface: for debugging/programming11. USB connector, used for establishing USB communication between PC and the STM32 development board12. IO expander (including VCC/GND), all the MCU pins are accessible on expansion connectors for further expansion13. 5Vin pinheader, 5V power supply is required when using USB HOST/OTG14. USB jumper- Short the jumper when using USB- Open the jumper to disconnect from I/O ports15. VBAT selection jumper- Short the jumper to use system power supply- Open the jumper to connect the VBAT to external power, such as battery16. VREF selection jumper- Short the jumper to connect VREF+/VREF- to VCC/GND- Open the jumper to connect VREF+/VREF- to other custom pin via jumper wirePackage Contents1. Core407V development board x 12. USB type A to Mini-B cable x 13. Software CD x 1Specification: Package Weight One Package Weight 0.10kgs / 0.21lb One Package Size 10cm * 9cm * 3cm / 3.94inch * 3.54inch * 1.18inch Qty per Carton 312 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 36cm * 39cm / 23.62inch * 14.17inch * 15.35inch Loading Container 20GP: 316 cartons * 312 pcs = 98592 pcs40HQ: 734 cartons * 312 pcs = 229008 pcs

Read more less

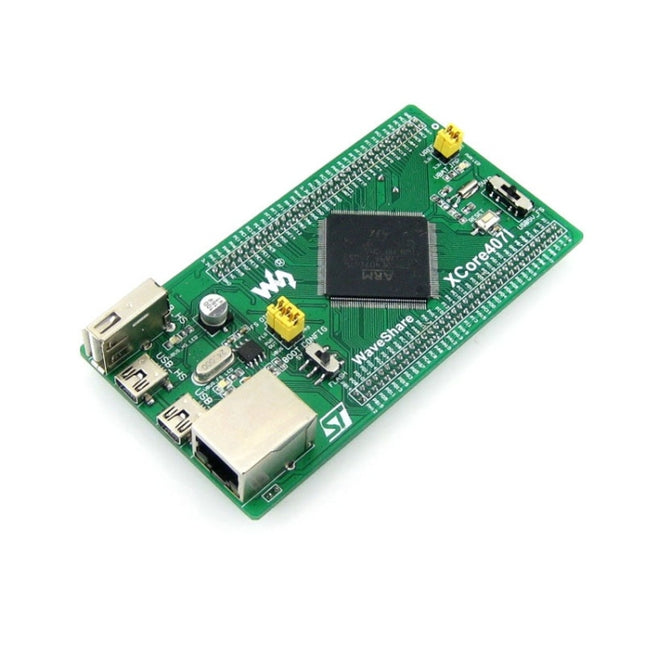

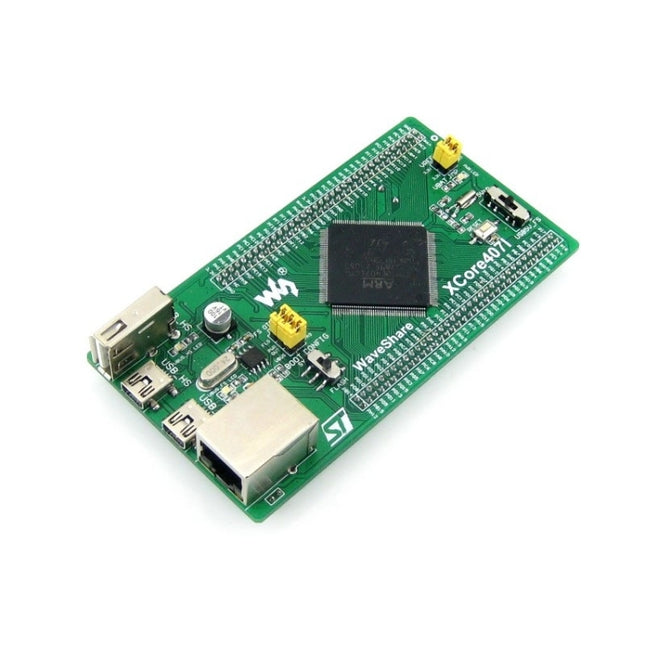

Overview1. XCore407I is an STM32 MCU core board that features the STM32F407IGT6 on board.2. Clock circuit, USB power management3. Onboard devices: USB HS PHY, Ethernet PHY, 1G Bit NandFlash4. Connectors：USB HS (mini / type A), USB FS (mini), Ethernet (RJ45)5. All the idle I/O ports are accessible on the pin headers6. 2.0mm pin header pitch, smaller size, easier to integrate into user system7. Note : please consider the EVK407I, which supports easily programing/debugging.What is On BoardSTM32F407IGT6 development board on board resource1. STM32F407IGT6: The high performance STM32 MCU which features:- Core: Cortex-M4 32-bit RISC- Feature: a full set of single-cycle DSP instructions- Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz- Operating Voltage: 1.8V-3.6V- Package: LQFP176- Memories: 1024kB Flash, 192+4kB SRAM- MCU communication Interfaces:-- 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C-- 1 x FSMC, 1 x SDIO, 2 x CAN-- 1 x USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI and on-chip full-speed PHY-- 1 x 10/100 Ethernet MAC-- 1 x 8 to 14-bit parallel camera interface- AD & DA converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)- Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP2. MIC2075-2, onboard USB FS power management device3. AMS1117-3.3, 3.3V voltage regulator4. K9F1G08U0E, 1G Bit NandFlash5. DP83848, Ethernet PHY6. MIC2075-1, onboard USB HS power management device7. USB3300, USB HS PHY8. Power supply switch, powered from 5Vin or USB connection9. Boot mode switch, for configuring BOOT0 pin10. Power indicator11. USB FS LED12. USB HS LED13. Reset button14. 8M crystal, MCU clock, enables the MCU run at higher speed by frequency multiplication15. 24M crystal, USB3300 clock16. 50M crystal, DP83848 clock17. 32.768K crystal, for internal RTC with calibration18. Ethernet connector19. USB FS mini connector20. USB HS mini connector21. USB HS type A connector22. MCU pins expander, VCC, GND and all the idle I/O ports are accessible on expansion connectors for further expansion23. USB OTG/HOST jumper24. VREF/VBAT jumper25. Ethernet I/O selection solder joint26. USB HS I/O selection solder joint27. PDR selection solder joint: 1.8-3.6V, -40～105℃ OR 1.7-3.6V, 0～70℃Package Contents1. XCore407I development board x 12. USB type A to Mini-B cable x 13. Software CD x 1Specification: Package Weight One Package Weight 0.15kgs / 0.33lb One Package Size 15cm * 8cm * 3cm / 5.91inch * 3.15inch * 1.18inch Qty per Carton 260 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 40cm * 39cm / 23.62inch * 15.75inch * 15.35inch Loading Container 20GP: 284 cartons * 260 pcs = 73840 pcs40HQ: 661 cartons * 260 pcs = 171860 pcs

Read more less

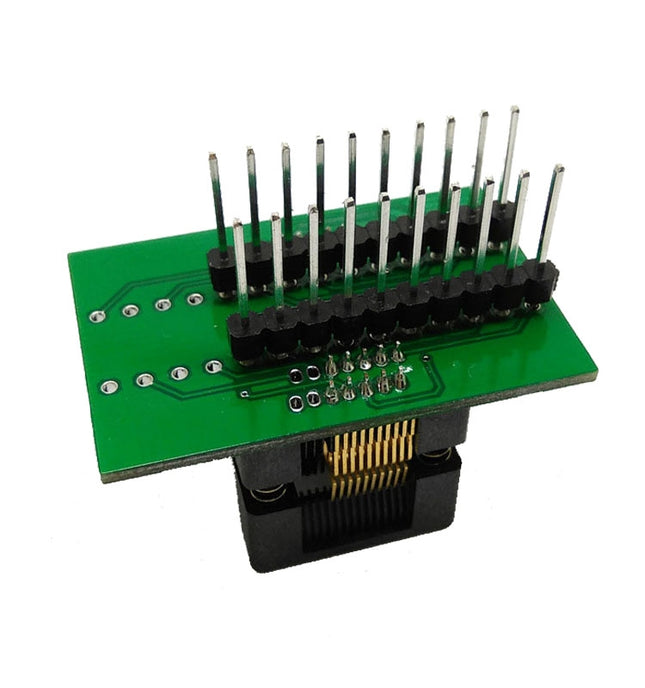

1. Type: Test Block2. Working frequency: High frequency3. Application: Integrated Circuit IC4. Contact impedance: Less than 25 milliohms5. Production process: Injection molding6. Features: Fire retardant/flame retardant7. Contact material: Beryllium copper shrapnel8. Insulator material: PEI, PPS9. Number of cores: 2010. Working temperature: -65～155 degrees Celsius11. Lead spacing: 0.65mm12. Service life: 20,000 times13. Adaptation chip body width: 4.4mmFeatures:1. Using double contact technology, the contact is more stable2. The seat shell is made of special engineering plastic, which has high strength and long life.3. The shrapnel adopts imported beryllium copper material, which has low impedance and good elasticity4. Thick gold plating layer, thick contact plating, ultra-low contact impedance, high reliabilitySpecification: Package Weight One Package Weight 0.02kgs / 0.05lb One Package Size 15cm * 12cm * 6cm / 5.91inch * 4.72inch * 2.36inch Qty per Carton 200 Carton Weight 5.00kgs / 11.02lb Carton Size 52cm * 36cm * 37cm / 20.47inch * 14.17inch * 14.57inch Loading Container 20GP: 385 cartons * 200 pcs = 77000 pcs40HQ: 893 cartons * 200 pcs = 178600 pcs

Read more less

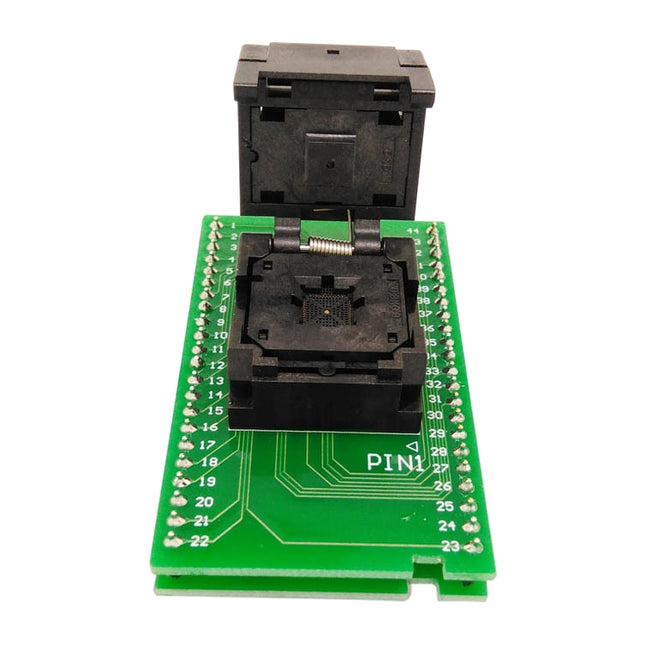

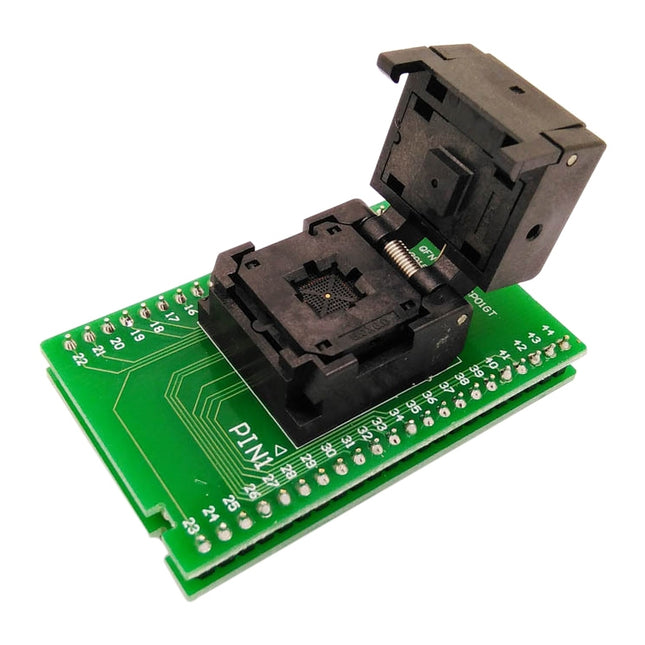

1. Number of cores: 442. Features: U-shaped thimble, more stable contact3. Purpose: Programming socket, test socket, test, read and write on QFN44 IC chip4. Working frequency: High frequency5. Production process: Injection molding6. Application: Integrated Circuit IC7. Contact material: Beryllium copper shrapnel8. Insulator material: PPS/PET9. Chip size: 7x7cm10. Pin spacing: 0.5mmSpecification: Package Weight One Package Weight 0.02kgs / 0.05lb One Package Size 15cm * 12cm * 6cm / 5.91inch * 4.72inch * 2.36inch Qty per Carton 200 Carton Weight 5.00kgs / 11.02lb Carton Size 52cm * 32cm * 32cm / 20.47inch * 12.6inch * 12.6inch Loading Container 20GP: 500 cartons * 200 pcs = 100000 pcs40HQ: 1162 cartons * 200 pcs = 232400 pcs

Read more less

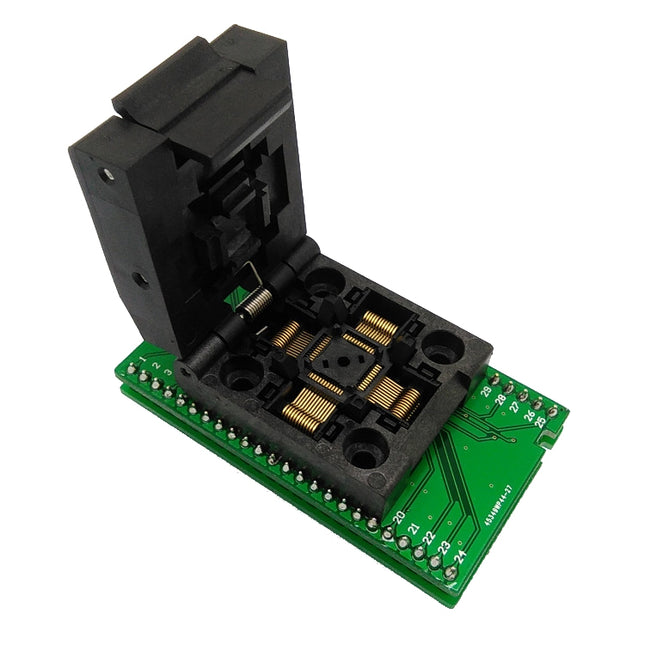

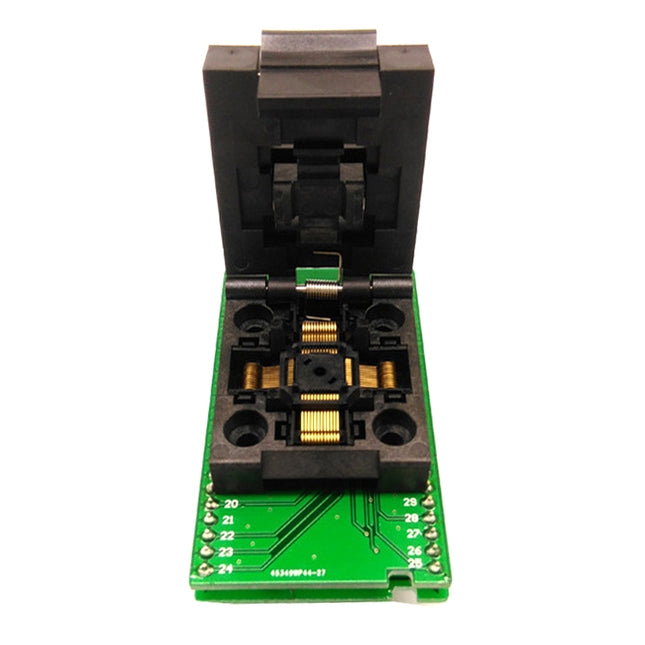

1. Product use: Programming socket, test socket, programming and testing of QFP48 IC chips2. Applicable packages: QFP48, PQFP48, QFP48, pin pitch 0.5 mm3. Features: All pins are led out in the order of the chip4. Pin spacing: 0.5 mm5. Foot position: 486. Chip size: 7x7 mm (with pins 9x9 mm)Specification: Package Weight One Package Weight 0.07kgs / 0.15lb One Package Size 13cm * 10cm * 5cm / 5.12inch * 3.94inch * 1.97inch Qty per Carton 500 Carton Weight 15.00kgs / 33.07lb Carton Size 52cm * 37cm * 22cm / 20.47inch * 14.57inch * 8.66inch Loading Container 20GP: 630 cartons * 500 pcs = 315000 pcs40HQ: 1462 cartons * 500 pcs = 731000 pcs

Read more less

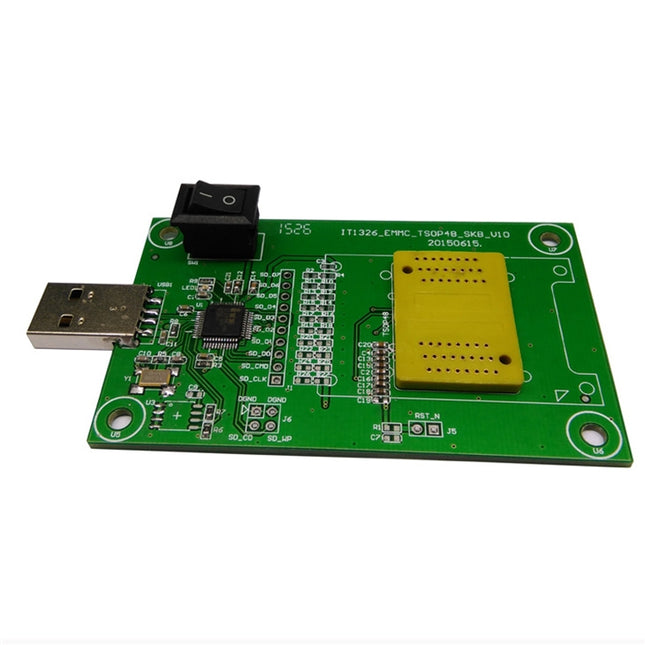

1. Type: test block2. Working frequency: high frequency3. Application: integrated circuit IC4. Interface type: terminal5. Production process: injection molding6. Features: stable testing7. Contact material: beryllium copper shrapnel8. Insulator material: PET9. Number of cores: 1710. Purpose: programming socket, test socket, for testing, reading and writing of EMCP IC chips11. Lead spacing: 0.5mm12. Service life: 100,000 timesTesting method:1. Select the limit frame that matches the IC, and place the IC flat in the SOCKET according to the direction2. Plug the USB cable into the USB port of the computer, turn on the power switch of the socket, and select the corresponding test programFeatures:1. Also compatible with 186-FBGA 162-FBGA2. The shrapnel is made of imported beryllium copper by high-precision die stamping, and the head-shaped probe is designed to be hardened and thickened in the later stage to ensure product stability and durability.3. Support hot plugging and separate power switch, support for testing through the USB interface or through the connection with the board on the board corresponding to the PIN4. Using floating board structure, precise positioning, convenient IC picking and placement, higher work efficiency5. The test board is welded to the adapter board, the test socket does not need to be soldered, and the pinholes are inserted into the adapter boardSpecification: Package Weight One Package Weight 0.05kgs / 0.12lb One Package Size 13cm * 10cm * 6cm / 5.12inch * 3.94inch * 2.36inch Qty per Carton 100 Carton Weight 6.00kgs / 13.23lb Carton Size 52cm * 28cm * 52cm / 20.47inch * 11.02inch * 20.47inch Loading Container 20GP: 352 cartons * 100 pcs = 35200 pcs40HQ: 817 cartons * 100 pcs = 81700 pcs

Read more less

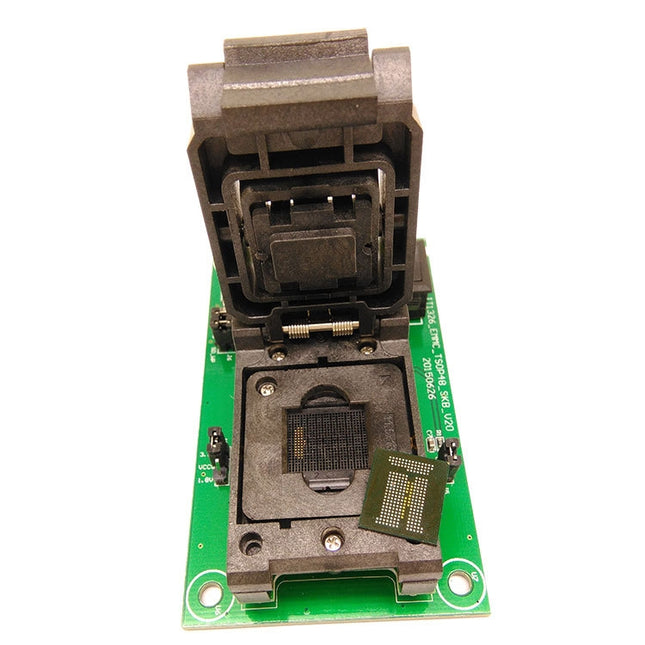

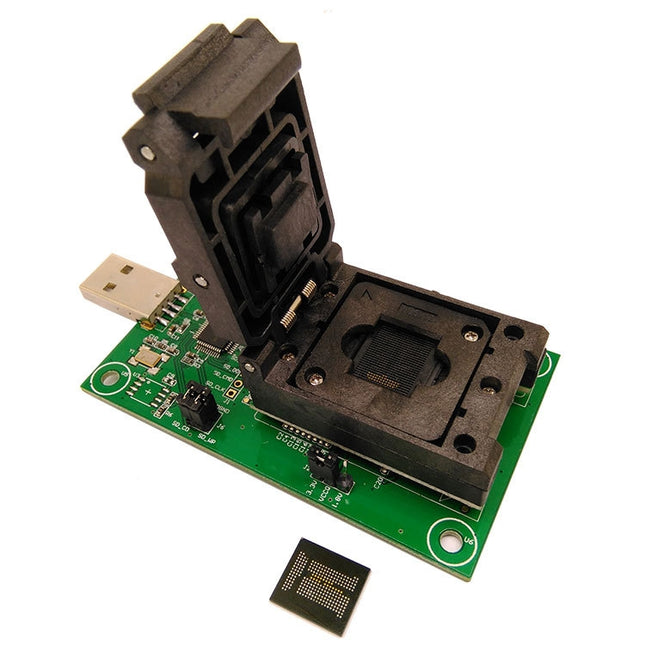

1. Type: Test block2. Working frequency: High frequency3. Application: integrated circuit IC4. Interface type: Terminal5. Production process: Injection molding6. Features: Stable testing7. Contact material: Beryllium copper shrapnel8. Insulator material: PET9. Number of cores: 3810. Purpose: Programming socket, test socket, to test, read and write the IC chip of EMCP22111. Lead spacing: 0.5mm12. Service life: 100,000 times13. Chip size: 11.5x13cmTesting Method:1. Select the limit frame that matches the IC, and place the IC flat in the SOCKET according to the direction2. Plug the USB cable into the USB port of the computer, turn on the power switch of the socket, and select the corresponding test programFeatures:1. Also compatible with 186-FBGA 162-FBGA2. The shrapnel is made of imported beryllium copper by high-precision die stamping, and the head-shaped probe is designed to be hardened and thickened in the later stage to ensure product stability and durability.3. Support hot plugging and separate power switch, support for testing through USB interface or connection with the board on the board according to the PIN4. Using floating board structure, precise positioning, convenient IC picking and placement, higher work efficiency5. The test board is welded to the adapter board, the test socket does not need to be soldered, and the pinholes are inserted into the adapter boardSpecification: Package Weight One Package Weight 0.05kgs / 0.12lb One Package Size 15cm * 12cm * 6cm / 5.91inch * 4.72inch * 2.36inch Qty per Carton 500 Carton Weight 27.00kgs / 59.52lb Carton Size 50cm * 50cm * 54cm / 19.69inch * 19.69inch * 21.26inch Loading Container 20GP: 197 cartons * 500 pcs = 98500 pcs40HQ: 458 cartons * 500 pcs = 229000 pcs

Read more less

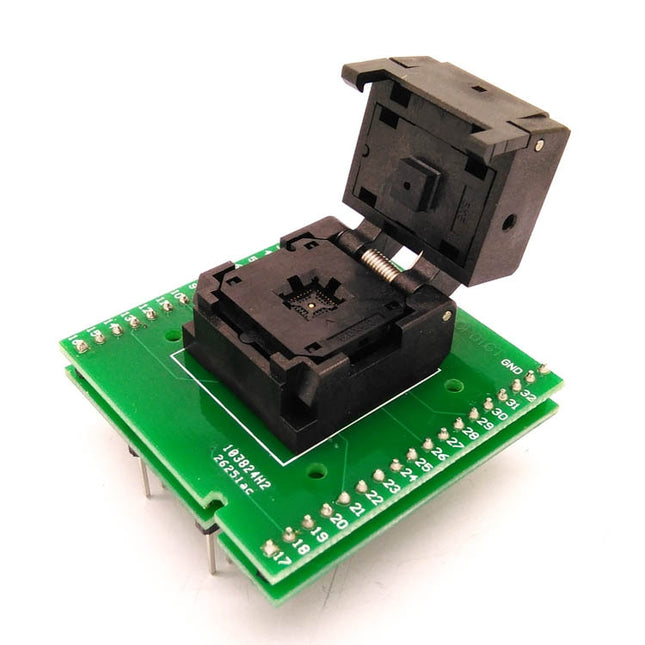

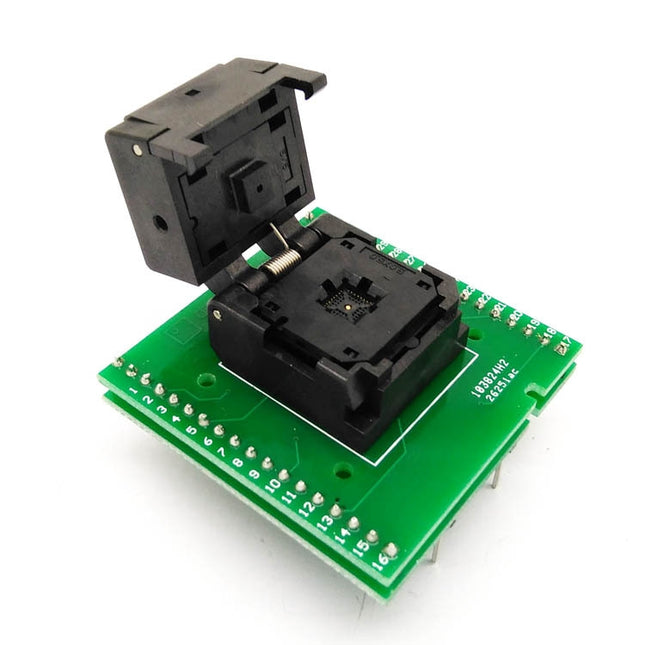

1. Working frequency: high frequency2. Application range: integrated circuit IC3. Production process: injection molding4. Contact material: beryllium copper shrapnel5. Insulator material: PPS PET6. Number of cores: 327. Name: QFN32 flip shrapnel to 152 test seat8. Purpose: programming socket and test socket, to program and test QFN32 IC chips9. Chip size: 5x5cm10. Pin spacing: 0.5mmSpecification: Package Weight One Package Weight 0.06kgs / 0.12lb One Package Size 8cm * 8cm * 2cm / 3.15inch * 3.15inch * 0.79inch Qty per Carton 500 Carton Weight 26.00kgs / 57.32lb Carton Size 50cm * 50cm * 52cm / 19.69inch * 19.69inch * 20.47inch Loading Container 20GP: 205 cartons * 500 pcs = 102500 pcs40HQ: 476 cartons * 500 pcs = 238000 pcs

Read more less

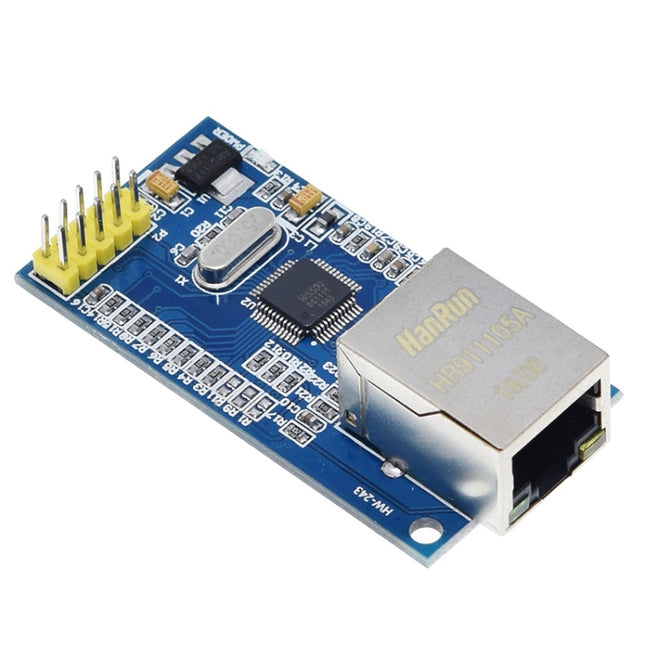

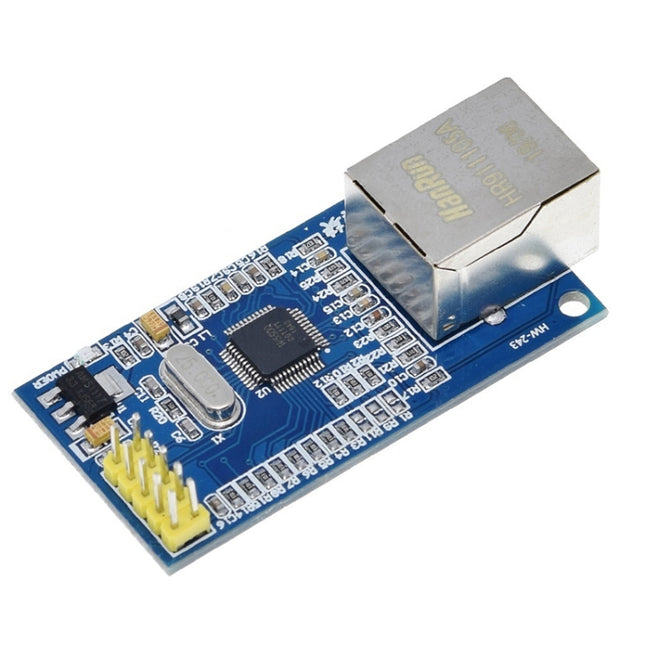

1. No need to write Ethernet underlying code to implement TCP/IP protocol stack2. Support sleep mode and wake-up on LAN, internal integrated 32K bytes on-chip buffer for Ethernet packet processing3. Support 10/100MBPS transfer rate4. Support 8 independent ports working at the same time5. The module supports 5V or 3. 3V power supply, which is convenient for users to use in different SCM systems6. The communication method between the module and the microcontroller is SPI protocol, which supports speeds up to 80MHz7. If you use the 5500 Ethernet module, you only need some simple Socket programming to realize the Ethernet application8. Support protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE9. We provide users with the source code of the routines based on the 51 single-chip microcomputer and ISTM32 single-chip microcomputer in the "client", "server" and "UDP" three working modes, as well as a detailed manual10. Chip model: W550011. Input voltage: 3.3-5v12. Size: about 55 x 28mmSpecification: Package Weight One Package Weight 0.10kgs / 0.23lb One Package Size 15cm * 10cm * 3cm / 5.91inch * 3.94inch * 1.18inch Qty per Carton 100 Carton Weight 11.00kgs / 24.25lb Carton Size 52cm * 42cm * 32cm / 20.47inch * 16.54inch * 12.6inch Loading Container 20GP: 381 cartons * 100 pcs = 38100 pcs40HQ: 885 cartons * 100 pcs = 88500 pcs

Read more less
