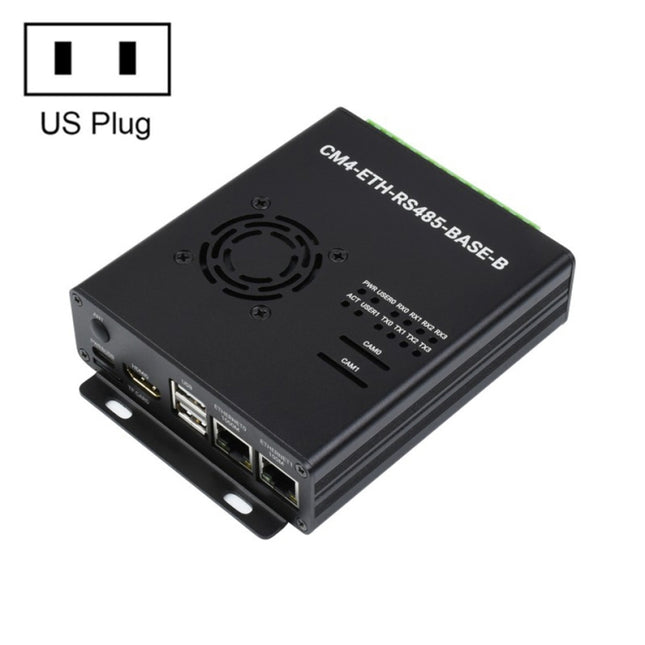

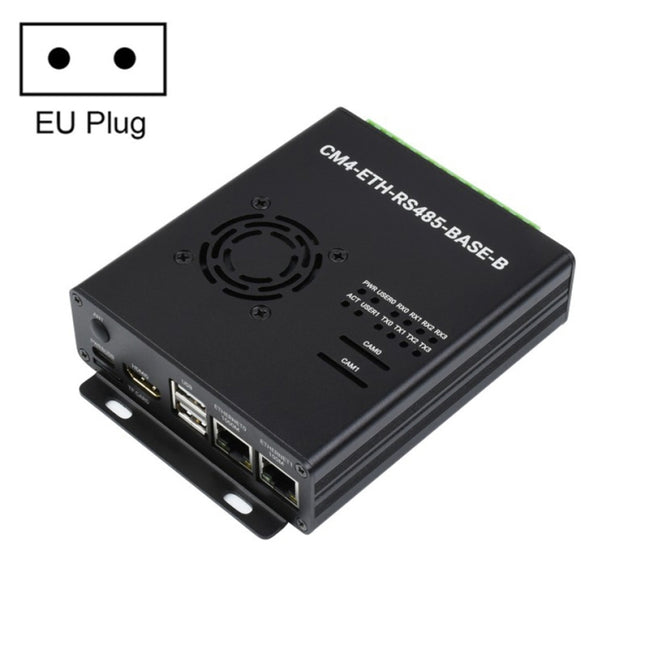

Specifications1. CM4 Socket: Available on all variants of Compute Module 4 2. Network: Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector 3. USB: USB 2.0 Type A x 2 4. Connector: Isolated RS485 x 4, power screw terminal x 1 5. Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector) 6. Video: HD-MI interface x 1, support 4K 30fps output 7. RTC: Real Time Clock with Battery Socket and Ability to Wake Compute Module 4 8. Storage: MicroSD card slot for Compute Module 4 Lite (no eMMC) variant 9. Fan head: allow speed adjustment, 5V 10. Indicator: Power indicator x 1, CM4 status indicator x 1, User LED x 2, RS485 communication indicator x 8 11. Power input: 7-36V 12. Dimensions: 123 x 98 x 32mmPackage List1. CM4-ETH-RS485-BASE-B x 1 2. Metal case (top and bottom) x 1 3. Fan x 1 4. 12V 2A Power Supply x 1 5. Screwdriver x 1 6. Antenna connector rubber plug x 1 7. Screws pack x 1Specification: Package Weight One Package Weight 0.48kgs / 1.05lb One Package Size 16cm * 12cm * 5cm / 6.3inch * 4.72inch * 1.97inch Qty per Carton 40 Carton Weight 19.50kgs / 42.99lb Carton Size 50cm * 32cm * 27cm / 19.69inch * 12.6inch * 10.63inch Loading Container 20GP: 617 cartons * 40 pcs = 24680 pcs40HQ: 1432 cartons * 40 pcs = 57280 pcs

Read more less

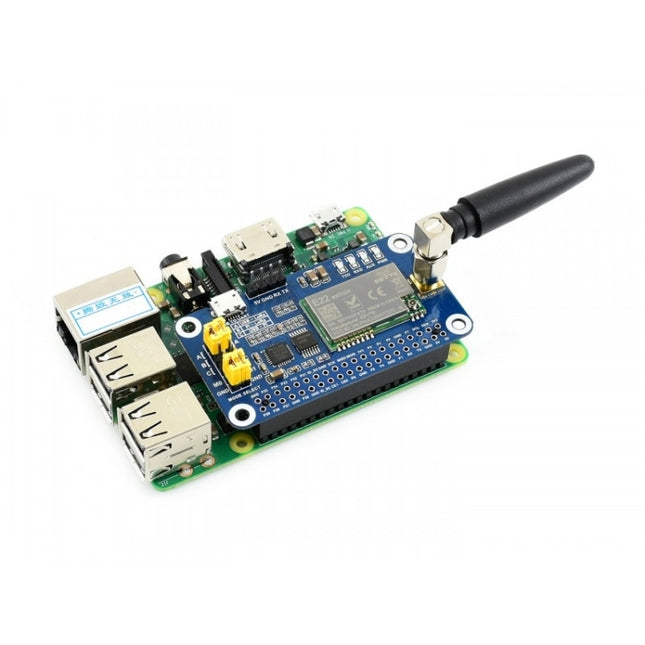

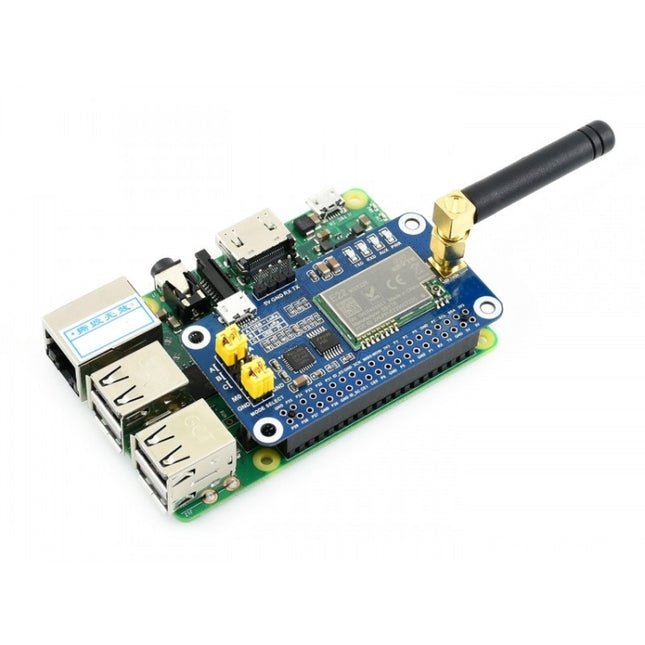

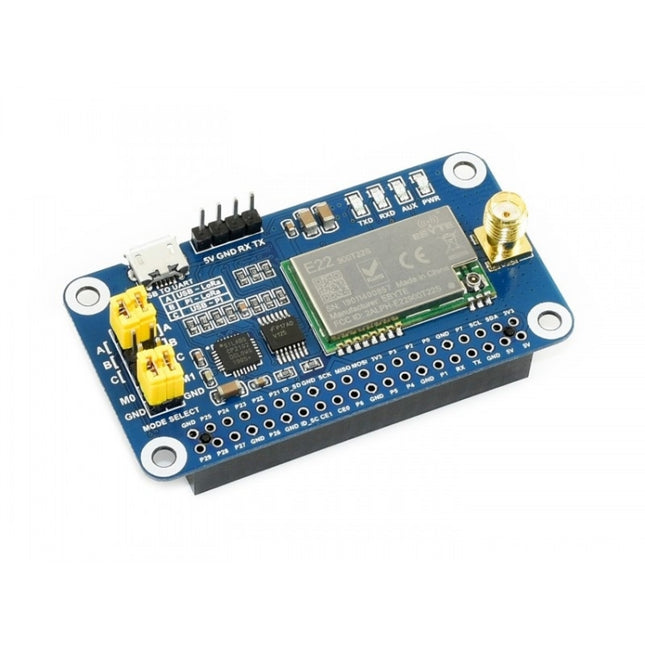

Overview1. This is a Raspberry Pi LoRa HAT based on SX1262, covers 868MHz frequency band frequency band. It allows data transmission up to 5km through serial port.2. By utilizing the new generation LoRa spread spectrum modulation technology, the communication distance of the module is as long as 5km, also supports auto repeating to transmit longer. Other features include Wake on Radio, wireless config, carrier sensing, communication key, and so on.3. Comparing with normal LoRa modules, the SX1262 LoRa HAT achieves longer communication distance, higher rate, lower consumption, better safety and anti-interference. It is suitable for various applications such as industrial control, smart home, data collection, etc.Features1.Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards2. Onboard CP2102 USB TO UART converter, for serial debugging3. Bring the UART control interface, for connecting host boards like Arduino/STM324. 4x LED indicators, easy to check the module status5. LoRa spread spectrum modulation technology, up to 81 available signal channel, longer communication distance, more robust to interference6. Auto multi-level repeating, suit for ultra long range communication, allows multi network on the same region7. Low power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applications8. Customizable communication key which wont be retrieved, greatly improves the security of user data9. Support LBT, monitoring the signal channel noise before transmitting, greatly improves the success ratio under extreme environment10. Support RSSI signal intensity indicating, for evaluating signal quality, tuning the network11. Support wireless parameter configuration, by sending wireless command/data packet, remotely configure or retrieve the module parameter12. Support fixed-point transmission, broadcast, signal channel monitor13. Come with development resources and manual (examples for Raspberry Pi/STM32)What is on Board1. SX1262 LoRa module2. 74HC125V: voltage level translator3. CP2102: USB TO UART converter4. Raspberry Pi GPIO connector: for connecting with Raspberry Pi5. USB TO UART port6. UART header: for connecting host boards like STM32/Arduino7. SMA antenna connector8. IPEX antenna connector9. Indicators:- RXD/TXD: UART RX/TX indicator- AUX: auxiliary indicator- PWR: power indicator10. UART selection jumpers- A: Control the LoRa module through USB TO UART- B: Control the LoRa module through Raspberry Pi- C: Access Raspberry Pi through USB TO UART11. LoRa mode selection jumpers- Short M0, short M1: Transmission mode- Short M0, open M1: Configuration mode- Open M0, short M1: WOR mode- Open M0, open M1: deep sleep modeSpecification1. RF module: SX12622. Frequency band: 850.125 ~ 930.125MHz3. Radio rate: 0.3kbps ~ 62.5kbps (programmable)4. Transmit power: 22.0dBm (10/13/17/22dBm programmable)5. Receive sensitivity: -147dBm (radio rate 2.4kbps)6. Power consumption: - Transmit current: 133mA (transient consumption)- Receive current: 11mA- Sleep current: 2uA (LoRa module software shutoff)7. Communication interface: UART (TTL level)8. Baudrate: 1200bps ~ 115200bps (9600bps by default)9. Packet length: 240 Byte (32/64/128/240 Byte programmable)10. Cache: 1000 Byte11. Experimental range: 5km (condition: cloudless and wild, altitude 2.5m, antenna gain 5dBi, radio rate 2.4kbps)12. Power supply: 5V13. Logic level: 3.3V/5V14. Operating temperature: -40~85 degree C15. Applications: Smart home, industrial sensors, building automation, smart meters, and more other IoT applications16. Dimensions: 7cm x 12cm x 2cm17. Weight: 69g18. Packing List:- SX1262 868MHz LoRa HAT x1- USB type A plug to micro plug cable x1- 868MHz antenna x1Specification: Package Weight One Package Weight 0.10kgs / 0.21lb One Package Size 15cm * 8cm * 2cm / 5.91inch * 3.15inch * 0.79inch Qty per Carton 400 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch Loading Container 20GP: 277 cartons * 400 pcs = 110800 pcs40HQ: 644 cartons * 400 pcs = 257600 pcs

Read more less

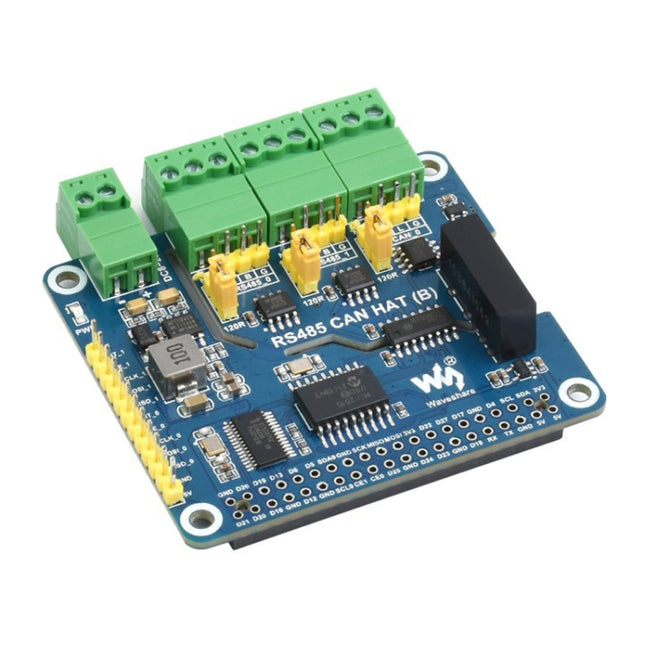

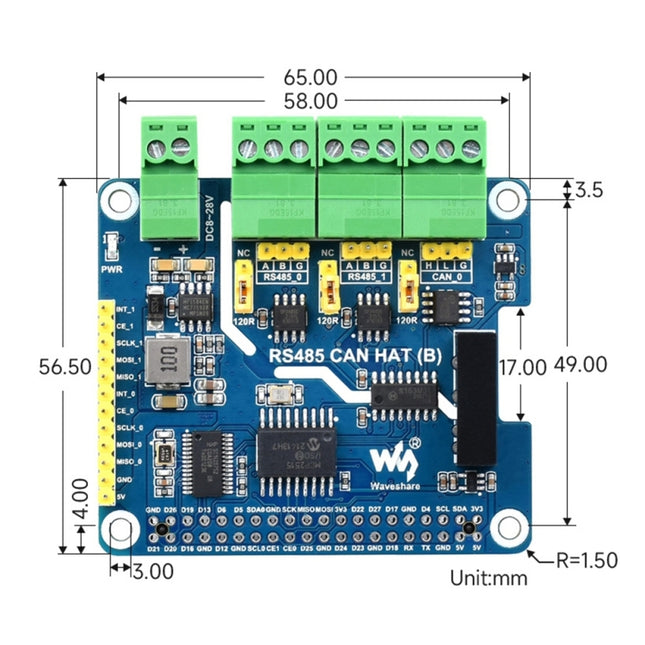

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards2. 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN3. 2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS4854. Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time5. Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal6. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption7. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic8. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance9. Onboard 120Ω terminal resistor, configured by jumper10. Onboard terminals and pin headers, more convenient connection11. Breakout SPI control pins, for connecting with host control boardsSpecification: Package Weight One Package Weight 0.20kgs / 0.45lb One Package Size 8cm * 6cm * 3cm / 3.15inch * 2.36inch * 1.18inch Qty per Carton 200 Carton Weight 41.00kgs / 90.39lb Carton Size 34cm * 32cm * 32cm / 13.39inch * 12.6inch * 12.6inch Loading Container 20GP: 765 cartons * 200 pcs = 153000 pcs40HQ: 1778 cartons * 200 pcs = 355600 pcs

Read more less

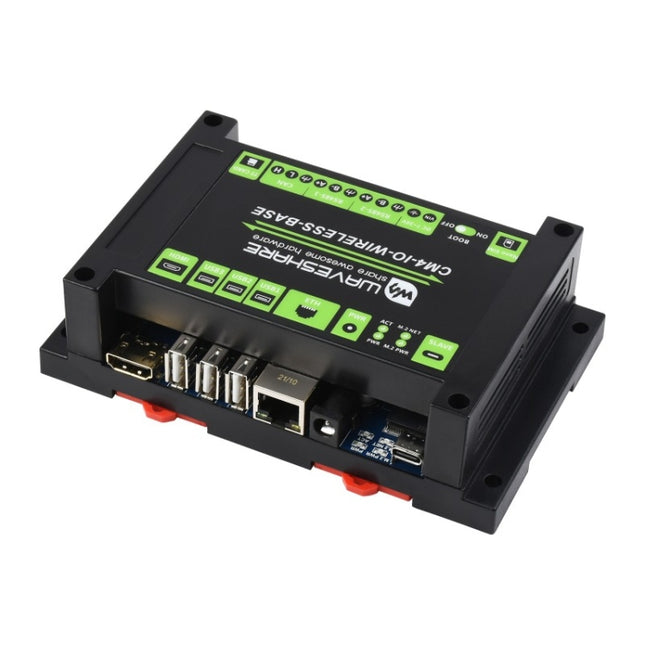

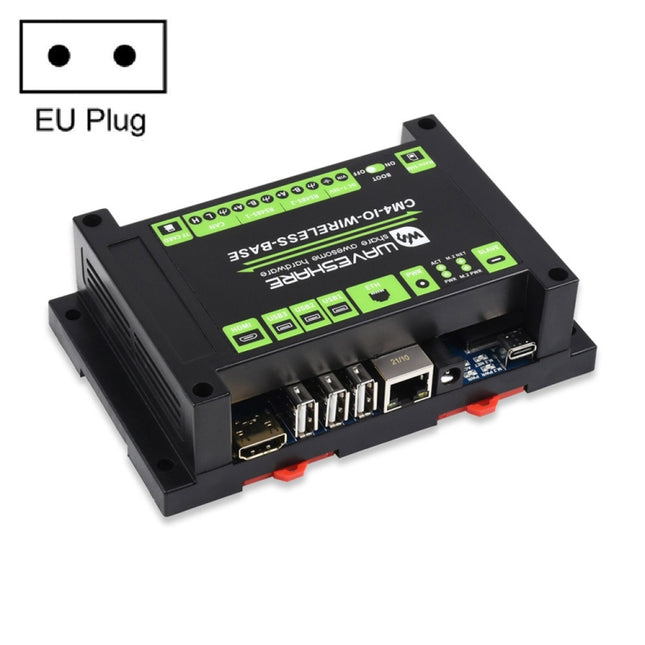

About The ProtuctThis is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC. Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.Specifications1. CM4 socket: For all variants of Compute Module 4 2. Networking: - Gigabit Ethernet RJ45 - M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module - Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication 3. USB: USB 2.0 x 3 4. PIN header: Non-isolated RS485 x 2, non-isolated CAN x 1, some GPIO pins 5. Camera: MIPI CSI-2 x 1 (15pin 1.0mm FPC connector) 6. Video: HDMI x 1, support 4K 30fps output 7. RTC: Real-time clock with battery socket and ability to wake Compute Module 4 8. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 9. Fan header: 5V/12V, allows speed adjustment and measurement 10. Power input: 5V or 7~36V 11. Dimensions: 145 x 90 x 40mmPackage List1. CM4-IO-WIRELESS-BASE x 1 2. PCIe to 4G/LoRa adapter x 1 3. Screwdriver x 1 4. Screws pack x 1 5. 12V 2A power adapter x 1Specification: Package Weight One Package Weight 0.38kgs / 0.83lb One Package Size 16cm * 12cm * 5cm / 6.3inch * 4.72inch * 1.97inch Qty per Carton 40 Carton Weight 15.50kgs / 34.17lb Carton Size 50cm * 32cm * 27cm / 19.69inch * 12.6inch * 10.63inch Loading Container 20GP: 617 cartons * 40 pcs = 24680 pcs40HQ: 1432 cartons * 40 pcs = 57280 pcs

Read more less

1. USB: - USB 2.0 x 2 - USB 2.0 x 2 (via FFC connector) 2. GPIO: Raspberry Pi 40 PIN GPIO x 1 3. Header: M.2 slot x 1 4. HD media interface: HDMI x 2, 1x via FFC connector, support 4K 30fps output 5. DSI display: MIPI DSI x 1 (15pin 1.0mm FPC) 6. CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC) 7. Power input: 5V 8. FAN: 5V / 12V (no fan control) 9. RJ45 Ethernet: Gigabit Ethernet 10. CM4 slot: Suitable for all variants of Compute Module 4 11. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 12. Size: 85.0 x 56.0mmSpecification: Package Weight One Package Weight 0.07kgs / 0.16lb One Package Size 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch Qty per Carton 200 Carton Weight 12.60kgs / 27.78lb Carton Size 46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch Loading Container 20GP: 566 cartons * 200 pcs = 113200 pcs40HQ: 1314 cartons * 200 pcs = 262800 pcs

Read more less

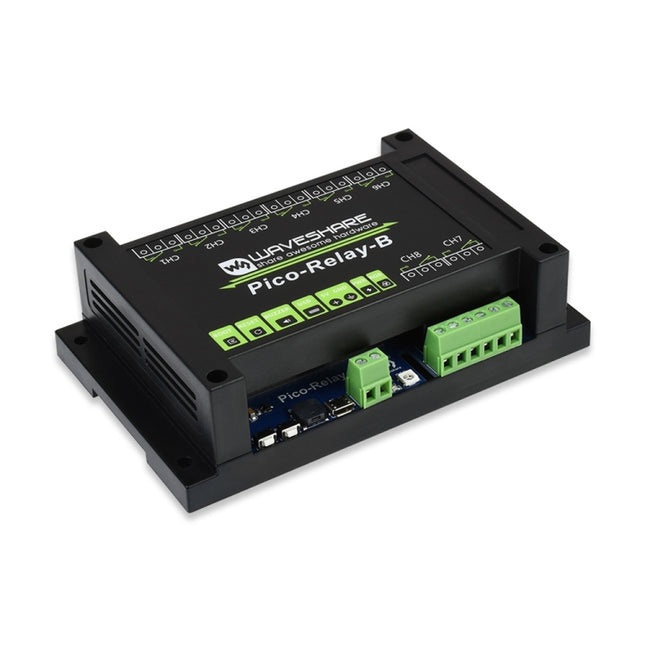

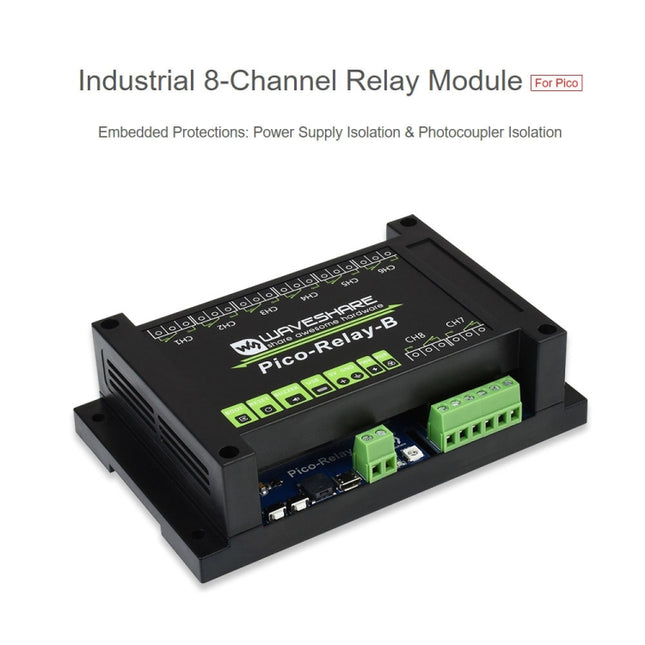

Features1. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal 2. Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay 3. High quality relay, contact rating: 10A 250V AC or Less than or equal 10A 30V DC 4. ABS protection enclosure with rail-mount support, easy to install, safe to use 5. Breakout USB port and BOOT pin, make it easy to debug without disassembling the enclosure 6. PWR indicator, RGB LED, and passive buzzer outside the enclosure 7. Come with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)Specification1. Operation voltage: 5V 2. Relay channel: 8CH 3. Communication protocol: USB 4. Contact form: 1NO 1NC 5. Communication interface: Micro USBPackage List1. ABS protection enclosure (top and bottom) x 1 2. Pico-Relay-B x 1 3. Screwdriver x 1 4. Screws pack x 1Specification: Package Weight One Package Weight 0.32kgs / 0.70lb One Package Size 16cm * 12cm * 5cm / 6.3inch * 4.72inch * 1.97inch Qty per Carton 40 Carton Weight 11.50kgs / 25.35lb Carton Size 50cm * 32cm * 27cm / 19.69inch * 12.6inch * 10.63inch Loading Container 20GP: 617 cartons * 40 pcs = 24680 pcs40HQ: 1432 cartons * 40 pcs = 57280 pcs

Read more less

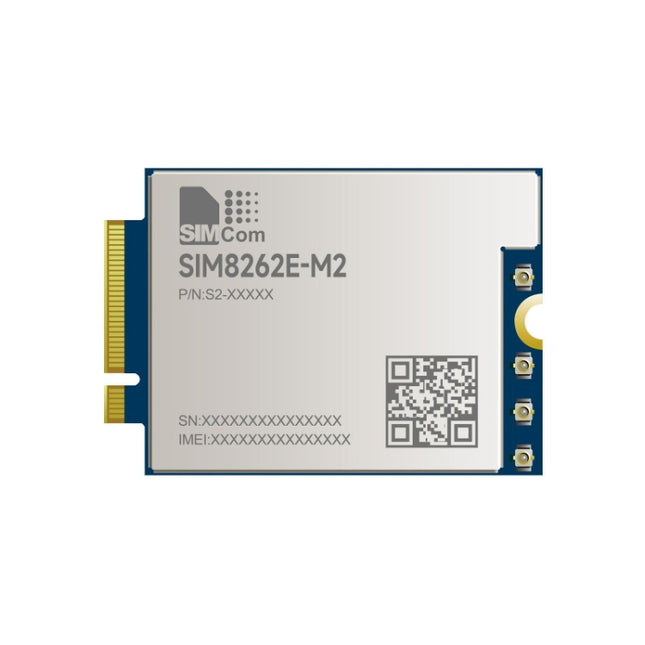

1. 5G standard: 3GPP R162. Chip: Qualcomm Snapdragon X623. Operating system: for Windows/Linux/Android4. Dialing: RNDIS, NDIS, PPP, MBIM5. SIM card: 1.8V/2.95V6. Power supply: 3.135-4.4V7. Standard M.2 interface8. High throughput data communication9. The AT command of SIM8262E-M2 is compatible with SIM7912G/SIM8200X-M2 series modulesSpecification: Package Weight One Package Weight 0.08kgs / 0.19lb One Package Size 6cm * 3cm * 3cm / 2.36inch * 1.18inch * 1.18inch Qty per Carton 400 Carton Weight 33.00kgs / 72.75lb Carton Size 32cm * 26cm * 32cm / 12.6inch * 10.24inch * 12.6inch Loading Container 20GP: 1001 cartons * 400 pcs = 400400 pcs40HQ: 2325 cartons * 400 pcs = 930000 pcs

Read more less

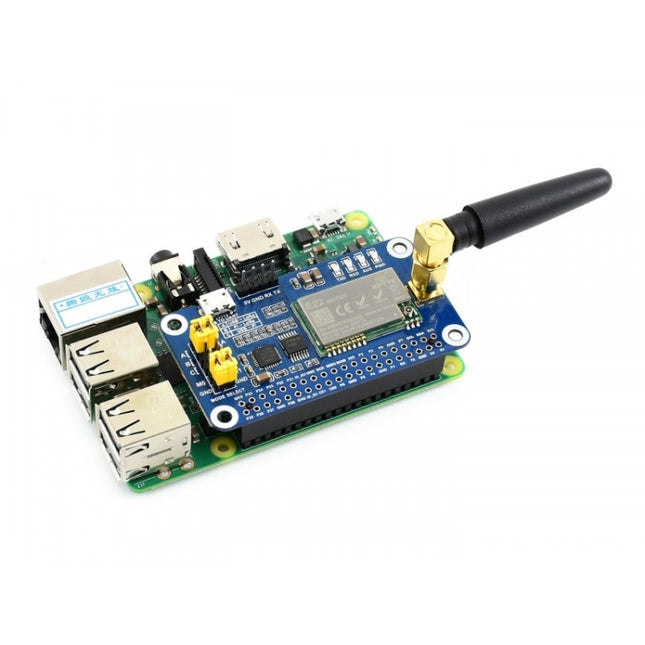

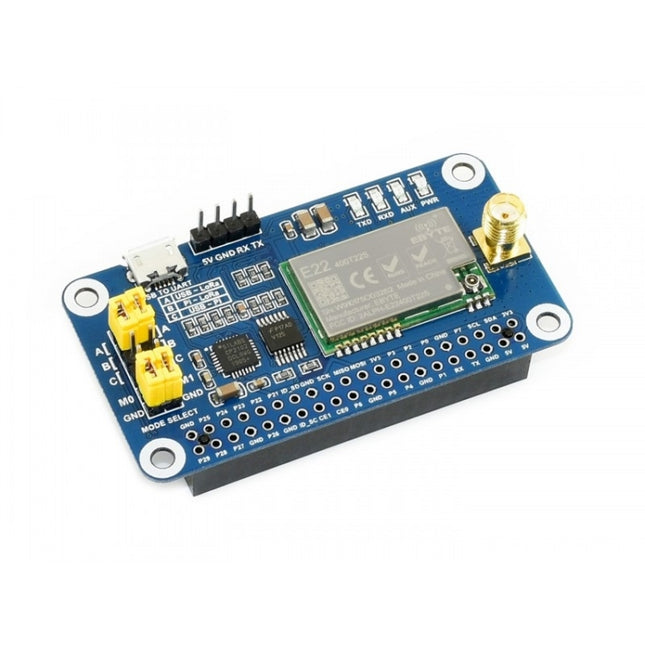

Overview1. This is a Raspberry Pi LoRa HAT based on SX1268, covers 433MHz frequency band. It allows data transmission up to 5km through serial port.2. By utilizing the new generation LoRa spread spectrum modulation technology, the communication distance of the module is as long as 5km, also supports auto repeating to transmit longer. Other features include Wake on Radio, wireless config, carrier sensing, communication key, and so on.3. Comparing with normal LoRa modules, the SX1268 LoRa HAT achieves longer communication distance, higher rate, lower consumption, better safety and anti-interference. It is suitable for various applications such as industrial control, smart home, data collection, etc.Features1.Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards2. Onboard CP2102 USB TO UART converter, for serial debugging3. Bring the UART control interface, for connecting host boards like Arduino/STM324. 4x LED indicators, easy to check the module status5. LoRa spread spectrum modulation technology, up to 84 available signal channel, longer communication distance, more robust to interference6. Auto multi-level repeating, suit for ultra long range communication, allows multi network on the same region7. Low power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applications8. Customizable communication key which wont be retrieved, greatly improves the security of user data9. Support LBT, monitoring the signal channel noise before transmitting, greatly improves the success ratio under extreme environment10. Support RSSI signal intensity indicating, for evaluating signal quality, tuning the network11. Support wireless parameter configuration, by sending wireless command/data packet, remotely configure or retrieve the module parameter12. Support fixed-point transmission, broadcast, signal channel monitor13. Come with development resources and manual (examples for Raspberry Pi/STM32)What is on Board1. SX1268 LoRa module2. 74HC125V: voltage level translator3. CP2102: USB TO UART converter4. Raspberry Pi GPIO connector: for connecting with Raspberry Pi5. USB TO UART port6. UART header: for connecting host boards like STM32/Arduino7. SMA antenna connector8. IPEX antenna connector9. Indicators:- RXD/TXD: UART RX/TX indicator- AUX: auxiliary indicator- PWR: power indicator10. UART selection jumpers- A: Control the LoRa module through USB TO UART- B: Control the LoRa module through Raspberry Pi- C: Access Raspberry Pi through USB TO UART11. LoRa mode selection jumpers- Short M0, short M1: Transmission mode- Short M0, open M1: Configuration mode- Open M0, short M1: WOR mode- Open M0, open M1: deep sleep modeSpecification1. RF module: SX12682. Frequency band: 410.125 ~ 493.125MHz3. Radio rate: 0.3kbps ~ 62.5kbps (programmable)4. Transmit power: 22.0dBm (10/13/17/22dBm programmable)5. Receive sensitivity: -147dBm (radio rate 2.4kbps)6. Power consumption: - Transmit current: 110mA (transient consumption)- Receive current: 11mA- Sleep current: 2uA (LoRa module software shutoff)7. Communication interface: UART (TTL level)8. Baudrate: 1200bps ~ 115200bps (9600bps by default)9. Packet length: 240 Byte (32/64/128/240 Byte programmable)10. Cache: 1000 Byte11. Experimental range: 5km (condition: cloudless and wild, altitude 2.5m, antenna gain 5dBi, radio rate 2.4kbps)12. Power supply: 5V13. Logic level: 3.3V/5V14. Operating temperature: -40~85 degree C15. Applications: Smart home, industrial sensors, building automation, smart meters, and more other IoT applications16. Dimensions: 7cm x 12cm x 2cm17. Weight: 69g18. Packing List:- SX1268 433MHz LoRa HAT x1- USB type A plug to micro plug cable x1- 433MHz antenna x1Specification: Package Weight One Package Weight 0.09kgs / 0.19lb One Package Size 15cm * 8cm * 2cm / 5.91inch * 3.15inch * 0.79inch Qty per Carton 400 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch Loading Container 20GP: 277 cartons * 400 pcs = 110800 pcs40HQ: 644 cartons * 400 pcs = 257600 pcs

Read more less

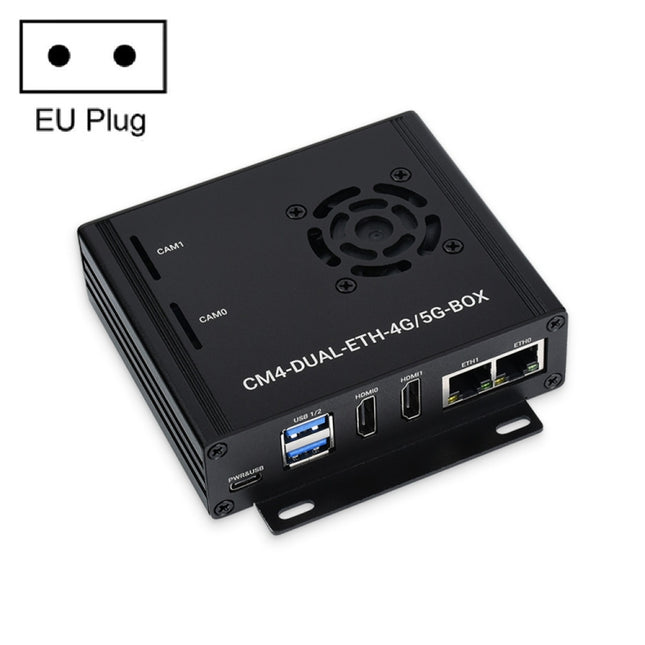

1. CM4 Socket: Suitable for all variants of Compute Module 4 2. Networking: - Dual Gigabit Ethernet RJ45 - M.2 B KEY, for connecting 5G / 4G module - Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication 3. USB: USB 3.2 Gen1 x 2 4. PIN header: Raspberry Pi 40PIN GPIO header 5. Display: MIPI DSI port (15pin 1.0mm FPC connector) 6. Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector) 7. Video: HDMI x 2, supports 4K 30fps output 8. RTC: Real-time clock with battery socket and ability to wake Compute Module 4 9. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 10. FAN HEADER: 5V/12V (12V by default), allows speed adjustment and measurement 11. Power input: 5V/2.5A 12. Size: 99.6 x 87.0mmSpecification: Package Weight One Package Weight 0.45kgs / 0.98lb One Package Size 16cm * 12cm * 5cm / 6.3inch * 4.72inch * 1.97inch Qty per Carton 40 Carton Weight 15.00kgs / 33.07lb Carton Size 50cm * 32cm * 27cm / 19.69inch * 12.6inch * 10.63inch Loading Container 20GP: 617 cartons * 40 pcs = 24680 pcs40HQ: 1432 cartons * 40 pcs = 57280 pcs

Read more less

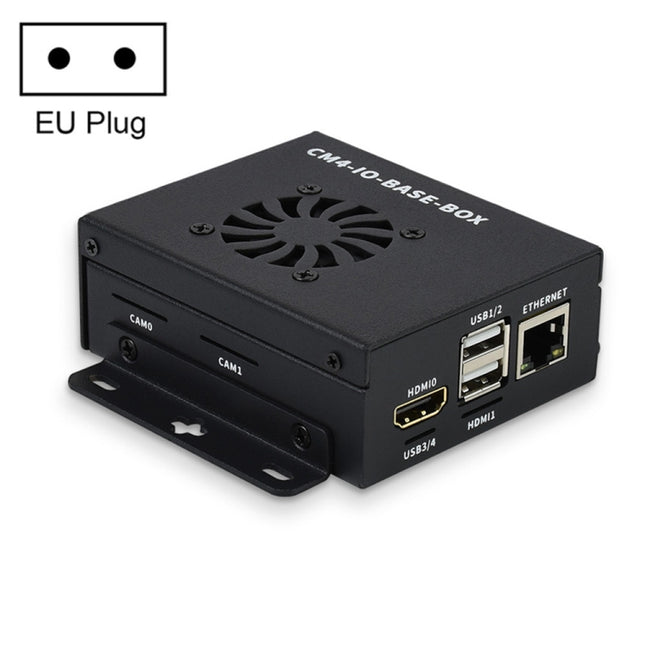

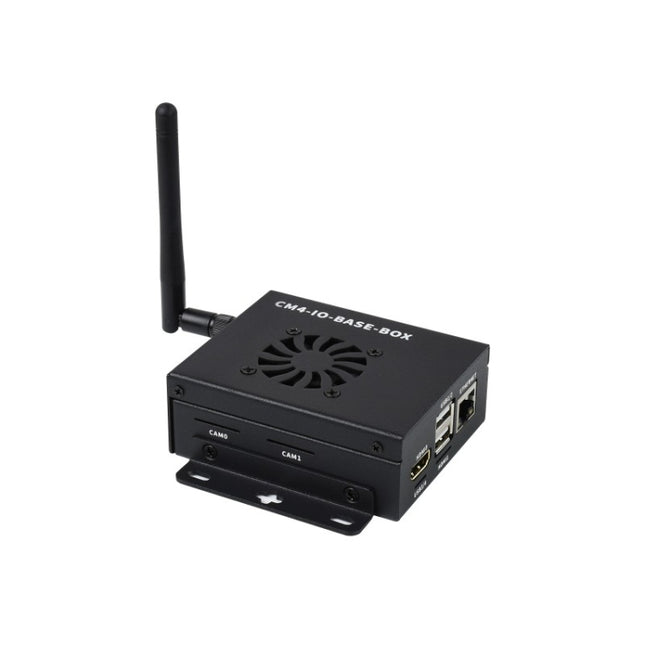

Specification1. USB: - USB 2.0 x 2 - USB 2.0 x 2 (via FFC connector) 2. GPIO: Raspberry Pi 40 PIN GPIO x 1 3. Header: M.2 slot x 1 4. HD media interface: HDMI x 2, 1x via FFC connector, support 4K 30fps output 5. DSI display: MIPI DSI x 1 (15pin 1.0mm FPC) 6. CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC) 7. Power input: 5V 8. FAN: 5V / 12V (no fan control) 9. RJ45 Ethernet: Gigabit Ethernet 10. CM4 slot: Suitable for all variants of Compute Module 4 11. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 12. Size: 85.0 x 56.0mmPackage List1. CM4-IO-BASE-B x 1 2. Metal case (top and bottom) x 1 3. Fan-4010-PWM-5V x 1 4. Screwdriver x 1 5. Screws pack x 1 6. 5V 3A USB-C power adapter x 1Specification: Package Weight One Package Weight 0.41kgs / 0.89lb One Package Size 16cm * 12cm * 5cm / 6.3inch * 4.72inch * 1.97inch Qty per Carton 40 Carton Weight 16.50kgs / 36.38lb Carton Size 50cm * 32cm * 27cm / 19.69inch * 12.6inch * 10.63inch Loading Container 20GP: 617 cartons * 40 pcs = 24680 pcs40HQ: 1432 cartons * 40 pcs = 57280 pcs

Read more less

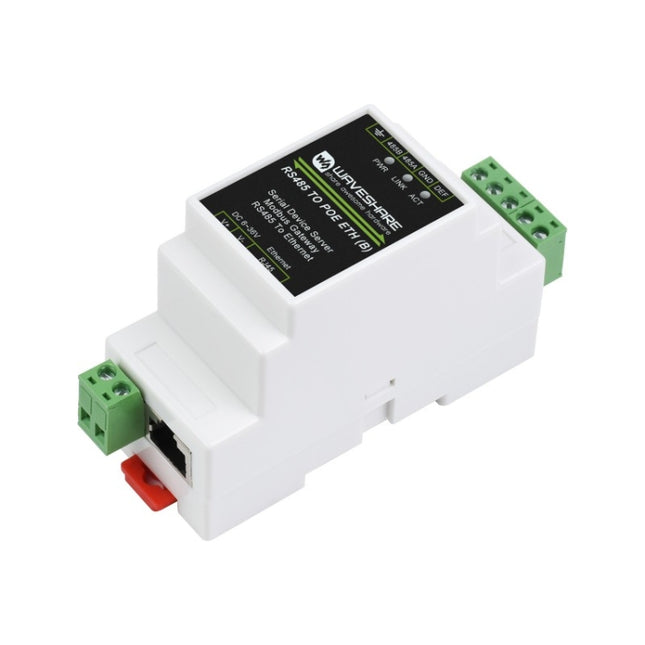

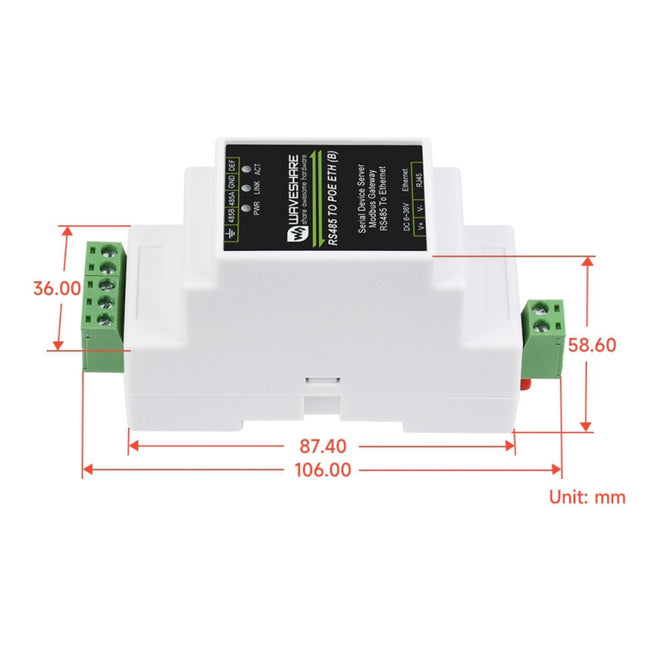

1. Power supply: 9-24V2. Communication interface: RS485 port x 1, Ethernet port x 13. Baud rate: 300-115200 bps4. Data bits: 5-9 bits5. Configuration: host, web browser, device management function library6. Communication method: TCP/IP direct communication, VCOM7. Working temperature: -40 degrees to 85 degrees8. Main function: Bidirectional transparent data transmission between RS485 and Ethernet9. It is easy to combine multi-rail installed serial servers together, more freedom.10. It is suitable for Modbus grid upgrade and can be used in conjunction with 3D configuration software.11. Support TCP server / TCP client / UDP mode / UDP multicast.12. Multi-host rolling polling support, easy for cloud communication and device identification.Specification: Package Weight One Package Weight 0.14kgs / 0.30lb One Package Size 12cm * 8cm * 6cm / 4.72inch * 3.15inch * 2.36inch Qty per Carton 100 Carton Weight 16.00kgs / 35.27lb Carton Size 50cm * 42cm * 32cm / 19.69inch * 16.54inch * 12.6inch Loading Container 20GP: 396 cartons * 100 pcs = 39600 pcs40HQ: 921 cartons * 100 pcs = 92100 pcs
