Description
1) Co-exists with HomePlug 1.0 (14/85mbps)
2) Stand-lone unit attaches directly to Broadband device and home power line network for seamless integration

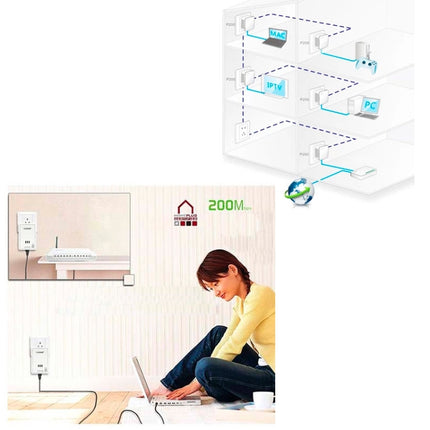

3) Optimized for HD/SD cable, satellite and IPTV installations, home multimedia content and storage, multi-room DVR networking, online or networked console and PC video game connections, and much more
4) Model: 7HP150
5) Standards: Homeplug AV IEEE802.3 / IEEE802.3u
6) Network Interface:
-One RJ-45 (10/100Base-T Ethernet)
-One 500Mbps power line port supporting co-existence with HomePlug 1.0 (14/85Mbps)
7) Security: 128-bit AES link encryption with key management
8) Data PHY Rate: 500 Mbps over Power line and 10/100Mbps over Ethernet
9) Modulation type: OFDM symbol modulation on line synchronization 1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO carrier modulation
10) Frequency Band: 2 ~ 28 MHz
11) Additional Protocols: Mix of TDMA and CSMA/CA channel access scheme, co device generates a periodic beacon carrier for channel access scheme
12) Working Range: Estimated range of 300 meters in wall power lines
13) Cabling 100Base-T Cat. 5 UTP cable
14) Software Utility : Device detect/diagnostic, NEK password setup for local and remote device Windows 98 SE, ME, 2000, NT, XP, Vista, and 7 for initial setup (optional)
15) Function: Online Music / watch / game / transfer / video chat / mailer etc…
16) Power Connector: Embedded US
17) Power Input: 100 ~ 240V @ 50/60Hz internal
18) Working temperature: 0-40°C
Specification:
| Package Weight |
| One Package Weight |
0.40kgs / 0.88lb |
| One Package Size |
21cm * 14cm * 6cm / 8.27inch * 5.51inch * 2.36inch |
| Carton Weight |
8.30kgs / 18.30lb |
| Carton Size |
42cm * 30cm * 30cm / 16.54inch * 11.81inch * 11.81inch |
| Loading Container |
20GP: 705 cartons * 20 pcs = 14100 pcs
40HQ: 1637 cartons * 20 pcs = 32740 pcs
|
|
