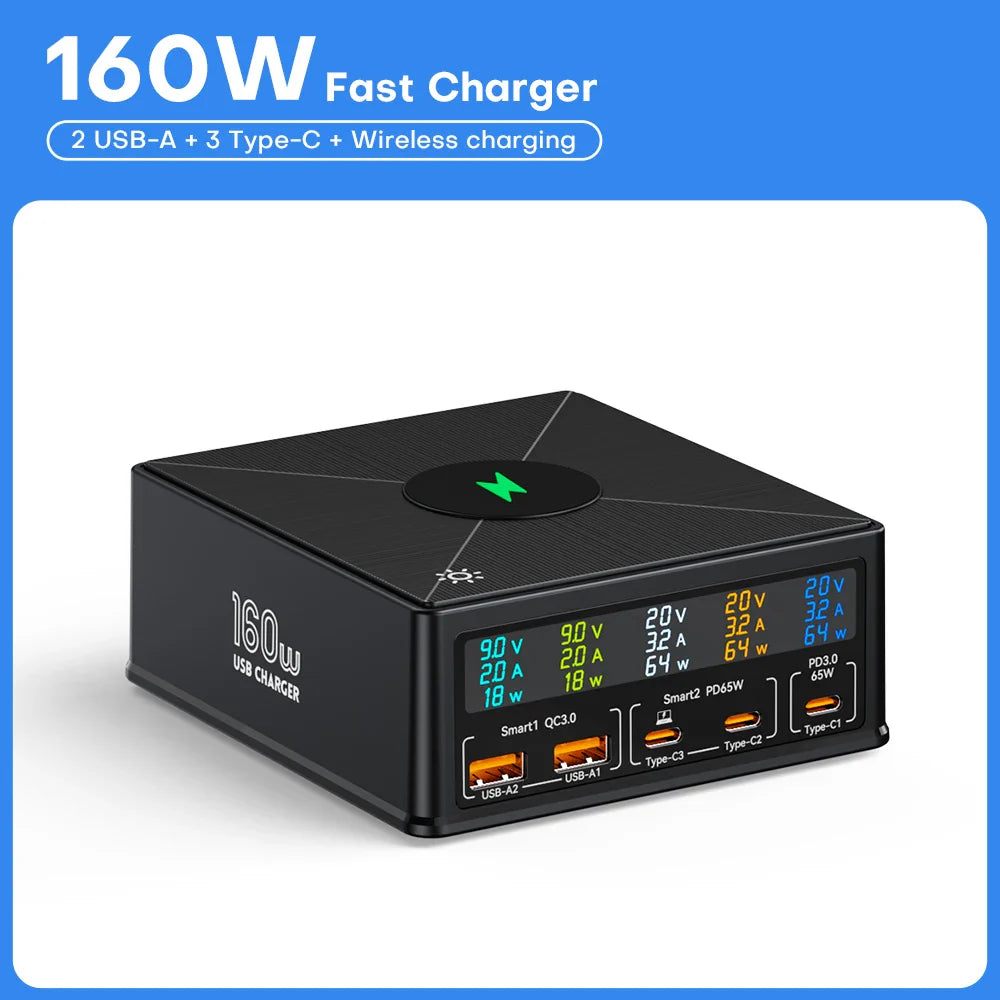

Fast Charging USB + Wirelss Charging + LED Display

Brand: ASOMETECH

Model Number: 868H

Input: 100-240VAC/50-60Hz

Output:160W Max

Type-C1 Output : 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A；PPS: 3.3-11V/5A, 3.3-21V/3A 65W (max)

Type-C2/Type-C3: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A；PPS: 3.3-11V/5A, 3.3-21V/3A 65W (max)

USB-A1 /USB-A2 : QC3.0 5V/3A,9V/2A,12V/1.5A, 4.5V/5A,5V/4.5A 22.5W (max)

Wireless Output: 15W/10W/7.5W/5W

USB-A1 + USB-A2 :12W + 12W;

C1 + C2 : 65W + 65W;

C1 + C3 : 65W + 65W;

C2 + C3 : 20W + 45W;

Type C1 + C2 + C3 = 65W + 20W + 45W ( OutPut Max );

C1+C2+C3+A1+A2=65W + 20W + 45W + 12W + 12W;

Packing List:

1 x USB Charger

1 x User Manual

1 x Power Cord

Features

⚡ Type C1 Support PD 100W Max Fast Charging For Macbook and other Laptop；Support Super Fast Charging For Samsung S23 Ultra S22 S21 S20 series / iPhone / iPad series / Huawei Series and More；

⚡Type C2/C3 Support PD 65W Max Fast Charging For Macbook and other Laptop；Support Super Fast Charging For Samsung S23 Ultra S22 S21 S20 series / iPhone / iPad series / Huawei Series and More；

⚡ USB-A1 / USB-A2 has QC3.0 FCP SCP Fast charging protocol for multiple brands of devices；

⚡ If only C1+C2/C3 ports are used, then 2 laptops are supported for simultaneous fast charging (C1-65W; C2-65W)；

⚡ Supports simultaneous fast charging of multiple devices, saving device charging time；

⚡ The display can simultaneously show the output parameters of 5 USB ports；

⚡ This charging cradle has a display touch switch to turn off/on the digital display；

⚡ This charging stand comes with a master switch to turn off the input current for safe use；

FAQ

Q1:Why is the C-port output of the charging cradle labeled 65W, but the power of my device when charging is less than 65W?

A1:This is due to the built-in intelligent chip of the charger. The charger will detect and identify the charging device accessed and automatically match the appropriate fast charging speed according to the maximum input limit of the charging device and the battery capacity, so that the device can get both fast charging and avoid causing overcharging;

If you have any questions, please contact our customer service, we will give you a professional answer within 24 hours, thank you.

ASOMETECH Team

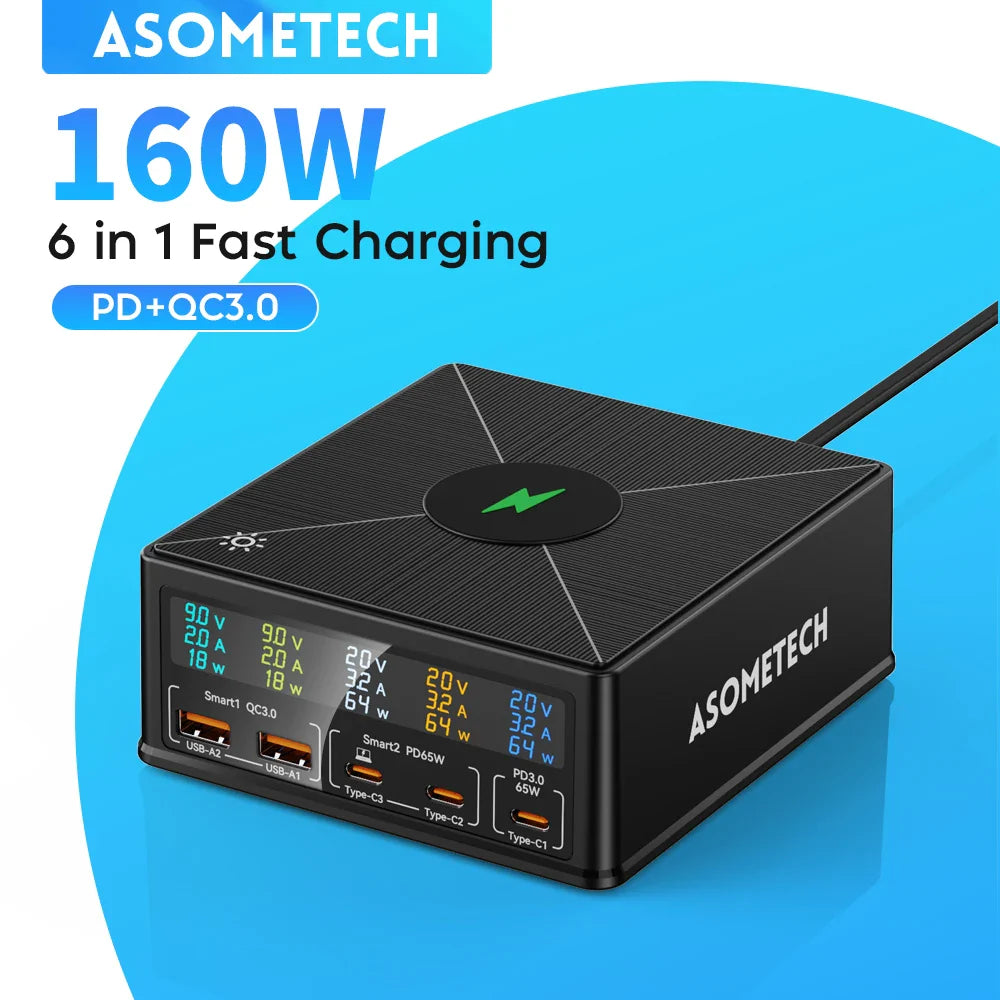

6 in 1 160W fast charging

PD+QC3.0

160W High Power PD+QC3.0 Fast Charging

Adopt 160W high power, apply notebook computer charging  technology to the socket,balance fast charging and safety,withlarger power and smaller volume

6 in 1 Desktop Charger

Support Multi-device Charging

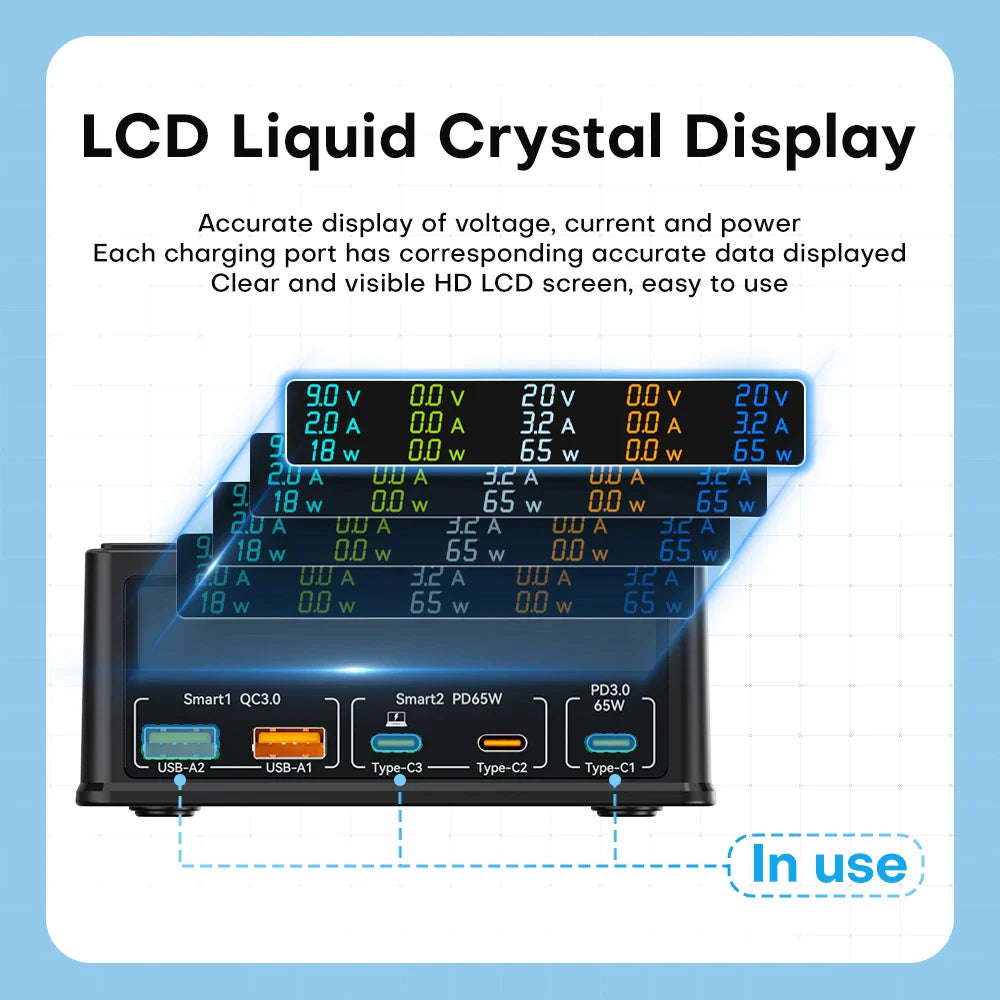

LCD Liquid Crystal Display

Accurate display of voltage, current and power

Each charging port has corresponding accurate data displayed

Clear and visible HD LCD screen, easy to use

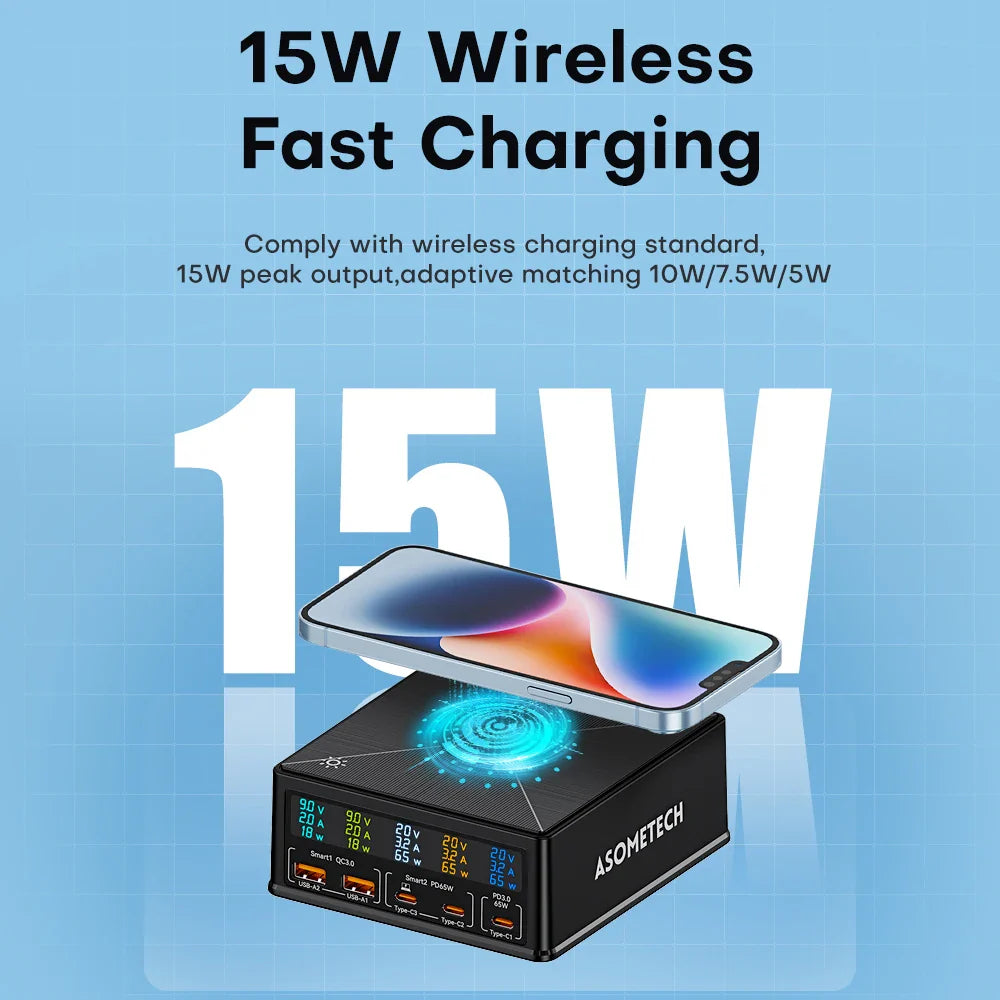

15W Wireless Fast Charging

Comply with wireless charging standard,15W peak output,adaptive matching 10W/7.5W/5W

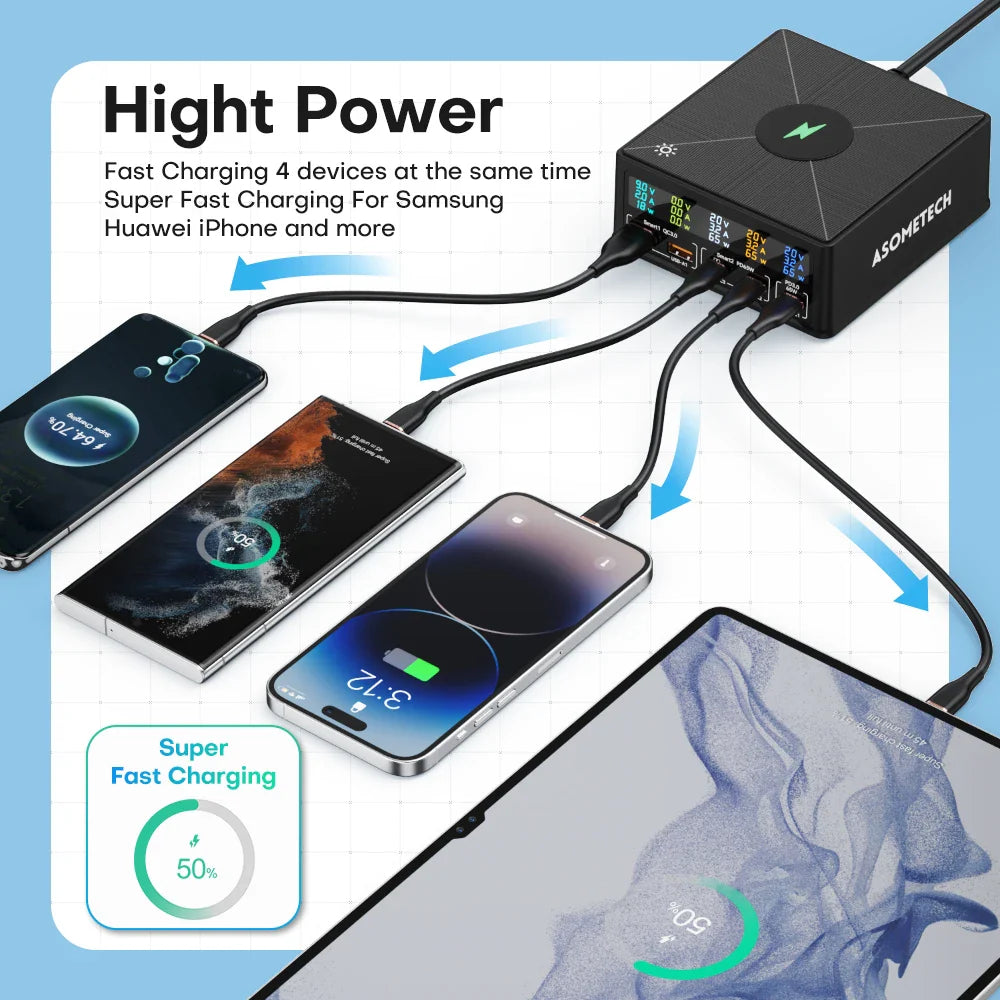

Hight Power Fast Charging 4 devices at the same time

Super Fast Charging For Samsung Huawei iPhone and more

Anti-slip Silicone Design

Specially added silicone filled wireless design for mobile phones,effective anti-slip and protection of your mobile phone

LCD Liquid Crystal Display

The touch switch is designed to close the display screen by gentlytouching it,and you can freely choose to turn it on or off

One For All

Fast Charging your all devices

Wide Compatibility

Fast charging protocol:PD3.0(PD2.0)/QC3.O/QC2.O/PPS/SCP/AFC/PE+

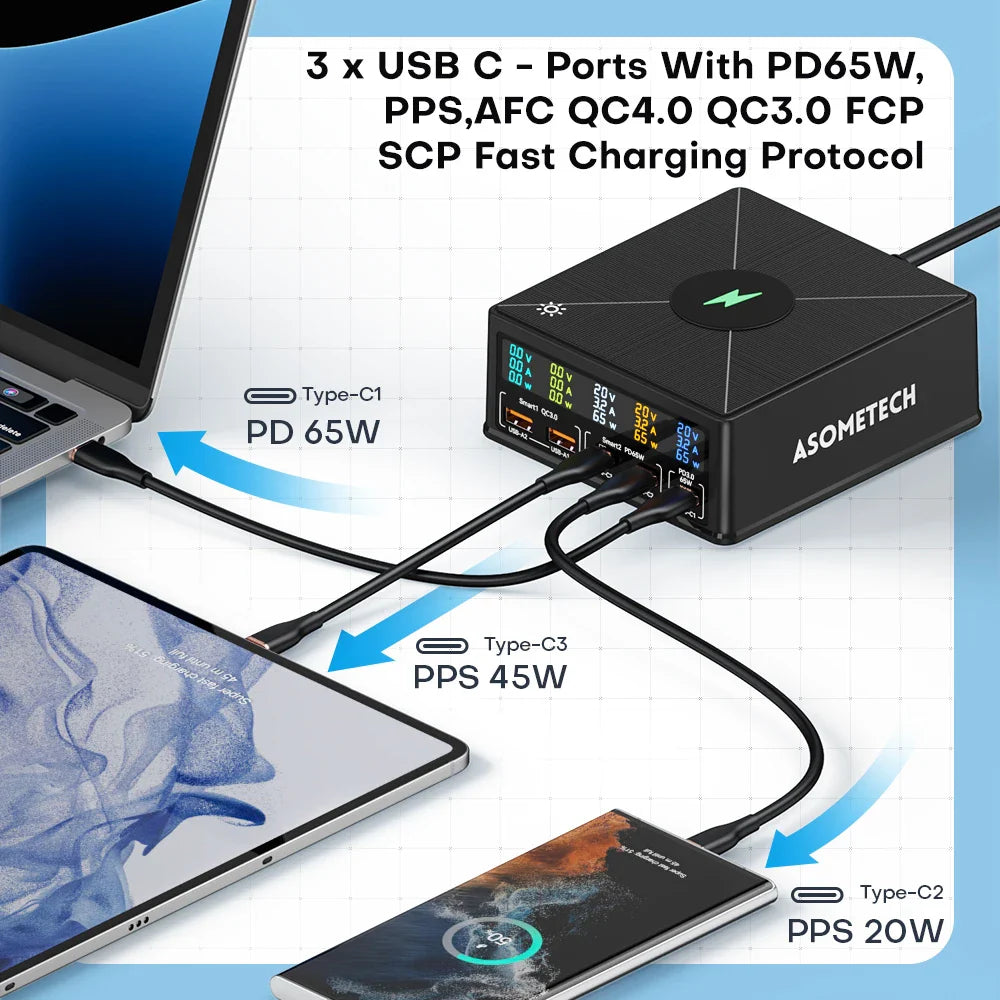

Multi-port Charging with the Same Speed

Your top choice for PD fast charging, triple-port output at the same time, drastically increasing your work efficiency
