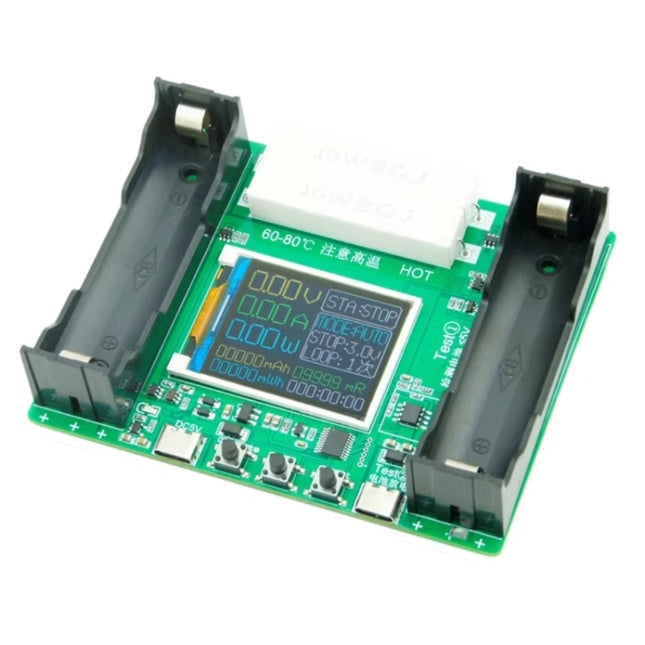

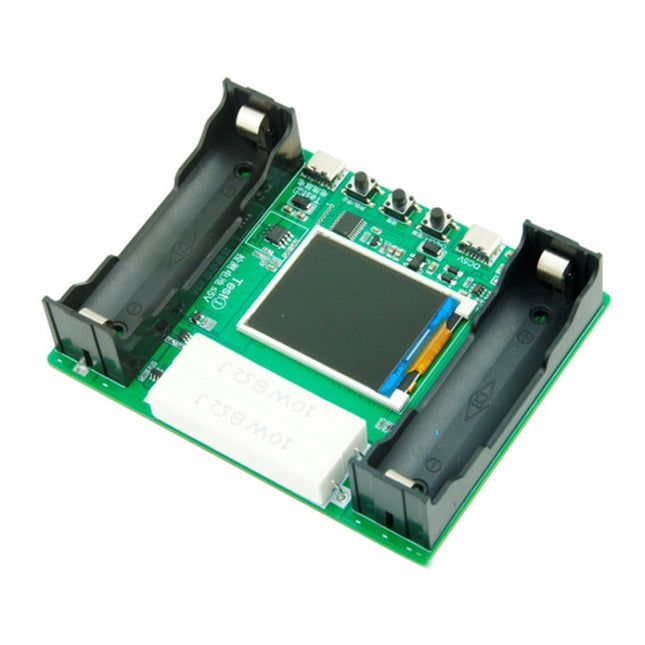

1. Working power supply: DC5V external power supply or 18650 battery (both need to be prepared by yourself)2. Applicable batteries: batteries that meet the stop discharge voltage of 2.5~3.5V and 4.2V charging are applicable3. Power supply interface: Type-C interface, power supply line is prepared by yourself (C port mobile phone line)4. System language: Chinese, English5. Test quantity: 1-way charging and discharging measurement (only right battery)6. Internal resistance measurement: Support, use DC two-wire method to test internal resistance7. Charging function: Support, 1-way program control about 1A (MAX) charging; 1-way hardware control about 0.5A (MAX) charging8. Discharging function: Support, only 1-way supports about 1A (MAX) discharge and automatically stops when the condition is met9. Automatic charging and discharging: Support, the battery is fully charged at the end of automatic mode (stop voltage is set to 2.8V or above)10. Cyclic charging and discharging: Support, 1~9 cycles adjustable11. Status prompt: Supported12. Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 levels adjustable13. Discharge current: two resistors, about 1A current (MAX), not adjustable, does not support self-modification14. Charging voltage: controlled by dedicated battery charging chip, about 0.5A/1A charging (MAC), full charge voltage 4.2V15. Power off save: only save the setting parameters, not the measurement data16. Weight: 80g17. Product size: 110×88x30mmTest method:Wait a few seconds after installing the battery, read the battery data, and the battery voltage and internal resistance parameters will be displayed. There will be a delay in data loading during the battery loading and unloading process. Check after the data stabilizesAbout capacity test:The discharge must be completed to measure the capacity. I have never met anyone who wants to measure the capacity just by installing the battery. Discharge takes time. You have to wait for the discharge to end automatically to have a complete capacity in the discharge stageThis product uses the DC two-wire method to test the battery internal resistance principle:DC impedance is based on the physical formula R=V/I, the test set The battery is forced to pass a large constant DC current (currently 10A-80A is generally used) in a short period of time (usually 2-3 seconds), and the voltage at both ends of the battery is measured, and the current battery internal resistance is calculated according to the formula. The DC two-wire test internal resistance is the result of the middle line resistance, and the result is used for reference comparison between batteries tested in the same batch. Due to the influence of contact resistance and battery self-loss, the internal resistance may not be identified normally and cannot be measured. For those with high requirements for internal resistance measurement accuracy, the TS235 internal resistance tester (AC four-wire method) can be used for internal resistance testing.Specification: Package Weight One Package Weight 0.12kgs / 0.27lb One Package Size 16cm * 11cm * 5cm / 6.3inch * 4.33inch * 1.97inch Qty per Carton 54 Carton Weight 7.60kgs / 16.75lb Carton Size 50cm * 35cm * 32cm / 19.69inch * 13.78inch * 12.6inch Loading Container 20GP: 476 cartons * 54 pcs = 25704 pcs40HQ: 1105 cartons * 54 pcs = 59670 pcs

Read more less

1. Use high power magnetic surround inductor and high current control chip, small size, high power, high efficiency2. Application areas: DIY mobile power, car power supply, communication equipment power supply, etc.3. Module nature: non-isolated buck4. Rectification mode: non-synchronous rectification5. Input voltage: 5V-32V6. Output voltage: 0.8V-24V7. Conversion efficiency: up to 908. Switching frequency: 300KHz9. Output ripple: 30mV (no load)10. Load regulation rate: about 0.5%11. Voltage regulation rate: about 2.5%12. Operating temperature: -40 - 85 degrees Celsius13. External Dimensions: Approx. 4.3 x 2.1 x 1.4cmSpecification: Package Weight One Package Weight 0.04kgs / 0.10lb One Package Size 8cm * 6cm * 2cm / 3.15inch * 2.36inch * 0.79inch Qty per Carton 500 Carton Weight 21.00kgs / 46.30lb Carton Size 50cm * 34cm * 34cm / 19.69inch * 13.39inch * 13.39inch Loading Container 20GP: 461 cartons * 500 pcs = 230500 pcs40HQ: 1071 cartons * 500 pcs = 535500 pcs

Read more less

Type:Voltage Regulator1. Power supply current: 12A 2. Power supply voltage: 40v3. Power: Standard4. Number of pins: Standard5. Use: Instrument6. Package: DC-DC step-down adjustable constant voltage constant current 10A7. Application area: Household appliances8. Packing: boxed9. Weight: 67.2g10. Size: 47 x 65mmSpecification: Package Weight One Package Weight 0.09kgs / 0.20lb One Package Size 10cm * 10cm * 5cm / 3.94inch * 3.94inch * 1.97inch Qty per Carton 170 Carton Weight 15.00kgs / 33.07lb Carton Size 55cm * 55cm * 27cm / 21.65inch * 21.65inch * 10.63inch Loading Container 20GP: 326 cartons * 170 pcs = 55420 pcs40HQ: 757 cartons * 170 pcs = 128690 pcs
