1. Support HDMI1.3 2. Support HDCP1.4 3. Compatible with both IEEE-568A and IEEE-568B standards. 4. Ability to extend 1080p HDMI HD signal to 150 meters without signal loss and clear picture quality 5. LED indicator shows working status 6. Allows you to remotely control DVD players or other HDMI video sources via infrared 7. EQ adjustment function to achieve the best match between HD quality and cable length 8. Quick installation, no driver, plug and playSpecification: General Material Metal Power 2W Power Supply DC 5.0V / 1.0A Size 66.8*82.6*21.3mm Weight 210g(2pcs) Package Weight One Package Weight 0.53kgs / 1.16lb One Package Size 18cm * 13cm * 8.5cm / 7.09inch * 5.12inch * 3.35inch Qty per Carton 20 Carton Weight 12.50kgs / 27.56lb Carton Size 45cm * 40cm * 30cm / 17.72inch * 15.75inch * 11.81inch Loading Container 20GP: 493 cartons * 20 pcs = 9860 pcs40HQ: 1146 cartons * 20 pcs = 22920 pcs

Read more less

Introduction1. This kind of HDMI Extender by CAT-5e/6; uses two pieces of CAT-5e/6 cables to extend the HDTV display up to 30 meters or 100ft and supports up to 1080p. 2. It not only breaks the limitation of the HDMI cable transmission length, but also CAT-5e/6 has more flexibility and convenience in cable constriction.Connection and Operation1. Plug the fixed HDMI cable of the sender into the HDMI input source such as: HD-DVD, PS3, STB or etc. 2. Connect two CAT-5e/6 cables to both the output of the transmitter and input of the receiver. 3. Plug the fixed HDMI cable of the receiver into the HDMI display (such as: HD LCD or HD-DLP).Features and Specifications1. One pair as a full functional module, no need to perform any settings. 2. CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission. 3. Follow the standard of iEEE-568B. 4. Transmission distance can extended up to 30 meters or 100ft. 5. Supports up to 1080p. 6. Signal rate up to 1.65Gbps in support of 1080p displays. 7. Compact size. 8. HDCP compliant.Specification: General Size 6*4*2.1cm (single) Weight 39g(single) Package Include Package Contents 2 x HTMI Extender Package Weight One Package Weight 0.06kgs / 0.13lb One Package Size 19.2cm * 15.2cm * 3cm / 7.56inch * 5.98inch * 1.18inch Qty per Carton 60 Carton Weight 3.12kgs / 6.88lb Carton Size 47cm * 41cm * 33cm / 18.5inch * 16.14inch * 12.99inch Loading Container 20GP: 419 cartons * 60 pcs = 25140 pcs40HQ: 973 cartons * 60 pcs = 58380 pcs

Read more less

1. Interface: HDMI x 2 + USB x 3 + RJ45 x 2 + DC5V x 22. Case: metal3. Extension distance: 60m4. Resolution: 1080P5. Power supply: DC5V, support POC single-ended power supply6. Network cable: Class VI network cable7. Packing list: TX transmitter x 1, RX receiver x 1, USB cable x 1, DC 5V US power supply, manual x 18. Size: 13 x 10 x 2.7cm9. Weight: about 433gFeatures:1. 1920x1080P @ 60Hz ultra-clear picture quality, more distinct color levels, making the picture delicate, three-dimensional image2. Support POC single power supply, access to the transmitter or receiver can be, through the network cable to the other end of the power supply3. Metal shell, low temperature, more stable performance, high security, good heat dissipation performance4. HD smart chip, through the six categories of oxygen-free copper network cable, transmission HDMI audio and video signal performance stability, smooth transmission without lag5. Signal source input, can be connected to DVDs, laptops, set-top boxes, game consoles, and computers and other devices6. Network cable transmitter using standard EIA/TIA-568B wiring method, the wiring order are: white orange / orange / white green / blue / white blue / green / white brown / brown7. 0 delay keypad, support touch screen, USB keypad extension 60 meters, you can control the operation of the computer equipment in real time at the remote end, keypad use flexible, not lagging8. Support Windows, MAC, VistaLinux and other systems, no need to install the driver, plug it in and useSpecification: Package Weight One Package Weight 0.52kgs / 1.14lb One Package Size 23cm * 15cm * 5cm / 9.06inch * 5.91inch * 1.97inch Qty per Carton 50 Carton Weight 30.00kgs / 66.14lb Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch Loading Container 20GP: 177 cartons * 50 pcs = 8850 pcs40HQ: 412 cartons * 50 pcs = 20600 pcs

Read more less

1. Quick heat dissipation, durable 2. Transmits HDMI video and audio signals up to 120m over a single high quality CAT5e/CAT6 cable 3. Support video resolution up to 1920*1080@60Hz, 3D signal 4. Support copy EDID, can match many kinds of display device 5. Support IR signal transmission 6. Support HDMI 1.3, HDCP 1.2 7. High compatibility, can auto-match source and display device 8. Built-in automatic adjustment system, make the image smooth, clear and stable 9. Built-in ESD protection system 10. Simple to install, plug and play 11. IR interface: 3.5mm earphone seat 12. IR signal type: Digital 13. IR frequency: 20k-56kHzSpecification: Package Weight One Package Weight 0.77kgs / 1.70lb One Package Size 20cm * 12cm * 6cm / 7.87inch * 4.72inch * 2.36inch Qty per Carton 30 Carton Weight 24.00kgs / 52.91lb Carton Size 42cm * 38cm * 34cm / 16.54inch * 14.96inch * 13.39inch Loading Container 20GP: 491 cartons * 30 pcs = 14730 pcs40HQ: 1140 cartons * 30 pcs = 34200 pcs

Read more less

1. Quick heat dissipation, durable 2. Transmits HDMI video and audio signals up to 120m over a single high quality CAT5e/CAT6 cable 3. Support video resolution up to 1920*1080@60Hz, 3D signal 4. Support copy EDID, can match many kinds of display device 5. Support IR signal transmission 6. Support HDMI 1.3, HDCP 1.2 7. High compatibility, can auto-match source and display device 8. Built-in automatic adjustment system, make the image smooth, clear and stable 9. Built-in ESD protection system 10. Simple to install, plug and play 11. IR interface: 3.5mm earphone seat 12. IR signal type: Digital 13. IR frequency: 20k-56kHz 14. 1080P audio and video lossless synchronization on the same screen, with audio port pass-through audio functionSpecification: Package Weight One Package Weight 0.77kgs / 1.70lb One Package Size 20cm * 12cm * 6cm / 7.87inch * 4.72inch * 2.36inch Qty per Carton 30 Carton Weight 24.00kgs / 52.91lb Carton Size 42cm * 38cm * 34cm / 16.54inch * 14.96inch * 13.39inch Loading Container 20GP: 491 cartons * 30 pcs = 14730 pcs40HQ: 1140 cartons * 30 pcs = 34200 pcs

Read more less

HDMI Extender 165ft Audio Video 1080P Over Cat5 Cat6 Ethernet Cable Transmit Lossless Signal HDMI Long Distance Extension Adapter 1. HDMI Signal Extender: Send audio video up to 165ft/50m over network cable, Cat6/7 max 50 meters, Cat5e max 40 meters. 2. HD Signal: Run Full HD video resolution 1920x1080@60Hz, compatible with 3D signal and backward resolution, output audio and video synchronously. 3. Easier Setup: Designed with HDMI male on the transmitter and receiver, no HDMI cable required. 4. POC Function: Power over Ethernet. Connect the source (computer, laptop) and the TX with the included USB cable to start the device. (NEED 5V/1A) 5. What You Get: 1x HDMI Extender(set), 1x USB Power Cable, 1x User manual 6. Remind:1）Directly connect your signal source and monitor before connecting HDMI Extender, and check the signal status.2）Power the TX or RX to run the devices by connecting your computer, laptop, USB adapter with the included USB power cable (No adapter in package).Specification: Package Weight One Package Weight 0.08kgs / 0.17lb One Package Size 18cm * 10cm * 3cm / 7.09inch * 3.94inch * 1.18inch Qty per Carton 100 Carton Weight 6.00kgs / 13.23lb Carton Size 40cm * 40cm * 30cm / 15.75inch * 15.75inch * 11.81inch Loading Container 20GP: 555 cartons * 100 pcs = 55500 pcs40HQ: 1289 cartons * 100 pcs = 128900 pcs

Read more less

DescriptionThis kind of HDMI Extender by CAT-5e/6 cables use only one of CAT-5e/6 cables to extend the HDTV display up to 30 meters for 4K*2K and 1080p, This Adapter not only breaks the limitation of the HDMI cable transmission length, but also has more flexibility and convenience in cable construction.FeaturesThis HDMI extender has many features that enable to perform in a superior manner, Among those features you will find: 1. One pair as full functional module, no need of setting. 2. CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission. 3. Follow the standard of IEEE-568B. 4. Transmission distance can be up to 30 Meters for 4K HD resolution and 1080p using CAT-6 cable. 5. Compact size. 6. Signaling rater up to 2.5Gbps in support of 1080p display. 7. HDCP compliant 8. No need for extra power supply.Specification: General Material ABS, Metal Transmission Distance 30m Size 6x2.4x2.1cm (single) Weight 18g (single) Package Include Package Contents 1x HDMI Signal TX Adapter 1x HDMI Signal RX Adapter Package Weight One Package Weight 0.06kgs / 0.13lb One Package Size 17cm * 8.1cm * 3.1cm / 6.69inch * 3.19inch * 1.22inch Qty per Carton 100 Carton Weight 7.50kgs / 16.53lb Carton Size 41cm * 33cm * 31cm / 16.14inch * 12.99inch * 12.2inch Loading Container 20GP: 635 cartons * 100 pcs = 63500 pcs40HQ: 1475 cartons * 100 pcs = 147500 pcs

Read more less

1. DC 5V power supply. 2. HDMI 1.3, HDCP 1.1 and DVI1.1 compliant. 3. Support: 480i.480p,576i,576p,720p@50/60Hz,1080i@50/60Hz,1080P@50/60Hz. 4. Support Deep Color up to 12 bits/color. 5. Support IR re-transmitting. 6. Uses one CAT5E/6 cable for data/DDC transmission. 7. Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality. 8. Cable testing showed that with 1080p resolution the HDMI input source can be 20meters away. 9. When transmitting a signal in 1080P resolution the CAT6 operating distance is 200m.Specification: General Size 10.5*9*2.5cm Weight 498g Package Weight One Package Weight 0.83kgs / 1.82lb One Package Size 21.5cm * 15cm * 5.5cm / 8.46inch * 5.91inch * 2.17inch Qty per Carton 20 Carton Weight 16.50kgs / 36.38lb Carton Size 45cm * 40cm * 30cm / 17.72inch * 15.75inch * 11.81inch Loading Container 20GP: 493 cartons * 20 pcs = 9860 pcs40HQ: 1146 cartons * 20 pcs = 22920 pcs

Read more less

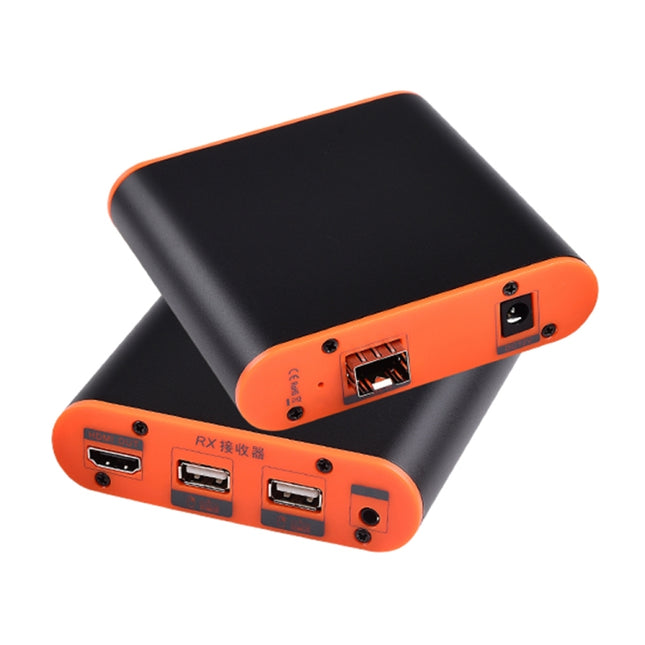

1. Quick heat dissipation, durable 2.Transmits up to 20km of HDMI video and audio signals through a high-quality CAT5e / CAT6 cable 3. Support video resolution up to 1920 * 1080 @ 60Hz, 3D signal 4. Support copy EDID, can match multiple display devices 5. Supports HDMI 1.3, HDCP 1.2 6. High compatibility, can automatically match source and display device 7. Built-in automatic adjustment system makes the image smooth, clear and stable 8.Built-in ESD protection system 9. Easy to install, plug and play 10.1080P audio and video lossless synchronization on the same screen, with audio port pass-through audio function 11. With USB port and KVM function (receiver is connected to TV or projector to play, then connect the keyboard and mouse to the remote computer 20KM, etc.)Specification: Package Weight One Package Weight 0.80kgs / 1.77lb One Package Size 20cm * 12cm * 6cm / 7.87inch * 4.72inch * 2.36inch Qty per Carton 30 Carton Weight 25.00kgs / 55.12lb Carton Size 42cm * 38cm * 34cm / 16.54inch * 14.96inch * 13.39inch Loading Container 20GP: 491 cartons * 30 pcs = 14730 pcs40HQ: 1140 cartons * 30 pcs = 34200 pcs
