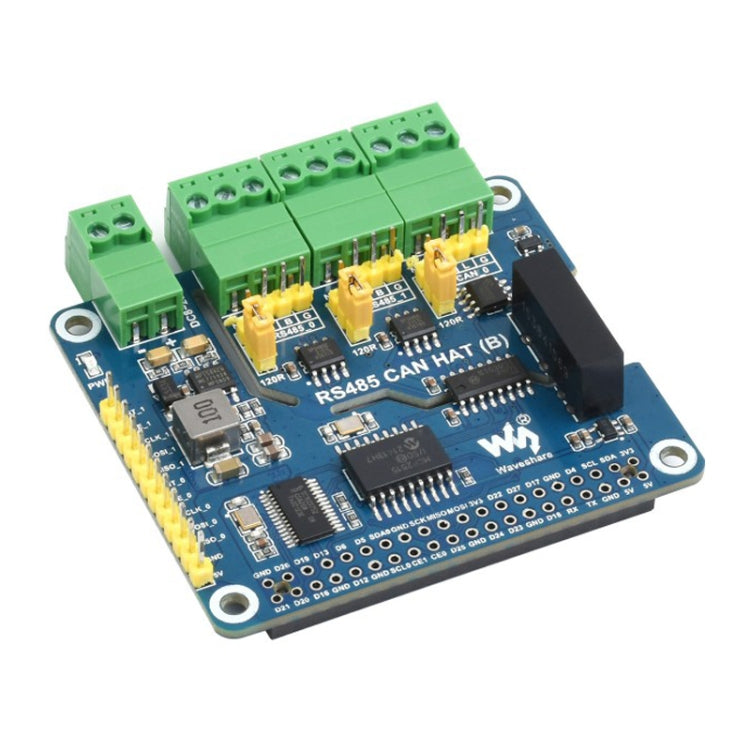

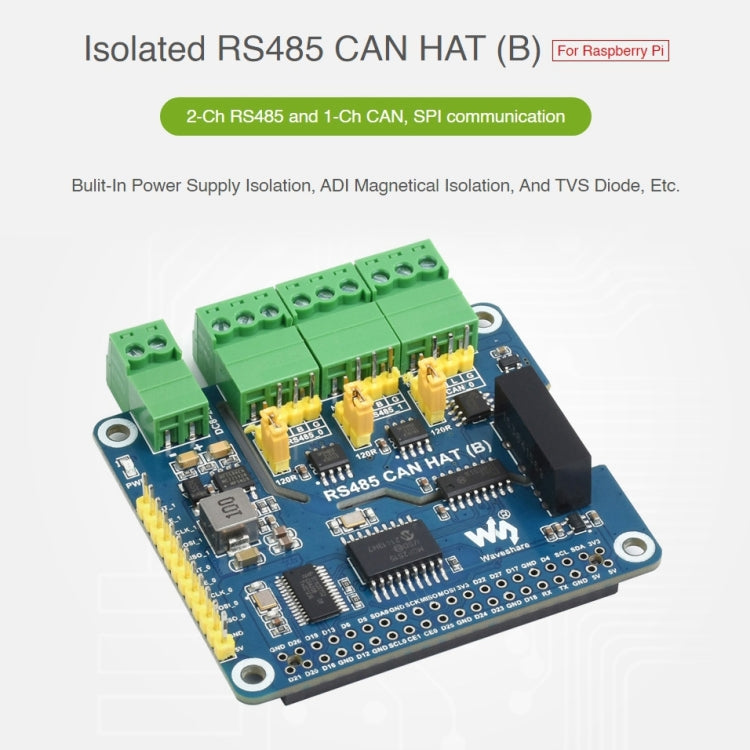

Waveshare Isolated RS485 CAN HAT For Raspberry Pi
1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards2. 1-Ch CAN, adopts MCP2515...
- £17.99 GBP
- £17.99 GBP
- Unit price
- per
Please hurry! Only 999999 left in stock
{2% Additional Discount} Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Expedited Delivery?
Find more options at checkout! DHL Express 🚚
Payment Protection
Buy with confidence. All payments are secured by PayPal, Shopify Payments — trusted by millions worldwide. The world's leading payment gateways. Your security is guaranteed, so shop with peace of mind!
Standard Returns. We guarantee safe and secure shopping experience you never have to worry!
Learn More.

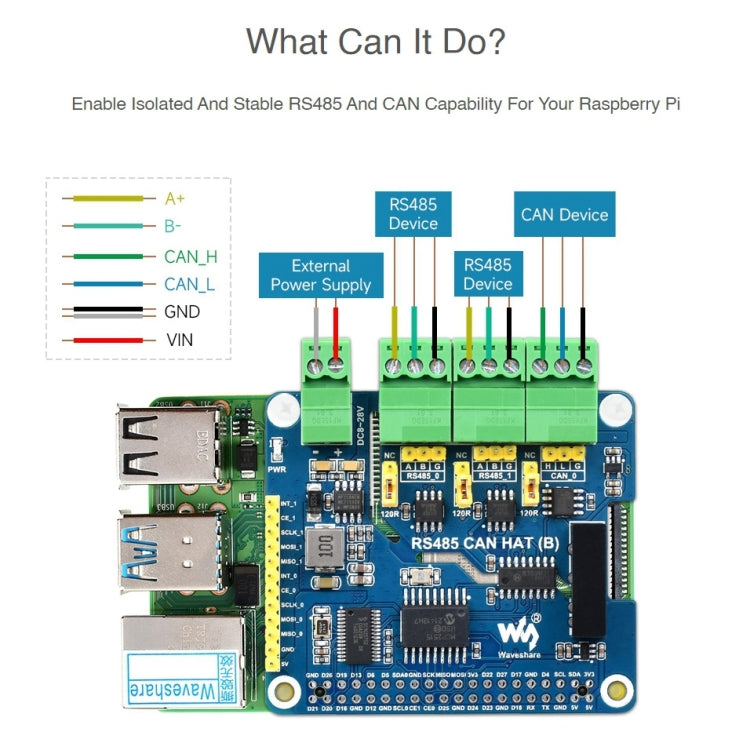

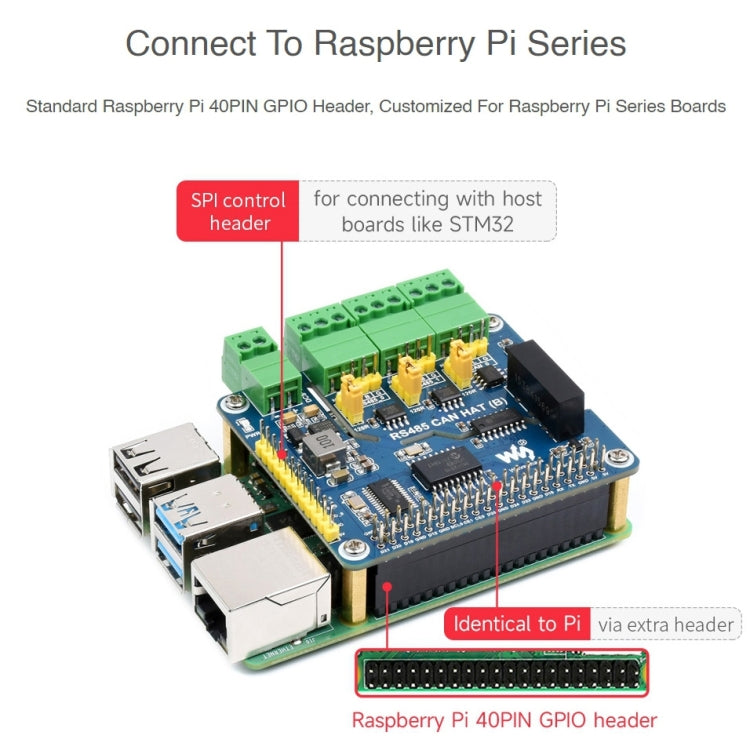

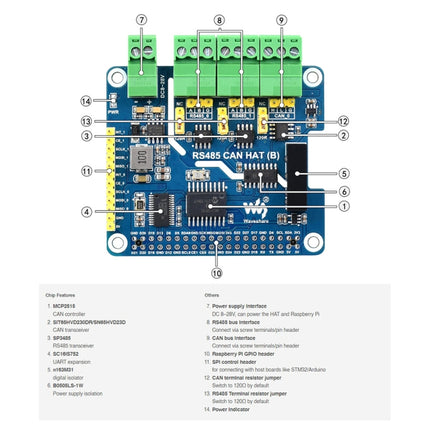

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

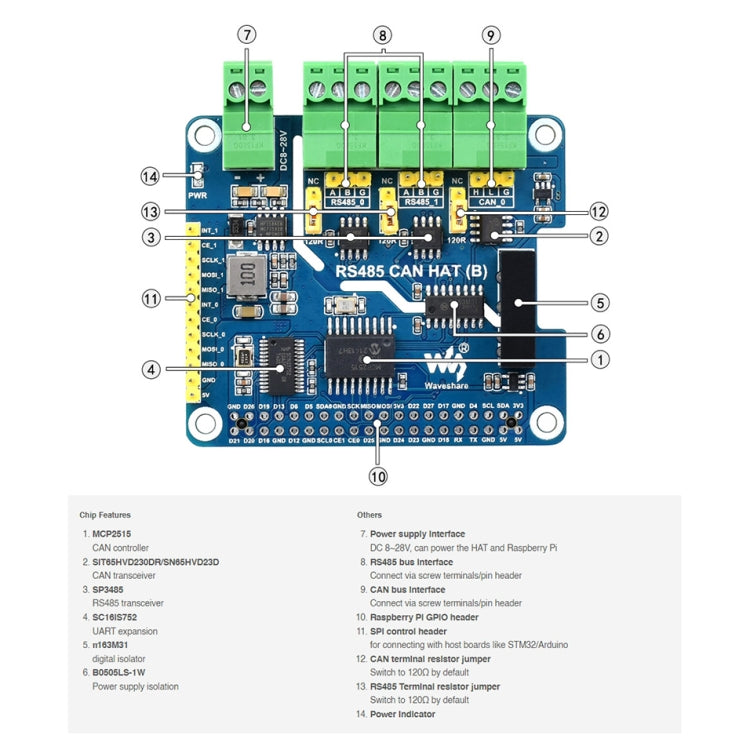

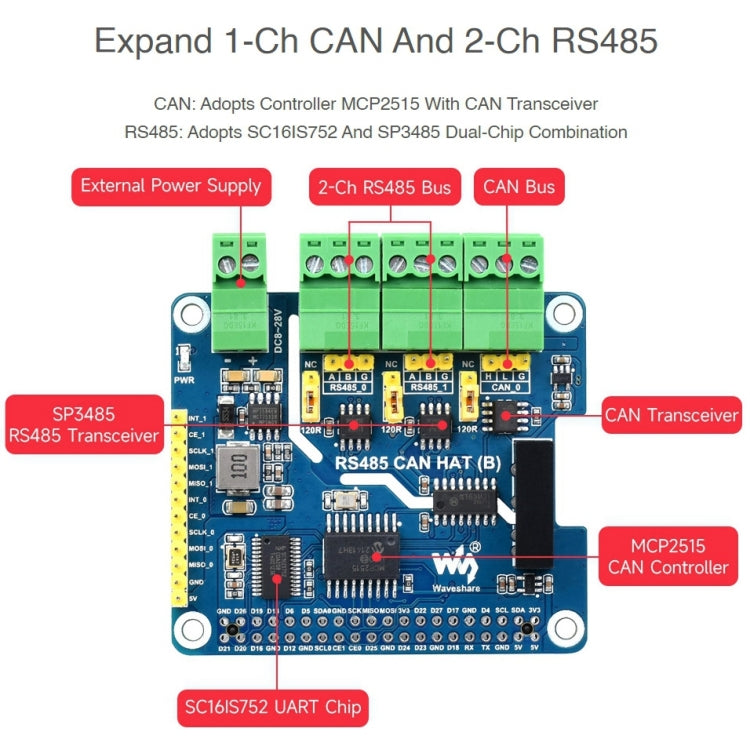

2. 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN
3. 2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
4. Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time

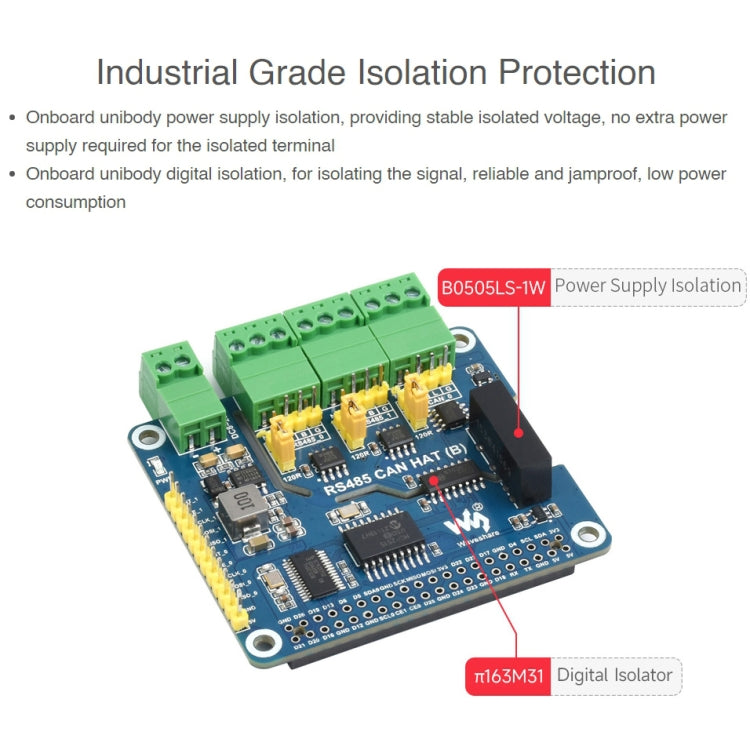

5. Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
6. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
7. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
8. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
9. Onboard 120Ω terminal resistor, configured by jumper
10. Onboard terminals and pin headers, more convenient connection

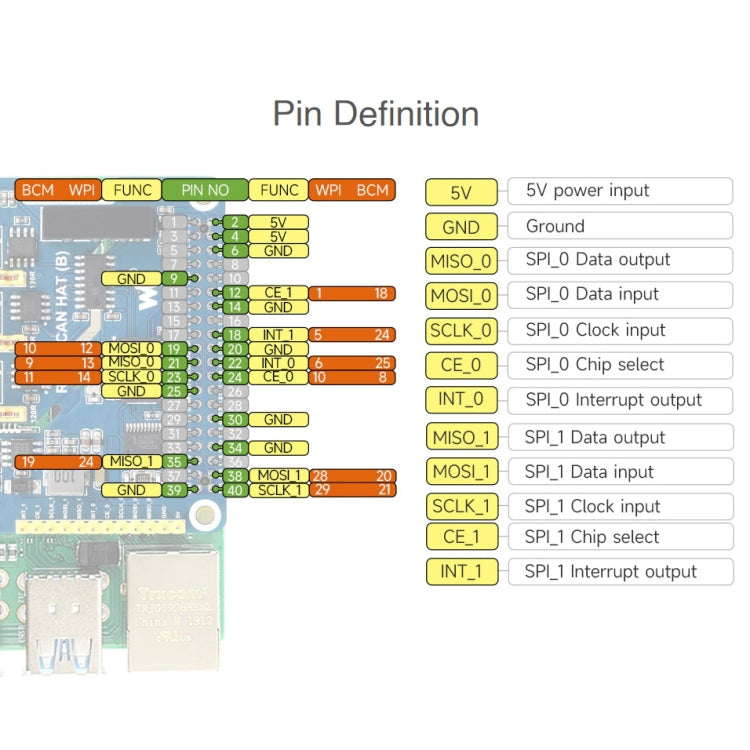

11. Breakout SPI control pins, for connecting with host control boards
2. 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN
3. 2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
4. Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time
5. Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
6. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
7. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
8. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
9. Onboard 120Ω terminal resistor, configured by jumper
10. Onboard terminals and pin headers, more convenient connection
11. Breakout SPI control pins, for connecting with host control boards
Specification:
| Package Weight |
|
