Description
Basic parameters
1. Applicable models: for FIAT 500 2016-2019
2. System: Android 13
3. Software solution: Jinganchi 8227
4. Radio frequency: FM 87.5~108.0MHz (switchable to Europe, Eastern Europe, North America, South America, Africa, Australia, Japan regional radio frequency)
5. Radio chip: 6625
6. Amplifier chip: YD7388
7. Output power: 60Wx4
8. Working voltage: 12~14.4V
9. Bluetooth version: Version 5.1 (default name: SWL-BT)
10. Wi-Fi frequency: 2.4GHz, 5GHz
11. GPS signal: Beidou/GPS+GLONASS
12. Panel light: orange light
13. CPU: AC8227L Cortex-A7 quad-core processor, main frequency 1.1GHz
14. Display resolution: 1024x600 HD
15. Screen size: 7 inches

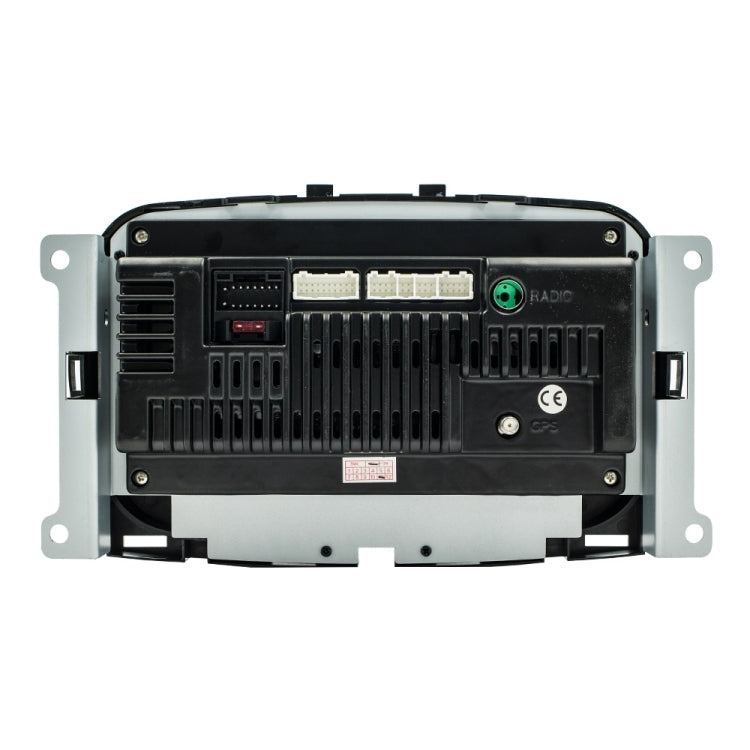

16. Support mobile phone interconnection, reversing image, video playback warning, steering wheel control, USB interface (USB2.0), driving recorder, reset button
17. Audio output: 2 channels (left channel + right channel)
18. Video output: 1 channel
19. Video input: 1 channel
20. Reversing video input: 1 channel
21. Subwoofer output: 1 channel
22. Audio format: MP3/WMA/WAV/APE/FLAC/AAC/OGG/RM
23. Video format: MPEG/AVI/RM/FLV/ASF/WMV/MP4/MKV/OGM/TS/DivX/RMVB/VOB
24. Image format: JPG/BMP/PNG/JPEG/GIF
25. Language parameters: Chinese/Traditional Chinese/English/Russian/Greek/Polish/Turkish/Arabic/Persian/Romanian/French/Hungarian/Italian/Thai/German/Ukrainian/Spanish/Portuguese/Czech/Vietnamese/Japanese/Malaysian/Dutch/Indonesian/Korean
Basic functions:
1. Radio
2. Read USB flash drive (audio/video/picture)

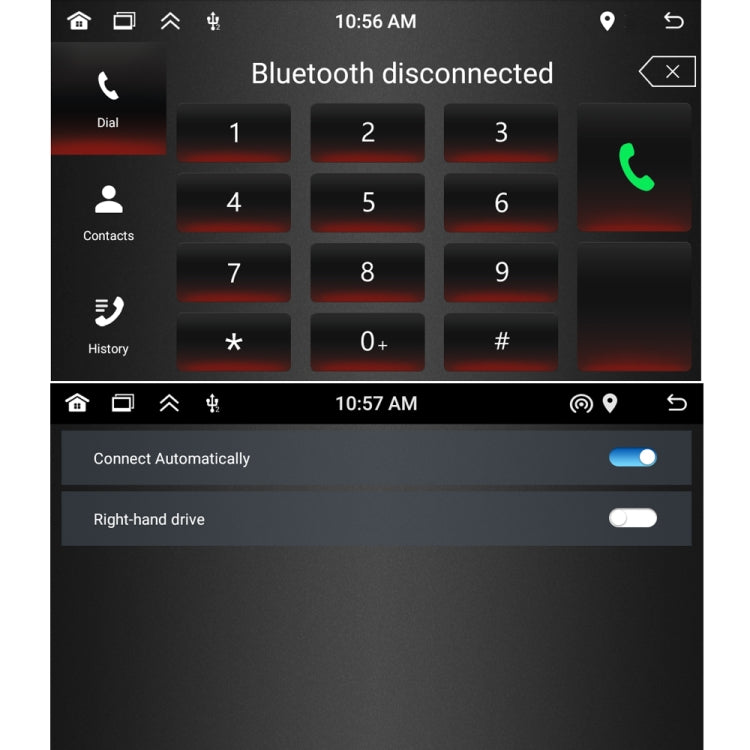

3. Bluetooth function
4. Reversing rear view function (camera optional)
5. Audio input, video input, video output function

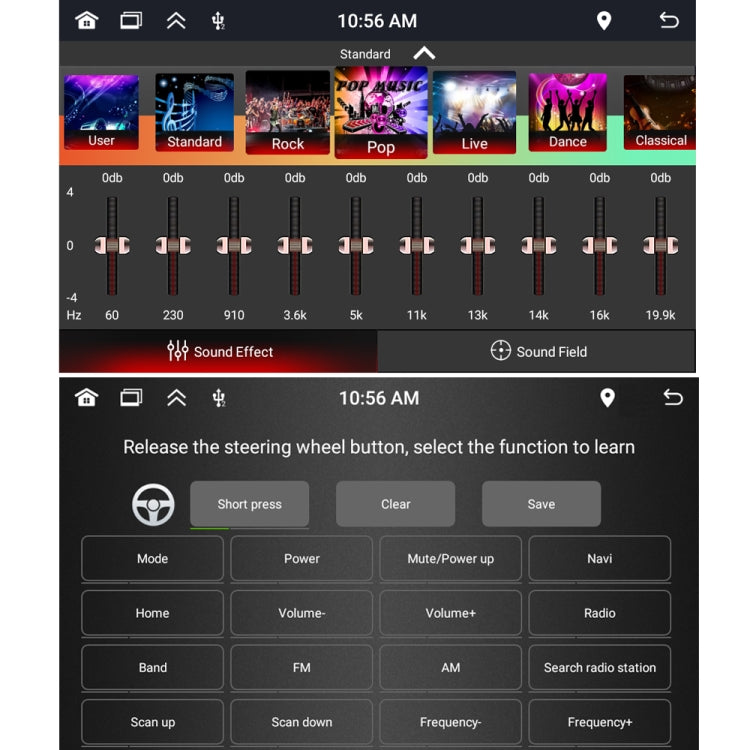

6. Original car steering wheel learning function
7. Android recorder can be installed (recorder optional)
8. WIFI Internet access
9. GPS navigation
10. APP can be installed
11. External microphone (external microphone optional)
12. Wired and wireless android auto/for Apple carplay function, mirrorlink (Android USB+WIFI, Apple WIFI)
13. Recorder function
14. RDS function, can receive traffic radio in real time
15. Power supply positive and negative polarity reverse connection protection function (wrong connection of the positive and negative poles of the power line will not cause the circuit board to burn)

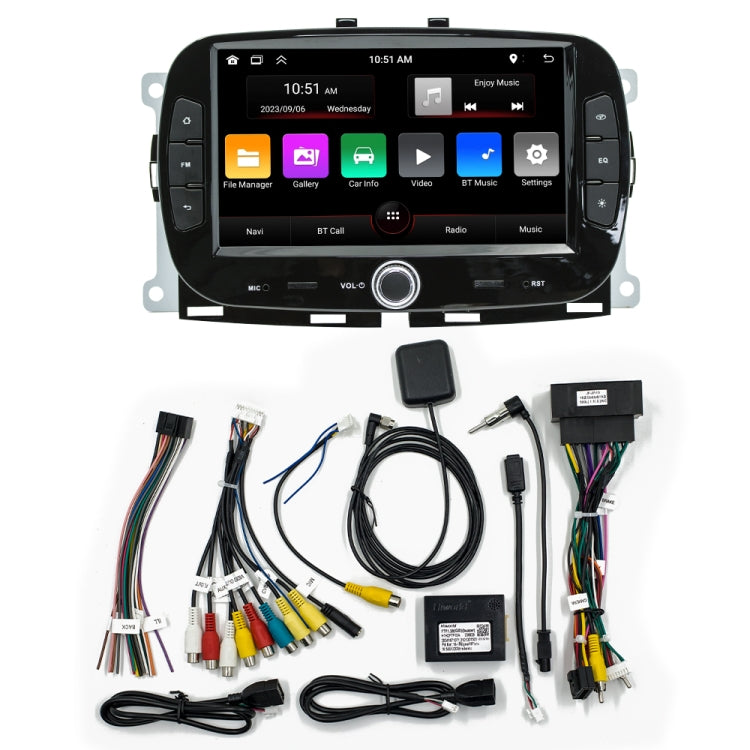

Accessories
1. Host
2. GPS antenna
3. 20P power cord
4. Manual
5. RCA cable package
Specification:
| General |
| Compatible with |
Fiat: 500
|
|
| Package Weight |
| One Package Weight |
1.20kgs / 2.65lb |
| One Package Size |
31cm * 20cm * 11cm / 12.2inch * 7.87inch * 4.33inch |
| Carton Weight |
15.50kgs / 34.17lb |
| Carton Size |
61cm * 40cm * 34cm / 24.02inch * 15.75inch * 13.39inch |
| Loading Container |
20GP: 321 cartons * 12 pcs = 3852 pcs
40HQ: 746 cartons * 12 pcs = 8952 pcs
|
|
