WAVLINK UMD23M For Laptop Tablet 13 in 1 USB-C Hub 10Gbps M.2 Pcie / SATA SSD Enclosure, UMD23M

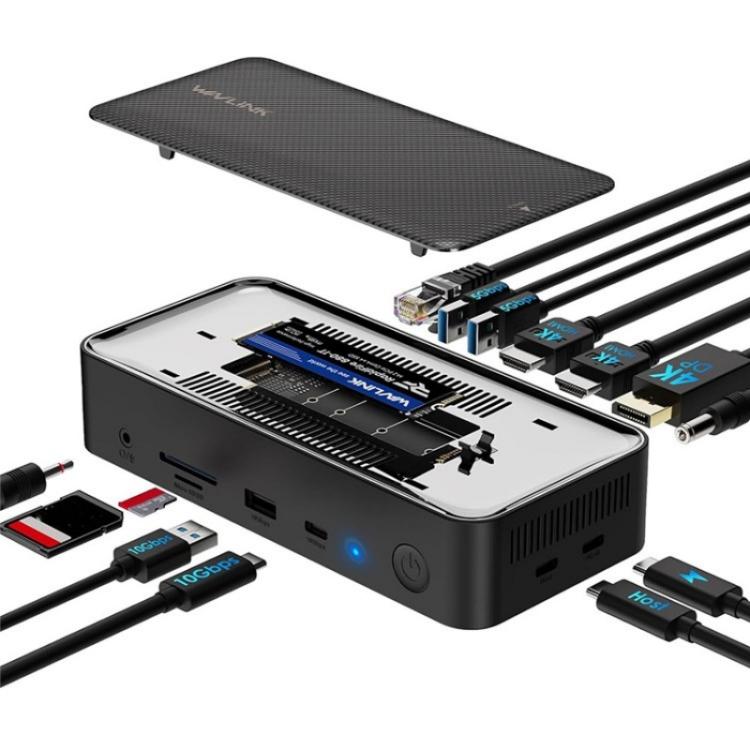

1. 13-in-1 Versatile Docking Station: WAVLINK USB-C hub features an integrated M.2 SSD enclosure, 4K 60Hz DisplayPort, dual 4K 60Hz HD ports, USB-A and USB-C ports, Gigabit Ethernet, SD/TF card slots, and more, offering comprehensive connectivity for your laptop.

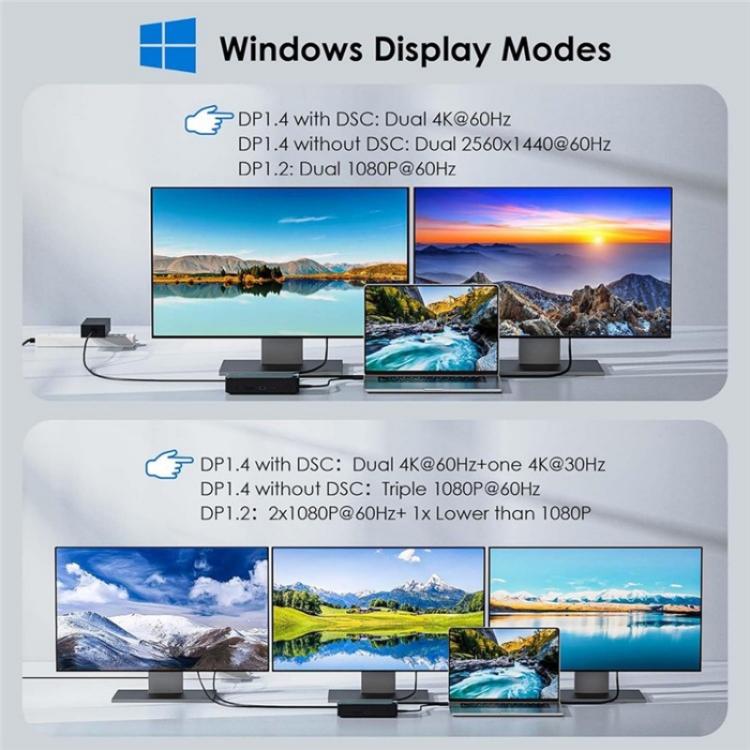

2. Triple 4K Display Support: Connect up to three displays with dual 4K 60Hz and one 4K 30Hz resolution through 2 HD and 1 DisplayPort. Ideal for expanding your workspace or mirroring screens.
3. High-Speed Data Transfer: Built-in M.2 SSD enclosure supports both PCIe NVMe and SATA SSDs. 10Gbps USB-A and USB-C ports enable rapid file transfers, while SD/Micro SD card slots offer simultaneous reading at speeds up to 104MB/s.

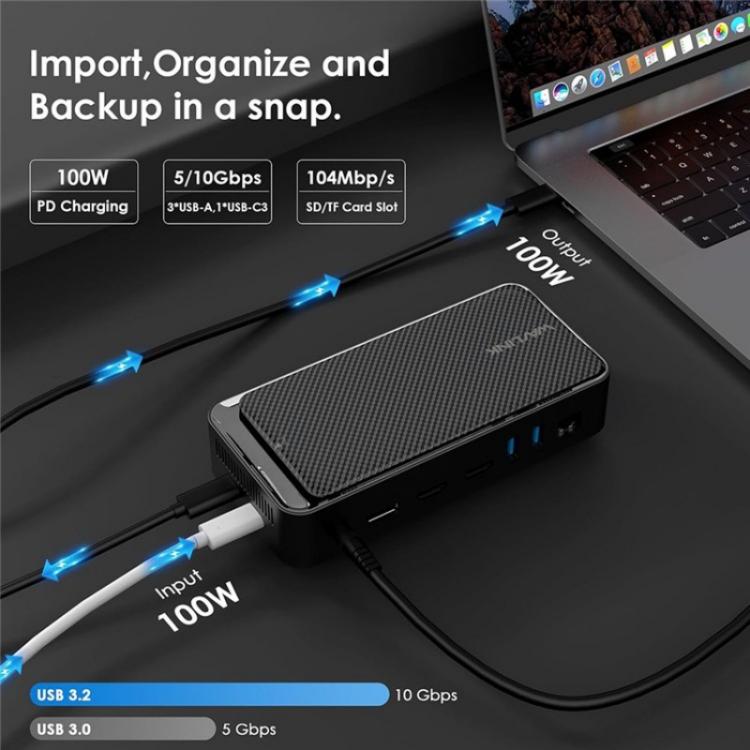

4. 100W Power Delivery: Supports laptop charging up to 100W through the USB-C PD port, ensuring a stable power supply during your work sessions. (PD charger not included)
5. Wide Compatibility: Compatible with Thunderbolt 3/4 laptops and devices featuring full-function USB-C ports. Supports various operating systems including Windows, macOS, Chrome OS, Linux, and mobile platforms.

Specifications:
1. Model: WL-UMD23M

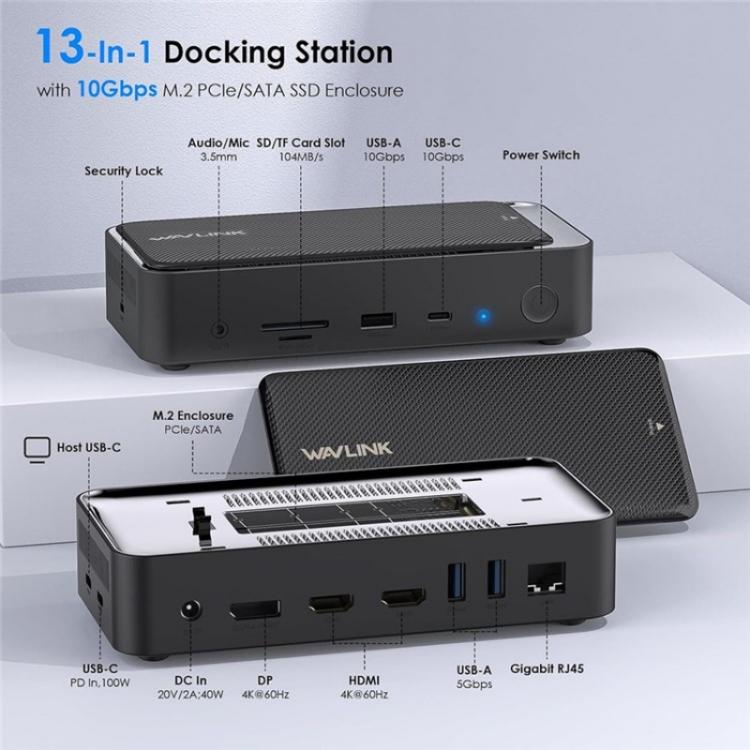

2. Ports (13-in-1):
Front: 1x 3.5mm audio/mic, 1x SD card slot (104MB/s), 1x TF card slot (104MB/s), 1x USB-A (5Gbps), 1x USB-C (5Gbps), 1x power switch
Rear: 1x DC In (20V/2A); 40W), 1x DisplayPort (4K 60Hz), 2x HD (4K 60Hz), 2x USB-A (5Gbps), 1x Gigabit RJ45 Ethernet
(Side) 1x M.2 Chassis (PCIe/SATA), USB-C (Host), USB-C PD IN (PD 100W), 1x Lock
3. Dimensions: 17.5 x 8 x 4 cm / 6.9 x 3.1 x 1.6 inches (WxDxH)
4. Cable length: Power cable: 120cm/47in; USB-C to USB-C cable: 100cm/39.4in
5. Weight: 367g/12.9oz
6. Shell material: ABS plastic

Notes:
1. When using the dock (with adapter), please connect the "DC In" port to the power supply.
2. The host's type-C port must support video output and charging to enjoy the full functions of this dock (Your USB-C mobile phone and tablet should support OTG function )
3. To charge the computer through the upstream interface, please connect your own PD charger to the USB-C PD IN interface of the dock. Otherwise, the computer will not be able to charge.
4. For some Windows laptops, due to the limitation of the graphics card (including the host screen), they only support 3 displays. When using triple-screen display, the host screen needs to be turned off.
5. For macOS does not support MST; 3 external displays will show the same content (AB/ABB/ABBB).

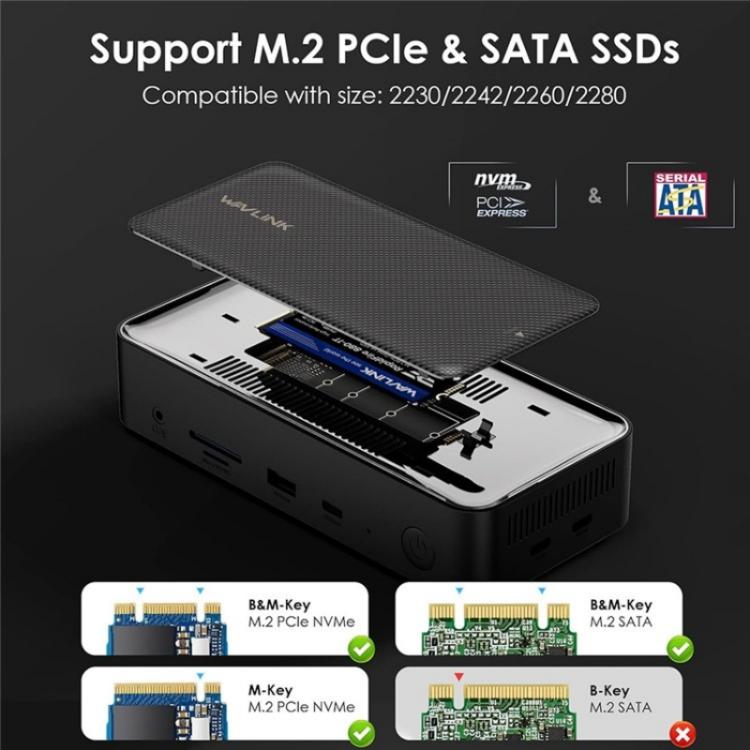

6. Please choose the correct SSD type: compatible with M.2 PCIe M-Key/B&M-Key SSD and M.2 SATA B&M-Key SSD. Not compatible with M.2 SATA B-Key SSD, mSATA SSD or M.2 PCIe AHCI SSD.
