Waveshare Type-C / USB-C to UART High Band Rate Transmission Module Connectors, USB-C

Waveshare Type-C / USB-C to UART High Band Rate Transmission Module Connectors, USB-C

Produkt Form

Features1. Adopt new version CH343G chip. Compared with CH340G, it supports higher data rate (up to 6Mbps) and more serial... Lesen Sie mehr

🔥 Buy 2+ units 5% Discount. Expedited Delivery Available!  Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£2.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Why pay retails? Everyone deserves wholesale - even for 1 unit. Save like a pro
    • Wholesale pricing for everyone - no min
    • Buy at wholesale price(s) | Money saved vs marketplaces
    • Dedicated Account Manager
    • Bulk pricing - for large enquiries

    Beschreibung

    Features
    1. Adopt new version CH343G chip. Compared with CH340G, it supports higher data rate (up to 6Mbps) and more serial port IO levels (5V / 3.3V / 2.5V / 1.8V)

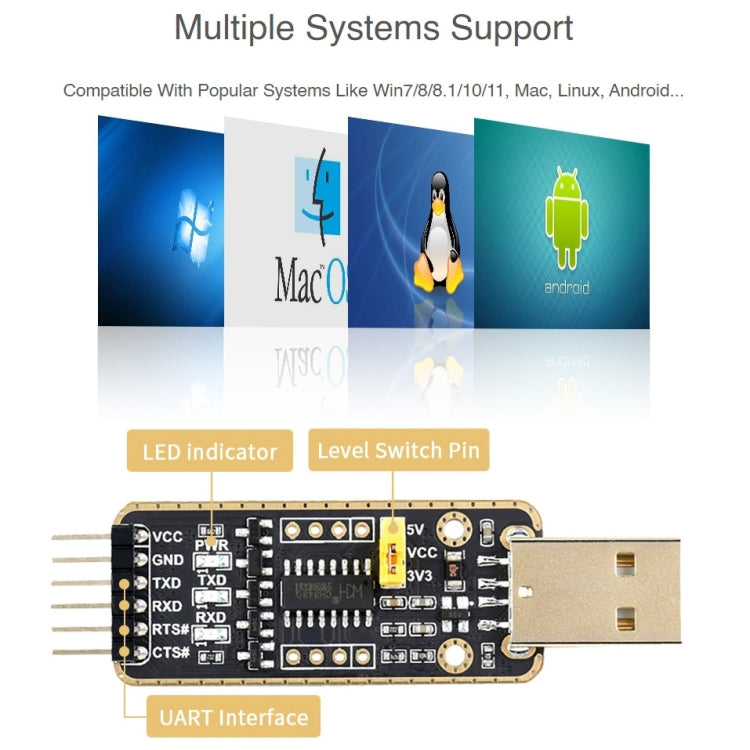

    2. Support Mac, Linux, Android, Windows 7/8/8.1/10/11
    3. Onboard resettable Fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improve shock resistance, stable and safe communication performance
    4. Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance

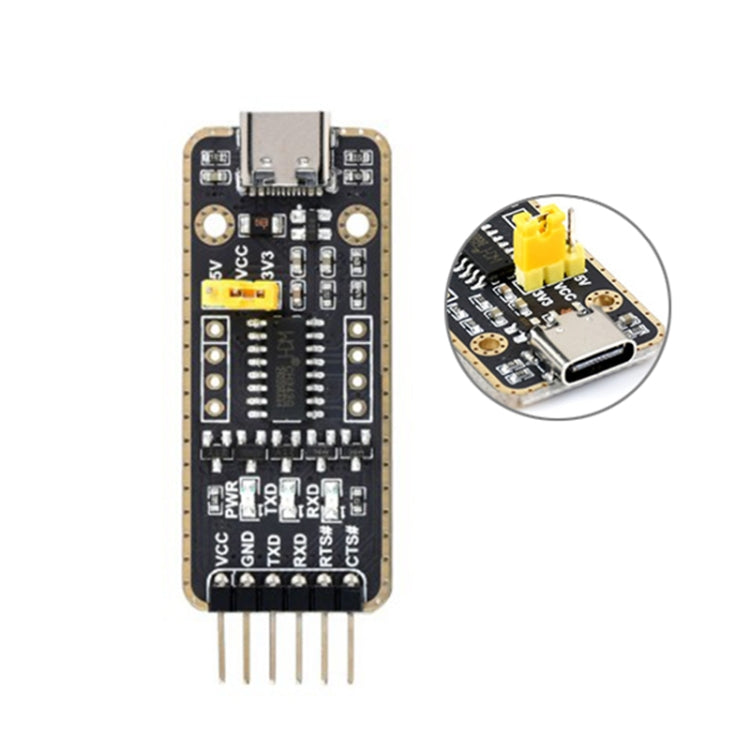

    5. Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level
    6. Support 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly)
    7. Adopt double-sided black immersion gold process, which is durable and has a good look

    Indictor Description
    1. PWR: Power indicator, turn on when the voltage is detected from USB interface
    2. RXD: Receiving indicator, turn on when data is sent back from the device interface
    3. TXD: Sending indicator, turn on when data is sent from USB

    Pinouts Definition
    1. VCC: 5V or 3.3V output for external device (configured by jumper)
    2. GND: Ground
    3. TXD: Connects to MCU.RXD
    4. RXD: Connects to MCU.TXD
    5. RTS: Connects to MCU.CTS
    6. CTS: Connects to MCU.RTS

    Specifications
    1. Host interface: USB
    2. Device interface: UART
    3. Communication range: 50bps ~ 6Mbps
    4. USB device interface: USB Type-C
    5. Protection: resettable Fuse, ESD protection
    6. UART interface connector: 6-pin right-angle pinheader
    7. Protection: IO protection diode


    Specification:
    Package Weight
    One Package Weight 0.02kgs / 0.05lb
    One Package Size 15cm * 12cm * 1cm / 5.91inch * 4.72inch * 0.39inch
    Qty per Carton 400
    Carton Weight 7.00kgs / 15.43lb
    Carton Size 52cm * 35cm * 35cm / 20.47inch * 13.78inch * 13.78inch
    Loading Container 20GP: 418 cartons * 400 pcs = 167200 pcs
    40HQ: 971 cartons * 400 pcs = 388400 pcs
