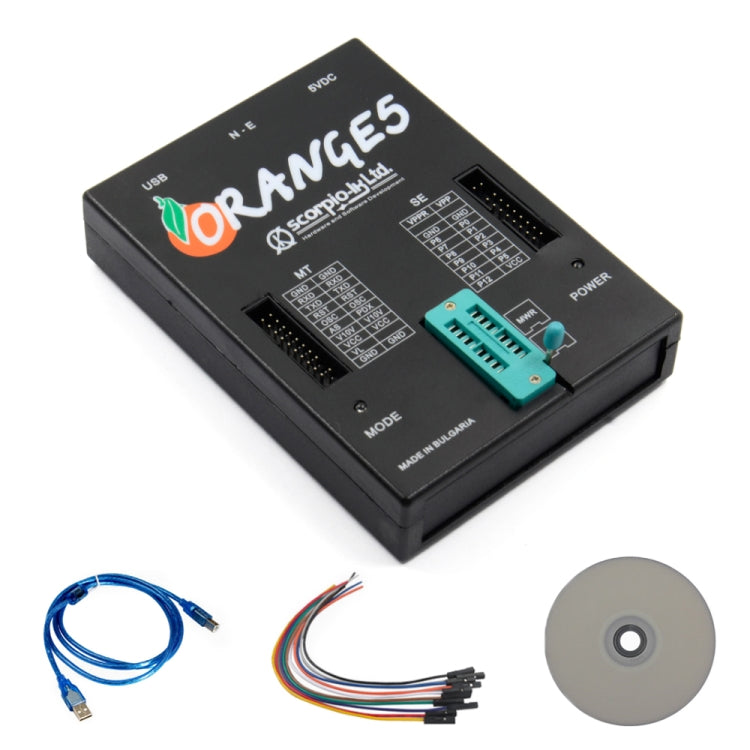

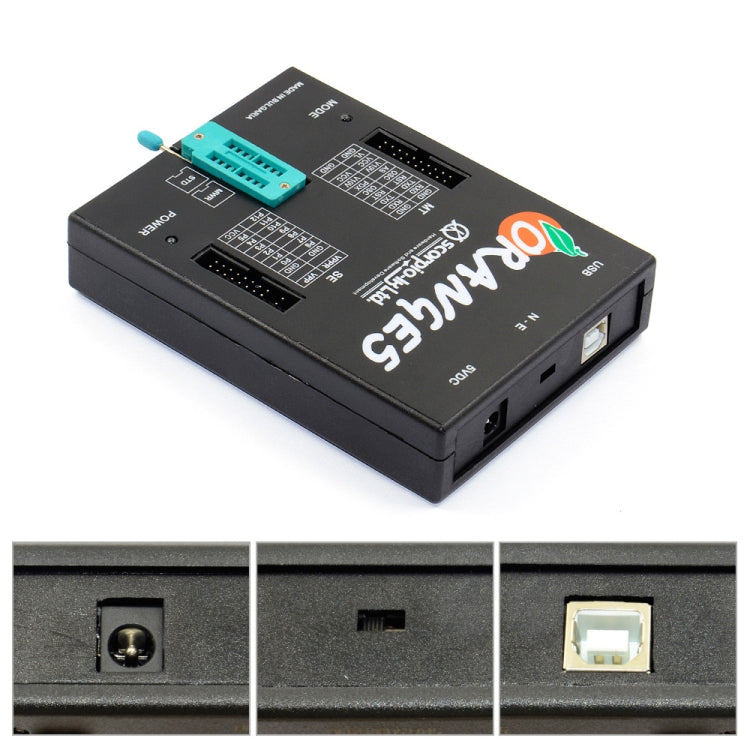

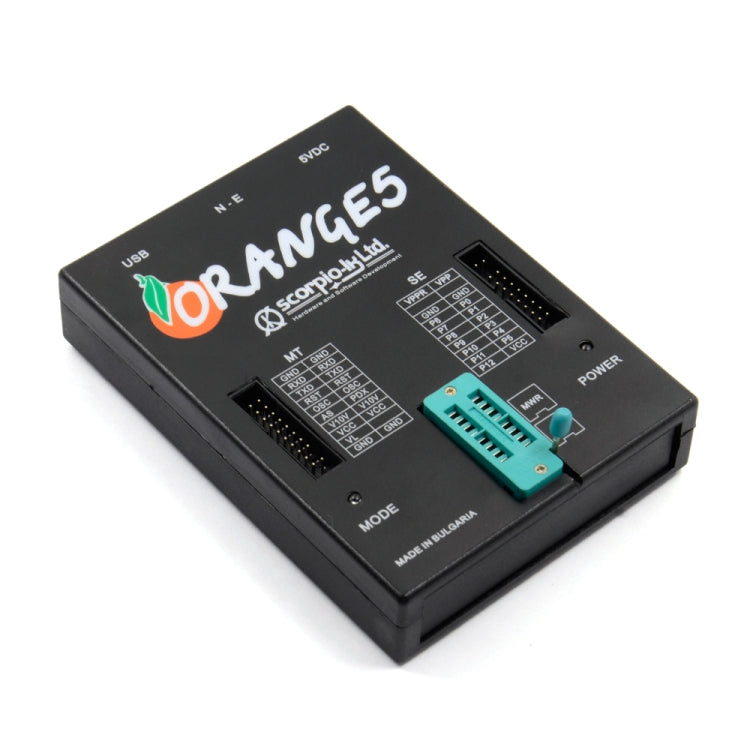

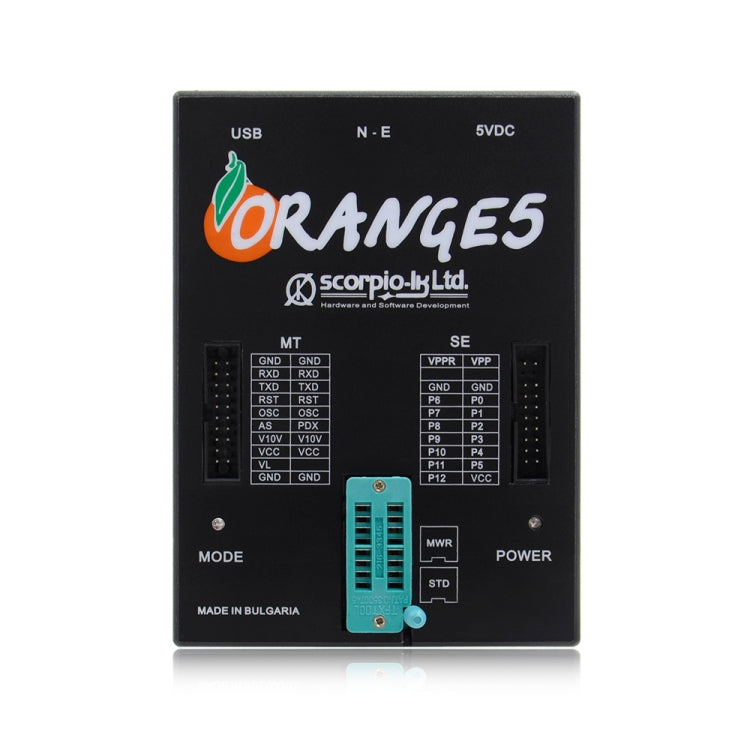

Orange5 V1.34 Professional Programming Device Main Unit, Professional Programming Device

Orange5 V1.34 Professional Programming Device Main Unit, Professional Programming Device

Produkt Form

1. Supports any COM ports, incuding virtual ones from 1 to 20 2. Works with text (ASCII) and HEX mode... Lesen Sie mehr

🔥 Buy 2+ units 5% Discount. Expedited Delivery Available!  Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£57.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Why pay retails? Everyone deserves wholesale - even for 1 unit. Save like a pro
    • Wholesale pricing for everyone - no min
    • Buy at wholesale price(s) | Money saved vs marketplaces
    • Dedicated Account Manager
    • Bulk pricing - for large enquiries

    Beschreibung

    1. Supports any COM ports, incuding virtual ones from 1 to 20
    2. Works with text (ASCII) and HEX mode
    3. Creating a list of commands that allows editing and fast sending
    4. Fine-tuning the exchange rate
    5. Saving files including command and port settings.
    6. Saving incoming data in binary files
    7. File transfer via serial port.
    8. Delay settings for bytes and blocks
    9. Echo mode
    10. Delay settings between incoming data
    11. Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
    12. Program does not need to be installed
    13. Supports Orange5 programmer in emulation mode.
    14. Software License:
    MTRK (Included in Orange-5 base)
    TMS (Included in Orange-5 base)
    M08V NEW
    Immo HPX 9V0
    NEC V850ES/SJ3 V850ES/SG3 UART
    NEC V850E2 NEW
    15. Technical Info:
    USB power supply (USB2.0/3.0)
    Universal easy to plug panel ZIF16 for EEPROM
    Control of contacts in the sockets
    Two expansions compatible with Orange4 and Omega MTRK
    Protection against overcurrent
    Overload voltage protection
    Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
    Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
    High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
    Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
    Capability of functional emulation of class CDC USB devices
    Built-in 32-bit virtual machine
    Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
    Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [Win8.1]
    Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
    CnCterm - Terminal program for work with COM ports.
    Software Version: V1.34
    Language: Chinese, English and Russian
    Systems: XP WIN7 WIN8



    Specification:
    Package Weight
    One Package Weight 0.36kgs / 0.79lb

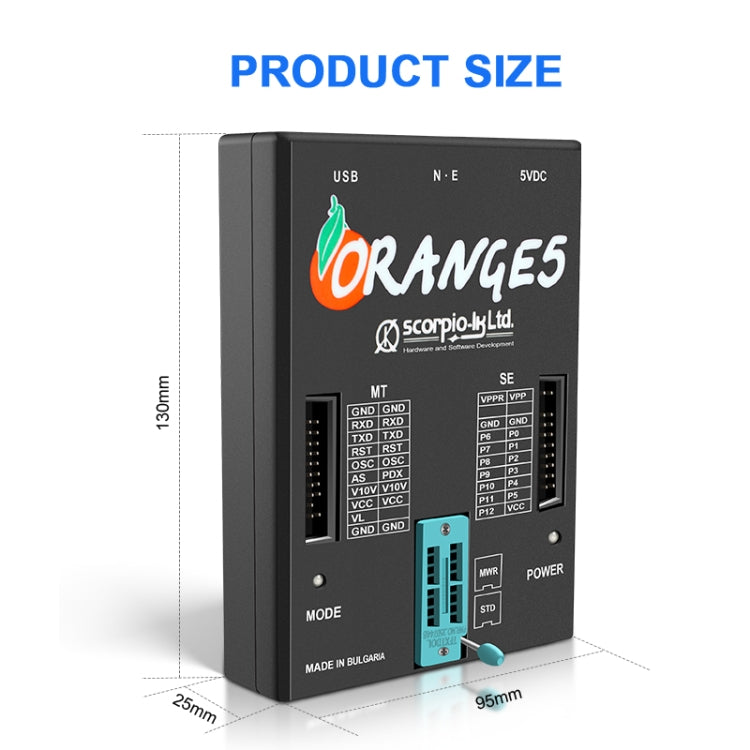

    One Package Size 24cm * 20cm * 8cm / 9.45inch * 7.87inch * 3.15inch
    Qty per Carton 20
    Carton Weight 11.60kgs / 25.57lb
    Carton Size 48cm * 42cm * 38cm / 18.9inch * 16.54inch * 14.96inch
    Loading Container 20GP: 348 cartons * 20 pcs = 6960 pcs
    40HQ: 808 cartons * 20 pcs = 16160 pcs
