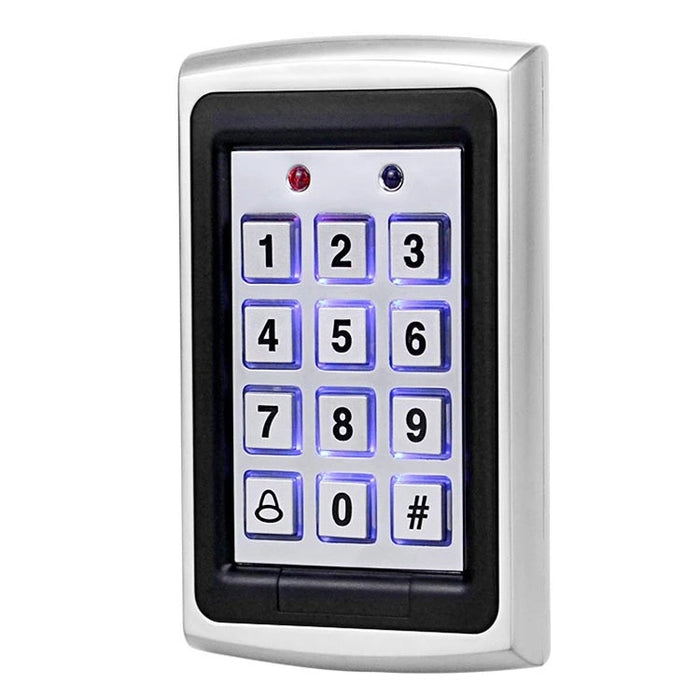

Standalone Keypad Access Control System (7612)

Standalone Keypad Access Control System (7612)

Forma del producto

This is a vandal resistant proximity card and keypad access control unit suitable for external applications. The unit accepts up... Leer más...

Expedited Delivery Available! Add to cart for exact shipping info.  Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£13.99

    • Guaranteed secure & safe checkout.

      shop pay
      • We take great care in ensuring that all our products meet quality standards and are packaged securely for safe delivery.
      • No hassle returns, 30 days return

      Descripción

      This is a vandal resistant proximity card and keypad access control unit suitable for external applications. The unit accepts up to 500 users and provides entry via the use of proximity cards and/or pin codes.

      Technical Specification:
      1. Operating Voltage:
      12VDC From a Regulated Power Supply Input current:
      Standby: 40mA Not including attached devices
      Max: 130mA Not including attached devices
      2. Outputs:
      Lock Strike Relay From C, 5A
      Auxiliary Relay From C, 5A
      LockStrike Control Output Collector Open Output (25mA)
      Auxiliary Control Output Collector Open Output (25mA)
      3. Inputs:
      REX: N.O.,Dry Contact
      Auxiliary Input (In/Monitor): N.C.,Dry Contact in
      Monitor Mode: N.O.Dry Contact Input Mode
      4. Built-in Proximity reader
      Read Range: 65mm
      Modulation: ASK at 125 kHz
      Compatible Cards: ALL 26-Bit EM Cards
      5. Mechanical Characteristics
      Dimentions: 120L*76W*27Hmm
      Weight: 450g

      Range also depends on electrical environment and proximity to metal.

      Features:
      1. Built-in Proximity Card Reader (125KHZ ASK Modulation)
      2. Built-in Keypad for PIN Code entry
      3. Auxiliary Input & Auxiliary Output
      4. Eight Auxiliary Modes including: Door Ajar; Forced Door; Shunt; Door Monitor; Normal / Secure
      5. Internal Buzzer
      6. Two Status/Programming Interface LEDS
      7. Two Modes of Operation: Normal Mode; Secure Mode
      8. Three User Levers: Normal User; Secure User; Master User
      9. Four Open door mode: 4 digit Pin Code; 4 digit Pin Code & EM Card; 4 digit Pin Code & 1.4 digit Pin Code; EM Card & EM Card
      10. Code search Feature that helps make maintaining user codes easier.
      11. Built-in Case and Back Tamper Bell, Chime, Siren, Battery Backup, Tamper Output features available with IBA Power Supplies.
      12. Programmable Siren Time.
      13. Programmable Lock Strike Release Time.


      Specification:
      Package Weight
      One Package Weight 0.51kgs / 1.11lb
      One Package Size 16.1cm * 11.4cm * 5.8cm / 6.34inch * 4.49inch * 2.28inch
      Qty per Carton 20
      Carton Weight 12.40kgs / 27.34lb
      Carton Size 35cm * 25cm * 31cm / 13.78inch * 9.84inch * 12.2inch
      Loading Container 20GP: 983 cartons * 20 pcs = 19660 pcs
      40HQ: 2282 cartons * 20 pcs = 45640 pcs
