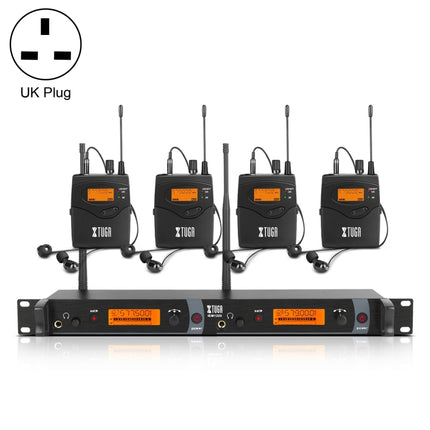

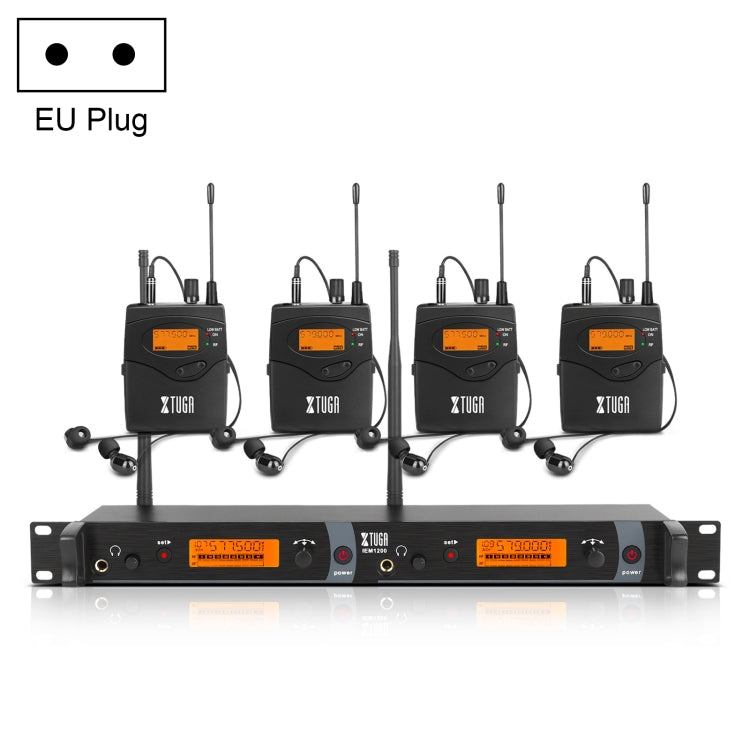

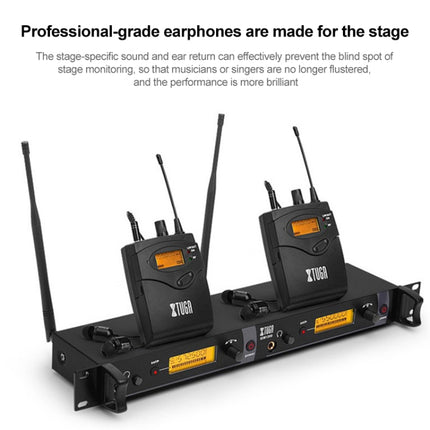

Features1. UHF wireless in-ear monitoring system.
2. A built-in limiter circuit for stage performances and a wide range of sounds eliminates distortion at excessive input levels.
3. Metal panel and body shell, makes it sturdy and durable

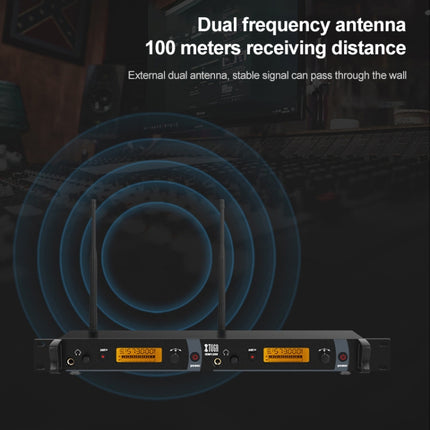

4. Provides desktop-level monitoring in an in-ear monitoring and receiving system with a wireless range from 80 to 100m, and a frequency range of 550-580MHz.
5. The signal-to-noise ratio of the dynamic range is improved, so that the system has excellent anti-interference ability, and once again shows the good original sound
Transmitter Specifications1. Case specification:Standard 1U Case
2. Material: Metal panel and body housing case
3. Frequency range: UHF550-580MHz
4. Frequency interval: 25MHz
5. Transmit output power:100mW(50 ohms)
6. Audio input: XLR & 6.3mm duplex outlet
7. Earphone output: 6.3mm jack, volume adjustable
8. Headphone load impedance: Greater than or equal to 16 ohms
9. Voltage current consumption: DC 12V 250mA
10. Antenna interface: TNC jack (50 ohms)
11. Size: 48 x 10.5 x 4.3cm

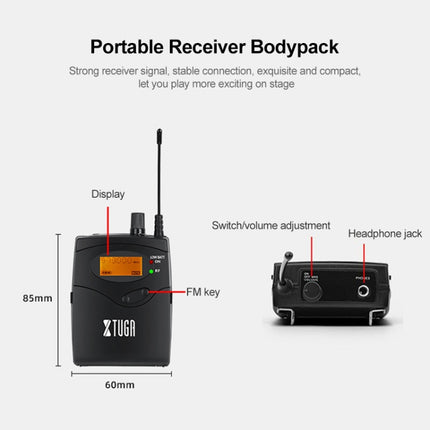

Receiver Specifications1. Oscillation mode: PLL synthesized Frequency
2. Width Frequency range: UHF550-580MHz (Corresponding transmitter frequency)
3. Frequency interval: 25MHz
4. Operate mode: Manual adjust
5. Receiving mode: Single tuning.
6. Comprehensive Frequency Response: 80Hz~15KHz+/-3dB
7. Output power (30 ohms): 2 x 35mW
8. Headphone load impedance: Greater than or equal to 16 ohms
9. Earphone output: 3.5mm jack
10. Power supply: 2 x AA batteries (not included)
11. Size: 8.5 x 6cm
Specification:
| Package Weight |
| One Package Weight |
2.74kgs / 6.04lb |
| One Package Size |
55cm * 33cm * 9cm / 21.65inch * 12.99inch * 3.54inch |
| Carton Weight |
17.10kgs / 37.70lb |
| Carton Size |
56cm * 34cm * 54cm / 22.05inch * 13.39inch * 21.26inch |
| Loading Container |
20GP: 259 cartons * 6 pcs = 1554 pcs
40HQ: 602 cartons * 6 pcs = 3612 pcs
|
|
