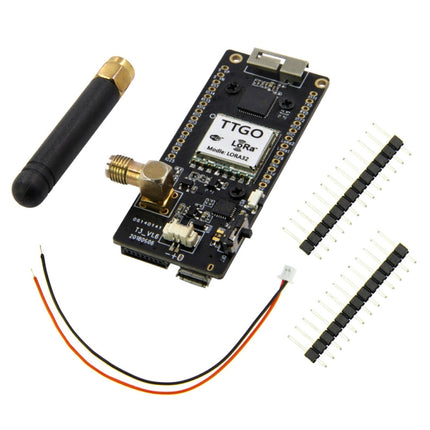

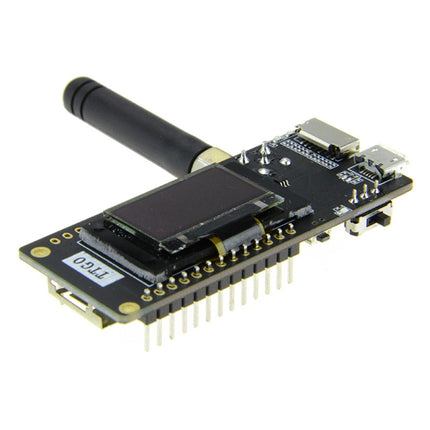

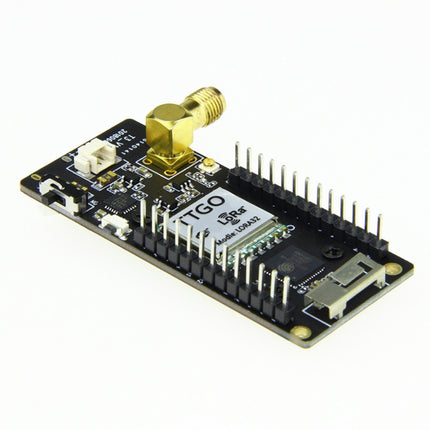

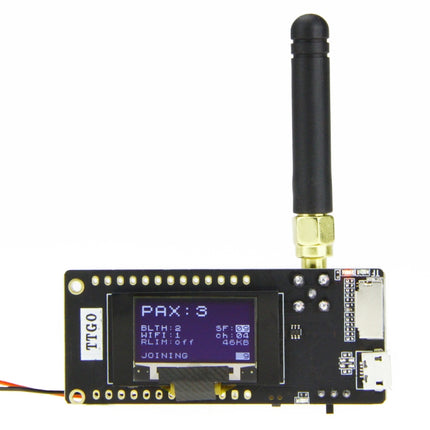

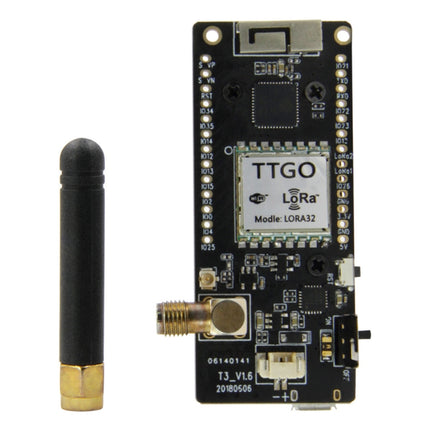

TTGO LORA32 V2.1 ESP32 0.96 inch OLED Bluetooth WiFi Wireless Module 433MHz SMA IP5306 Module with Antenna, 433MHz

TTGO LORA32 V2.1 ESP32 0.96 inch OLED Bluetooth WiFi Wireless Module 433MHz SMA IP5306 Module with Antenna, 433MHz

Produkt Form

1. Working voltage: 1.8~13.7V 2. Acceptable current: 10~114mA 3. Emission current: - 120mA at + 20dBm - 90 mA lies... Lesen Sie mehr

Expedited Delivery Available! Add to cart for exact shipping info.  Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£16.99

    • Guaranteed secure & safe checkout.

      shop pay
      • We take great care in ensuring that all our products meet quality standards and are packaged securely for safe delivery.
      • No hassle returns, 30 days return

      Beschreibung

      1. Working voltage: 1.8~13.7V
      2. Acceptable current: 10~114mA
      3. Emission current:
      - 120mA at + 20dBm
      - 90 mA lies at +17dBm
      - 29mA at +13dBm
      4. Working frequency: 433MHz
      5. Transmitting power: + 20dBm
      6. Receiving sensitivity:
      - 139dBm lies at LoRa & 62.5Khz & SF = 12 & 146bps
      - 136dBm lies at LoRa & 125Khz & SF = 12 & 293bps
      - 118dBm lies at LoRa & 125Khz & SF = 6 & 9380bps
      - 123dBm lies at FSK & 5Khz & 1.2Kbps
      7. Frequency error: +/- 15KHz
      8. FIFO space: 64Byte
      9. Data rate:
      -1.2K~1300Kbps at FSK
      -0.018K~37.5Kbps at LoRa
      10. Modulation mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
      11. Interface form: SPI
      12. Sleep current:
      - 0.2uA SLEEP
      - 1.5uA IDLE
      13. Working temperature: -40 degrees Celsius-+ 85 degrees Celsius
      14. Digital RSSI function
      15. Automatic frequency correction
      16. Automatic gain control
      17. RF wake-up function
      18. Low voltage detection and temperature sensor
      19. Fast wake-up and frequency hopping
      20. Highly configurable packet handler
      21. SMA antenna IP5306

      This product is based on LoRa radio frequency, 868MHz (common in North America), 915MHz (common in Europe) and 433MHz (common in Asia Pacific)


      Specification:
      Package Weight
      One Package Weight 0.08kgs / 0.17lb
      One Package Size 15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch
      Qty per Carton 100
      Carton Weight 7.00kgs / 15.43lb
      Carton Size 36cm * 26cm * 26cm / 14.17inch * 10.24inch * 10.24inch
      Loading Container 20GP: 1095 cartons * 100 pcs = 109500 pcs
      40HQ: 2543 cartons * 100 pcs = 254300 pcs
