Hardware specifications:
1. Chipset: Allwinner H618 Quad core ARM Cortex A53
2. GPU: Mali G31 MP2
3. RAM: 2GB/4GB
4. ROM: 16GB/32GB/64GB
5. WiFi: WLAN 802.11a/b/g/n/ax

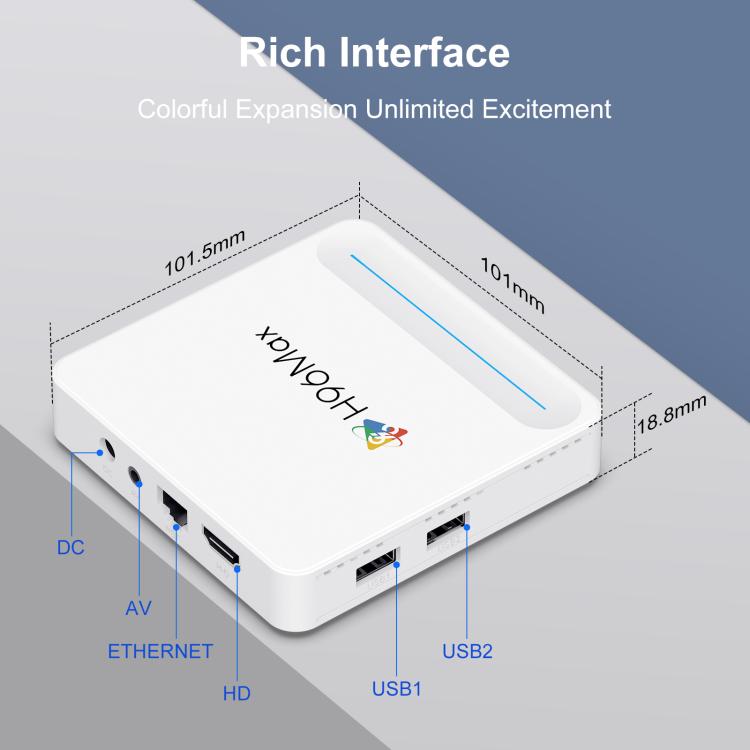

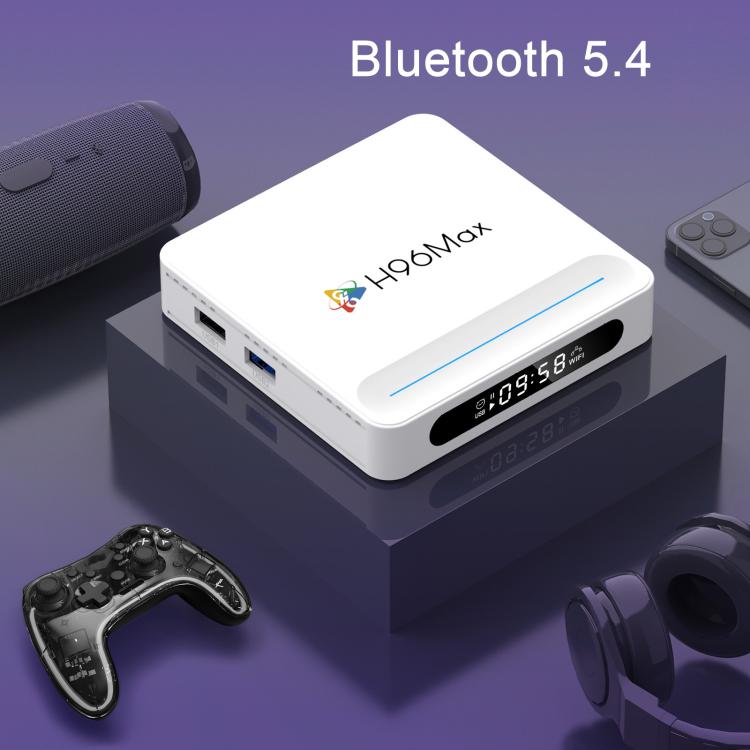

6. Interface: HD: 2.0a, 4Kx2K UHD output + USB: 2xUSB 2.0 + Bluetooth: BT5.4 + DC: 5V/2A + AV: 480i/576i CVBS + Ethernet: 1x100M
Main features:
1. Operating system: Android 14.0
2. Supports multi-formats video decoding: H.265 MP/L6.1 up to 7680x4320 22fps, vpg Profile 2 up to 4k 30fps, AVS2 Jizhun 10bit Profile up to 4k 60fps, H.264 BP/MP/HP L4.2 up to 4K 30fps, H.263 BP up to 1080p 60fps, MPEG-4 SP/ASP L5 up to 1080p 60fps, MPEG-2 MP/HL up to 1080p 60fps, MPEG-1 MP/HL up to 1080p 60fps, Xvid up to 1080p 60fps, Sorenson Spark up to 1080p 60fps, VP8 up to 1080p 60fps, AVS/AVS+ Jizhun Profile up to 1080p 60fps, WMV9/VC1SP/MP/AP up to 1080p 60fps, JPEG HFIF file format up to 45MPPS
3. Video Encoding: H.264 BP/MP/HP, H.264 supports l/P frame, and only supports single reference frame, WPEG/JPEG baseline, Maximum 16-megapixel (4096 x 4096) resolution for H.264 encoding, H.264 encoding capability: 4k 25fps, JPEG snapshot performance of 1080p 60fps independently, Supports the constant bit rate (CBR)/variable bit rate (VBR) bit rate control mode, ranging from 256 kbit/s to 100Mbit/s, Encoding of eight regions of interest (ROls)
4. Video support:
(1). 2D Video: 4K/1080P/10801/720P/576P/480P/5761/4801, up to 4K 60fps
(2). 3D Video: 4K/1080P/720P/576P/480P,up to 4K 3fps
(3). Supports RGB888/YUV444/YUV422 output
(4). Color depth: 8/10-bit
(5). HDR10: compliant with CTA-861.3 and SMPTE ST 2048
5. Audio format: MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE
6. Image format: HD JPEG/BMP/GIF/PNG/TIFF
7. Supported languages: Multi-language
Software specifications:
1. Online: Browse all video websites,support Netflix,Hulu,Youtube, etc.
2. Apps: Apps download freely form Google Play、Apkpure store etc.
3. Medium: Local Media playback,Support HDD, U Disck
4. Talk online: Support SKYPE, MSN, facebook, witter, QQ etc
5. Others: Support Email,office suit etc.
6. Support DLNA function
7. Support 2.4G wireless mouse/keyboard

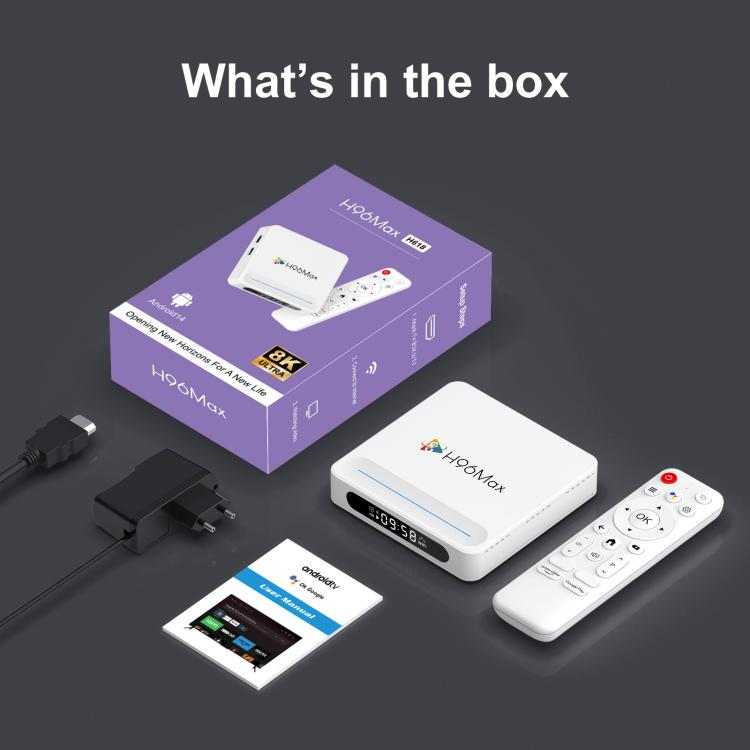

Packing list:

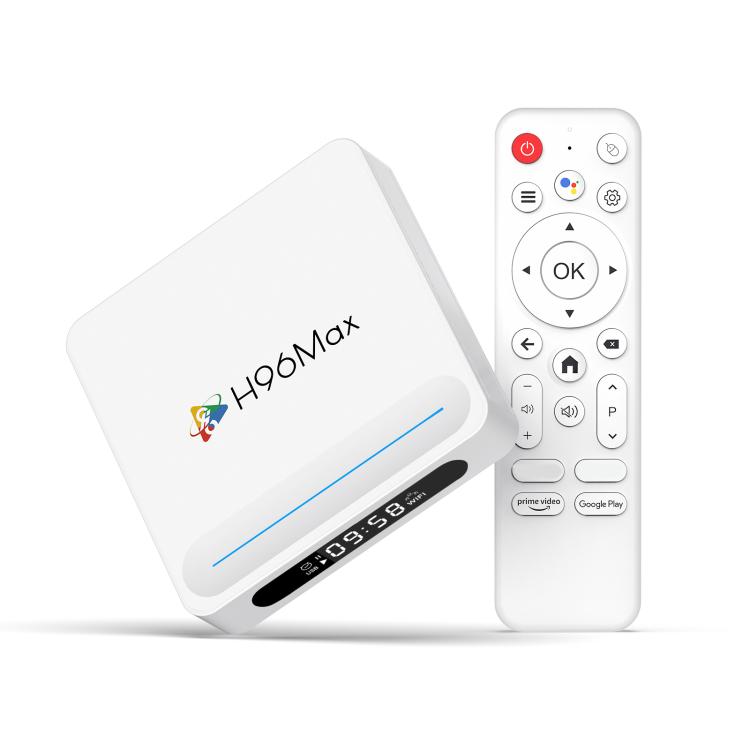

1. TV box x 1
2. HD cable x 1
3. User manual x 1
4. Packing box x 1
5. Power adapter x 1
6. Remote control x 1
Specification:
| Package Weight |
| One Package Weight |
0.36kgs / 0.80lb |
| One Package Size |
18cm * 11cm * 7cm / 7.09inch * 4.33inch * 2.76inch |
| Carton Weight |
7.80kgs / 17.20lb |
| Carton Size |
38cm * 34cm * 25cm / 14.96inch * 13.39inch * 9.84inch |
| Loading Container |
20GP: 825 cartons * 20 pcs = 16500 pcs
40HQ: 1916 cartons * 20 pcs = 38320 pcs
|
|
