Beschreibung
Features1. 10X optical zoom professional conferencing camera for business meetings, you will feel like you are face-to-face in the same room.
2. USB2.0 video out, plug and play, anyone can easily setup and control
3. Support 1080p@30fps, realize a life-like video experience
4. Auto focus, smart frame capture everyone
5. 70 degree wide viewing angle, ideal for various meetings
6. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
7. High speed and silent pan/tilt, capture all the actions
8. Support up to 255 presets (10 presets for IR remote control)
9. Multiple control protocol and interfaces
10. Low-power sleep function
11. Ideal for video conference, live streaming, medical seminar, online education, ect.
SpecificationsCamera Parameters
1. Model: USB10X
2. Sensor: 1/2.9 inch high quality CMOS sensor
3. Effective Pixels: 2.07 megapixel, 16:9
4. Video Format: 1920 x 1080P 30 fps/25fps,1280 x 720P 30fps/25fps, 1024 x 576P 30fps/25fps, 960 x 540P 30fps/25fps, 800 x 448P 30fps/25fps, 640 x 360P 30fps/25fps, 320 x 176P 30fps/25fps, etc.
5. View Angle: 8.8 degrees - 70 degrees
6. Focus Length: F=4.34mm - 41.66mm
7. AV: F1.85 - F2.43
8. Optical Zoom: 10X
9. Illumination: 0.5 lux F1.8, AGC ON
10. DNR: 2D & 3D
11. White Balance: Auto / Manual / One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
12. Focus: Auto / Manual/ One Push Focus
13. Exposure: Auto / Manual
14. BLC: On/Off
15. Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
16. SNR: Greater than 55dB
Input/output Interface
1. Video Output: USB2.0, A Type Interface
2. Video Compression Format: MJPG, H.264, H.265
3. Control Interface: RS232 (IN/OUT), RS485
4. Control Protocol: VISCA/Pelco-D/Pelco-P
5. Power Interface: HEC3800 outlet (DC12V)
USB Feature
1. Operation Systems: Windows 7, Windows8, Windows10, Mac osx, Linux, etc
2. Video Compression Format: MJPG, H.264, H.265
3. USB Communication Protocol: UVC
PTZ Parameters

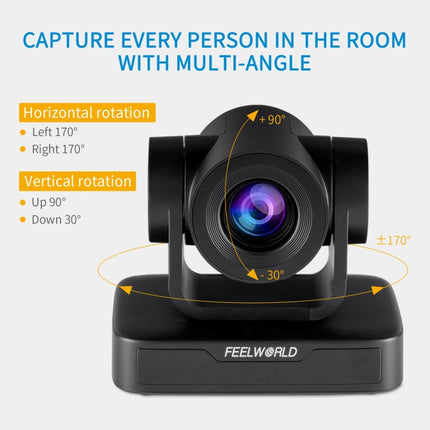

1. Pan Rotation: -170 degrees - +170 degrees
2. Tilt Rotation: -30 degrees - +90 degrees
3. Pan Control Speed: 0.1 - 60 degrees /sec
4. Tilt Control Speed: 0.1 - 30 degrees /sec
5. Preset Speed: Pan: 60 degrees/sec, Tilt: 30 degrees /sec
6. Preset Number: 255 presets (10 presets via remote control)
Other Parameters
1. Input Voltage: 12V/0.5A
2. Power Consumption: 2.5W
3. Stored Temperature: -40 degree C - +70 degree C
4. Storage Humidity: 20% - 90%
5. Working Temperature: -10 degree C - +50 degree C
6. Working Humidity: 20% - 80%
7. Dimension: 156.8mm x 112.6mm x 139.5mm
8. Unit Weight: 1kg

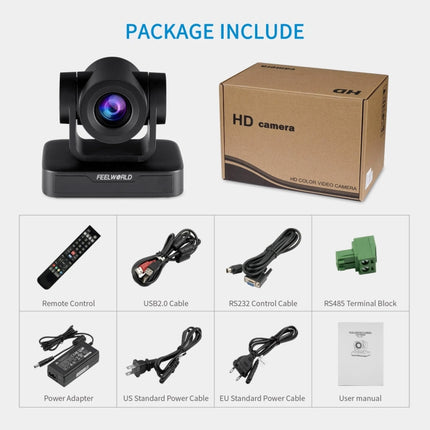

Package List1. Video Camera x 1
2. Remote Control x 1
3. USB 2.0 Cable x 1
4. RS232 Control Cable x 1
5. RS485 Terminal Block x 1
6. Power Adapter x 1
7. EU Standard Power Cable x 1
8. US Standard Power Cable x 1
9. Manual x 1
Specification:
| Package Weight |
| One Package Weight |
2.61kgs / 5.75lb |
| One Package Size |
38cm * 29cm * 22cm / 14.96inch * 11.42inch * 8.66inch |
| Carton Weight |
11.00kgs / 24.25lb |
| Carton Size |
59cm * 45cm * 39cm / 23.23inch * 17.72inch * 15.35inch |
| Loading Container |
20GP: 257 cartons * 4 pcs = 1028 pcs
40HQ: 597 cartons * 4 pcs = 2388 pcs
|
|
