Robotics Accessories

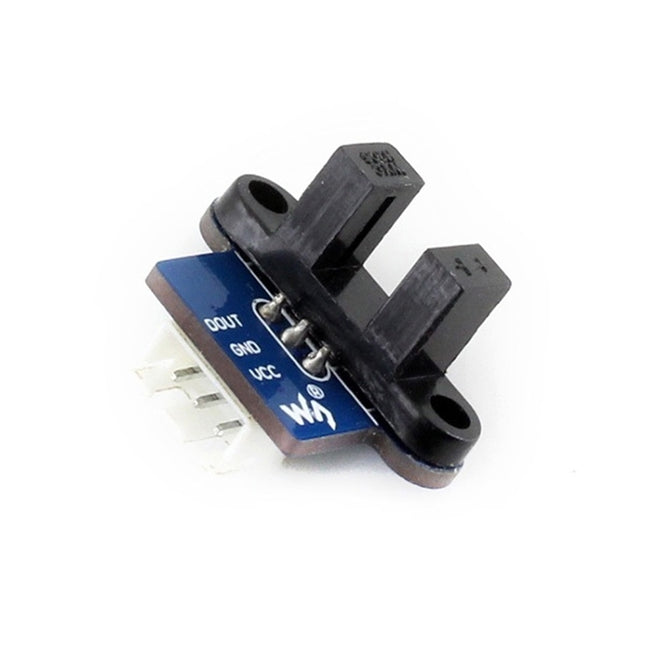

Overview1. Infrared detection, eliminating the interferences of external stray light2. Schmitt trigger, stable wave form and signals3. Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)Specifications1. Power: 3.3V ~ 5V2. Dimension: 26.8mm × 15mm × 18.7mm3. Mounting holes size: 3mm4. Gap width: 6mmApplications- Motor speed detection- Pulse counterHow to UseIn the case of working with a MCU:- VCC ? 3.3V ~ 5V- GND ? GND- DOUT ? MCU.IO (digital output)Specification: Package Weight One Package Weight 0.01kgs / 0.03lb One Package Size 6cm * 4cm * 4cm / 2.36inch * 1.57inch * 1.57inch Qty per Carton 1000 Carton Weight 10.00kgs / 22.05lb Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch Loading Container 20GP: 277 cartons * 1000 pcs = 277000 pcs40HQ: 644 cartons * 1000 pcs = 644000 pcs

Lis Plus Moins

1. Stall torque: 30kg.cm @ 12V2. Rotation angle: 360 degrees (0 ~ 4095)3. Position sensor resolution: 360 degrees / 40964. Mechanical limit angle: unlimited5. Operating voltage: 6V ~ 12.6V6. Gear type: high-precision metal gears7. No-load speed: 0.222 sec / 60 degrees (45 RPM) @ 12V 0.192 sec /8. Encoder type: 360-degree magnetic encoder9. ID range: 0 ~ 25310. Baud rate: 38400bps ~ 1Mbps (default 1Mbps)11. Feedback: position, Load, Speed, and12. Input voltage13. No-load current: 180mA14. Stall current: 2.7A15. Kt constant: 11kg.cm/A16. The servo can provide various feedback information: position, speed, torque lock, operating mode (servo mode, servo motor mode, etc.), suitable for advanced projects requiring closed-loop automatic control.17. Can be used to build quadruped, hexapod, robotic arm, and other robot projects requiring multiple servos (this product provides the open-source structural model of the robot dog shown in the figure below).18. Controlled via serial bus, allowing up to 253 servos to be connected in series simultaneously.19. Uses a 12-bit high-precision magnetic encoder angle sensor. Compared to potentiometers, the angle is increased to 360 degrees, and the resolution is increased by 4 times. Due to the gap between the magnetic encoder element and the radial magnet, there is no friction, effectively extending the servo's lifespan.20. Acceleration start/stop function: speed and acceleration values ??can be set for smoother motion.21. The shell uses a higher-strength engineering plastic shell and a dual-axis low-profile shell structure design, optimizing the distance between the planes where the dual-axis servo discs are located, making the overall structure more compact and the product appearance more aesthetically pleasing.22. The servo motor can provide real-time feedback on position, load, speed, and input voltage, allowing for constant monitoring.23. We have open-sourced the web-based control example for the servo motor driver board and provided a secondary development tutorial, which can be directly used for remote setting and control of the servo motor. We also provide 3D models for quick project development.Specification: Package Weight One Package Weight 0.12kgs / 0.27lb One Package Size 8cm * 8cm * 5cm / 3.15inch * 3.15inch * 1.97inch Qty per Carton 144 Carton Weight 18.40kgs / 40.56lb Carton Size 50cm * 34cm * 32cm / 19.69inch * 13.39inch * 12.6inch Loading Container 20GP: 490 cartons * 144 pcs = 70560 pcs40HQ: 1137 cartons * 144 pcs = 163728 pcs

Lis Plus Moins

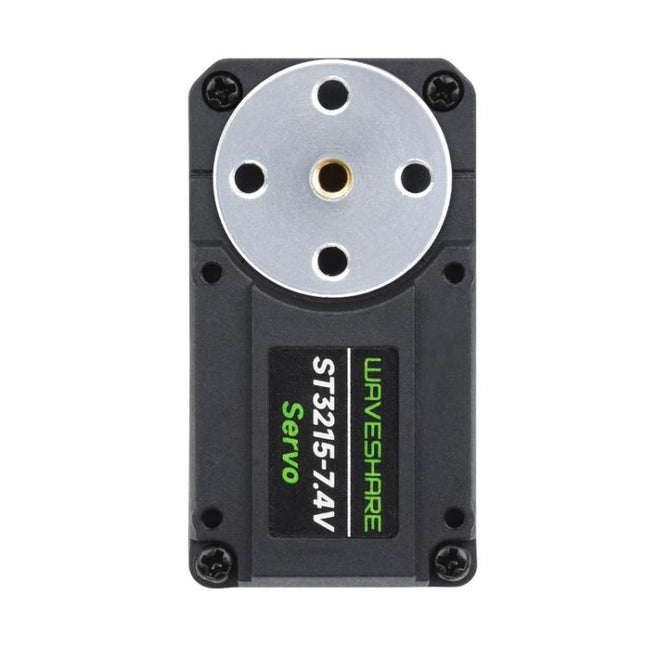

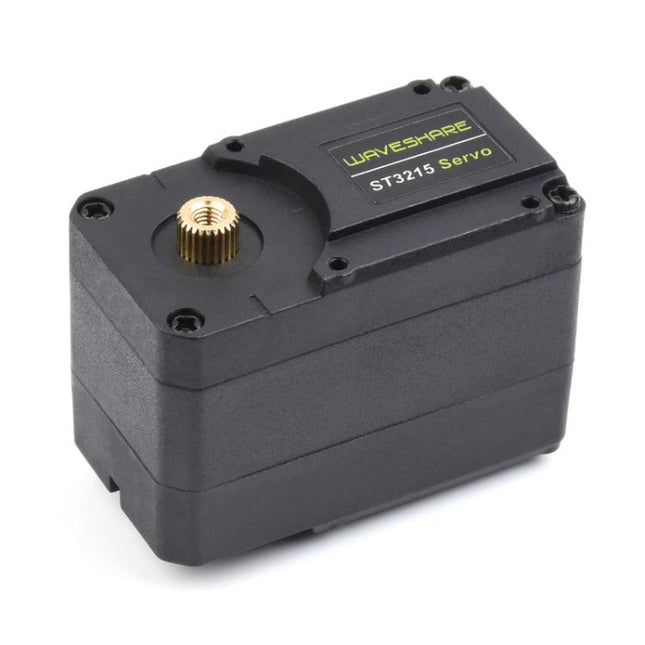

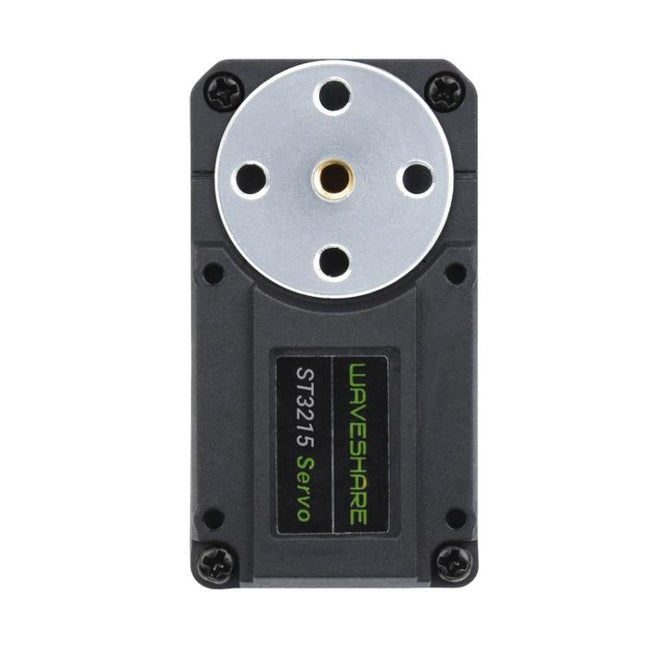

1. Stall torque: 19.5 kg.cm @ 7.4V2. Rotation angle: 360 degrees (0 ~ 4095)3. Position sensor resolution: 360 degrees / 40964. Mechanical limit angle: unlimited5. Operating voltage: 4V ~ 7.4V6. Gear type: high-precision metal gears7. No-load speed: 0.192 sec / 60 degrees (52 RPM) @ 7.4V8. Encoder type: 360-degree magnetic encoder9. ID range: 0 ~ 25310. Baud rate: 38400bps ~ 1Mbps (default 1Mbps)11. Feedback: position, load, speed, and12. Input voltage13. No-load current: 150mA14. Stall current: 2.5A15. Kt constant: 7.8 kg.cm/A16. The servo can provide various feedback information: position, speed, torque lock, operating mode (servo mode, motor mode, etc.), suitable for advanced projects requiring closed-loop automatic control.17. Can be used to build robotic projects requiring multiple servos, such as quadruped robots, hexapod robots, and robotic arms (this product provides the open-source structural model of the robot dog shown in the image below).18. Controlled via serial bus, allowing up to 253 servos to be connected in series simultaneously.19. Uses a 12-bit high-precision magnetic encoding angle sensor. Compared to potentiometers, the angle range is extended to 360 degrees, and the resolution is increased by 4 times. Due to the gap between the magnetic encoder element and the radial magnet, there is no friction, effectively extending the servos lifespan.20. Acceleration start/stop function: allows setting speed and acceleration values ??for smoother motion.21. The casing uses a higher-strength engineering plastic shell and a dual-axis low-profile structure design, optimizing the spacing between the planes where the dual-axis servo horns are located, resulting in a more compact overall structure and a more aesthetically pleasing appearance.22. The servo motor can provide real-time feedback on position, load, speed, and input voltage, allowing for constant monitoring.23. We have open-sourced the web-based control example for the servo motor driver board and provided a secondary development tutorial, which can be directly used for remote setting and control of the servo motor. We also provide 3D models for quick project development.Specification: Package Weight One Package Weight 0.12kgs / 0.27lb One Package Size 8cm * 8cm * 5cm / 3.15inch * 3.15inch * 1.97inch Qty per Carton 144 Carton Weight 18.40kgs / 40.56lb Carton Size 50cm * 34cm * 32cm / 19.69inch * 13.39inch * 12.6inch Loading Container 20GP: 490 cartons * 144 pcs = 70560 pcs40HQ: 1137 cartons * 144 pcs = 163728 pcs

Lis Plus Moins

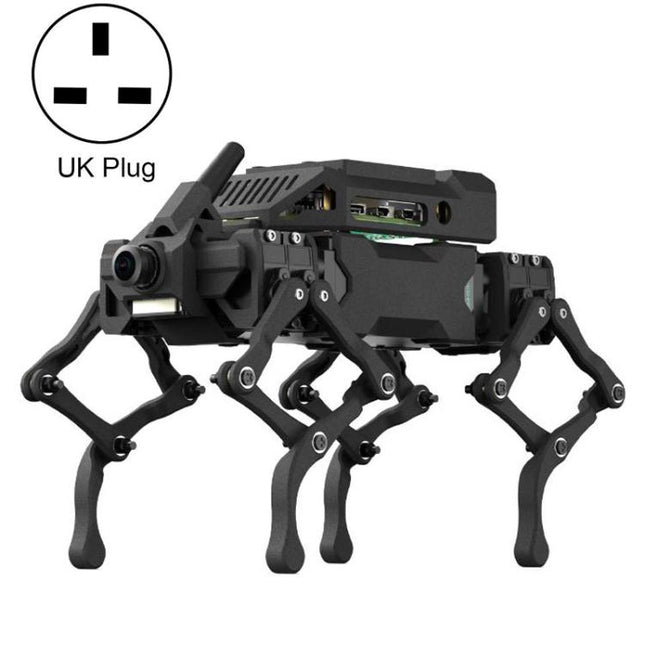

1. The entire machine has 12 degrees of freedom, with a multi-link structure design for the legs, which increases the effective torque of the servo motors2. It uses 2.3kg.cm serial bus servos, which can provide real-time feedback on position, speed, and input voltage, etc3. A real-time operating system serves as the lower-level machine for gait generation and link inverse solution, relieving the computing burden of the upper-level machine and improving the efficiency of gait calculation4. The ultra-compact structure design can be used on a desktop, with the structure made of aluminum alloy and HP nylon materials, reducing weight while maintaining structural strength5. The Raspberry Pi can be expanded as the upper-level machine, using OpenCV-related advanced functions. The routine includes face detection, motion detection, and color tracking functions. It reserves expansion interfaces and comes with rich user manuals and secondary development documents6. It has attitude self-balancing, with a high-precision 9-axis motion tracker ICM20948 that can adapt to various terrain environments and control its own balance7. Login to the Web to remotely control, without the need for manual configuration of the compilation environment. The machine starts up and automatically establishes a Wi-Fi hotspot. It can be connected and logged into the control page using a mobile phone or computer browser, without the need to download an app8. It can record actions and perform one-click playback. The robot dog can save the control robots JSON instructions as a task file, which is saved in the Flash of the ESP32 and will not be lost after power loss. The robot dog can execute complex repetitive operations by calling these task filesParameters1. Standing: length 218mm, width 116mm, height 152mm2. Lying down: length 228mm, width 116mm, height 127mm3. Total weight:- Basic: 465g (including battery)- EX / PI5 kit: 554g (including battery)4. Degrees of freedom: total 12, per leg 3Operating system1. Provided routines: FreeRTOS + Raspberry Pi OSMotion performance1. Supported actions: handshake, stand, slow squat, diagonal gait, jump, self-balancing2. Motion extensions: action programming routines provided, including flexible velocity functions (Bezier curves)3. Maximum load capacity- Basic: 300g- EX / PI5 kit: 200gServo information1. Servo dimensions: 23.2 x 12.0 x 25.5 mm2. Servo weight: 13g ± 1g3. Working voltage: 6V4. No-load speed: 0.1sec/60° (100RPM)5. Stall torque: 2.3kg.cm (31.99oz.in)6. Rated load: 0.7kg.cm7. Rated current: 400mA8. Control mode: digital signal9. Control protocol type: half-duplex asynchronous serial communication Visual function1. FreeRT OS Routine: web-based real-time video transmission2. Raspberry Pi OS routine: real-time video transmission, face detection, color tracking, motion object detection3. Note: all the codes are open source. The routines in Raspberry Pi OS are developed based on the open-source projects flask-streaming and OpenCVProcessor and storage1. Lower-level device (ESP32):- Processor: Xtensa LX6 dual-core 240 MHz- SRAM: 520KB + 8MB- Flash memory: 448KB + 4MBOthers1. Wi-Fi standard: 802.11b/g/n2. Bluetooth standard: Bluetooth 4.2, including traditional Bluetooth (BR/EDR) and low-power Bluetooth (BLE)3. External interfaces:- 2 x 5P multi-functional expansion interfaces (for upper computer communication and power supply)- DC charging port- Type-C (for downloading, serial communication, and peripheral expansion)4. Power supply parameters- Battery type: 18650 lithium-ion battery- Power supply voltage: 7V - 8.4V- Charging voltage: 8.4V- Capacity of a single battery: 2000mAh- Number of batteries: 2- Battery protection: anti-overcharge, anti-overdischarge, anti-overcurrent, anti-short circuit, anti-reverse connection, balanced charging, stable operation and safer- Output voltage: can output 5V power supply, convenient for powering other main control boardsBasic package contents:- WAVEGO Pro (Pre-assembled before shipping) x 1- Accessory kit x 1- Power supply x 1- Packaging box x 1EX package contents:- WAVEGO Pro EX (Pre-assembled before shipping) x 1- Raspberry Pi expansion pack x 1- Accessory kit x 1- Power supply x 1- Packaging box x 1Pi 5 kit package contents:- PI5 WAVEGO Pro kit (Built-in 4GB Pi5, pre-assembled before shipping) x 1- Accessory kit x 1- Power supply x 1- Packaging box x 1Specification: Package Weight One Package Weight 0.75kgs / 1.66lb One Package Size 28cm * 24cm * 16cm / 11.02inch * 9.45inch * 6.3inch Qty per Carton 4 Carton Weight 5.00kgs / 11.02lb Carton Size 50cm * 34cm * 30cm / 19.69inch * 13.39inch * 11.81inch Loading Container 20GP: 522 cartons * 4 pcs = 2088 pcs40HQ: 1213 cartons * 4 pcs = 4852 pcs

Lis Plus Moins

Specification: Package Weight One Package Weight 2.20kgs / 4.86lb One Package Size 37cm * 45cm * 15cm / 14.57inch * 17.72inch * 5.91inch Qty per Carton 1 Carton Weight 3.30kgs / 7.28lb Carton Size 39cm * 47cm * 17cm / 15.35inch * 18.5inch * 6.69inch Loading Container 20GP: 855 cartons * 1 pcs = 855 pcs40HQ: 1986 cartons * 1 pcs = 1986 pcs

Lis Plus Moins

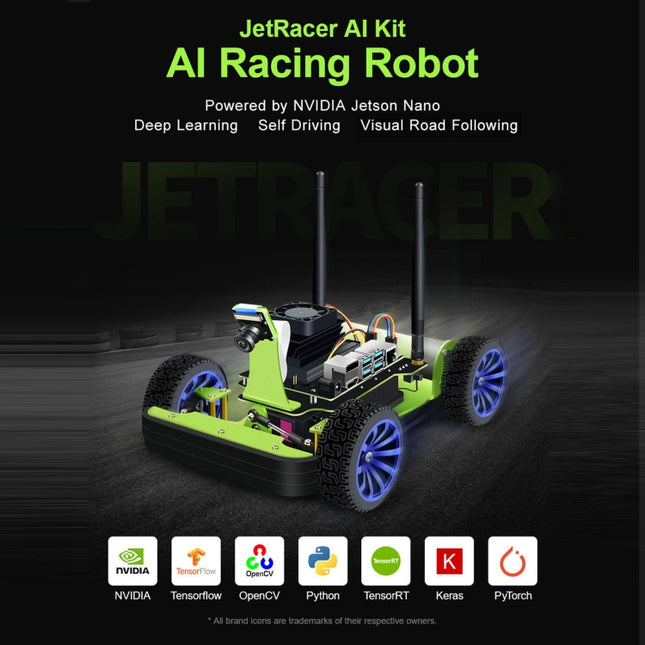

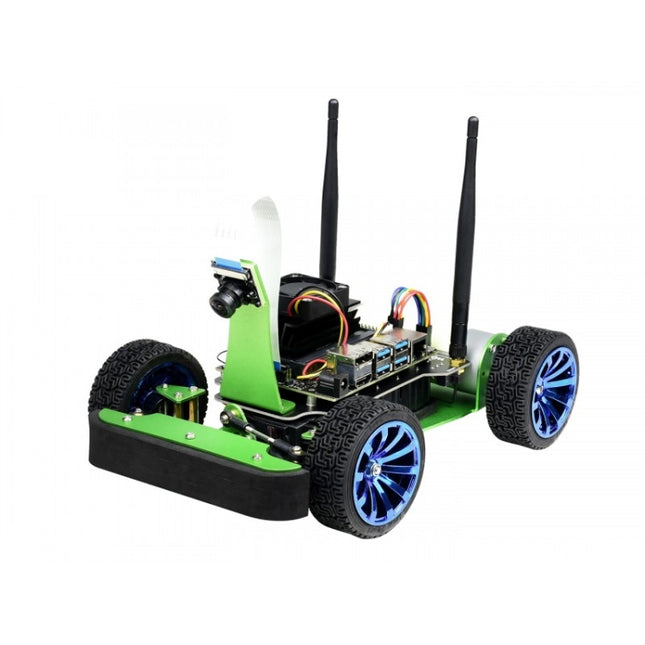

About The ProductThis is an AI Racing Robot kit based on Jetson Nano Developer Kit. Supports deep learning, auto line following, autonomous driving and so on.Specifications1. Camera: 8MP HD resolution, 160 degree FOV wide angle camera 2. OLED: 0.91 inch 128 x 32 pixels 3. Wireless: AC8265 4. Driving Type: Ackerman steering / Dual gearmotor rear wheel drive 5. Power supply: 12.6V, 18650 battery x 3 (connected in series). Note: the 18650 batteries are NOT included. 6. Motor: - 37-520 DC gearmotor - Reduction rate 1:10 - Idle speed 740RPM 7. Chassis: Aluminum alloy chassis 8. Program library: JetRacer, DonkeyCar 9. Suggestion: Competition level; Experienced programming skill requiredPackage List2. EVA felt pad 2PCS 3. 3D-printed motor lid 4. JetRacer expansion board 5. IMX219-160 Camera 6. Wireless-AC8265 7. Acrylic piece 8. Servo mount 9. Metal Gearmotor 2PCS 10. Tire 4PCS 11. Coupler 2PCS 12. MG996R servo 13. MG996R servo wheel 14. Steering knuckle 2PCS 15. Ball bearing 4PCS 16. M3 plastic ball joint 4PCS 17. M3 pull bar 2PCS 18. 12.6V battery charger + EU head 19. Wireless gamepad 20. 6Pin cable 21. Spanner 2PCS 22. Screwdriver 2PCS 23. Mini cross wrench sleeve 24. 4010 cooling fan 25. Micro SD card reader 26. Screws pack 27. Track mapSpecification: Package Weight One Package Weight 3.07kgs / 6.77lb One Package Size 32cm * 22cm * 16cm / 12.6inch * 8.66inch * 6.3inch Qty per Carton 4 Carton Weight 13.20kgs / 29.10lb Carton Size 42cm * 32cm * 32cm / 16.54inch * 12.6inch * 12.6inch Loading Container 20GP: 620 cartons * 4 pcs = 2480 pcs40HQ: 1439 cartons * 4 pcs = 5756 pcs

Lis Plus Moins

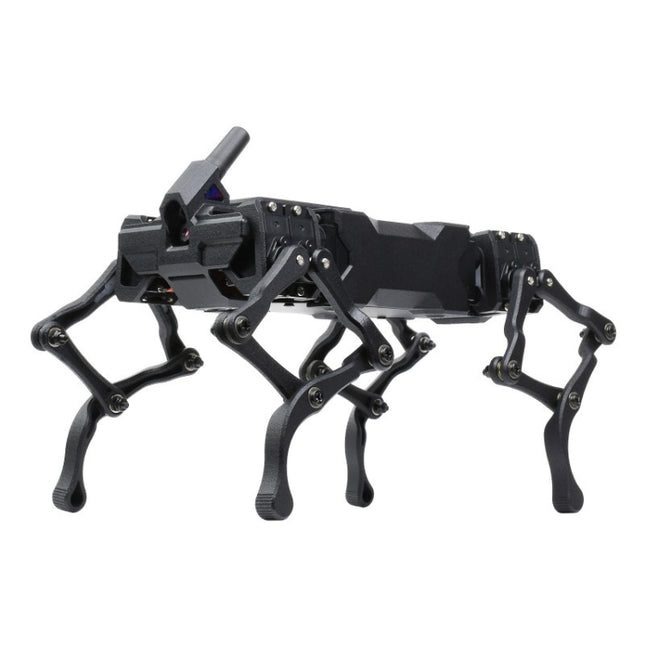

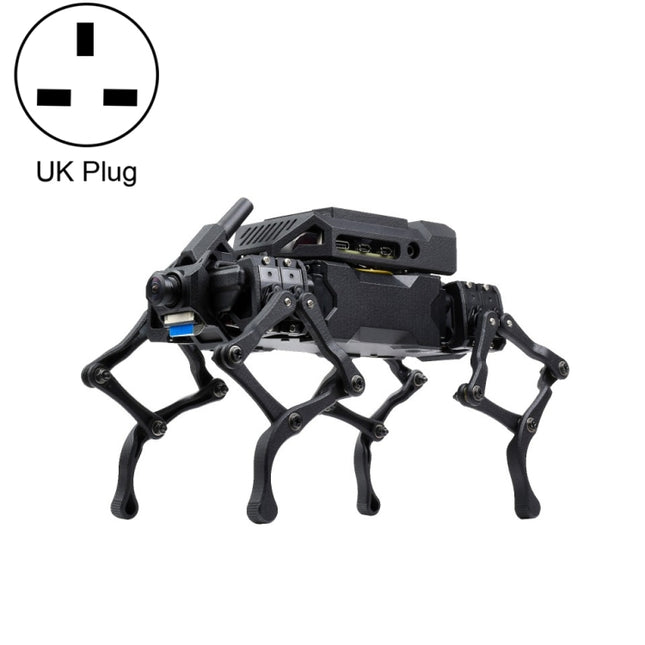

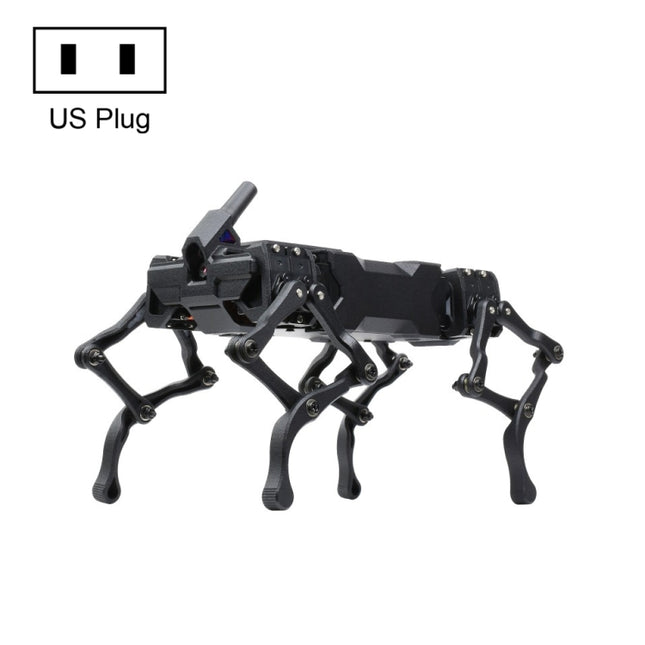

FeaturesThe WAVEGO is a high-DOF bionic dog-like robot which features 2.3kg.cm large torque servos, reliable structure, and flexible motion, incorporating devices like front camera, 9-axes motion tracker, RGB indicator, etc., together with open source multi-platform Web application. It uses the ESP32 as sub controller for connecting rod inverse solving and gait generation, sharing calculating task for the host controller, an additional Raspberry Pi can be attached as the host controller for high-level decision operating. 1. Overall 12-DOF, multi connecting rods leg design, increasing the servo effective torque 2. A real time operating system is used as sub controller for connecting rod inverse solving and gait generation, sharing calculating task for the host controller and improving the gait solving efficiency 3. Ultra compact structure design, allows using on the table, aluminum alloy + nylon structure materials, ensuring strength while keeping it light weight 4. Additional Raspberry Pi can beattached as the host controller to enable OpenCV high-level functions, demo codes including facial recognition, motion detection, color tracking, and more. Reserved extension interface for secondary development, along with user manual and secondary development documents.SpecificationsGeneral: 1. Product name: WAVEGO high-DOF bionic quadruped robot 2. Stand up: length 218mm, width 116mm, height 152mm 3. Lie down: length 228mm, width 116mm, height 127mm 4. Overall weight: 554g (with batteries) 5. DOF: 12 overall, 3 per single leg Operating system: Demo code: FreeRTOS + Raspberry Pi OS Motion performance: 1. Available gait: Shake hands, stand up, crouch slowly, diagonal gait , jump, self-balancing 2. Motion extension: Providing motion programming example, including flexible Bezier curve speed motion function 3. Load: 200g Servo info.: 1. Dimensions: 23.2 x12.1 x25.25 mm 2. Weight: 13.0 +/- 1g 3. Operating voltage: 6V 4. Idle speed: 0.1sec/60 degree (100RPM) 5. Stalling torque: 2.3kg.cm (31.99oz.in) 6. Rated load: 0.7kg.cm 7. Rated current: 350mA 8. Control method: Pulse width modification 9. Control system type: Digital comparator Visual function: 1. FreeRTOS demo: Web-based real time video streaming 2. Raspberry Pi OS demo: Real time video streaming, facial recognition, color tracking, moving object detection Note: All the demo codes are open sourced, the Raspberry Pi OS demo is based on open source projects flask-streaming and OpenCV Processor and memory: 1. ESP32 sub controller: Processor: Xtensa LX6 dual-core processor 240MHz 2. SRAM: 520KB+8MB 3. Flash: 448KB+4MB Others: 1. WiFi standard: 802.11b/g/n 2. Bluetooth standard: Bluetooth 4.2, including traditional Bluetooth (BR/EDR) and Bluetooth low energy (BLE) 3. External port: 2 x 5P multi-function extension port (host controller communication, power supply selection, assembly mode selection, etc.) 4. DC battery charger jack: Type-C (download, UART communication, peripheral expansion) Power supply: 1. Battery type: 18650 Li-ion batteries (NOT included) 2. Supply voltage: 7-8.4V 3. Recharge voltage: 8.4V 4. Protection: Over charge, discharge protection, over current protection, short circuit protection, reverse proof, equalizing charge, stable and safe operating 5. Output voltage: provides 5V output for other host controllerPackage List1. WAVEGO body case x 1 2. WAVEGO basic parts x 1 3. Semi-transparent acrylic panel x 1 4. Double-sided sticker x 1 5. WAVEGO base board x 1 6. 2MP camera x 1 7. 2.4G antenna x 1 8. 0.91inch OLED display x 1 9. Micro thrust bearing x 14 10. Micro ball flange bearing x 30 11. USB cable (~1m) x 1 12. Plus screwdriver x 1 13. Cross wrench sleeve x 1 14. IPEX 1 to SMA cable (~17cm) x 1 15. Jumper wire (~20cm) x 4 16. 4 PIN PH2.0 cable x 1 17. Servo pack x 1 18. 8.4V 2A battery charger x 1 19. Screws and standoffs x 1Specification: Package Weight One Package Weight 1.08kgs / 2.37lb One Package Size 26cm * 22cm * 10cm / 10.24inch * 8.66inch * 3.94inch Qty per Carton 20 Carton Weight 17.00kgs / 37.48lb Carton Size 52cm * 53cm * 45cm / 20.47inch * 20.87inch * 17.72inch Loading Container 20GP: 215 cartons * 20 pcs = 4300 pcs40HQ: 499 cartons * 20 pcs = 9980 pcs

Lis Plus Moins

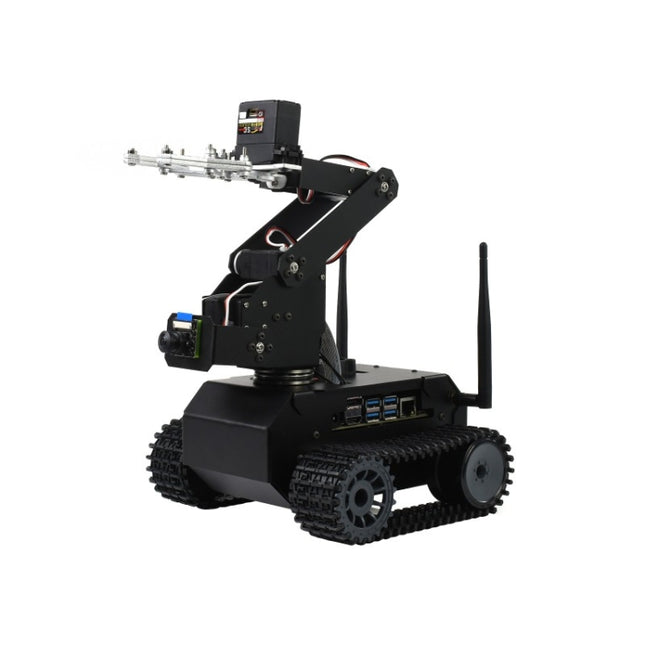

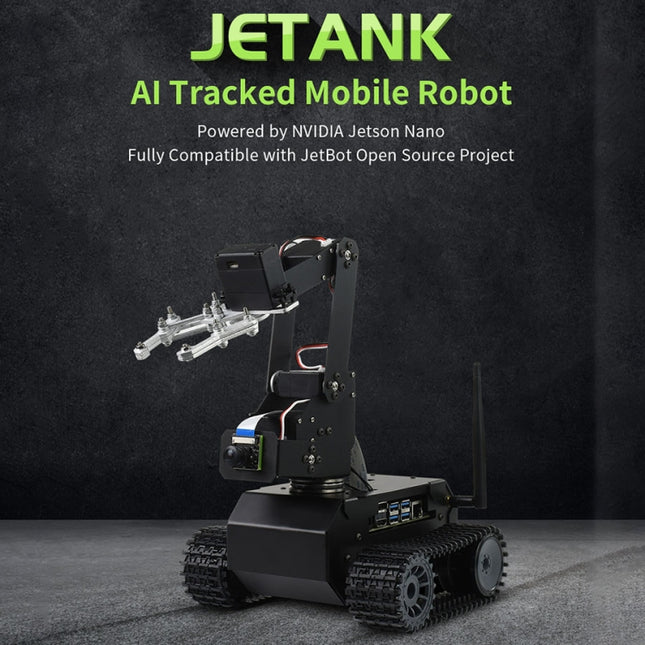

Features1. Quality chassis with track: Adopting 37-520 full-metal DC geared motor, High torque, low noise 2. 180 degree wide angle rotation, flexible controlling robotic arm 3. Quality serial bus full-metal digital servo: High torque, high precision, preventing, it from being stuck and pamaged 4. Auto collision avoidance: Collecting data via camera by taking enough images of different conditions, using the data to train the neutral network, combined With AI algorithm, achieving auto collision avoidance on sorts of environments. 5. Motion detection: Capturing moving objects on the video by motion detection 6. Color recognition and tracking: Recognizing and locking specified color by camera, and then using pan & tilt to track the specified color automatically 7. 3D coordinate system controlled robotic arm, calculated via Inverse Kinematics algorithm: Input coordinate of the target, calculating the moving angles of the 4-DOF servos by inverse kinematics algorithm, and then controlling the servos via serial bus, moving the robotic arm to reach target position 8. JupyterLab programming: JupyterLab is a web-based interactive development environment, supports multi data formats including code, document, image/video, UI control interface, etc., provides rich visualized output, allows easily creating dashboard and UI, supports flexible configuration and arrangement for modular interface. 9. 8MP 160 degree FOV camera: IMX219 sensor, 3280 x2464 resolutionPackage List1. Aluminum alloy kit x1 2. JETANK expansion board x1 3. Wireless-AC8265 with antenna x1 4. IMX219-160 Camera x1 5. Acrylic camera spacer x1 6. Camera FFC x1 7. 0.91inch OLED x1 8. 12.6V 2A power supply + additional EU head x1 9. Robotic arm gripper x1 10. Thrust bearing x1 11. Flange bearing x2 12. Coupler x2 13. Gearmotor x2 14. 5264 servo wire x1 15. Track kit (including bolt, nut, and screwdriver) x2 16. 2 x 5 Pin wire x1 17. Spanner x1 18. L-form hex socket spanner 2PCS x1 19. SCS15-AP servo x4 20. Screwdriver 2PCS x1 21. SCS15-S servo x1 22. Card reader x1 23. Mini cross wrench sleeve x2 24. Cooling fan x1 25. PH2.0 4PIN dual connector cable x1 26. Screws pack x1Specification: Package Weight One Package Weight 2.00kgs / 4.42lb One Package Size 32cm * 22cm * 16cm / 12.6inch * 8.66inch * 6.3inch Qty per Carton 8 Carton Weight 17.00kgs / 37.48lb Carton Size 65cm * 45cm * 33cm / 25.59inch * 17.72inch * 12.99inch Loading Container 20GP: 276 cartons * 8 pcs = 2208 pcs40HQ: 641 cartons * 8 pcs = 5128 pcs

Lis Plus Moins

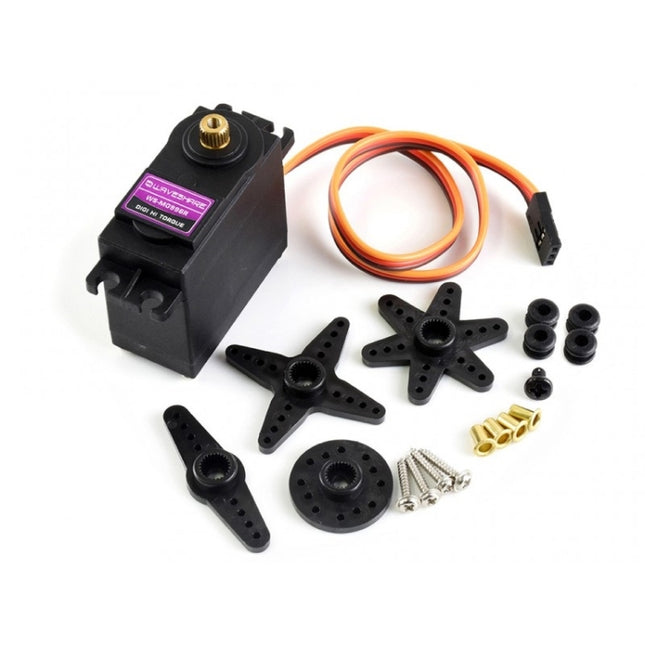

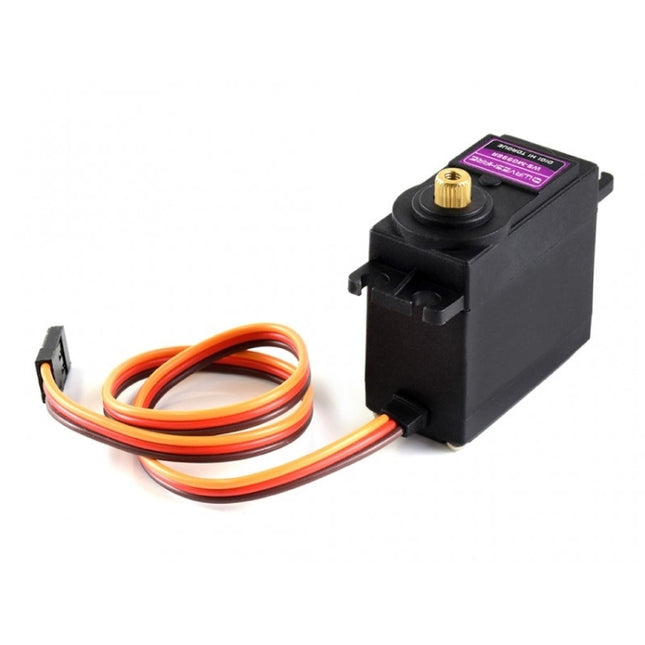

1. Product: MG996R Servo2. Torque: 9kg/cm(4.8V), 11kg/cm(6V)3. Speed: 0.19s/60°(4.8V), 0.18s/60°(6V)4. Rotate angle: 180°5. Operating voltage: 4.8 ~ 6V6. Gear: metal7. Dead band: 5us8. Weight: 55g9. Dimension: 40.7mm × 19.7mm × 42.9mmSpecification: Package Weight One Package Weight 0.08kgs / 0.18lb One Package Size 10cm * 7cm * 4cm / 3.94inch * 2.76inch * 1.57inch Qty per Carton 300 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 35cm * 40cm / 23.62inch * 13.78inch * 15.75inch Loading Container 20GP: 317 cartons * 300 pcs = 95100 pcs40HQ: 736 cartons * 300 pcs = 220800 pcs

Lis Plus Moins

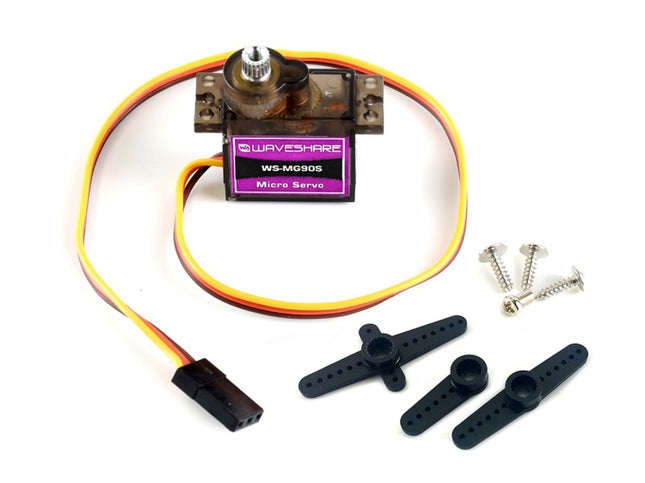

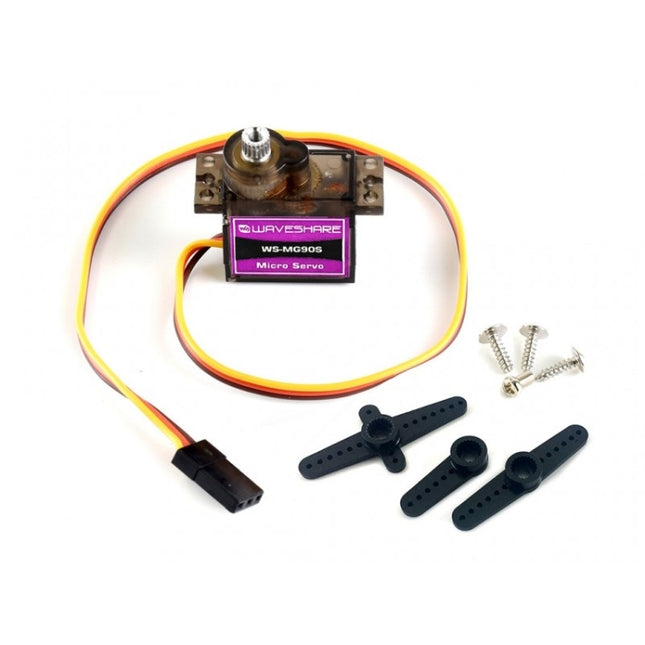

Specifications1. Product: MG90S Servo2. Torque: 2.0kg/cm(4.8V), 2.8kg/cm(6V)3. Speed: 0.11s/60°(4.8V), 0.09s/60°(6V)4. Rotate angle: 180°5. Operating voltage: 4.8 ~ 6V6. Gear: metal7. Dead band: 5us8. Weight: 12.2g9. Dimension: 22.8mm × 12.2mm × 28.5mmSpecification: Package Weight One Package Weight 0.04kgs / 0.09lb One Package Size 7cm * 4cm * 6cm / 2.76inch * 1.57inch * 2.36inch Qty per Carton 480 Carton Weight 15.00kgs / 33.07lb Carton Size 56cm * 40cm * 36cm / 22.05inch * 15.75inch * 14.17inch Loading Container 20GP: 330 cartons * 480 pcs = 158400 pcs40HQ: 767 cartons * 480 pcs = 368160 pcs

Lis Plus Moins

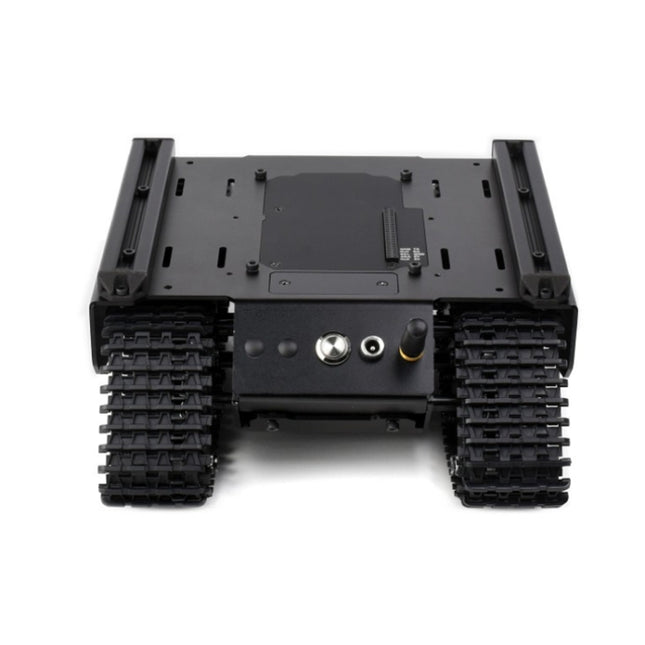

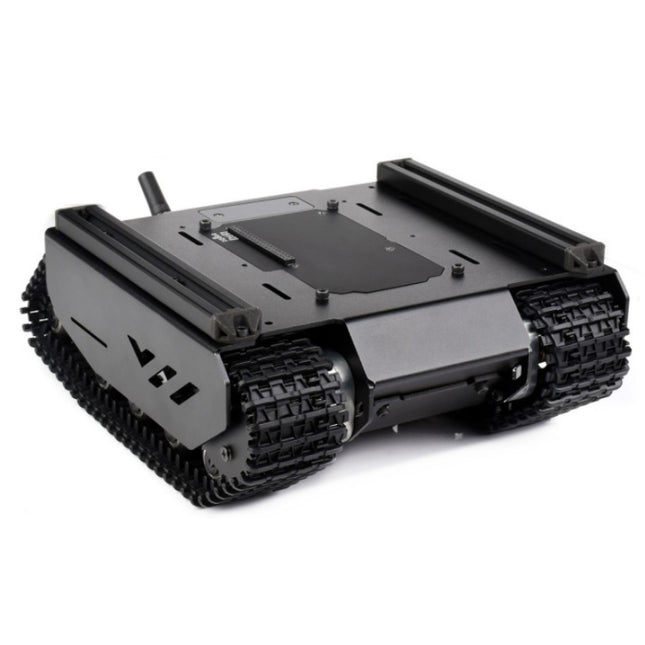

1. Dimensions: 231x197x151mm2. Suspension system: 4×2 (independent)3. Chassis height: 26mm4. Guide rail center distance: 170mm5. Track width: 44mm6. Running speed: 0.25~1m/s7. Track horizontal ground length (no load): 115mm8. Suspension material: 1.5mm (thickness) stainless steel9. Track climbing ground length (with large load): 170 mm10. Body material: 2 mm (thickness) 5052 aluminum alloy11. Weight: 1.9 kg12. Vertical obstacle clearance capability: 40mm13. Driving Payload: 6.2kg14. Climbing ability: 36 degrees15. Battery holder: 18650 lithium battery x 3 (not included)16. Turning radius (min): 0 meters (rotating in place)17. Charging time: 1.5 hours18. Battery life: 1 hour (full power continuous output)19. Motor power: 5.2W×220. Remote control function: WIFI, AP/STA21. Motor encoder: basic pulse 11PPR22. Communication interface: UART/serial bus servo interface/IIC23. The crawler-type mobile robot chassis has super off-road crossing ability and anti-seismic performance, and all codes are open source for secondary development24. Support multiple host computers, can communicate with ESP32 slaves through the serial port25. Motors with encoders can get speed feedback for closed-loop speed control26. Built-in 3S UPS power supply module, supports 3 18650 lithium batteries (serial connection, not included), provides uninterrupted power supply for the robot, and supports charging and power output at the same time27. Built-in multifunctional robot driver board, based on ESP32, onboard WIFI and Bluetooth, used to drive serial bus servos, output PWM signals, expand TF card slots, etc.28. Multiple independent suspension systems are used to greatly reduce the impact of complex terrain and easily meet the needs of heavy loads, shock absorption, and off-road29. And it comes with 2x 1020 European standard profile guide rails, providing more possibilities for secondary developmentSpecification: Package Weight One Package Weight 2.00kgs / 4.42lb One Package Size 23cm * 23cm * 14cm / 9.06inch * 9.06inch * 5.51inch Qty per Carton 14 Carton Weight 30.00kgs / 66.14lb Carton Size 56cm * 56cm * 34cm / 22.05inch * 22.05inch * 13.39inch Loading Container 20GP: 250 cartons * 14 pcs = 3500 pcs40HQ: 580 cartons * 14 pcs = 8120 pcs

Lis Plus Moins

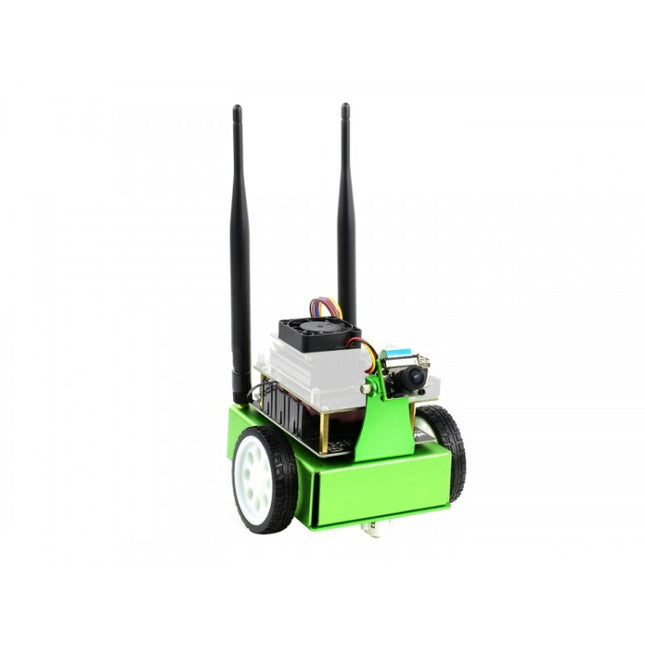

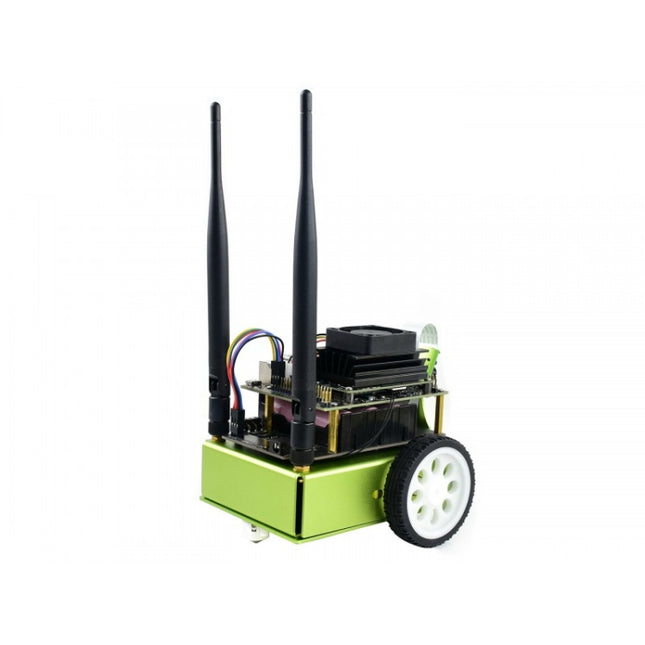

Overview1. Smart robot is always the favorite project of electronic enthusiasts, however, a robot will be "not that smart" if it is not AI-based.2. Welcome the JetBot, an actual smart robot powered by Jetson Nano. With the intelligent eye (front camera), facial recognition, object tracking, auto line following, and collision avoidance can be easily achieved. It also comes with ROS nodes code, which makes it easy to get started with the open source ROS (Robot Operating System), and to learn the system framework and concepts of ROS.3. If you have got a Jetson Nano on your desk right now, combined with our open source codes and tutorials, these add-ons would be the ideal choice for you to learn AI robot designing and development.Features1. Adopts 3x 18650 batteries (NOT included), high battery capacity, up to 12.6V voltage output, more powerful driving force.2. Integrates S-8254AA + AO4407A lithium battery protection circuit, provides protections for over-charge, over-discharge, over-current, and short circuit.3. Onboard APW7313 voltage regulator, provides stable 5V voltage for the Jetson Nano.4. Onboard TB6612FNG dual H-bridge motor driver.5. Onboard 0.91inch 128×32 pixels OLED, allows to display robot IP address, RAM, battery life, etc.6. Onboard ADS1115 AD acquisition chip for monitoring the battery in real time.7. Weight: 773gWhat is on the JetBot Expansion Board1. S-8254AA: Lithium battery protector, provides protections for over-charge, over-discharge, over-current, and short circuit2. ADS1115: 16-bit AD acquisition chip, monitoring the battery in real time3. AO4407A:: P-Channel MOSFET for protection circuit4. APW7313:: 5V power regulator for powering the Jetson Nano5. PCA9685: PWM controller, I2C interface, for IO expansion6. TB6612FNG: dual H-bridge motor driver7. 0.91inch OLED: SSD1306 driver chip, 128×32 pixels8. Battery charger input: charging the 3x 18650 batteries9. Power switch10. 18650 battery holder11. Motor connector (bottom side)12. Jetson Nano communication header: I2C interface and power supplyPacking List1. Metal box x12. Camera holder x13. Acrylic piece x14. Jetbot expansion board x15. IMX219-160 Camera x16. Wireless-AC8265 x17. Motor 2PCS x18. Wheel 2PCS x19. Omni-direction wheel 2PCS x110. Power adapter EU head x111. 12.6V battery charger x112. Wireless gamepad x113. Screwdriver 2PCS x114. 6Pin 9cm cable x115. Screws pack x116. Spanner x117. Cooling fan x118. Micro SD card reader x1Specification: Package Weight One Package Weight 1.04kgs / 2.30lb One Package Size 22cm * 16cm * 4cm / 8.66inch * 6.3inch * 1.57inch Qty per Carton 20 Carton Weight 21.50kgs / 47.40lb Carton Size 62cm * 42cm * 42cm / 24.41inch * 16.54inch * 16.54inch Loading Container 20GP: 243 cartons * 20 pcs = 4860 pcs40HQ: 566 cartons * 20 pcs = 11320 pcs

Lis Plus Moins

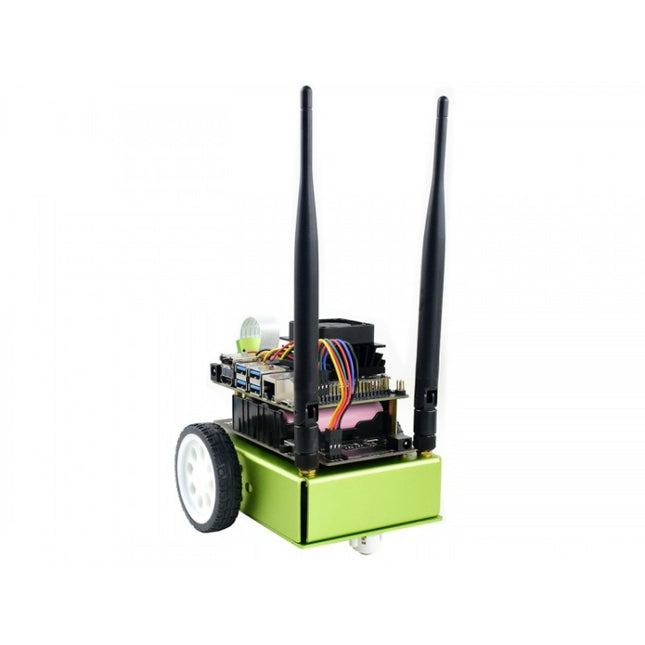

OverviewSmart robot is always the favorite project of electronic enthusiasts, however, a robot will be "not that smart" if it is not AI-based.Welcome the JetBot, an actual smart robot powered by Jetson Nano. With the intelligent eye (front camera), facial recognition, object tracking, auto line following, and collision avoidance can be easily achieved. It also comes with ROS nodes code, which makes it easy to get started with the open source ROS (Robot Operating System), and to learn the system framework and concepts of ROS.Features1. Adopts 3x 18650 batteries (NOT included), high battery capacity, up to 12.6V voltage output, more powerful driving force.2. Integrates S-8254AA + AO4407A lithium battery protection circuit, provides protections for over-charge, over-discharge, over-current, and short circuit.3. Onboard APW7313 voltage regulator, provides stable 5V voltage for the Jetson Nano.4. Onboard TB6612FNG dual H-bridge motor driver.5. Onboard 0.91inch 128×32 pixels OLED, allows to display robot IP address, RAM, battery life, etc.6. Onboard ADS1115 AD acquisition chip for monitoring the battery in real time.7. Weight: 1029gWhat is on the JetBot Expansion Board1. S-8254AA: Lithium battery protector, provides protections for over-charge, over-discharge, over-current, and short circuit2. ADS1115: 16-bit AD acquisition chip, monitoring the battery in real time3. AO4407A: P-Channel MOSFET for protection circuit4. APW7313: 5V power regulator for powering the Jetson Nano5. PCA9685: PWM controller, I2C interface, for IO expansion6. TB6612FNG: dual H-bridge motor driver7. 0.91 inch OLED: SSD1306 driver chip, 128×32 pixels8. Battery charger input: charging the 3x 18650 batteries9. Power switch10. 18650 battery holder11. Motor connector (bottom side)12. Jetson Nano communication header: I2C interface and power supplyPacking List1. Jetson Nano Developer Kit x12. Micro SD Card 64GB ×13. Metal box x14. Camera holder x15.Acrylic piece x16. Jetbot expansion board x17. IMX219-160 Camera x18. Wireless-AC8265 x19. Motor 2PCS x110. Wheel 2PCS x111.Omni-direction wheel 2PCS x112. Power adapter EU head x113. 12.6V battery charger x114. Wireless gamepad x115. Screwdriver 2PCS x116. 6Pin 9cm cable x117. Screws pack x118. Spanner x119. Cooling fan x120. Micro SD card reader x1Specification: Package Weight One Package Weight 1.40kgs / 3.10lb One Package Size 28cm * 20cm * 15cm / 11.02inch * 7.87inch * 5.91inch Qty per Carton 10 Carton Weight 15.00kgs / 33.07lb Carton Size 52cm * 40cm * 60cm / 20.47inch * 15.75inch * 23.62inch Loading Container 20GP: 213 cartons * 10 pcs = 2130 pcs40HQ: 496 cartons * 10 pcs = 4960 pcs

Lis Plus Moins

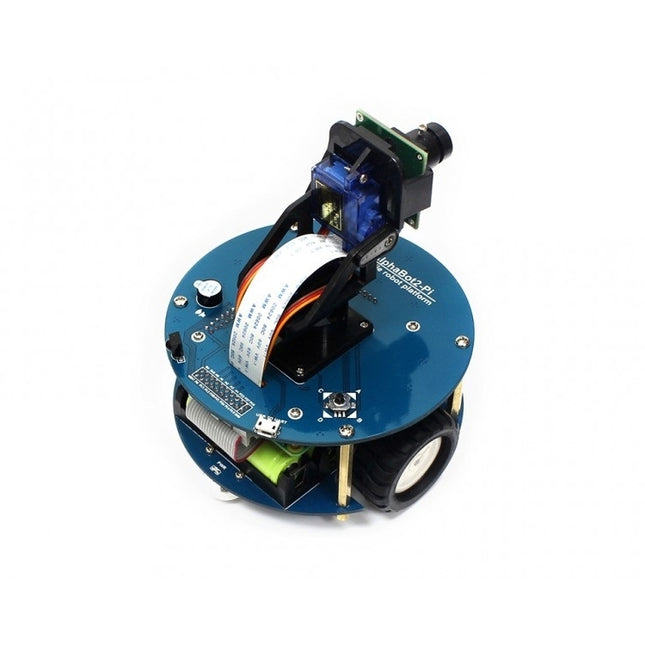

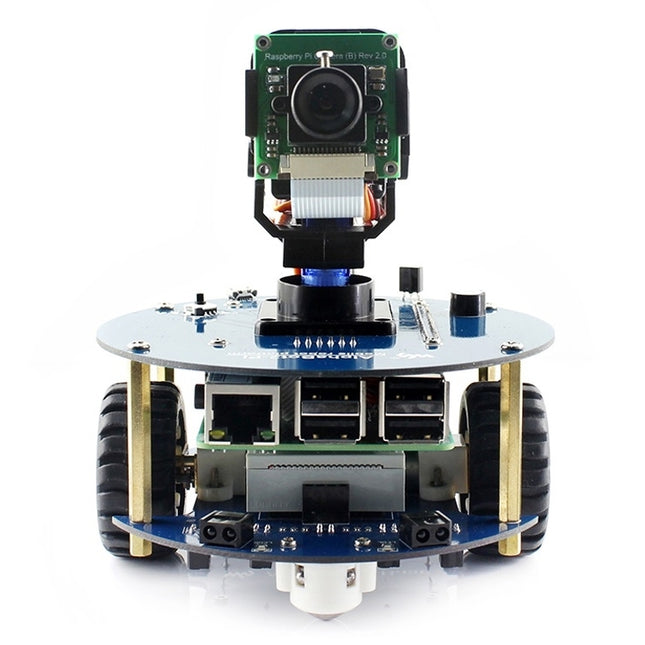

OverviewThis AlphaBot2 robot kit is designed to use with Raspberry Pi 3 Model B (not included). It features rich common robot functions including line tracking, obstacle avoiding, Bluetooth/infrared/WiFi remote control, video monitoring, etc.Thanks to the highly integrated modular design, it is fairly easy to assemble by a snap, no soldering, no wiring. After a few minutes spent on hardware assembing, youre almost there, our open source demo codes is ready to help you get started fast.AlphaBot2 FeaturesAlphaBot2 employs a 2-layer structure to provide excellent stability and compatibility.AlphaBot2-Base, the lower base chassis:1. 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking2. Onboard modules like line tracking, obstacle avoiding, needs no messy wiring3. TB6612FNG dual H-bridge motor driver, compared with L298P, its more efficient, more compact, and less heating4. 5Onboard RGB LEDs, true color lighting, pretty coolAlphaBot2-Pi, the upper adapter board for controller:1. LM2596 voltage regulator, provides the Pi with stable 5V power2. TLC1543 AD acquisition chip, allows the Pi to use analog sensors3. PCA9685 servo controller, make it more smoothly to rotate the pan head4. CP2102 UART converter, easy for controlling the Pi via UARTSpecification: Package Weight One Package Weight 0.05kgs / 0.12lb One Package Size 18cm * 6cm * 15cm / 7.09inch * 2.36inch * 5.91inch Qty per Carton 36 Carton Weight 1.80kgs / 3.97lb Carton Size 54cm * 36cm * 30cm / 21.26inch * 14.17inch * 11.81inch Loading Container 20GP: 457 cartons * 36 pcs = 16452 pcs40HQ: 1061 cartons * 36 pcs = 38196 pcs

Lis Plus Moins

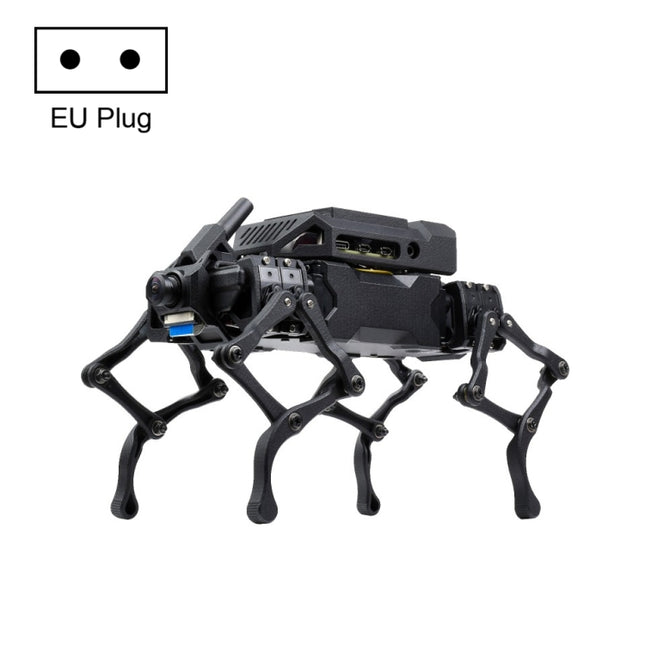

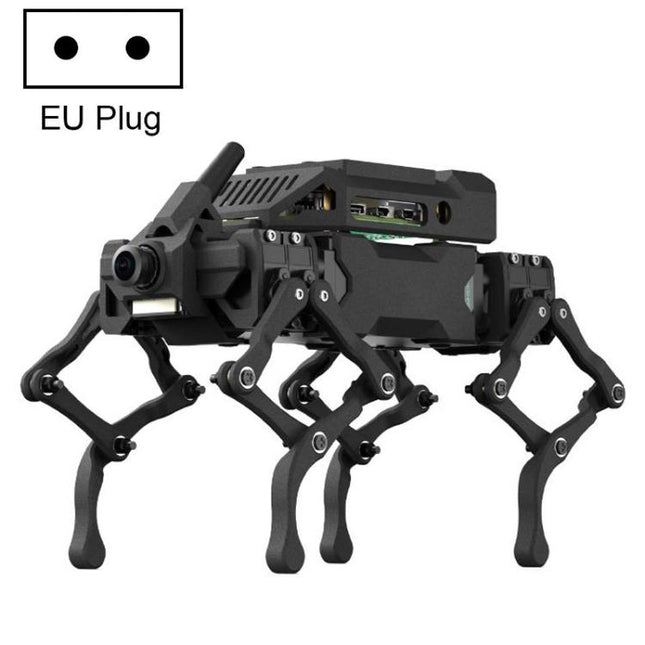

FeaturesThe WAVEGO is a high-DOF bionic dog-like robot which features 2.3kg.cm large torque servos, reliable structure, and flexible motion, incorporating devices like front camera, 9-axes motion tracker, RGB indicator, etc., together with open source multi-platform Web application. It uses the ESP32 as sub controller for connecting rod inverse solving and gait generation, sharing calculating task for the host controller, an additional Raspberry Pi can be attached as the host controller for high-level decision operating. 1. Overall 12-DOF, multi connecting rods leg design, increasing the servo effective torque 2. A real time operating system is used as sub controller for connecting rod inverse solving and gait generation, sharing calculating task for the host controller and improving the gait solving efficiency 3. Ultra compact structure design, allows using on the table, aluminum alloy + nylon structure materials, ensuring strength while keeping it light weight 4. Additional Raspberry Pi can beattached as the host controller to enable OpenCV high-level functions, demo codes including facial recognition, motion detection, color tracking, and more. Reserved extension interface for secondary development, along with user manual and secondary development documents.SpecificationsGeneral: 1. Product name: WAVEGO high-DOF bionic quadruped robot 2. Stand up: length 218mm, width 116mm, height 152mm 3. Lie down: length 228mm, width 116mm, height 127mm 4. Overall weight: 465g (with batteries) 5. DOF: 12 overall, 3 per single leg Operating system: Demo code: FreeRTOS + Raspberry Pi OS Motion performance: 1. Available gait: Shake hands, stand up, crouch slowly, diagonal gait , jump, self-balancing 2. Motion extension: Providing motion programming example, including flexible Bezier curve speed motion function 3. Load: 300g Servo info.: 1. Dimensions: 23.2 x12.1 x25.25 mm 2. Weight: 13.0 +/- 1g 3. Operating voltage: 6V 4. Idle speed: 0.1sec/60 degree (100RPM) 5. Stalling torque: 2.3kg.cm (31.99oz.in) 6. Rated load: 0.7kg.cm 7. Rated current: 350mA 8. Control method: Pulse width modification 9. Control system type: Digital comparator Visual function: 1. FreeRTOS demo: Web-based real time video streaming 2. Raspberry Pi OS demo: Real time video streaming, facial recognition, color tracking, moving object detection Note: All the demo codes are open sourced, the Raspberry Pi OS demo is based on open source projects flask-streaming and OpenCV Processor and memory: 1. ESP32 sub controller: Processor: Xtensa LX6 dual-core processor 240MHz 2. SRAM: 520KB+8MB 3. Flash: 448KB+4MB Others: 1. WiFi standard: 802.11b/g/n 2. Bluetooth standard: Bluetooth 4.2, including traditional Bluetooth (BR/EDR) and Bluetooth low energy (BLE) 3. External port: 2 x 5P multi-function extension port (host controller communication, power supply selection, assembly mode selection, etc.) 4. DC battery charger jack: Type-C (download, UART communication, peripheral expansion) Power supply: 1. Battery type: 18650 Li-ion batteries (NOT included) 2. Supply voltage: 7-8.4V 3. Recharge voltage: 8.4V 4. Protection: Over charge, discharge protection, over current protection, short circuit protection, reverse proof, equalizing charge, stable and safe operating 5. Output voltage: provides 5V output for other host controllerPackage List1. WAVEGO body case x 1 2. WAVEGO basic parts x 1 3. Semi-transparent acrylic panel x 1 4. Double-sided sticker x 1 5. WAVEGO base board x 1 6. 2MP camera x 1 7. 2.4G antenna x 1 8. 0.91 inch OLED display x 1 9. Micro thrust bearing x 14 10. Micro ball flange bearing x30 11. USB cable (~1m) x 1 12. Plus screwdriver x 1 13. Cross wrench sleeve x 1 14. IPEX 1 to SMA cable (~17cm) x 1 15. Jumper wire (~20cm) x4 16. 4PIN PH2.0 cable x 1 17. Servo pack x 1 18. 8.4V 2A battery charger x 1 19. Screws and standoffs x 1Specification: Package Weight One Package Weight 1.06kgs / 2.34lb One Package Size 26cm * 22cm * 10cm / 10.24inch * 8.66inch * 3.94inch Qty per Carton 20 Carton Weight 16.00kgs / 35.27lb Carton Size 52cm * 53cm * 45cm / 20.47inch * 20.87inch * 17.72inch Loading Container 20GP: 215 cartons * 20 pcs = 4300 pcs40HQ: 499 cartons * 20 pcs = 9980 pcs

Lis Plus Moins

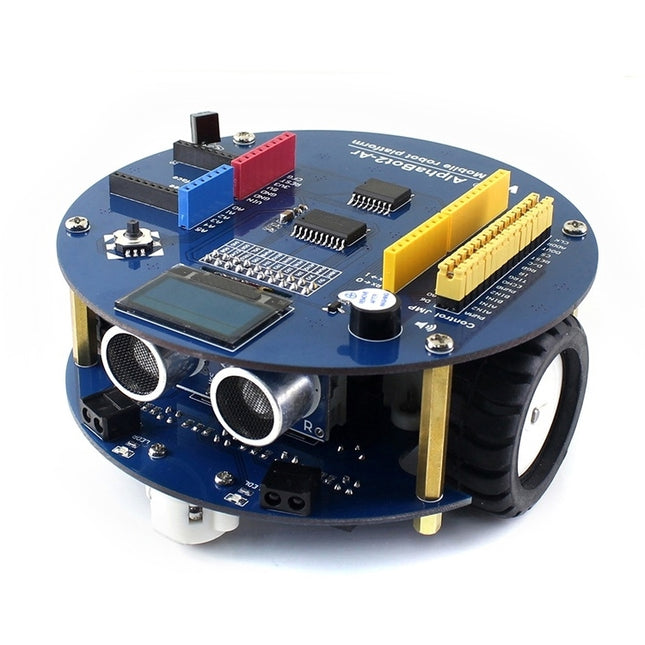

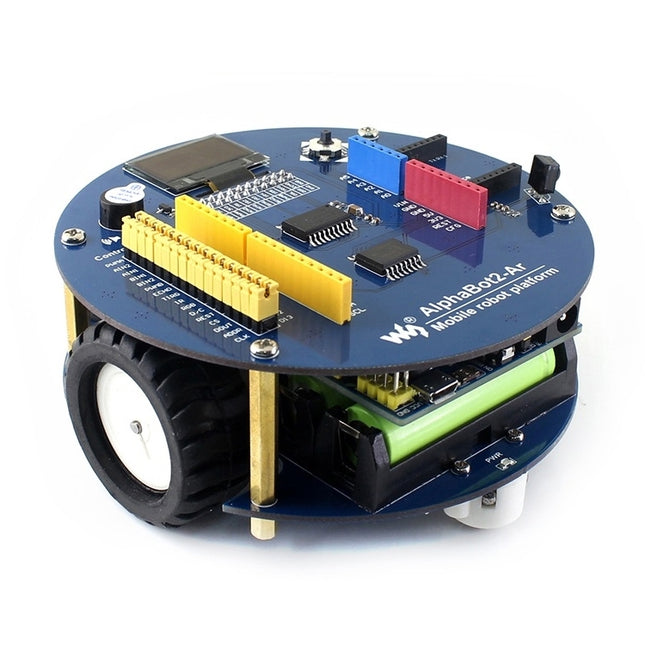

OverviewThis AlphaBot2 robot kit is designed to use with an Arduino compatible controller (not included). It features rich common robot functions including line tracking, obstacle avoiding, ultrasonic ranging, infrared remote control, Bluetooth communication, etc.Thanks to the highly integrated modular design, it is fairly easy to assemble by a snap, no soldering, no wiring. After a few minutes spent on hardware assembing, youre almost there, our open source demo codes is ready to help you get started fast.AlphaBot2 FeaturesAlphaBot2 employs a 2-layer structure to provide excellent stability and compatibility.AlphaBot2-Base, the lower base chassis:1. 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking2. Onboard modules like line tracking, obstacle avoiding, needs no messy wiring3. TB6612FNG dual H-bridge motor driver, compared with L298P, its more efficient, more compact, and less heating4. N20 micro gear motor, with metal gears, low noise, high accuracy5. Onboard RGB LEDs, true color lighting, pretty coolAlphaBot2-Ar, the upper adapter board for controller:1. Onboard Arduino interface, into which Arduino controller can be directly plugged2. 0.96inch 128x64 yellow/blue dual color OLED3. TLC1543 AD acquisition chip4. PC8574 I/O expander, avoid I/O shortage5. Xbee connector, for connecting dual-mode Bluetooth modulePackage Contents1. AlphaBot2-Ar (adapter board) x12. AlphaBot2-Base (base chassis) x13. Ultrasonic sensor x14. IR remote controller x15. FC-20P cable 8cm x16. USB type A plug to micro B plug cable x17. AlphaBot2-Ar screws x18. Screwdriver x1 (Extra Free)Specification: Package Weight One Package Weight 0.30kgs / 0.67lb One Package Size 15cm * 11cm * 9cm / 5.91inch * 4.33inch * 3.54inch Qty per Carton 48 Carton Weight 14.00kgs / 30.86lb Carton Size 60cm * 33cm * 36cm / 23.62inch * 12.99inch * 14.17inch Loading Container 20GP: 374 cartons * 48 pcs = 17952 pcs40HQ: 868 cartons * 48 pcs = 41664 pcs
