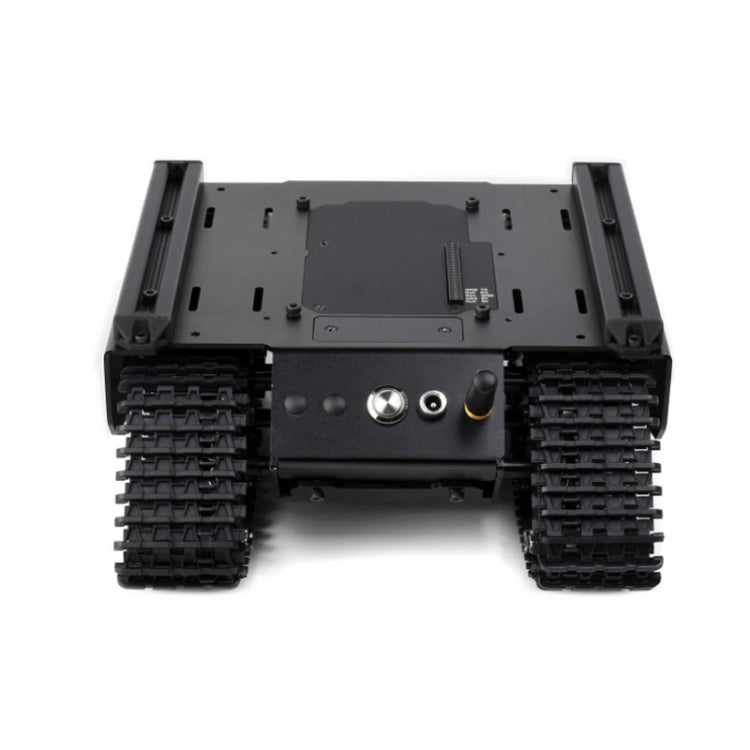

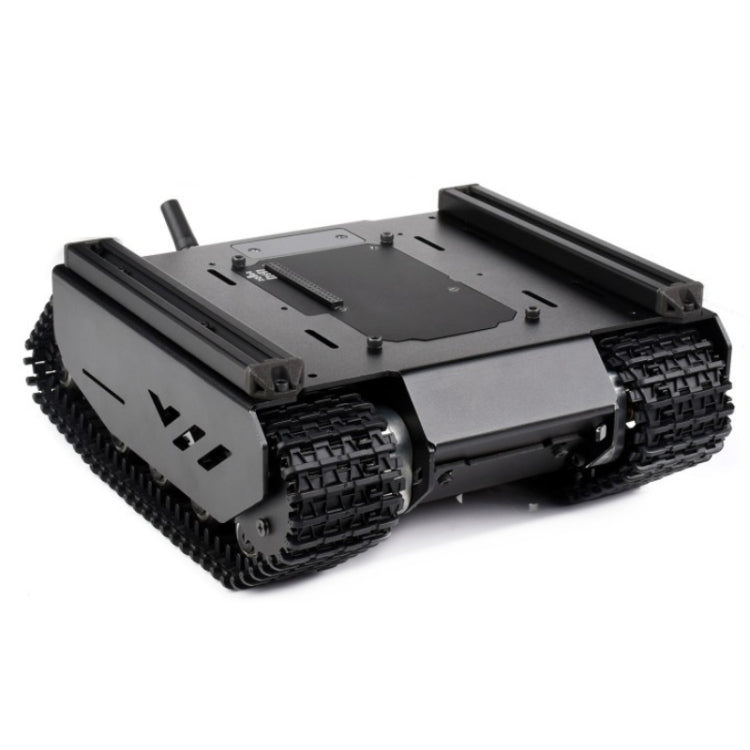

Waveshare 24019 Flexible And Expandable Off-Road Tracked UGV, Multiple Hosts Support, With External Rails and ESP32 Slave Computer, Waveshare 24019

Waveshare 24019 Flexible And Expandable Off-Road Tracked UGV, Multiple Hosts Support, With External Rails and ESP32 Slave Computer, Waveshare 24019

Fiche produit

1. Dimensions: 231x197x151mm2. Suspension system: 4×2 (independent)3. Chassis height: 26mm4. Guide rail center distance: 170mm5. Track width: 44mm6. Running speed:... En savoir plus

Expedited Delivery Available! Add to cart for exact shipping info.  Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£147.99

    • Guaranteed secure & safe checkout.

      shop pay
      • We take great care in ensuring that all our products meet quality standards and are packaged securely for safe delivery.
      • No hassle returns, 30 days return

      Description


      1. Dimensions: 231x197x151mm
      2. Suspension system: 4×2 (independent)
      3. Chassis height: 26mm
      4. Guide rail center distance: 170mm
      5. Track width: 44mm
      6. Running speed: 0.25~1m/s
      7. Track horizontal ground length (no load): 115mm
      8. Suspension material: 1.5mm (thickness) stainless steel
      9. Track climbing ground length (with large load): 170 mm
      10. Body material: 2 mm (thickness) 5052 aluminum alloy
      11. Weight: 1.9 kg
      12. Vertical obstacle clearance capability: 40mm
      13. Driving Payload: 6.2kg
      14. Climbing ability: 36 degrees
      15. Battery holder: 18650 lithium battery x 3 (not included)
      16. Turning radius (min): 0 meters (rotating in place)
      17. Charging time: 1.5 hours
      18. Battery life: 1 hour (full power continuous output)
      19. Motor power: 5.2W×2

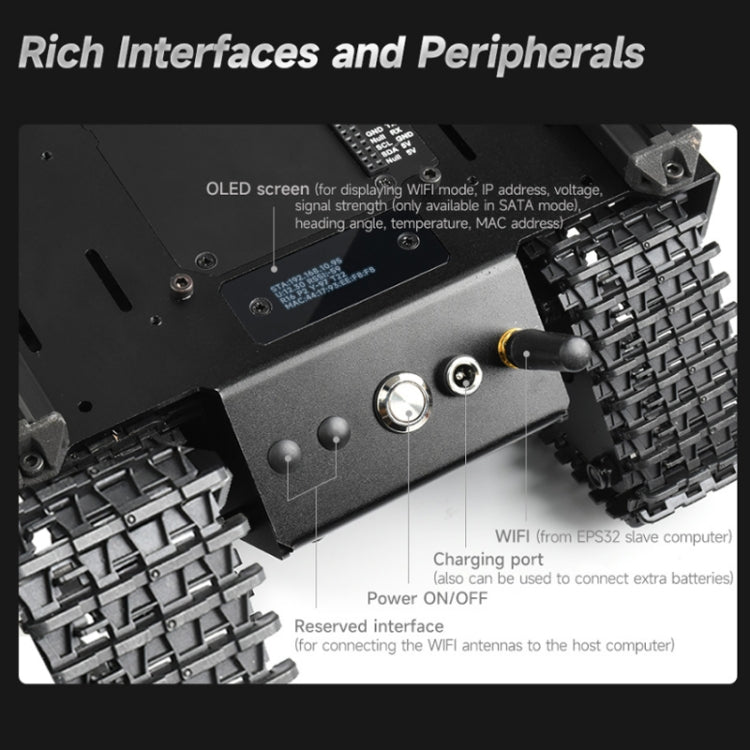

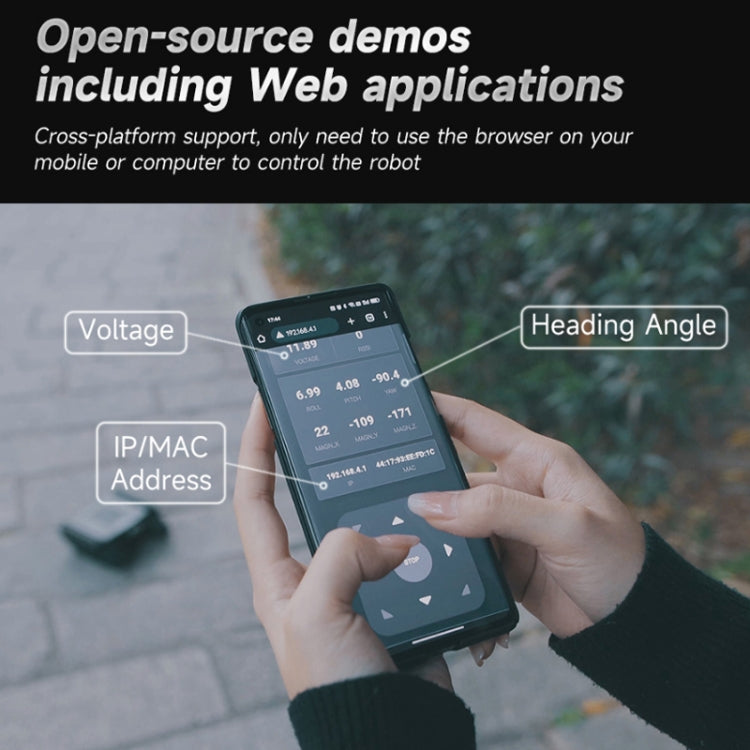

      20. Remote control function: WIFI, AP/STA
      21. Motor encoder: basic pulse 11PPR
      22. Communication interface: UART/serial bus servo interface/IIC
      23. The crawler-type mobile robot chassis has super off-road crossing ability and anti-seismic performance, and all codes are open source for secondary development

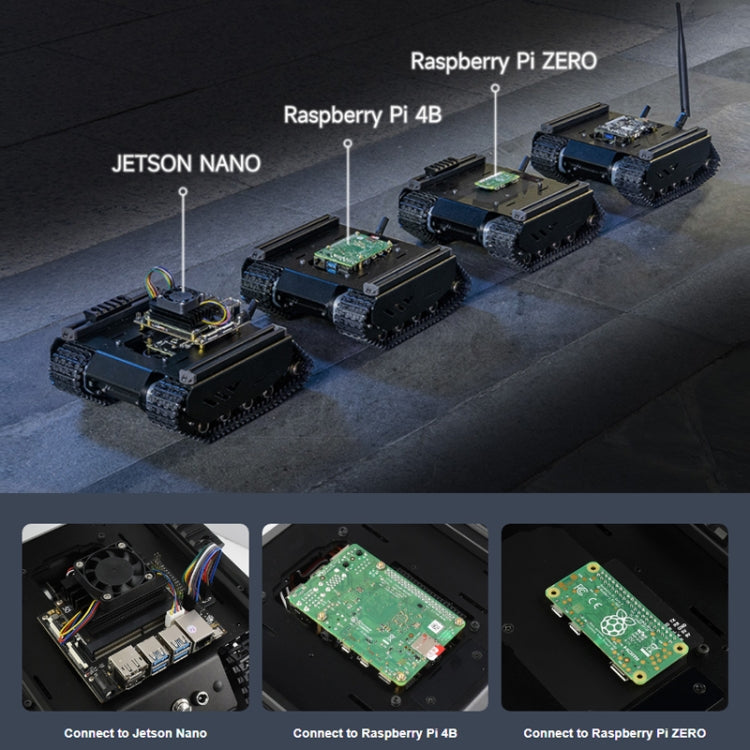

      24. Support multiple host computers, can communicate with ESP32 slaves through the serial port
      25. Motors with encoders can get speed feedback for closed-loop speed control

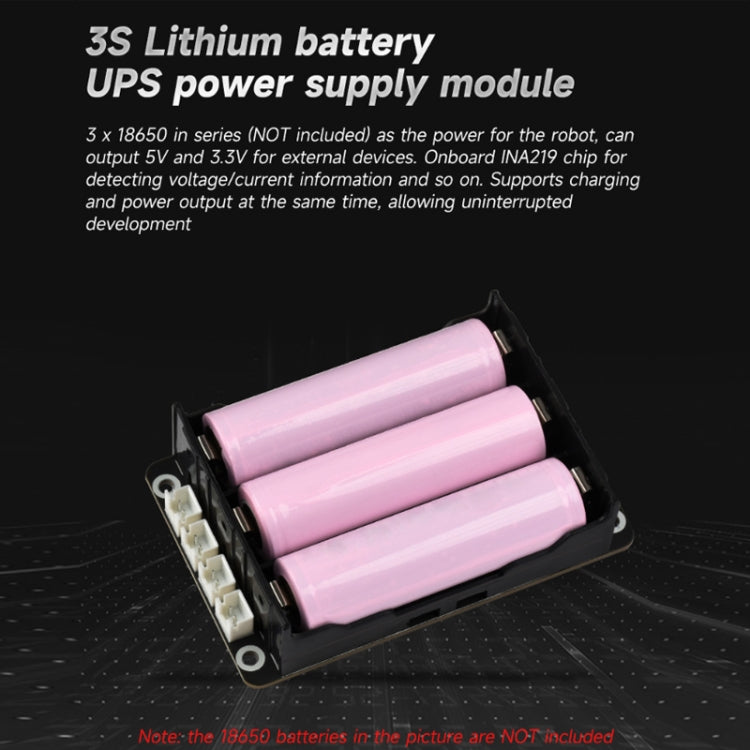

      26. Built-in 3S UPS power supply module, supports 3 18650 lithium batteries (serial connection, not included), provides uninterrupted power supply for the robot, and supports charging and power output at the same time

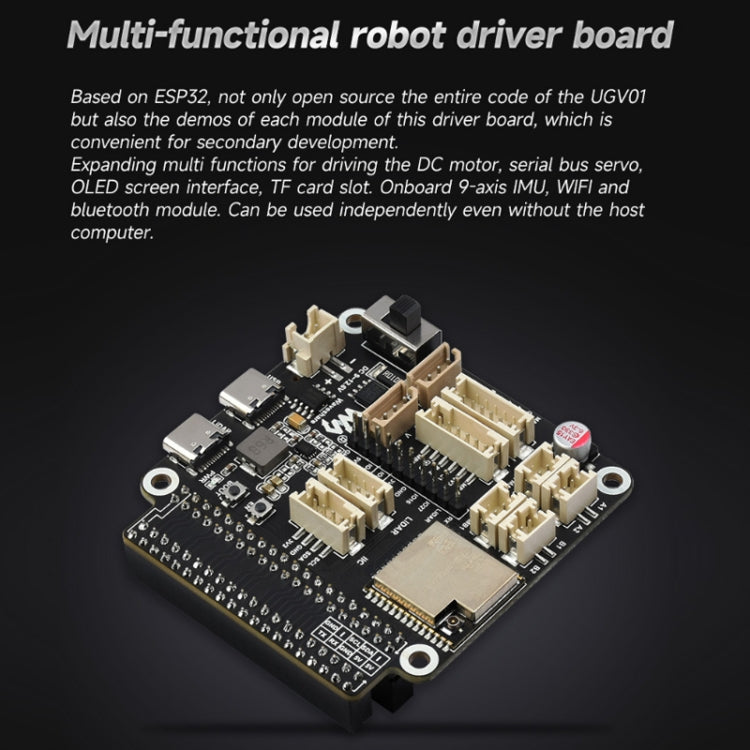

      27. Built-in multifunctional robot driver board, based on ESP32, onboard WIFI and Bluetooth, used to drive serial bus servos, output PWM signals, expand TF card slots, etc.

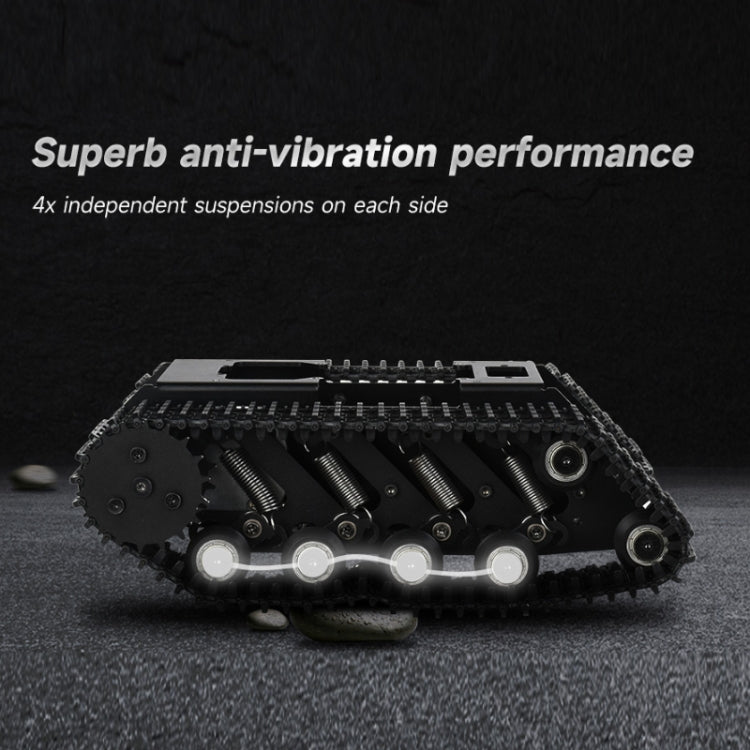

      28. Multiple independent suspension systems are used to greatly reduce the impact of complex terrain and easily meet the needs of heavy loads, shock absorption, and off-road
      29. And it comes with 2x 1020 European standard profile guide rails, providing more possibilities for secondary development


      Specification:
      Package Weight
      One Package Weight 2.00kgs / 4.42lb
      One Package Size 23cm * 23cm * 14cm / 9.06inch * 9.06inch * 5.51inch
      Qty per Carton 14
      Carton Weight 30.00kgs / 66.14lb
      Carton Size 56cm * 56cm * 34cm / 22.05inch * 22.05inch * 13.39inch
      Loading Container 20GP: 250 cartons * 14 pcs = 3500 pcs
      40HQ: 580 cartons * 14 pcs = 8120 pcs
