Camera Lens

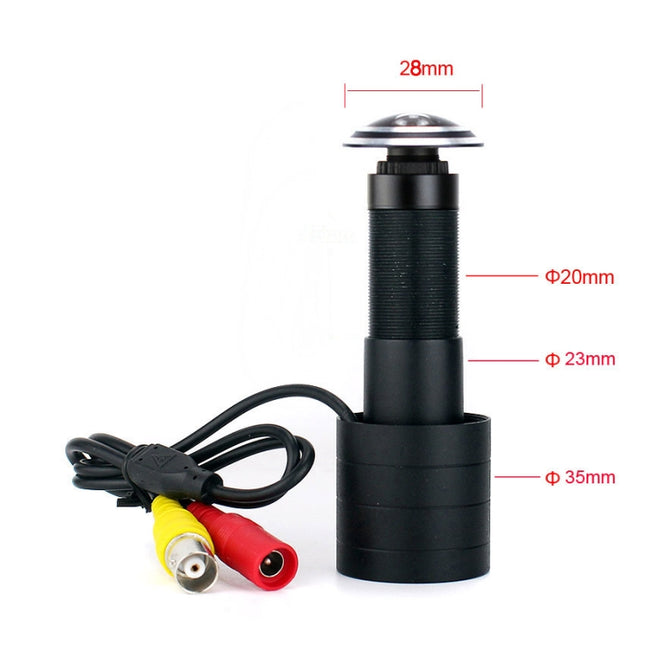

Alarm:No Resolution :800TVL signal:CVBS, (support to monitor Ditectly) Power Supply:DC 12V Video Output:BNC Model:SMT-DVC800 The total length 30mm-85mm adjustableAt the bottom of the thickest part of the 35mmHorizontal resolution 800 TV Lines,No amount of infrared light (without IR)Scanning frequency PAL: 15.625 kHz / 50 KHzScanning System 2: 1lnterlace, 2: 1 interlaceMinimum illumination 0.5 LuxInternal Synchronization Internal / DC12VSignal / noise ratio greater than 48dB Better thanAuto Auto Electronic Shutter 1/50 ~ 1 / 100,000 sec.Video Output 1 Vp-p, 75 composite signalPower supply 12V DC ( 10%)2.1mm lens configurationView Angle About 120degreePower Consumption 800mA / DC12VSpecification: Package Weight One Package Weight 0.14kgs / 0.32lb One Package Size 17cm * 15cm * 5cm / 6.69inch * 5.91inch * 1.97inch Qty per Carton 97 Carton Weight 15.00kgs / 33.07lb Carton Size 30cm * 50cm * 50cm / 11.81inch * 19.69inch * 19.69inch Loading Container 20GP: 355 cartons * 97 pcs = 34435 pcs40HQ: 825 cartons * 97 pcs = 80025 pcs
