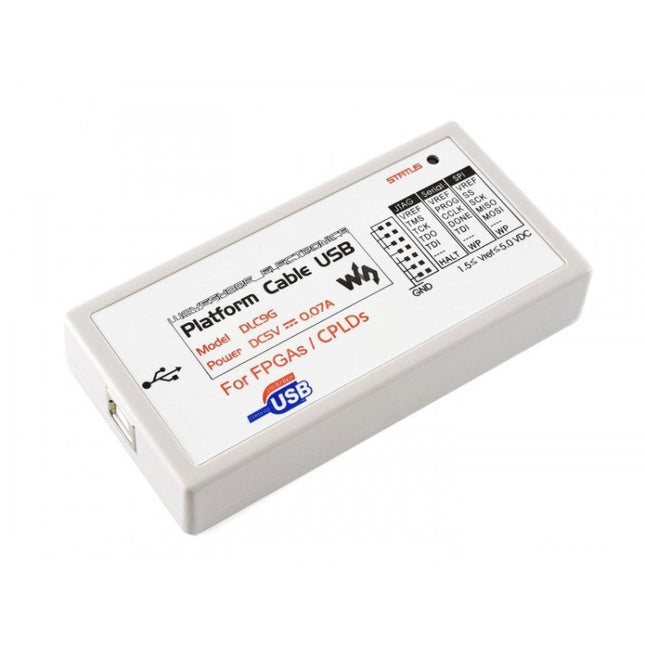

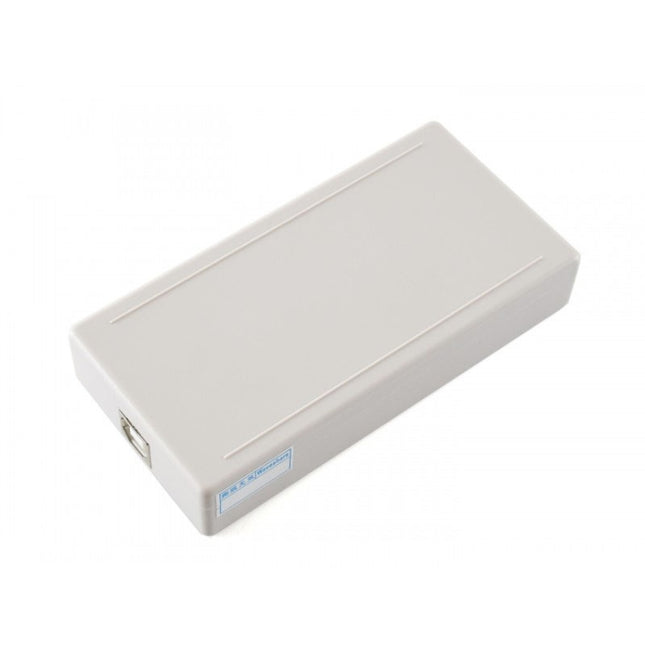

USB compatible cable for in-circuit configuration and programming of all Xilinx devicesOverviewThe Platform Cable USB a USB compatible cable for in-circuit configuration and programming of all Xilinx devices. It is compatible with the original XILINX Platform Cable USB.Features- Performance1. Using CY7C68013A+FPGA solution, fully compatible with the original XILINX Platform Cable USB2. Programs all Xilinx devices, including FPGAs / CPLDs / ISP Configuration PROMs3. Supports JTAG, Slave-Serial and SPI programming, to config all Xilinx devices4. Interfaces to devices operating at 5V / 3.3V / 2.5V / 1.8V / 1.5V5. Optional target clock frequency, supports XILINX software automatic frequency adjustment6. Firmware auto upgrade, its possible to support more new released software and devices7. Anti-static and multi-layers signal isolation, to protect the target and the programmer itself- Supported software1. Xilinx ISE2. iMPACT3. ChipScope4. Vivado- Supported devices1. Xilinx FPGA devices: UltraScale / 7 series / Zynq / Kintex / Virtex / Artix / Spartan, etc.2. Xilinx CPLD devices: XC9500 / XC9500XL / XC9500XV / CoolRunner XPLA3 / CoolRunner-II, etc.3. Xilinx PROM devices: Platform Flash XCF00S / XCF00P / XL, etc.LED Status1. Red: USB connected2. Yellow: USB connected, and Vref (the target board) is poweredHow to Connect1. Connects to PC: Via USB interface2. Connects to target board: Platform Cable USB provides 3 different interfaces to connect with the target board: JTAG, Slave Serial, and SPI. The figure below shows the header pinouts of the interfaces:Package contents1. Platform Cable USB main unit x12. JTAG adapter x13. USB cable x14. 8-pin header to 7-pin separated cable x15. 8-pin header to 6-pin header cable x16. 14-pin (2.54mm pitch) JTAG cable x17. 14-pin (2mm pitch) JTAG cable x18. 10-pin (2.54mm pitch) JTAG cable x1Specification: Package Weight One Package Weight 0.22kgs / 0.49lb One Package Size 15cm * 8cm * 2cm / 5.91inch * 3.15inch * 0.79inch Qty per Carton 400 Carton Weight 15.00kgs / 33.07lb Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch Loading Container 20GP: 277 cartons * 400 pcs = 110800 pcs40HQ: 644 cartons * 400 pcs = 257600 pcs
