Descripción

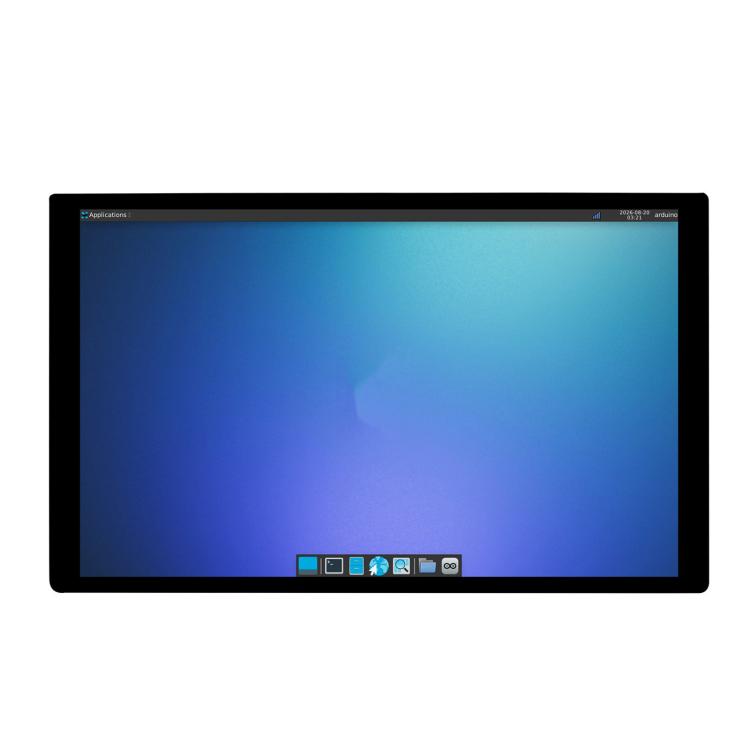

1. Screen Size: 10.1 inches
2. Resolution: 800 x 1280 (default portrait orientation; can be switched to landscape orientation by modifying software settings)
3. Display Panel: IPS display panel with a 178-degree wide viewing angle and excellent display performance
4. Brightness: 300 cd/m2
5. Touch Type: Capacitive touch
6. Touch Interface: I2C
7. Number of Touch Points: Multi-touch (supports multi-touch, depending on the operating system)
8. Touch Panel: High-hardness tempered glass (up to 6H hardness)
9. Touch Panel Technology: Optical Full Lamination (provides excellent display quality and dust resistance)
10. Compatible Board: Compatible with Arduino UNO Q

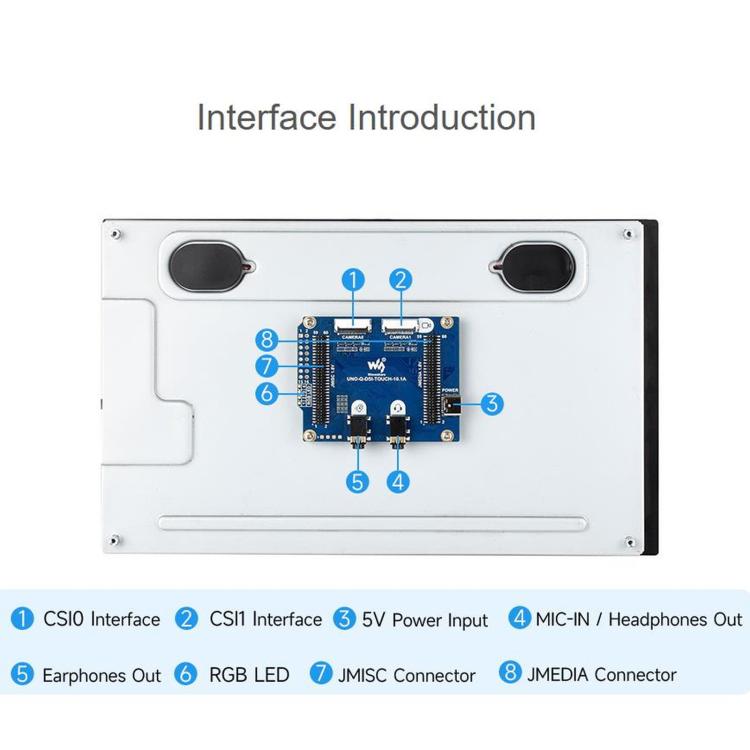

11. Connection Method: Board-to-board connection; supports direct stacking onto the UNO Q board via JMEDIA and JMISC interfaces without additional wiring

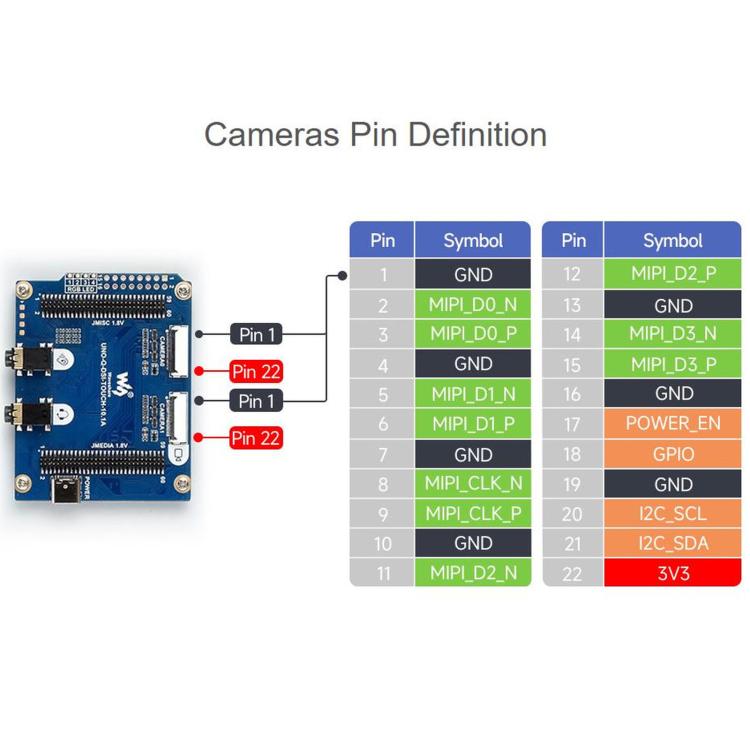

12. Camera: Dual-camera interface, equipped with two 22-pin CSI camera connectors, compatible with IMX219 camera modules
13. Audio: Dual 3.5mm audio jacks
14. Audio: Dual speakers

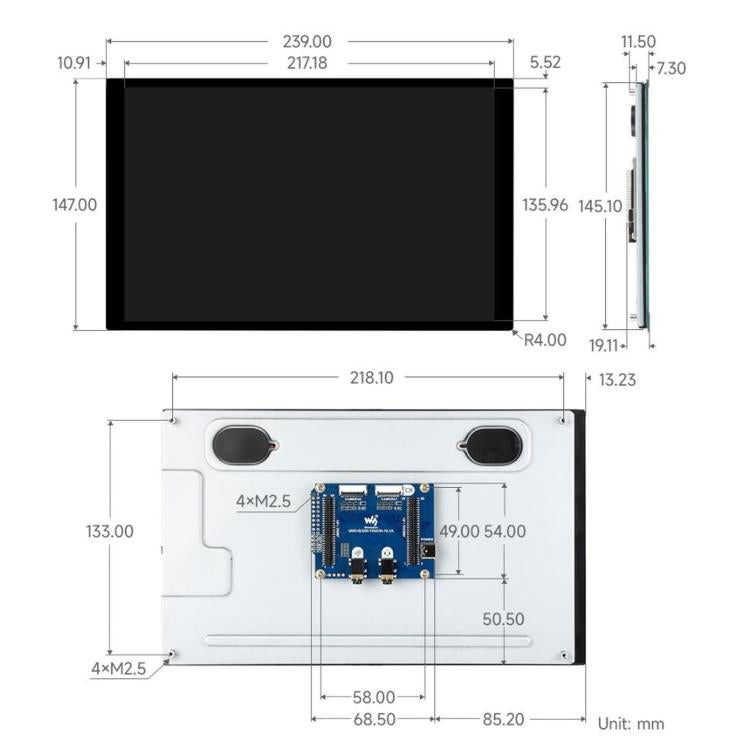

15. Dimensions: Approx. 23.9 x 14.7 x 1.15 cm
Features:
1. High-Definition Wide-Viewing-Angle Large Screen: Features a 10.1-inch IPS display panel with a resolution of 800 x 1280, offering a 178-degree wide viewing angle and 300 cd/m2 brightness
2. Rugged and Durable Touch Experience: Supports capacitive multi-touch; the panel features tempered glass with a hardness of up to 6H and utilizes optical full-lamination technology, delivering excellent display quality and dust resistance

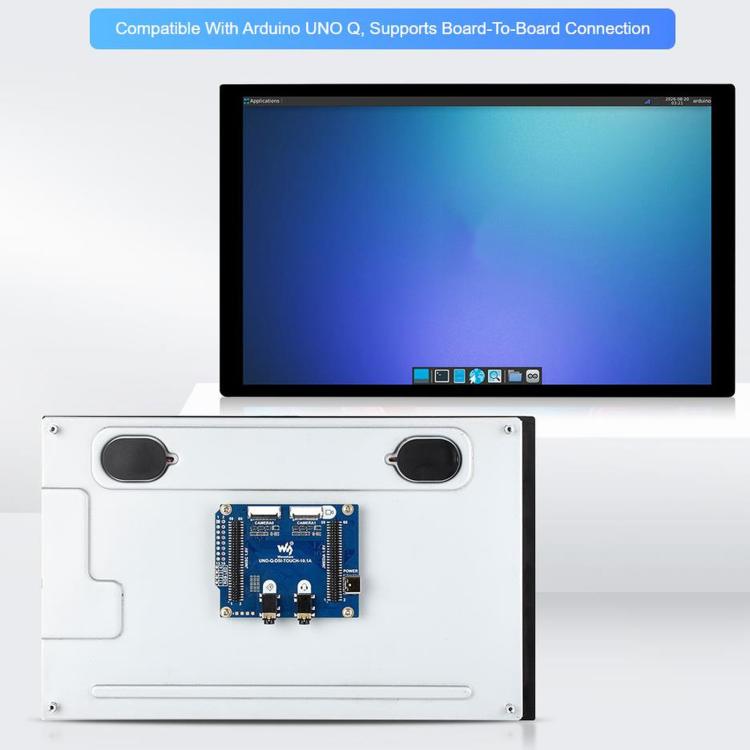

3. Convenient Stacking and Integration Design: Adheres to standard UNO form factors and supports direct board-to-board stacking onto the Arduino UNO Q mainboard, eliminating the need for additional cumbersome wiring and enabling compact, efficient integration
4. Extensive Expansion and Multimedia Support: Features dual onboard 22-pin CSI camera interfaces (compatible with the IMX219 module, supporting stereovision, multi-angle capture, and object tracking), dual 3.5mm audio jacks, and dual speakers to meet the needs of machine vision and multimedia applications
Specification:
| Package Weight |
| One Package Weight |
0.60kgs / 1.33lb |
| One Package Size |
28cm * 18cm * 5cm / 11.02inch * 7.09inch * 1.97inch |
| Carton Weight |
13.00kgs / 28.66lb |
| Carton Size |
58cm * 38cm * 30cm / 22.83inch * 14.96inch * 11.81inch |
| Loading Container |
20GP: 403 cartons * 20 pcs = 8060 pcs 40HQ: 936 cartons * 20 pcs = 18720 pcs
|
|
