Descripción

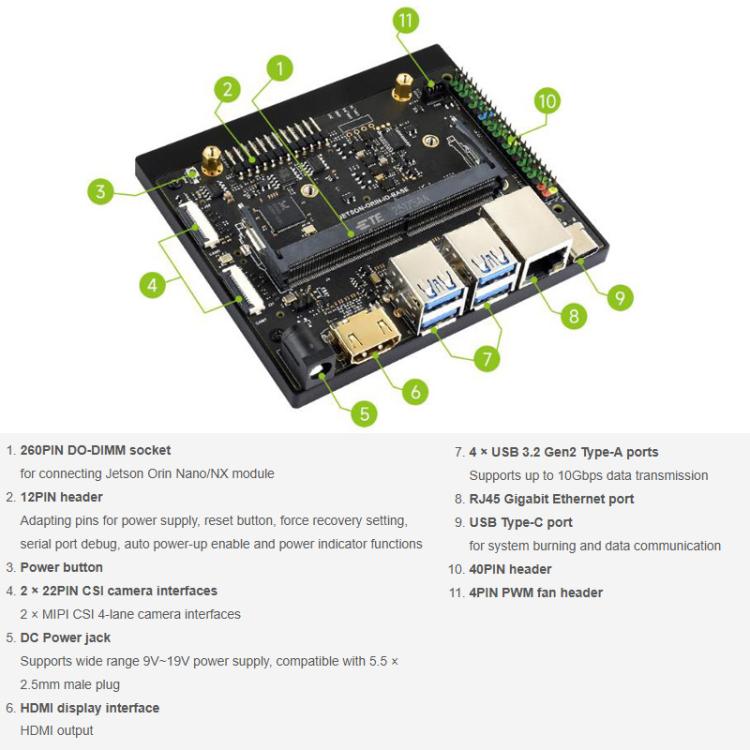

1. Supports Orin core module, compatible with NVIDIA Jetson Orin Nano and Jetson Orin NX core boards

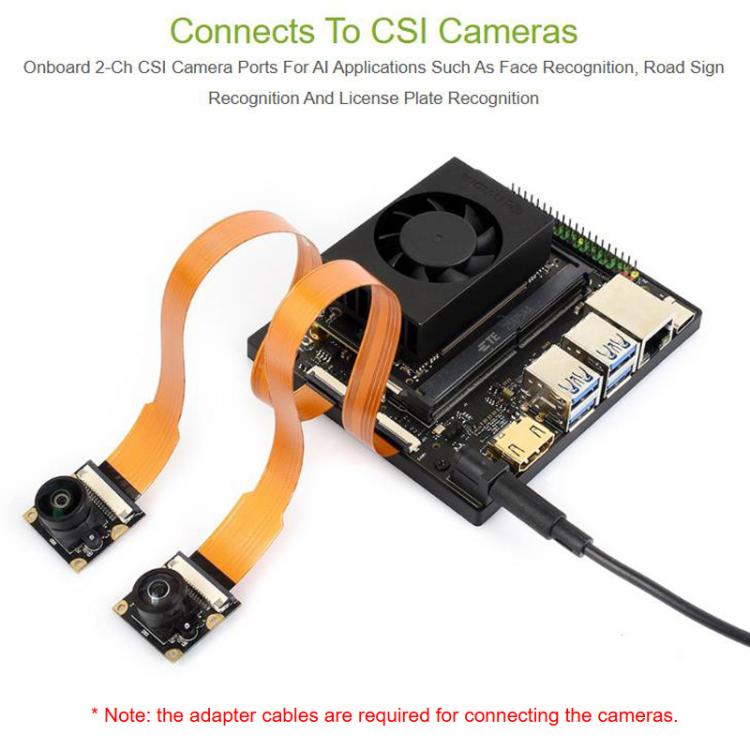

2. Connects to cameras, expands two CSI interfaces, suitable for AI intelligent application scenarios such as face recognition, road marking line recognition, and license plate recognition

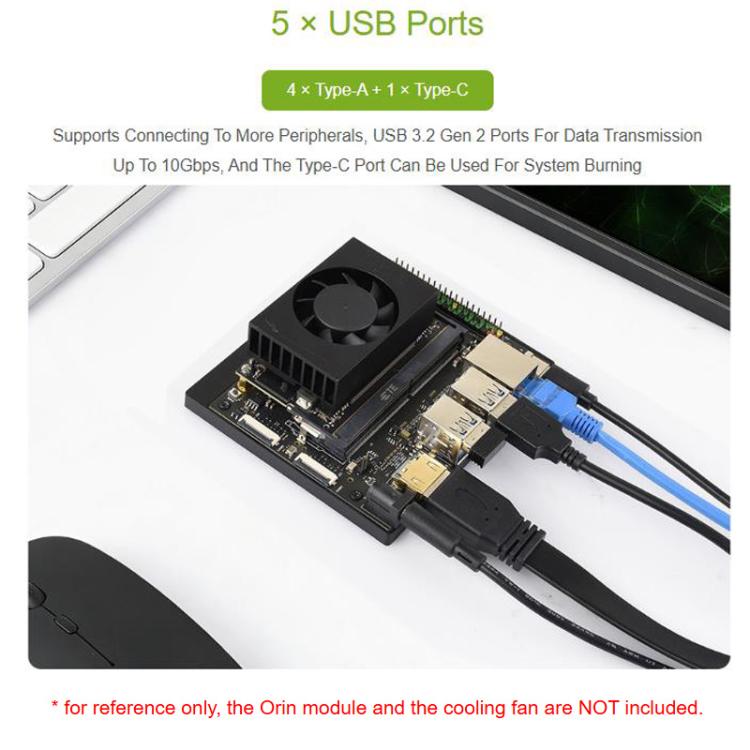

3. Five USB interfaces, four Type-A and one Type-C. Can connect more and more external devices. The USB 3.2 Gen 2 interface can support up to 10Gbps data transmission, and the Type-C interface can be used for system burning

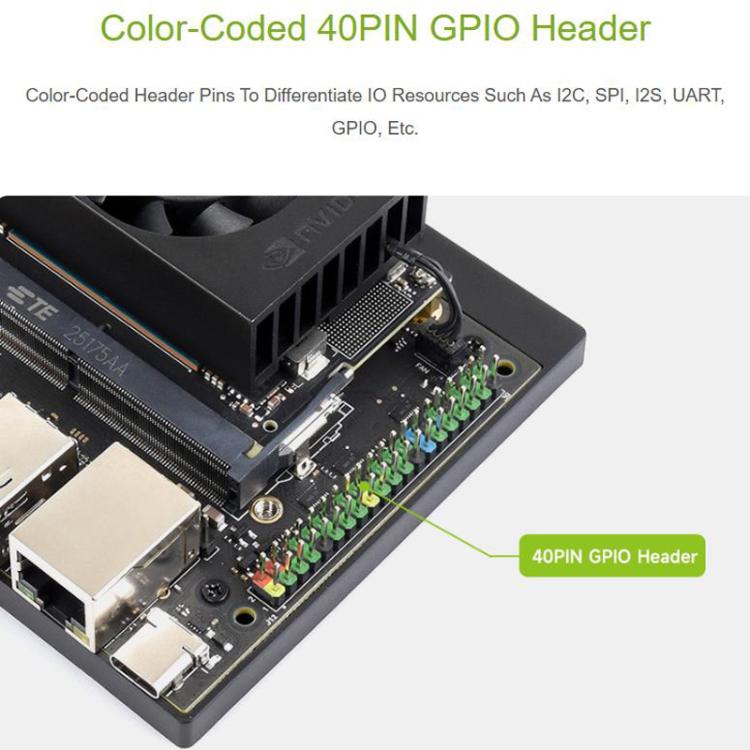

4. Color 40PIN GPIO interface, uses colors for distinction, expands I2C, SPI, I2S, UART and GPIO resources

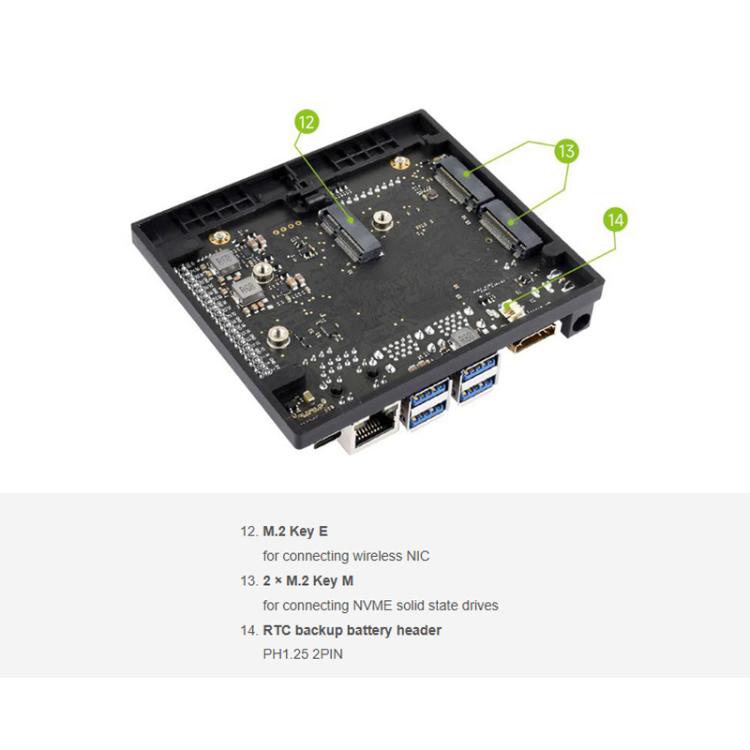

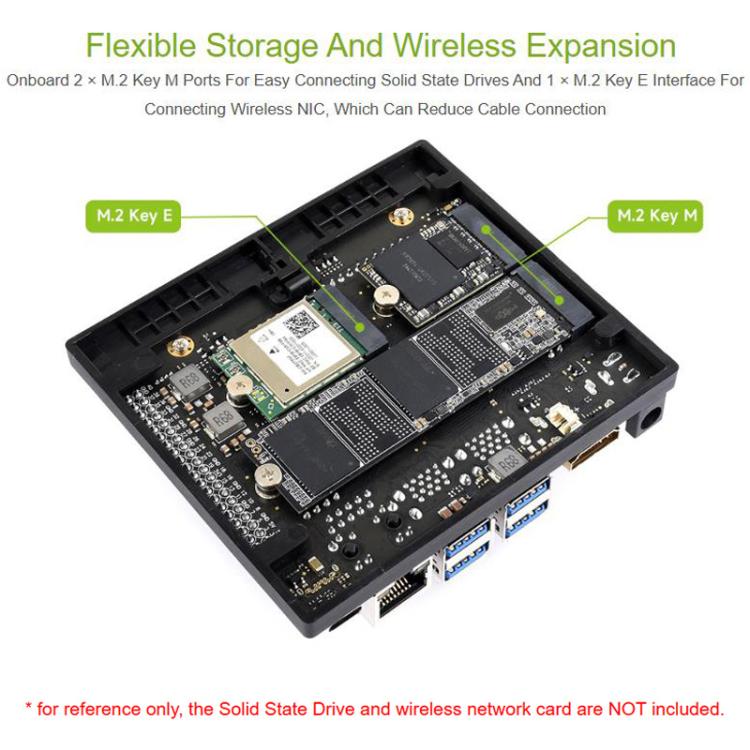

5. Flexible storage and wireless expansion. The base board expands two M.2 Key M interfaces to facilitate users to connect solid-state hard drives, and the M.2 Key E interface is provided for users to connect wireless network cards, reducing the constraints of wires for the device

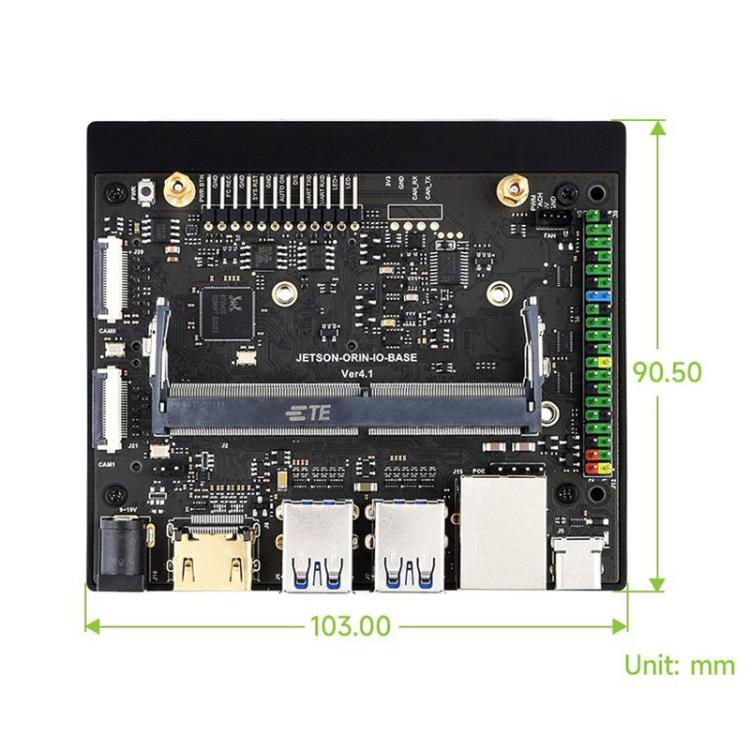

6. Size: about 10.3 x 9.05cm
7. Note: this product is only the base board and needs to be used in combination with the core board
Packaging list:

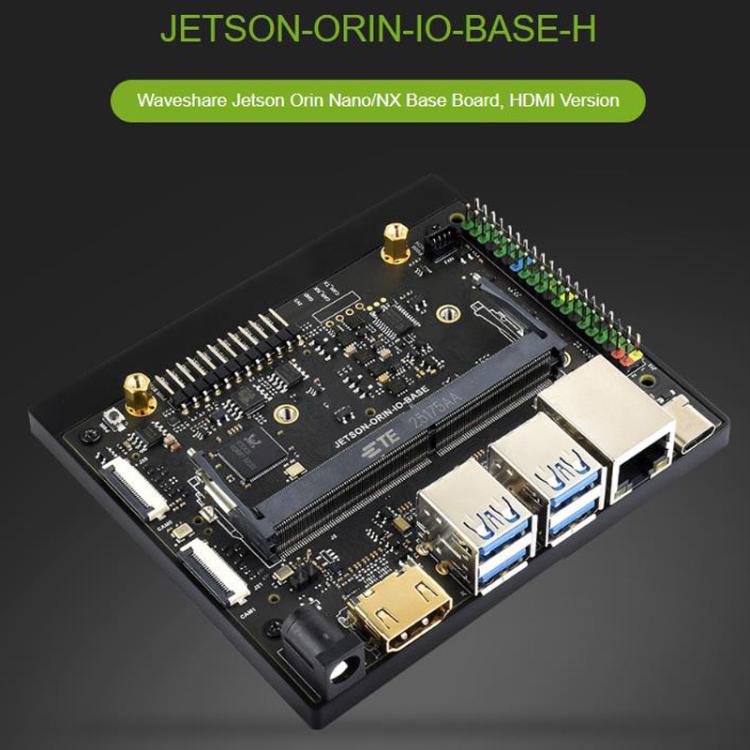

- JETSON-ORIN-IO-BASE-H x 1
- Screw cap x 1
Specification:
| Package Weight |
| One Package Weight |
0.12kgs / 0.27lb |
| One Package Size |
14cm * 13cm * 4cm / 5.51inch * 5.12inch * 1.57inch |
| Carton Weight |
7.00kgs / 15.43lb |
| Carton Size |
50cm * 3cm * 28cm / 19.69inch * 1.18inch * 11.02inch |
| Loading Container |
20GP: 6349 cartons * 48 pcs = 304752 pcs 40HQ: 14739 cartons * 48 pcs = 707472 pcs
|
|
