Descripción
Features1. Dual network PSTN/GSM home alarm system.

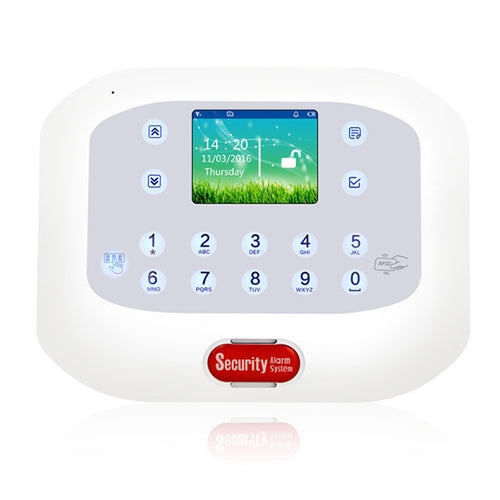

2. Built-in clock and color TFT LCD screen, high-sensitive touch panel keypad.
3. 10 seconds voice message recording.
4. RFID function(work with electromagnetic lock).
5. 3 groups of timely alarm and disalarm.
6. Support 6 wired, 50 wireless defense zones and 8 wireless remote controls
7. Set 6 alarm phone numbers. and 3 alarm SMS numbers.
8. Support wireless siren( Default frequency 315Mhz). Also support the wired siren.
9. Unique function of low voltage alert by sending notifying message.
10. Built-in 4.2V 350mAh lithium battery, when power is off, the host will alarm.
11. Be compatible with the international CID center protocol: Ademco contact ID protocol.
12. Siren volume: 120dB (The default beep time is 180s when it alarms).
13. Full charged time: 10 hours, standby time: 4.5 hours.
14. Factory default password: 1234.

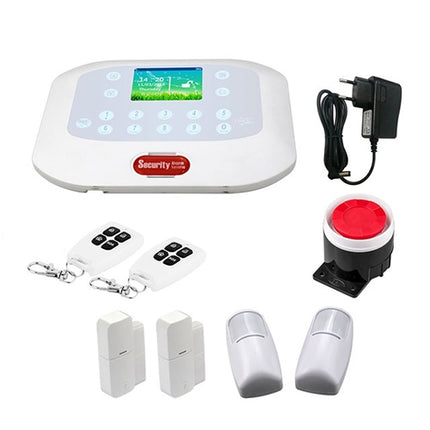

Package List1. Control Panel x 1
2. Wireless Door/Window Contact x 1
3. Wireless PIR Motion Detector x 1
4. Wireless Remote Control x 2
5. Wired Siren x 1
6. (US, EU, AU, UK plug optional) Power Adapter x 1
7. RFID Tag x 2
Specification:
| General |
| Material |
Plastic, Electronic Components |
| Power Supply |
DC 5.0V 2.0A (Input) |
| Alarming Current |
Less than 300mA |
| Static Current |
Less than 65mA |
| Working Temperature |
-10 to +50 Degree Celsius |

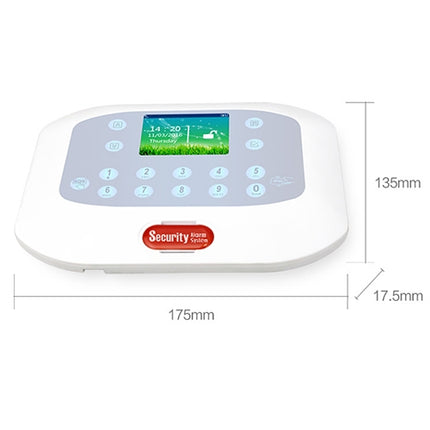

| Host Size |
18.9*13.2*1.1cm |
|
| Technical Parameters |
| Remote Control Distance |
Less than 40meters (Open Area) |
| Wireless Detector Distance |
Less than 80meters (Open Area) |
| Frequency |
315MHz, 433MHz, PT2262/4.7MΩ |
| Network Band |
GSM 850/900/1800/1900MHz |
|
| Package Weight |
| One Package Weight |
0.92kgs / 2.02lb |
| One Package Size |
22cm * 18cm * 10cm / 8.66inch * 7.09inch * 3.94inch |
| Carton Weight |
18.90kgs / 41.67lb |
| Carton Size |
52cm * 46cm * 37cm / 20.47inch * 18.11inch * 14.57inch |
| Loading Container |
20GP: 301 cartons * 20 pcs = 6020 pcs
40HQ: 699 cartons * 20 pcs = 13980 pcs
|
|
