Descripción

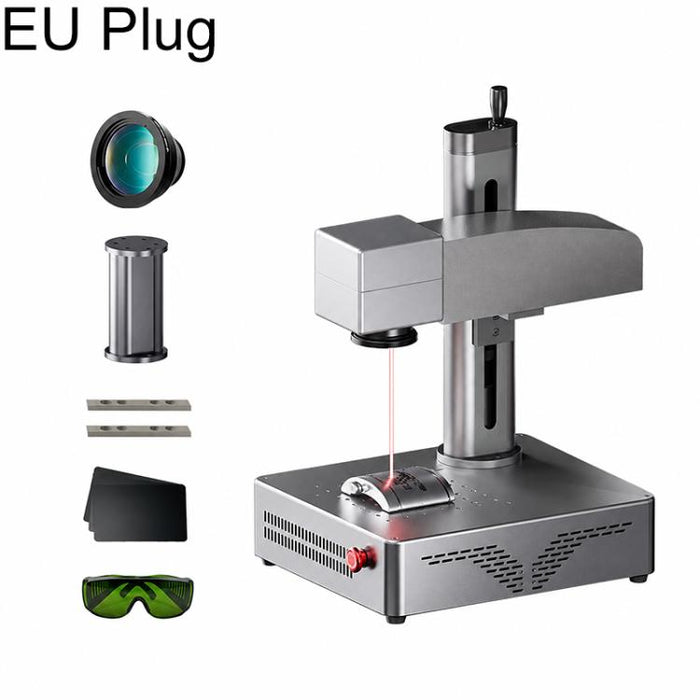

1. High power, full-metal marking standard without consumables, covering full-metal marking, most plastic
2. Double red light focusing: Easy positioning, focusing more convenient
3. Industrial all-quartz field mirror, focused spot, high precision marking
4. High-speed galvanometer, dynamic scanning using an integrated design, with the galvanometer fast marking
5. Industrial field mirror, high-precision marking through the field mirror focusing laser beam energy, the effect is more delicate, light spot only 0.001mm
6. Single red light: rocker operation, rotary focus adopts spiral control of bracket lifting, manual adjustment of shaft lifting to achieve better marking effect
7. 360 degree rotation, cylindrical carving with rotating shaft, can mark cylindrical objects such as rings, hand to Gids, hardware artifacts, etc
8. With one opening and one closing, the self-locking button emergency brake is usually in the closed state. Press it to stop operation and then touch it to open
9. Intelligent software, which can edit pictures, vector diagrams, bar codes, two-dimensional code engraving, serial number and automatic code-jumping function in the software, to meet your various engraving needs
Specification:
1. Laser Power: 20W / 30W (optional)
2. Ambient Temperature: -10~65 degree C
3. Repeatability: Less than or equal to 0.001mm
4. Marking Depth: 0.015-0.2mm
5. Marking Accuracy: Less than or equal to 0.001mm
6. Marking Speed: Less than or equal to 10000mm/s
7. Cooling Method: Built-in fan
8. Laser Wavelength: 1064nm
9. Engraving Area: 11 x 11cm / 15 x 15cm / 20 x 20cm
10. Marking Line Width: 0.001-0.05mm
11. Supported Languages: Chinese, English
12. Supported Formats: PLT / DXF / BMP, etc.
13. Power supply voltage: 110-240V, 50/60Hz
14. Machine Dimensions: 380 x 330 x 730mm(L x W x H)
15. Machine Net Weight: 15.5kg
Specification:
| Package Weight |
| One Package Weight |
17.00kgs / 37.49lb |
| One Package Size |
46cm * 56cm * 32cm / 18.11inch * 22.05inch * 12.6inch |
| Carton Weight |
18.00kgs / 39.68lb |
| Carton Size |
58cm * 47cm * 43cm / 22.83inch * 18.5inch * 16.93inch |
| Loading Container |
20GP: 227 cartons * 1 pcs = 227 pcs 40HQ: 528 cartons * 1 pcs = 528 pcs
|
|
