Descripción
NoteYou need to disable your antivirus software (including the system built-in one) before installation. If you mind this, please do not purchase.

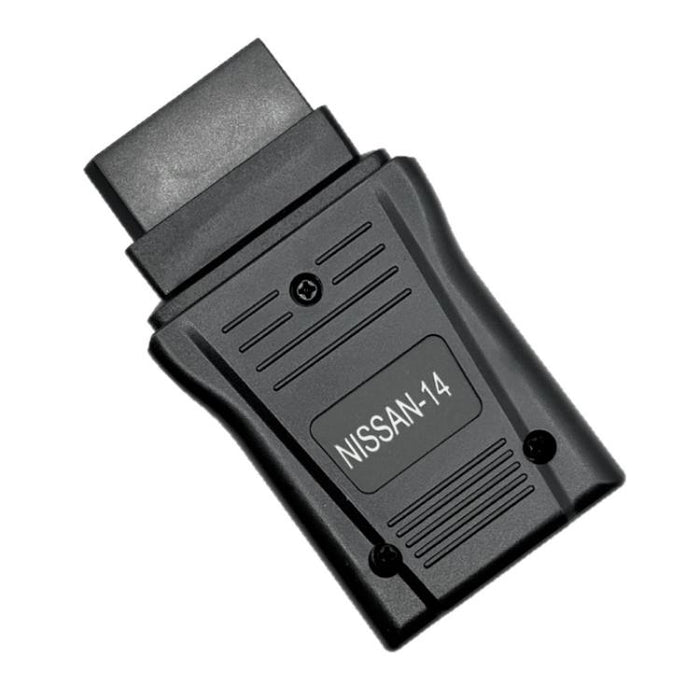

1. Interface fitting for 14 pin diagnostic socket for Nissan vehicles built between 1989 and 2001
- Heavy & robust casing for rough service - Connects to PC via RS232
- LED to control power and clock function
2. DDLreader: DDL reader v.15c / DDL reader v.16c
- ConZult
- ScanTechNissan
- Z-Control
- SRTalk v.1.0
- ZCSetup v.2.0
- ZTalk v.1.1
- Data Scan v.1.4 for Nissan
- Data Scan v.1.51 for Nissan
3. It works on for Nissan cars that have the grey 14pin Consult connector (you will usually find it near the fuse box. These cars were built between 1989 and 2001.
4. Only support WIN 7 (32bit) and XP system
Compatible ModelsThe cars are usually built from year 1989 to 2000. Such as for Cefiro, Sentra, Infinity, Maxima, 300ZX,Z32, 240SX,S13, S14, Skyline, SR20DE, SR20DET, RB20, Altima, and Fairlady.
For R32 Skyline (9/89+ only, first few months from launch in 6/89 did not support consult)
For R33 Skyline
For R34 Skyline
For S13 Silvia / 180SX / 200SX (SR20 engines only, not CA18)
For S14 Silvia / 180SX / 200SX
For S15 Silvia / 180SX / 200SX (check for consult connector)
For Z32 300ZX (except for 96 model which might not work with all software)
For N14 Pulsar (including GTiR)
For N15 Pulsar
For B13 NX Coupe
For K11 Micra (check for plug, some late model may have an OBDII plug instead)
For U12 Pintara (KA24 only)
For U13 Bluebird
For A32 Maxima
For GQ Patrol (TB42E only)
For GU Patrol (TB45E, RD28ETi, TD42Ti - check plug, some TB45E have an OBDII plug instead, as do all ZD30)
For R50 Pathfinder (VG33E, 95-05, check your port as some later models have an OBDII plug instead)
Specification:
| Package Include |
| Package Contents |
1 x Diagnostic Scan Tool
1 x CD Disk
1 x Manual
1 x RS232 Extension Cable |
|
| Package Weight |
| One Package Weight |
0.15kgs / 0.33lb |
| One Package Size |
7cm * 16cm * 4cm / 2.76inch * 6.3inch * 1.57inch |
| Carton Weight |
22.00kgs / 48.50lb |
| Carton Size |
37cm * 34cm * 42cm / 14.57inch * 13.39inch * 16.54inch |
| Loading Container |
20GP: 504 cartons * 100 pcs = 50400 pcs
40HQ: 1171 cartons * 100 pcs = 117100 pcs
|
|
