Waveshare STM8-QFP48, Programmer Adapter

Waveshare STM8-QFP48, Programmer Adapter

Produkt Form

Yamaichi IC Test & Burn-in Socket with a simple board, especially for STM8 microcontroller in QFP48(0.5mm pitch) packageFeatures1. 4-pin SWIM... Lesen Sie mehr

Wholesale Direct Factory Prices (No MOQ). Buy 2 or more units 5% Additional Discount  Expedited Delivery Available! Same day Processing

£41.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Heute verschickt? Bestellung innerhalb: Nov 26, 2025 14:00:00 +0000
    • Shipping calculated at checkout,
    • No hassle returns, 30 days return

    Beschreibung

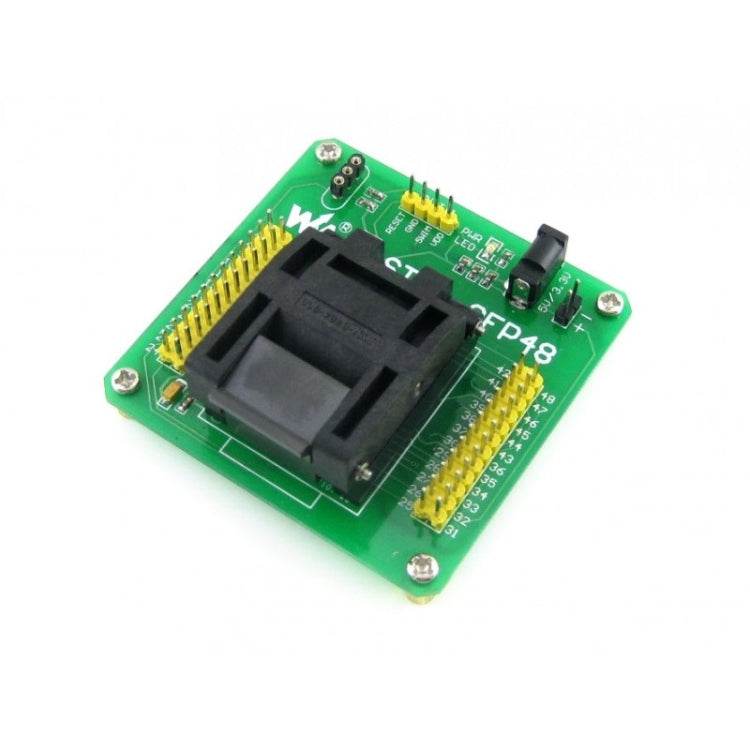

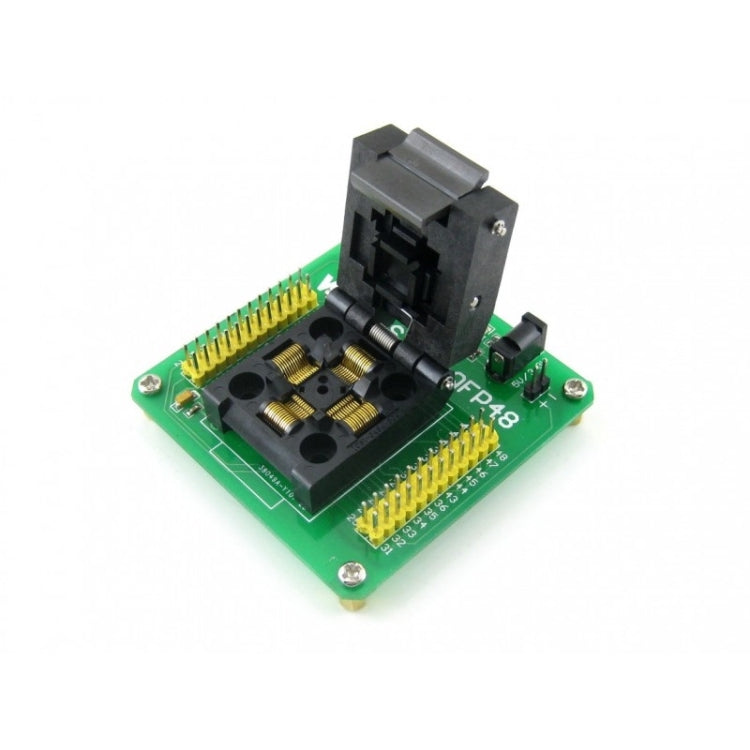

    Yamaichi IC Test & Burn-in Socket with a simple board, especially for STM8 microcontroller in QFP48(0.5mm pitch) package

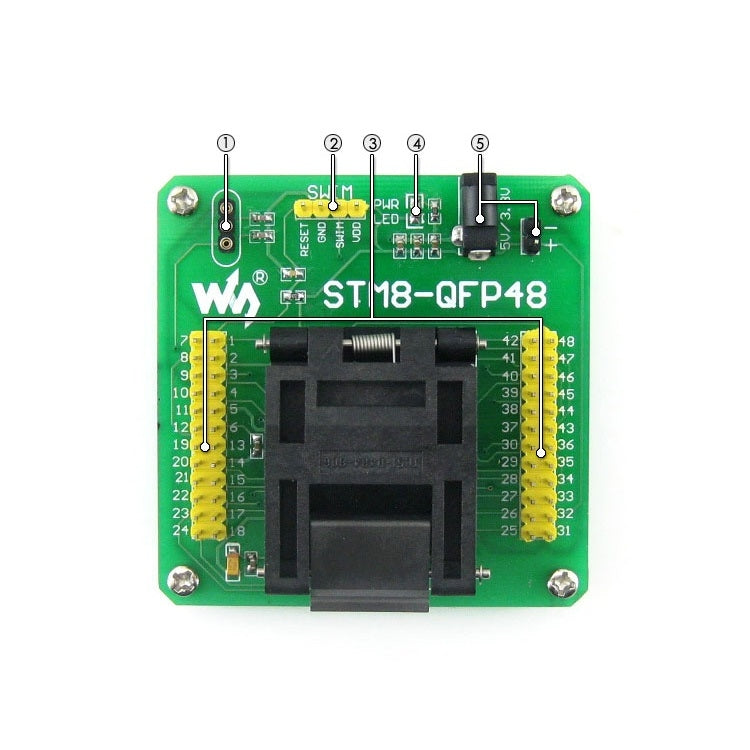

    Features

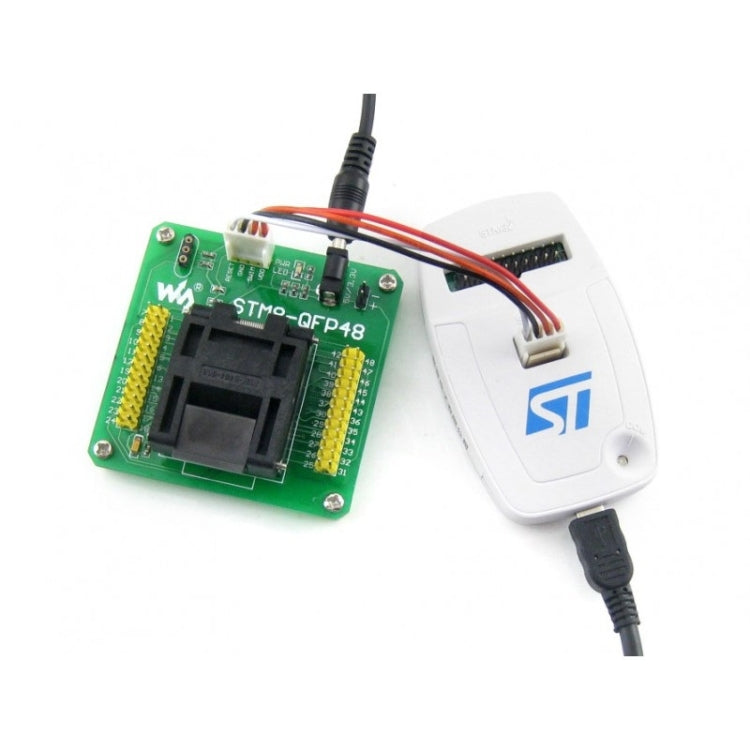

    1. 4-pin SWIM Port for programming or testing
    2. External crystal can be connected via on board socket
    3. All the MCU pins are accessible on expansion connectors

    Supported Devices
    STM8 microcontroller in QFP48(0.5mm pitch) package with compatible pinouts
    - STM8S105CxTx / STM8S207CxTx / STM8S208CxTx
    - STM8AF51x8T / STM8AF52x8T / STM8AF61x8T / STM8AF62x8T

    Package Contents
    1. STM8-QFP48 × 1
    2. USB power cable × 1


    Specification:
    Package Weight
    One Package Weight 0.10kgs / 0.22lb
    One Package Size 10cm * 6cm * 2cm / 3.94inch * 2.36inch * 0.79inch
    Qty per Carton 720
    Carton Weight 15.00kgs / 33.07lb
    Carton Size 60cm * 36cm * 40cm / 23.62inch * 14.17inch * 15.75inch
    Loading Container 20GP: 308 cartons * 720 pcs = 221760 pcs
    40HQ: 716 cartons * 720 pcs = 515520 pcs
