NEJE N40630 7.5W 450nm Laser Engraver Module Kits, N40630

NEJE N40630 7.5W 450nm Laser Engraver Module Kits, N40630

Produkt Form

1.Designed for laser engraver, 3D printer, CNC mill, arduino project.2. 7.5W Optical power output, 4mm plywood from 1 pass(speed 100).3.... Lesen Sie mehr

Expedited Delivery Available! Add to cart for exact shipping info.  Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£71.99

    • Guaranteed secure & safe checkout.

      shop pay
      • We take great care in ensuring that all our products meet quality standards and are packaged securely for safe delivery.
      • No hassle returns, 30 days return

      Beschreibung

      1.Designed for laser engraver, 3D printer, CNC mill, arduino project.

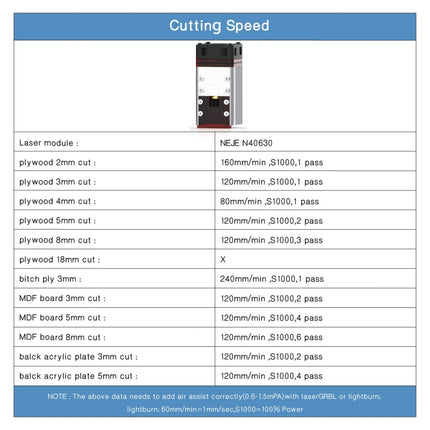

      2. 7.5W Optical power output, 4mm plywood from 1 pass(speed 100).
      3. More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
      4. More Quiet, Intelligent drive adjust the cooling fan speed according to laser temperature.
      5. Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for NEJE laser module.

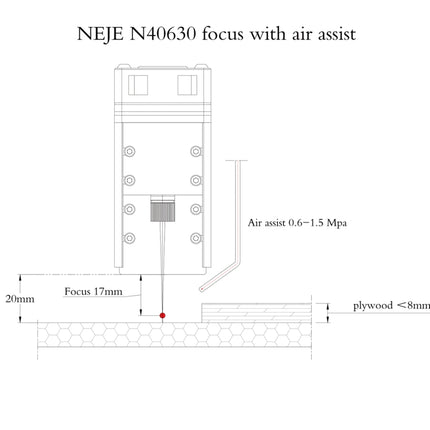

      6. The slidable mounting fixture is provided for easy adjustment of focus.

      Specification

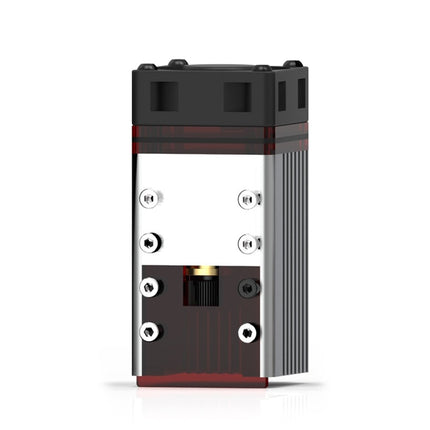

      1. Heatsink Material: Aircraft Aluminum + Brass Shell
      2. Luminous Color: Blue
      3. Section Size: 40mm x 40mm
      4. Cooling Mode: Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
      5. Dimension: 60 x 40 x 40mm
      6. Adapter Plug: 5.5 2.1 port
      7. Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
      8. Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

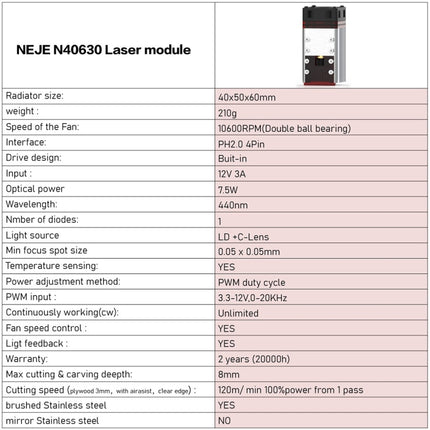

      Technical Parameters
      1. Optical power output: 5.5W~7.5W
      2. Wavelength: 445-450nm
      3. Beam Shape: Dot (Focusable)
      4. Working Voltage: DC 12V
      5. TTL&PWM Modulation: YES, compatible with both TTL & PWM Modulation
      6. Input Voltage: DC12V 3A
      7. PWM/TTL Input: DC3.3V-12V
      8. Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
      9. Drive Mode: External ACC
      10. Safe temperature range: <60 degrees Celsius
      11. Module weight: 202g (The lighter the weight, the smaller the move inertia, the better the performance)
      12. Life Time: 10000-20,000 hours

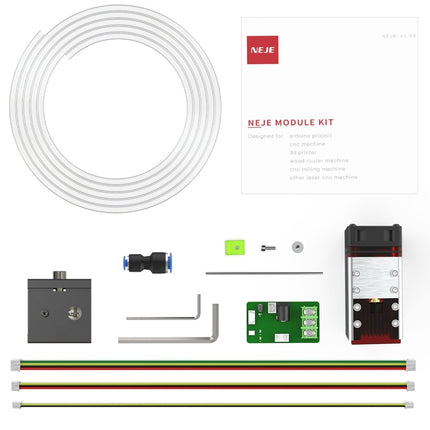

      Package Included
      - 1 x Laser Engraving Module
      - 1 x Laser Module Sliding slot
      - 1 x 4 Pin Cable(32cm Cable)

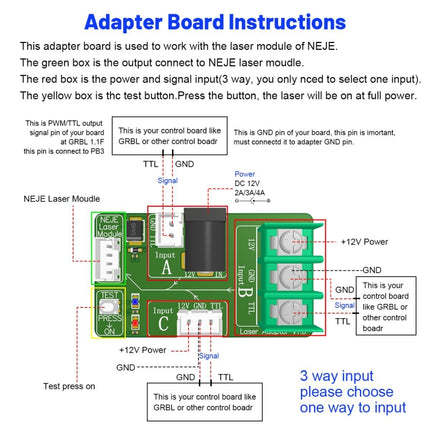

      - 1 x NEJE interface tranfer board
      - 1 x 2.5mm L-shaped wrench
      - 1 x 5mm L-shaped wrench
      - 1 x 3pin input cable


      Specification:
      Package Weight
      One Package Weight 0.50kgs / 1.11lb
      One Package Size 16cm * 10cm * 6cm / 6.3inch * 3.94inch * 2.36inch
      Qty per Carton 50
      Carton Weight 22.00kgs / 48.50lb
      Carton Size 52cm * 34cm * 32cm / 20.47inch * 13.39inch * 12.6inch
      Loading Container 20GP: 471 cartons * 50 pcs = 23550 pcs
      40HQ: 1094 cartons * 50 pcs = 54700 pcs
