XY-LJ02 6-30V Micro USB Digital LCD Display Time Delay Relay Module Control Timer Switch
Features1. With LCD display, the current mode and parameters are clear at a glance, very clear, simple...
- £2.99 GBP
- £2.99 GBP
- Unit price
- per
Please hurry! Only 999999 left in stock
{2% Additional Discount} Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Expedited Delivery?
Find more options at checkout! DHL Express 🚚
Payment Protection
Buy with confidence. All payments are secured by PayPal, Shopify Payments — trusted by millions worldwide. The world's leading payment gateways. Your security is guaranteed, so shop with peace of mind!
Standard Returns. We guarantee safe and secure shopping experience you never have to worry!
Learn More.
Vendor: Mira Sales
XY-LJ02 6-30V Micro USB Digital LCD Display Time Delay Relay Module Control Timer Switch
£2.99
Vendor: Mira Sales
XY-LJ02 6-30V Micro USB Digital LCD Display Time Delay Relay Module Control Timer Switch
£2.99

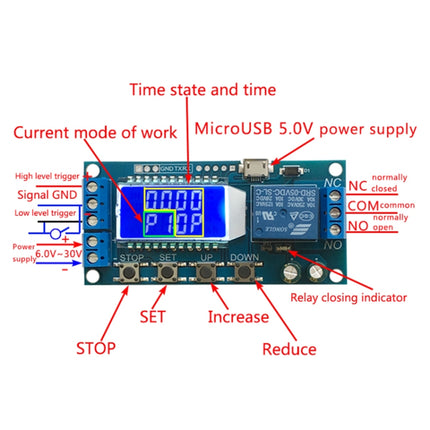

Features
1. With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical.
2. Support high and low level trigger, switch control, suitable for most occasions.
3. Wide voltage power supply (6~30V) supports micro USB 5.0V power supply, which is very convenient to use.
4. Support UART data upload and parameter setting.
5. There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection will not burn.
6. Added sleep mode. After enabling, if there is no operation within 5 minutes, the LCD backlight will be automatically turned off; any key will wake up.
7. Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately.
8. All setting parameters are automatically saved after power off.
Specification
1. Working voltage: 6-30V, support micro USB 5.0V power supply
2. Trigger signal source: high level trigger (3.0V~24V), low level trigger (0.0V~0.2V), switch control (passive switch).
3. Output capability: can control equipment within DC 30v 5A or AC 220v 5A
4. Quiescent current: 15mA Working current: 50mA
5. Working temperature: -40a??85 degrees Celsius
6. With optocoupler isolation, enhance anti-interference ability, industrial-grade circuit board, set parameters will be remembered forever after power off

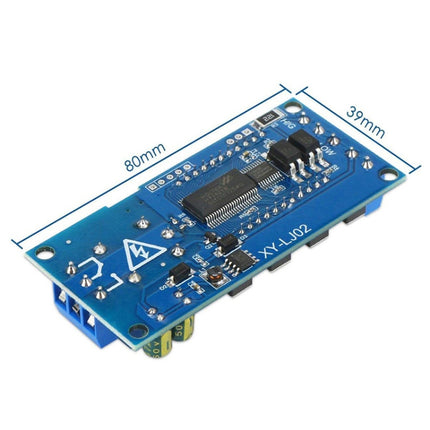

7. Size: 8.0x3.8x1.9cm
8. Weight: about 36g
1. With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical.
2. Support high and low level trigger, switch control, suitable for most occasions.
3. Wide voltage power supply (6~30V) supports micro USB 5.0V power supply, which is very convenient to use.
4. Support UART data upload and parameter setting.
5. There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection will not burn.
6. Added sleep mode. After enabling, if there is no operation within 5 minutes, the LCD backlight will be automatically turned off; any key will wake up.
7. Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately.
8. All setting parameters are automatically saved after power off.
Specification
1. Working voltage: 6-30V, support micro USB 5.0V power supply
2. Trigger signal source: high level trigger (3.0V~24V), low level trigger (0.0V~0.2V), switch control (passive switch).
3. Output capability: can control equipment within DC 30v 5A or AC 220v 5A
4. Quiescent current: 15mA Working current: 50mA
5. Working temperature: -40a??85 degrees Celsius
6. With optocoupler isolation, enhance anti-interference ability, industrial-grade circuit board, set parameters will be remembered forever after power off
7. Size: 8.0x3.8x1.9cm
8. Weight: about 36g
Specification:
| Package Weight |
|
