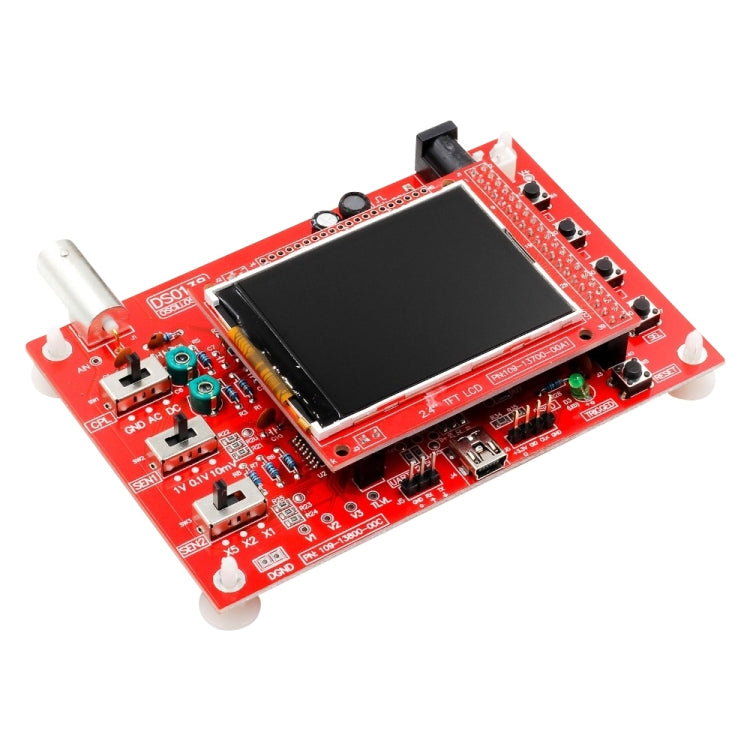

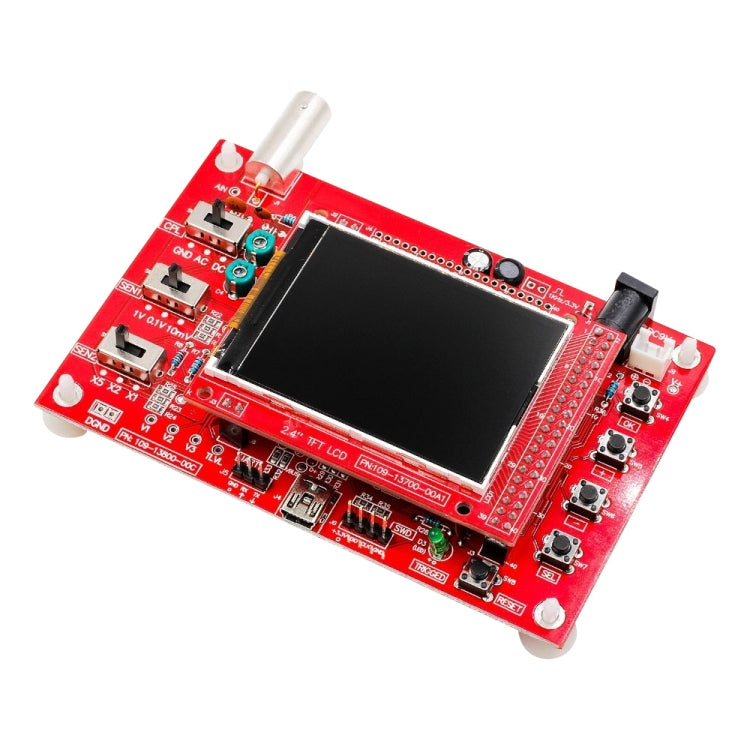

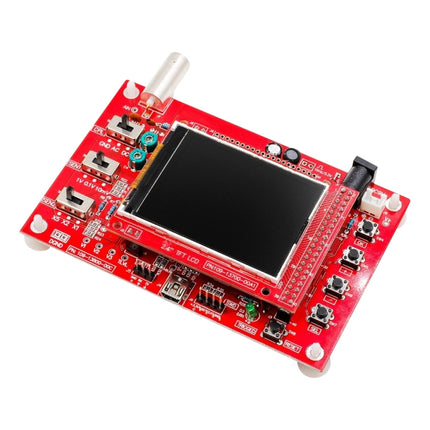

DSO138 Oscilloscope (Full Assembled)

Features:1. This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can...
Vendor: Mira Sales
Availability: In stock
Product type: Consumer Electronics
Ā£9.99 GBP
Ā£9.99 GBP
Please hurry! Only 999999 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product
  • Mira Sales
  • Mira Sales
  • Mira Sales
Order within the next hours minutes to receive it. Estimated delivery is between and .

⚔ Same Day Order Processing. Enjoy same-day shipping on all orders placed before 6 PM

🚚 Expedited Shipping available at checkout. Cost-effective shipping solutions. Guaranteed Delivery: Benefit from our fully tracked service.

Buy with confidence

All payments are secured by PayPal, Shopify Payments — trusted by millions worldwide. The world's leading payment gateways. Your security is guaranteed, so shop with peace of mind!

90 days Standard Returns.

Learn More.

WHOLESALE PRICE FOR EVERYONEĀ [POV]

āœ… Simplified Buying Process
āœ…Direct Sourcing Benefits: Our ability to offer wholesale rates often stems from direct sourcing, cutting out intermediary costs and passing those savings directly to you.
āœ…Why pay more when you can save like a pro?
āœ… Pay the same low price as wholesale buyers. Take advantage of wholesale rates!
āœ… Maximize Value: Get more for your money by purchasing at wholesale prices.
āœ… Excellent value for your money!
āœ… Up to 85% cheaper than leading platforms like eBay and Amazon.!!
šŸ’° Compare Pricing First – See the Difference!
šŸ›ļø Before you buy elsewhere, take a moment to check our prices — you might be surprised by how much you can save!
āœ…Transparency in Pricing: Our clear pricing structure, highlighting the savings compared to major platforms, ensures transparency and builds trust.
āœ… Quality Assurance: Meet high-quality standards

#WholesalePrice #ShopSmart #NoMinimumOrder
DSO138 Oscilloscope (Full Assembled)

Vendor: Mira Sales

DSO138 Oscilloscope (Full Assembled)

Ā£9.99

Vendor: Mira Sales

DSO138 Oscilloscope (Full Assembled)

Ā£9.99
    Features:
    1. This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
    2. Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
    3. Adjustable vertical displacement, and with instructions.
    4. With automatic, regular and one-shot modes, easy to capture the moment waveform.
    5. Available rising or falling edge trigger.
    6. Observable previous trigger waveform (negative delay).
    7. Can freeze at any time waveform display (HOLD function).
    8. Come 1Hz /3.3V square wave test signal source.

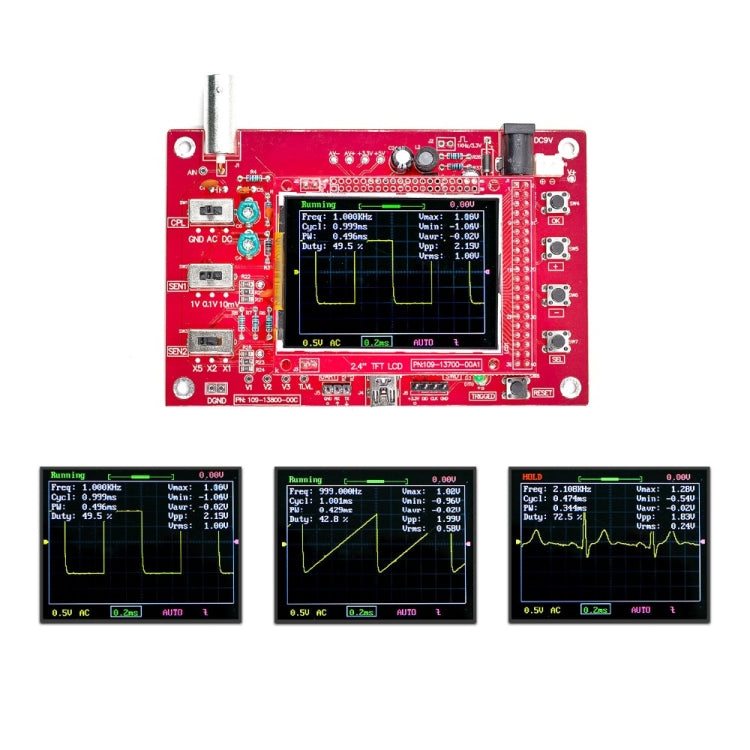

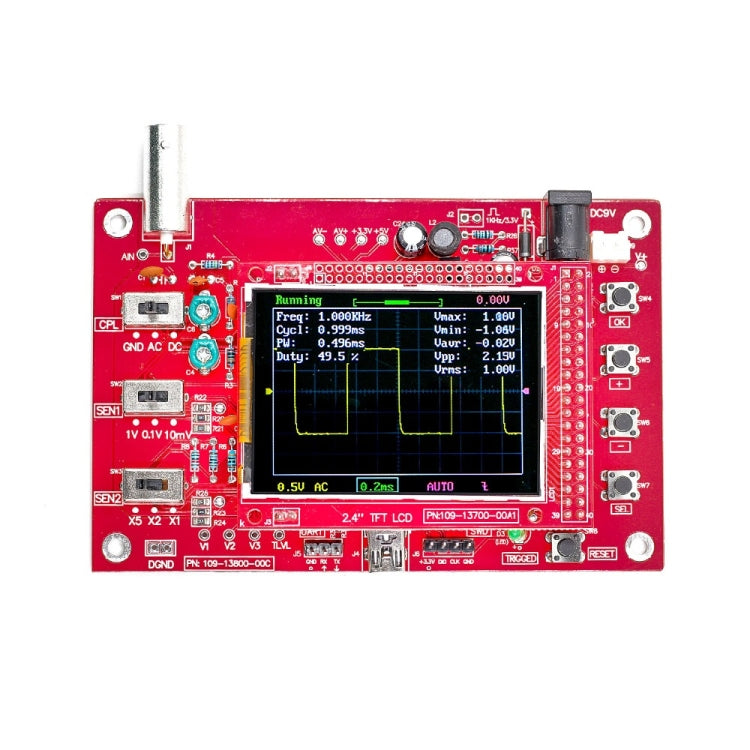

    9. With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
    10. Waveform storage function: will not lose the waveform after power off.
    11. Short-circuit and open-circuit detection: can help the user find out the soldering error.
    12. TFT controller recognition function.

    Note:
    This DIY kit is soldered.

    Specifications:
    1. Maximum Real-time Sampling Rate: 1Msps
    2. Accuracy: 12Bit
    3. Sampling Buffer Depth: 1024 bytes
    4. Analog Bandwidth: 0-200KHz
    5. Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
    6. Input Impedance: 1Mohm
    7. Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
    8. Coupling Modes: DC / AC / GND
    9. The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
    10. Supply Voltage: DC 9V

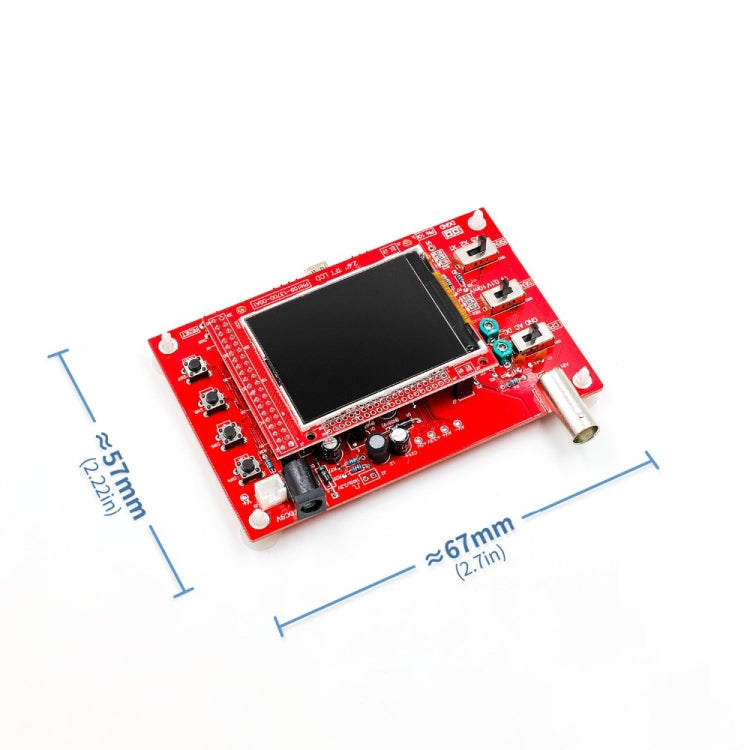

    11. PCB Size: 117 * 76mm / 4.6 * 3in
    12. Screen Size: 52 * 40mm / 2 * 1.57in

    Package List:
    - 1 * DSO138 soldered Oscilloscope Kit
    - Soldering
    - 1 * Probe
    - 3 * User Manual(English)

    Specification:
    Package Weight
    One Package Weight 0.15kgs / 0.33lb
    One Package Size 20cm * 13cm * 3cm / 7.87inch * 5.12inch * 1.18inch
    Qty per Carton 116
    Carton Weight 15.00kgs / 33.07lb
    Carton Size 30cm * 50cm * 50cm / 11.81inch * 19.69inch * 19.69inch
    Loading Container 20GP: 355 cartons * 116 pcs = 41180 pcs
    40HQ: 825 cartons * 116 pcs = 95700 pcs
