TTGO T-SIM7000G ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board, T-SIM7000G
Product Description Hardware Specifications: 1. Main chip: ESP32 2. Module: ESP32-WROVER-B,SIM7000G 3. Interface:USB,SD Card,Solar Input interface 4....
- £45.99 GBP
- £45.99 GBP
- Unit price
- per
Please hurry! Only 999999 left in stock
{2% Additional Discount} Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Expedited Delivery?
Find more options at checkout! DHL Express 🚚
Payment Protection
Buy with confidence. All payments are secured by PayPal, Shopify Payments — trusted by millions worldwide. The world's leading payment gateways. Your security is guaranteed, so shop with peace of mind!
Standard Returns. We guarantee safe and secure shopping experience you never have to worry!
Learn More.
Vendor: TTGO
TTGO T-SIM7000G ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board, T-SIM7000G
£45.99
Vendor: TTGO
TTGO T-SIM7000G ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board, T-SIM7000G
£45.99
Product Description Hardware Specifications:
1. Main chip: ESP32
2. Module: ESP32-WROVER-B,SIM7000G

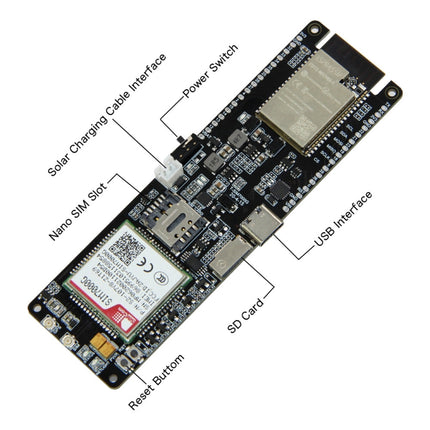

3. Interface:USB,SD Card,Solar Input interface
4. Flash Memory: 4M Flash / 8M PSRAM
5. Button: Reset,Power switch
6. USB to TTL: CP2104
7. Car Clock: 40MHz
8. SIM Card Size: Nano SIM Card

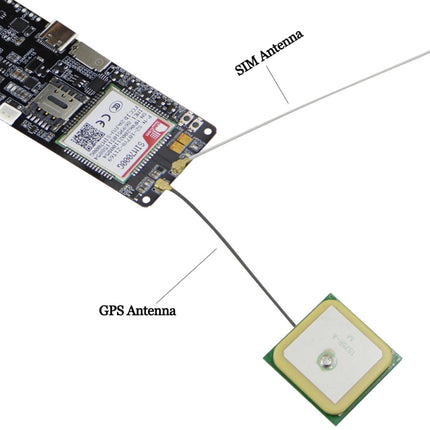

9. SIM Antenna
10. GPS Antenna
11. Operating Temperature Range: -40-85 degrees

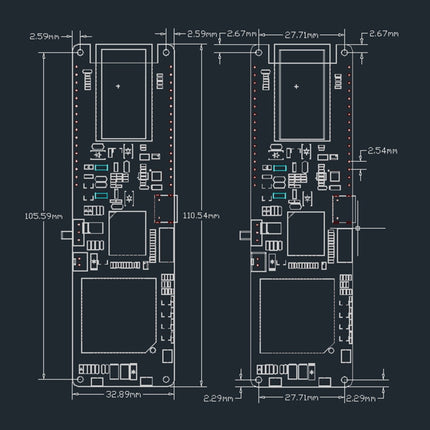

12. Product Size: 111mm x 37mm x 20mm
13. Product Weight: 50g
Power Specifications:
1. Working Voltage: 5V input

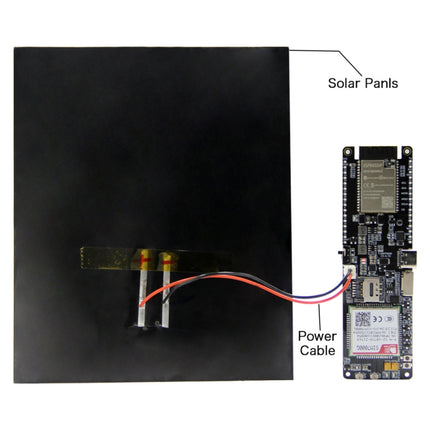

2. Solar input voltage range???4.4-6V
3. Working Curent: About 200mA
4. Charging Current: 780mA
5. Battery Model: 18650
6. Battery Holder Model: 18650 battery holder
7. JST Connector: 2pin 2mm
8. USB: TYPE-C 3.0
Wi-Fi:
1. Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
2. Protocol: 802.11 b/g/n(802.11n???speed up to150Mbps)A-MPDU and A-MSDU polymerization???support 0.4??S Protection interval
3. Frequency: range 2.4GHz~2.5GHz(2400M~2483.5M)
4. Transmit Power: 22dBm
5. Communication distance: 300m
Bluetooth:
1. Protocol meet Bluetooth : v4.2BR/EDR and BLE standard
2. Radio Frequency : with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH
3. Audio Frequency : CVSD&SBC audio frequency
Software Specification:
1. Wi-Fi Mode : Station/SoftAP/SoftAP+Station/P2P
2. Security Mechanism : WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption Type : AES/RSA/ECC/SHA
4. Firmware Upgrade :UART download/OTA???Through network/host to download and write firmware???
5. Software Development : Support cloud server development /SDK for user firmware development
6. Networking Protocol : IPV4, IPV6, SSL, TCP/UDP/HTTP/FTP/MQTT
7. User Configuration : AT + Instruction set, cloud server, Android/iOS APP
8. OS : FreeRTOS
Version update function:
1. The batterys positive and negative poles are connected to the wrong protection, overcharge and over discharge protection
2. GPS power control, reduce power consumption, the lowest reaches 300uA when sleeping
3. Replacement of ordinary charging IC with solar charging IC
1. Main chip: ESP32
2. Module: ESP32-WROVER-B,SIM7000G
3. Interface:USB,SD Card,Solar Input interface
4. Flash Memory: 4M Flash / 8M PSRAM
5. Button: Reset,Power switch
6. USB to TTL: CP2104
7. Car Clock: 40MHz
8. SIM Card Size: Nano SIM Card
9. SIM Antenna
10. GPS Antenna
11. Operating Temperature Range: -40-85 degrees
12. Product Size: 111mm x 37mm x 20mm
13. Product Weight: 50g
Power Specifications:
1. Working Voltage: 5V input
2. Solar input voltage range???4.4-6V
3. Working Curent: About 200mA
4. Charging Current: 780mA
5. Battery Model: 18650
6. Battery Holder Model: 18650 battery holder
7. JST Connector: 2pin 2mm
8. USB: TYPE-C 3.0
Wi-Fi:
1. Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
2. Protocol: 802.11 b/g/n(802.11n???speed up to150Mbps)A-MPDU and A-MSDU polymerization???support 0.4??S Protection interval
3. Frequency: range 2.4GHz~2.5GHz(2400M~2483.5M)
4. Transmit Power: 22dBm
5. Communication distance: 300m
Bluetooth:
1. Protocol meet Bluetooth : v4.2BR/EDR and BLE standard
2. Radio Frequency : with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH
3. Audio Frequency : CVSD&SBC audio frequency
Software Specification:
1. Wi-Fi Mode : Station/SoftAP/SoftAP+Station/P2P
2. Security Mechanism : WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption Type : AES/RSA/ECC/SHA
4. Firmware Upgrade :UART download/OTA???Through network/host to download and write firmware???
5. Software Development : Support cloud server development /SDK for user firmware development
6. Networking Protocol : IPV4, IPV6, SSL, TCP/UDP/HTTP/FTP/MQTT
7. User Configuration : AT + Instruction set, cloud server, Android/iOS APP
8. OS : FreeRTOS
Version update function:
1. The batterys positive and negative poles are connected to the wrong protection, overcharge and over discharge protection
2. GPS power control, reduce power consumption, the lowest reaches 300uA when sleeping
3. Replacement of ordinary charging IC with solar charging IC
Specification:
| Package Weight |
|
