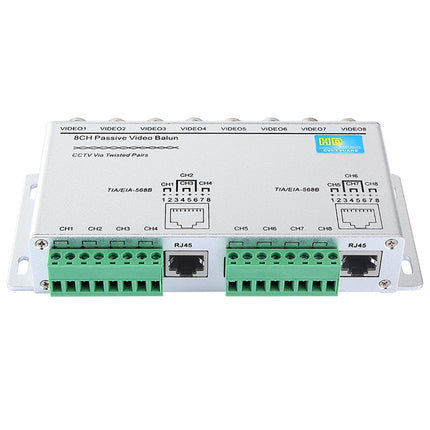

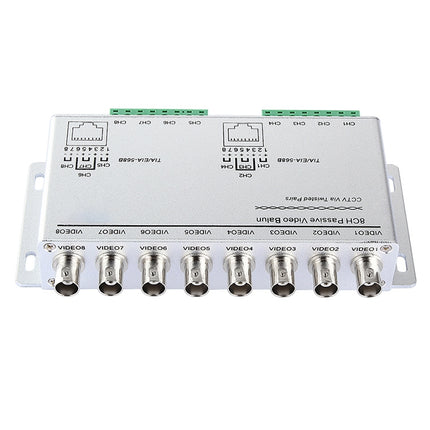

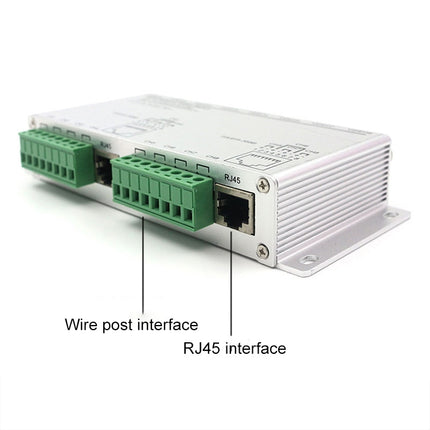

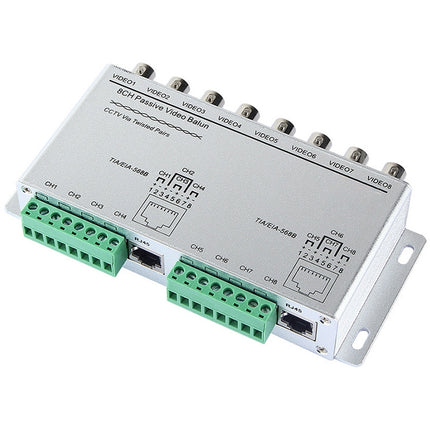

8 Channel Passive UTP Video Balun

8 Channel Passive UTP Video Balun

Product form

Description: 1) Adopt differental signal transmissin with excellentanti-jamming ability 2) Save project wire expenses, each a pair of twisted pair... Read more

🔥 Buy 2+ units 5% Discount. Expedited Delivery Available!  Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£9.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Why pay retails? Everyone deserves wholesale - even for 1 unit. Save like a pro
    • Wholesale pricing for everyone - no min
    • Buy at wholesale price(s) | Money saved vs marketplaces
    • Dedicated Account Manager
    • Bulk pricing - for large enquiries

    Description

    Description:

    1) Adopt differental signal transmissin with excellentanti-jamming ability

    2) Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit of video signal

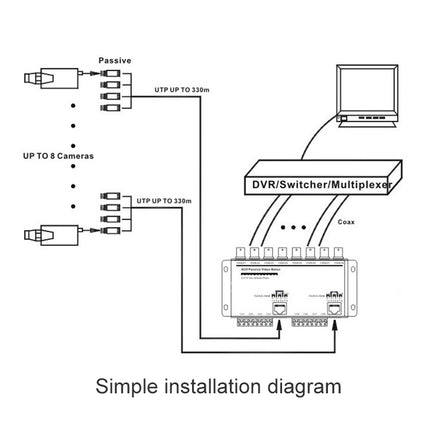

    3) Full-motion CCTV video at distances up to 330m when used with any passive UTP video transceiver

    4) Up to 1500m with any active UTP video receiver

    5) No power required

    6) Built-in transient suppression protection

    Technical Specification:

    1) Frequency response: DC-8MHz

    2) CMRR (Common Mode Rejection Ratio): 60DB

    3) Impedance: BNC ternimal: 75Ω, Connection terminal: 100Ω

    4) Working temperature: -10°C - 70°C

    5) Storage temperature: -30°C - 70°C

    6) Applicable to NTSC, PAL, SECAM, and CCIR systems.

    7) Power supply: DC 12V (Max: 50mA)

    8) Characteristic impedance: 100Ω ± 20Ω

    9) DC loop resistance: 18Ω/100m

    10) Differential capacitance: 62pf/m (maximum)

    11) Size: 157x65x29mm

    12) Weight: 167g
    Specification:
    Package Weight
    One Package Weight 0.35kgs / 0.78lb
    Qty per Carton 24
    Carton Weight 9.20kgs / 20.28lb
    Carton Size 40cm * 30cm * 30cm / 15.75inch * 11.81inch * 11.81inch
    Loading Container 20GP: 740 cartons * 24 pcs = 17760 pcs
    40HQ: 1719 cartons * 24 pcs = 41256 pcs
