12V Protected Start Delay Relay Module, 12V

12V Protected Start Delay Relay Module, 12V

Product form

1. Power supply current: 10A2. Power supply voltage: 12v/24v3. Use: Time delay4. Module to achieve a certain time delay after... Read more

Expedited Delivery Available! Add to cart for exact shipping info.  Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£4.99 £1.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Dec 07, 2025 14:00:00 +0000
    • We take great care in ensuring that all our products meet quality standards and are packaged securely for safe delivery.
    • No hassle returns, 30 days return

    Description


    1. Power supply current: 10A
    2. Power supply voltage: 12v/24v
    3. Use: Time delay

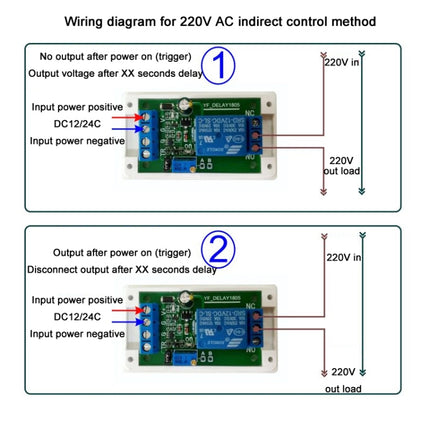

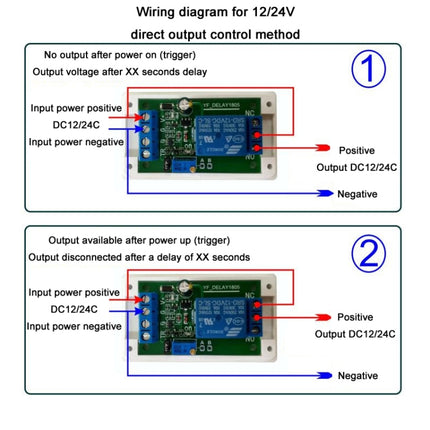

    4. Module to achieve a certain time delay after power on and then output voltage / or off output
    5. Delay time 1~120 seconds adjustable, can be used for car recorder delay on, faucet after the water delay off and other applications
    6. With power supply reverse protection, reverse connection will not burn
    7. With repeat trigger button interface, can be connected to a button to achieve re-trigger the delay time, without the need to re-power

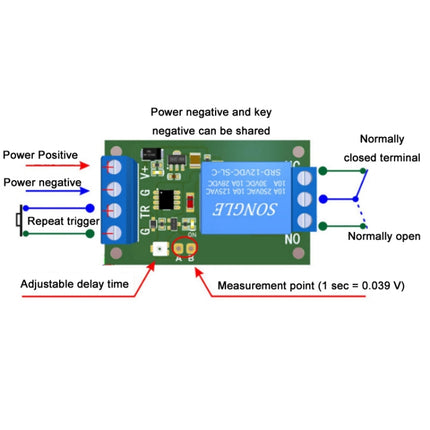

    8. To adjust the delay time: the module is connected to the power supply, using a multimeter voltage class to measure the voltage value of the two points AB, every 0.039V for 1 second. For example, to adjust to 15 seconds, it is 0.039Vx15 = 0.58V, after adjusting the charging power off and then power on test, if the time value meets the requirements, the normal use of the module can be (default factory value of 1 minute)
    9. Repeated triggering without power: If the application requires repeated triggering without power, a self-resetting button can be attached to the TR and G terminals of the board, and the module will repeat the delayed action once after each press of the button and release.
    10. Dimensions: 52.8x32x18mm


    Specification:
    Package Weight
    One Package Weight 0.08kgs / 0.19lb
    One Package Size 7cm * 4cm * 3cm / 2.76inch * 1.57inch * 1.18inch
    Qty per Carton 356
    Carton Weight 30.00kgs / 66.14lb
    Carton Size 49cm * 28cm * 21cm / 19.29inch * 11.02inch * 8.27inch
    Loading Container 20GP: 925 cartons * 356 pcs = 329300 pcs
    40HQ: 2148 cartons * 356 pcs = 764688 pcs
