WAVESHARE GNSS L1+L2+L5 Multi-Satellite Multi-Frequency Four-Wire Helical Active Precision Positioning Antenna, Q25, Q39

WAVESHARE GNSS L1+L2+L5 Multi-Satellite Multi-Frequency Four-Wire Helical Active Precision Positioning Antenna, Q25, Q39

Forma del producto

1. Connector type: SMA Inner Pin2. Protection rating: IP673. Four-wire helical antenna for GNSS, featuring high gain and wide circular... Leer más...

🔥 Why Pay Retail? Save Up to 45% with Wholesale Pricing  🔥 Why Pay Retail? Save Up to 45% with Wholesale Pricing
Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£16.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Why pay retails? Everyone deserves wholesale - even for 1 unit. Save like a pro
    • Wholesale pricing for everyone - no min
    • Buy at wholesale price(s) | Money saved vs marketplaces
    • Dedicated Account Manager
    • Bulk pricing - for large enquiries

    Descripción

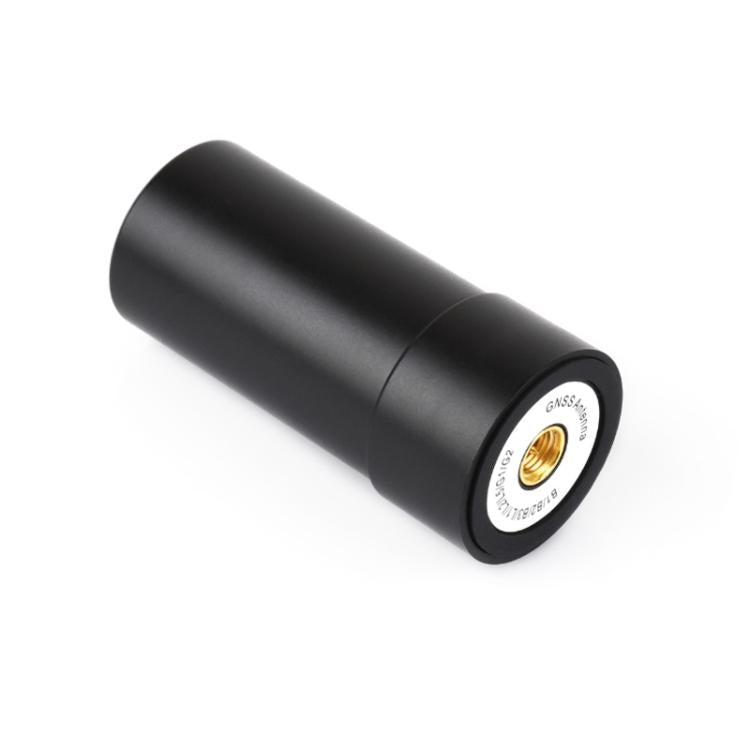

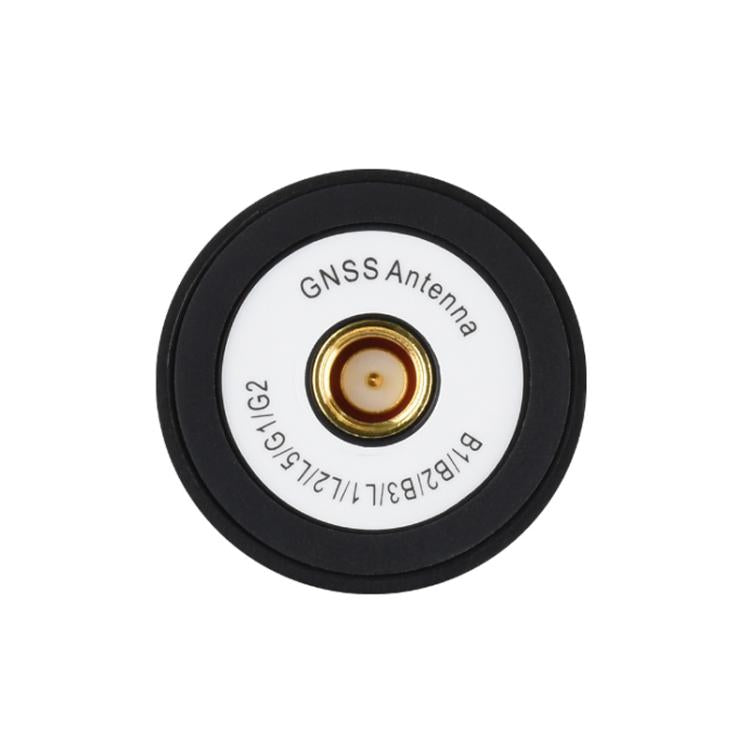

    1. Connector type: SMA Inner Pin
    2. Protection rating: IP67
    3. Four-wire helical antenna for GNSS, featuring high gain and wide circular polarization coverage angle
    4. Receives more low-elevation satellite signals, improving positioning performance; suitable for smart home, smart agriculture, and high-precision map applications
    5. Four-wire helical structure with wide circular polarization coverage angle, enhancing low-elevation satellite signal reception capability
    6. High gain, low noise figure design, supports multi-frequency, multi-system GNSS signal reception
    7. Small size, lightweight, flexible installation, suitable for various devices and applications
    8. Uses SMA interface, supports RF transmission and coaxial DC bias feeding function
    9. Meets IP67 protection requirements, suitable for long-term stable operation in outdoor environments

    Antenna characteristics
    1. Frequency range:
    - GPS: L1/L2/L5
    - BDS: B1/B2a/B2b/B3i
    - GLONASS: G1/G2
    - Galileo: E1/E5a/E5b
    2. Antenna gain: Q25 2dB; Q39 2.5dBi
    3. Characteristic impedance: 50Ω
    4. Polarization: RHCP (Right-hand circular polarization)
    5. Coverage angle: 360 degrees

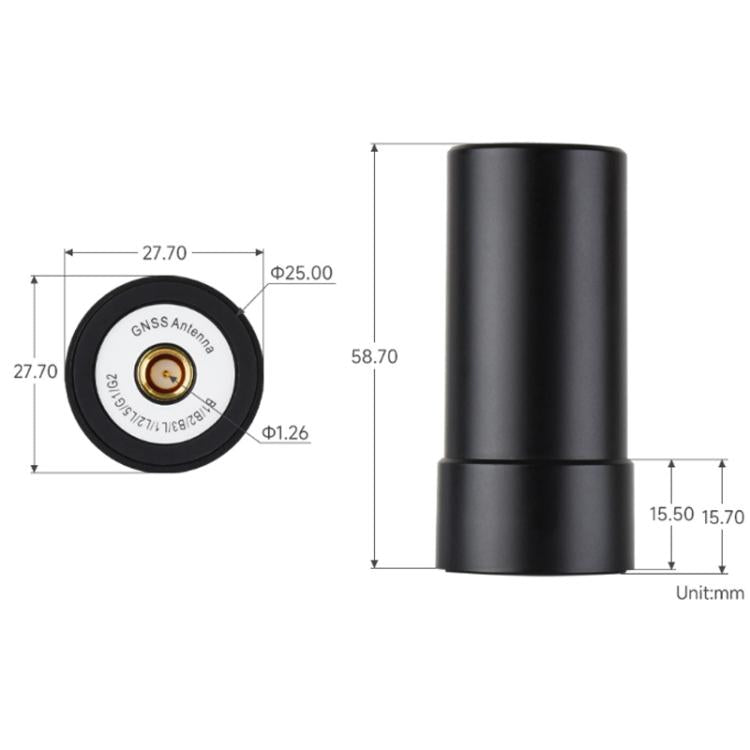

    6. Dimensions: Q25 58.70 x 27.70 mm; Q39 40.80 x 44.30 mm

    Amplifier characteristics
    1. Gain: Q25 37dB; Q39 28dB
    2. Noise figure: 1.5dB
    3. Operating voltage: Q25 3.3V ~ 16V DC; Q39 3.0V ~ 16V DC
    4. Operating current: Q25 13mA; Q39 15mA
    Specification:
    Package Weight
    One Package Weight 0.08kgs / 0.19lb
    One Package Size 8cm * 8cm * 5cm / 3.15inch * 3.15inch * 1.97inch
    Qty per Carton 144
    Carton Weight 12.70kgs / 28.00lb
    Carton Size 50cm * 34cm * 32cm / 19.69inch * 13.39inch * 12.6inch
    Loading Container 20GP: 490 cartons * 144 pcs = 70560 pcs
    40HQ: 1137 cartons * 144 pcs = 163728 pcs
