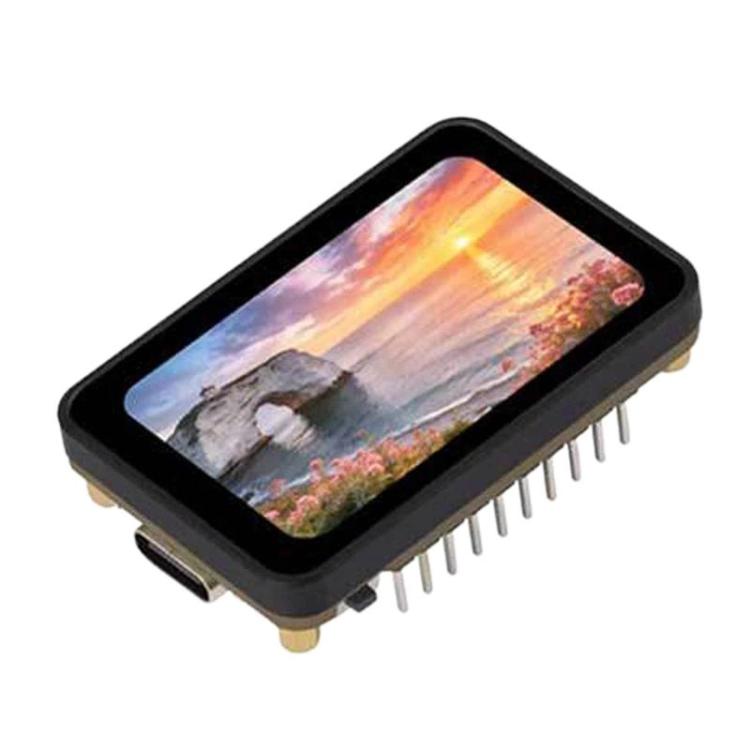

Waveshare ESP32-C6 1.64 Inch AMOLED Touch Display Development Board, 280 X 456 Resolution, Supports Wi-Fi 6 And BLE 5, Not Welded, Welded

Waveshare ESP32-C6 1.64 Inch AMOLED Touch Display Development Board, 280 X 456 Resolution, Supports Wi-Fi 6 And BLE 5, Not Welded, Welded

Forma del producto

1. Equipped with a high-performance RISC-V 32-bit processor and a low-power RISC-V 32-bit processor, the high-performance processor has a clock... Leer más...

🔥 Why Pay Retail? Save Up to 45% with Wholesale Pricing  🔥 Why Pay Retail? Save Up to 45% with Wholesale Pricing
Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£24.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Why pay retails? Everyone deserves wholesale - even for 1 unit. Save like a pro
    • Wholesale pricing for everyone - no min
    • Buy at wholesale price(s) | Money saved vs marketplaces
    • Dedicated Account Manager
    • Bulk pricing - for large enquiries

    Descripción

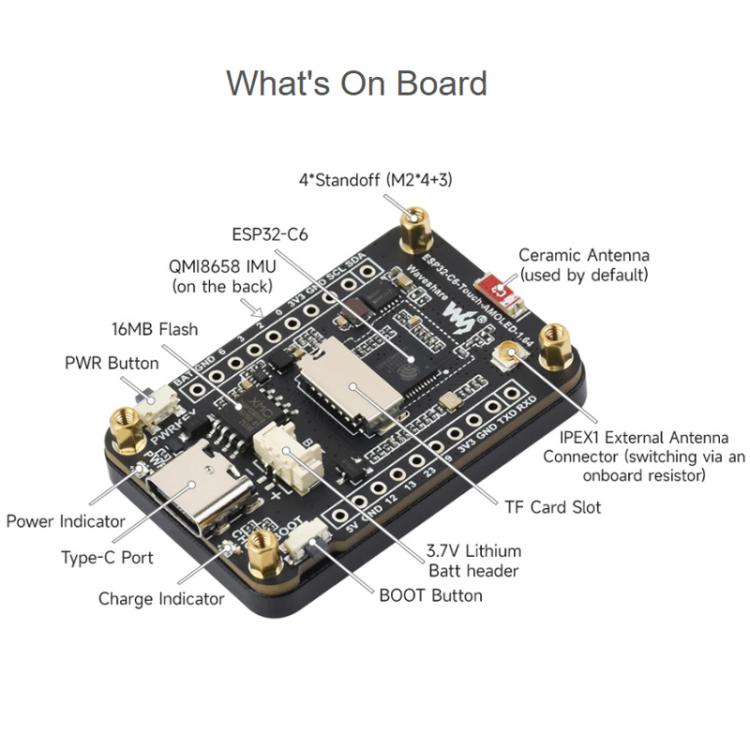

    1. Equipped with a high-performance RISC-V 32-bit processor and a low-power RISC-V 32-bit processor, the high-performance processor has a clock speed up to 160 MHz, while the low-power processor can reach up to 20 MHz
    2. Integrated with Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, it has excellent radio frequency performance. 3. The board is equipped with an internal antenna and reserved solder pads, allowing it to be configured as an external antenna
    4. Onboard 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and an external 16MB Flash

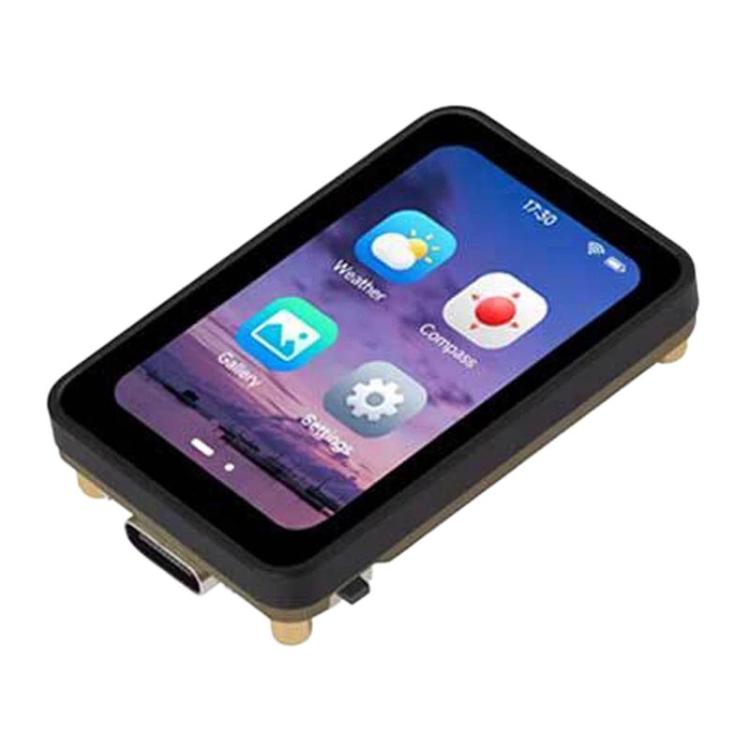

    5. Onboard a 1.64-inch AMOLED capacitive touch screen with a resolution of 280 x 456 and 16.7M color

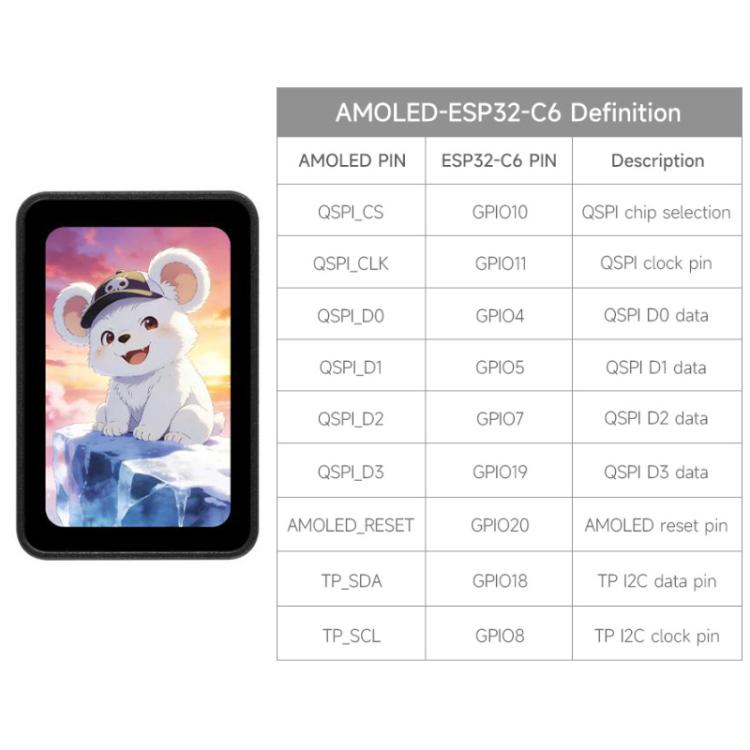

    6. The AMOLED screen uses the QSPI interface for display, and the capacitive touch uses the I2C interface
    7. Onboard a QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), which can detect motion posture and count steps, etc
    8. Onboard PWR and BOOT side buttons, BOOT supports custom key functions, making development more flexible
    9. Onboard a 3.7V MX1.25 lithium battery charging and discharging interface
    10. Onboard a Micro SD card slot, allowing external SD card storage for pictures or files
    11. Onboard a USB Type-C interface, which can be used for power supply and download debugging, facilitating development

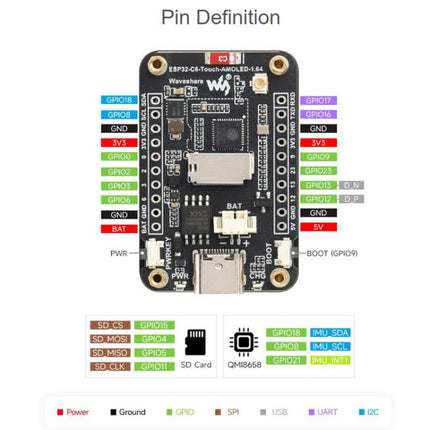

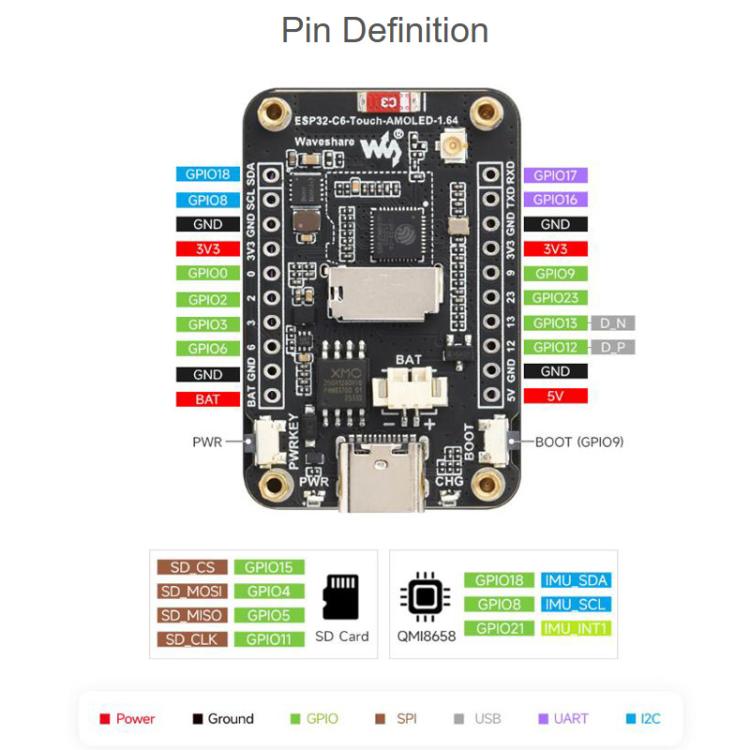

    12. Exposed I2C, UART, and USB pins, available for external devices and debugging, allowing flexible configuration of peripheral functions
    13. The screen adopts a CNC processing structure with edge bonding, featuring a delicate and soft texture, and overall beauty and durability

    AMOLED screen parameters
    1. Display panel: AMOLED
    2. Display resolution: 280 x 456 pixels
    3. Display brightness: 350 cd/square meter
    4. Communication interface: QSPI
    5. Touch: supported
    6. Display size: 1.64 inches
    7. Display colors: 16.7M
    8. Contrast ratio: 60000:1

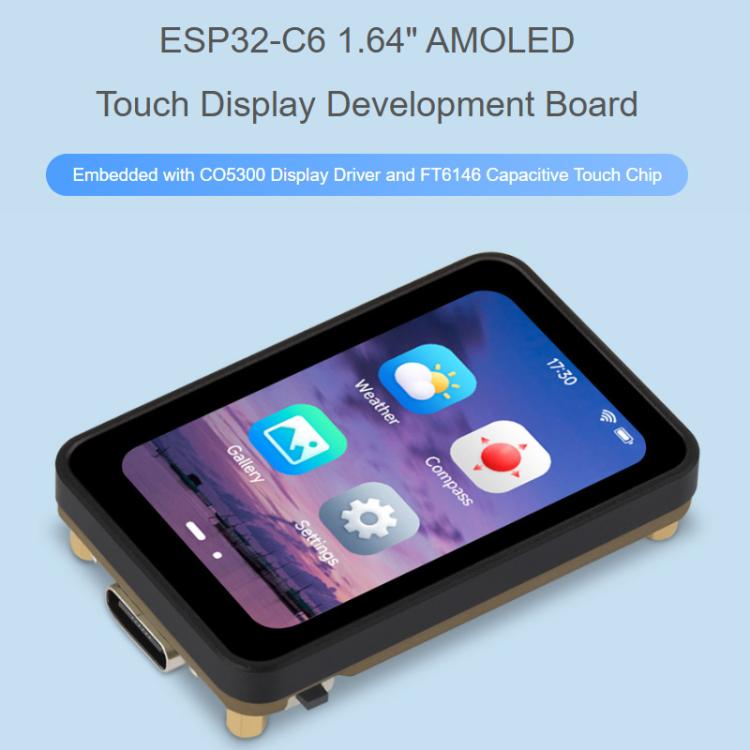

    9. Driving IC: CO5300
    10. Touch IC: FT6146
    Specification:
    Package Weight
    One Package Weight 0.03kgs / 0.07lb
    One Package Size 8cm * 6cm * 4cm / 3.15inch * 2.36inch * 1.57inch
    Qty per Carton 288
    Carton Weight 10.00kgs / 22.05lb
    Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
    Loading Container 20GP: 412 cartons * 288 pcs = 118656 pcs
    40HQ: 958 cartons * 288 pcs = 275904 pcs
