Descripción
1. 5G standard: 3GPP Release 16
2. Chipset solution: Qualcomm Snapdragon X62
3. LTE: 1.6Gbps (DL) / 200Mbps (UL)
4. HSPA+: 42Mbps (DL) / 5.76Mbps (UL)

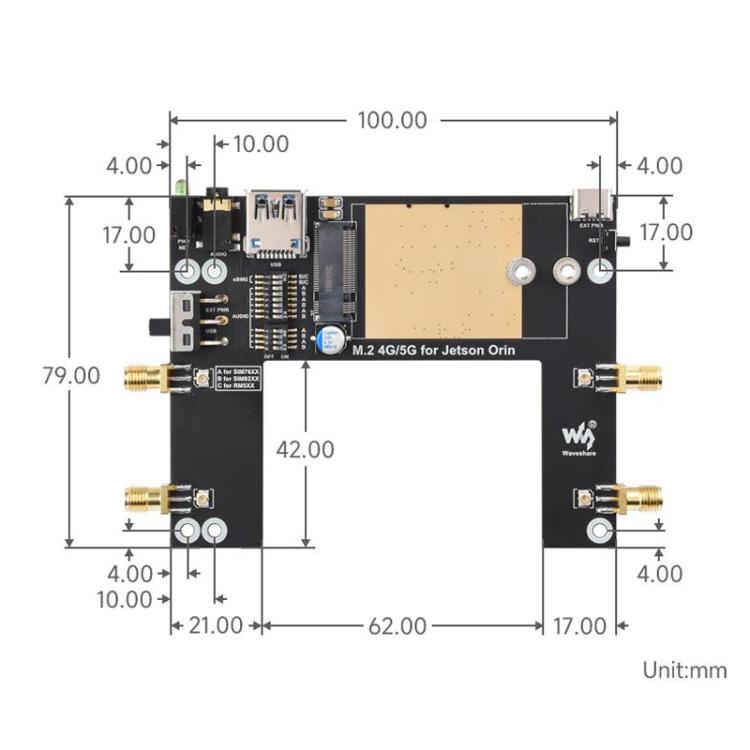

5. Size: about 10 x 7.9cm
Features:

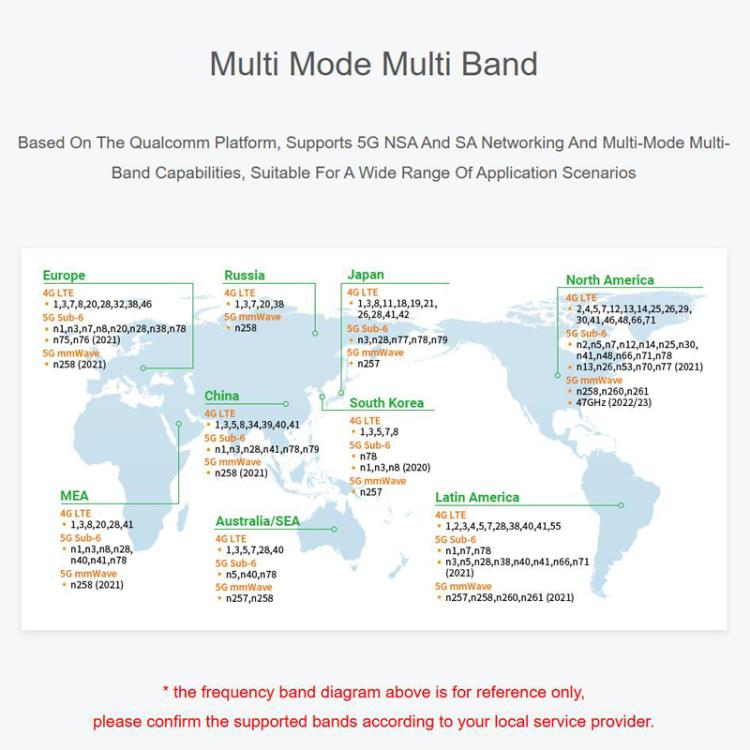

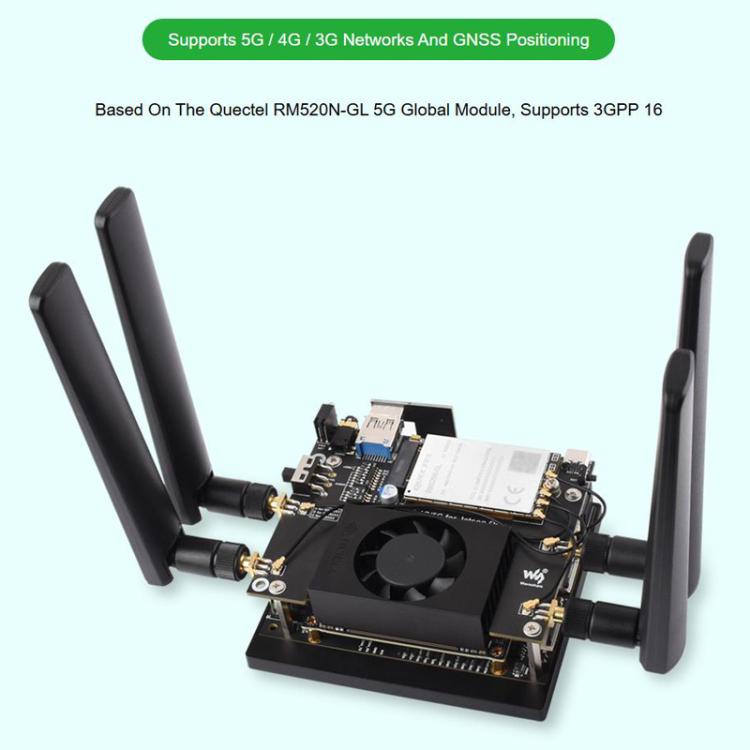

1. Based on Qualcomm platform, supports 5G NSA and SA networking, with multi-mode and multi-band capabilities
2. Integrated dual-frequency positioning across multiple satellite constellations: GPS, GLONASS, BeiDou, Galileo, and QZSS

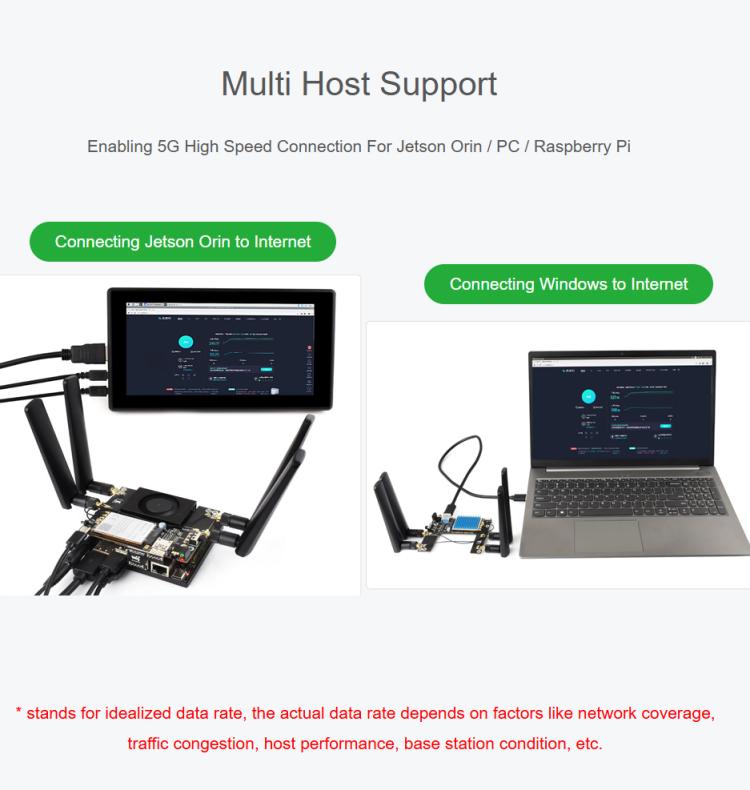

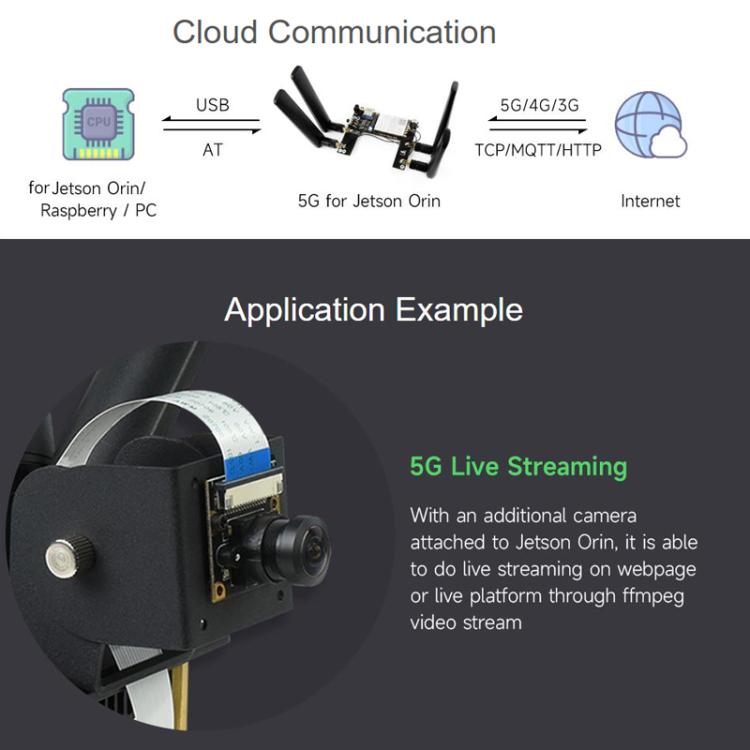

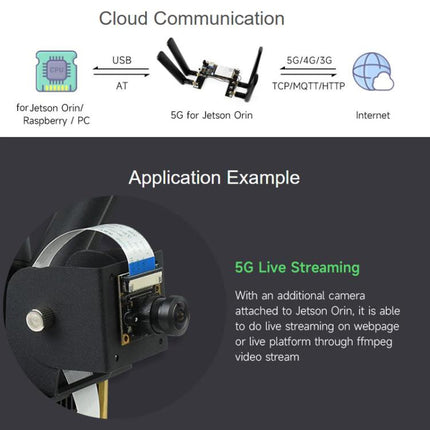

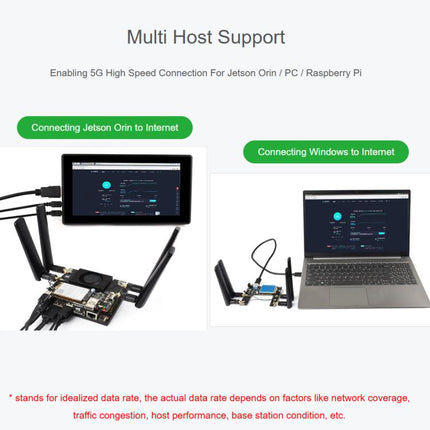

3. Onboard USB 3.1 interface, backward compatible with USB 2.0, enabling high-speed 5G connectivity when connected to Jetson Orin motherboards, computers, or Raspberry Pi

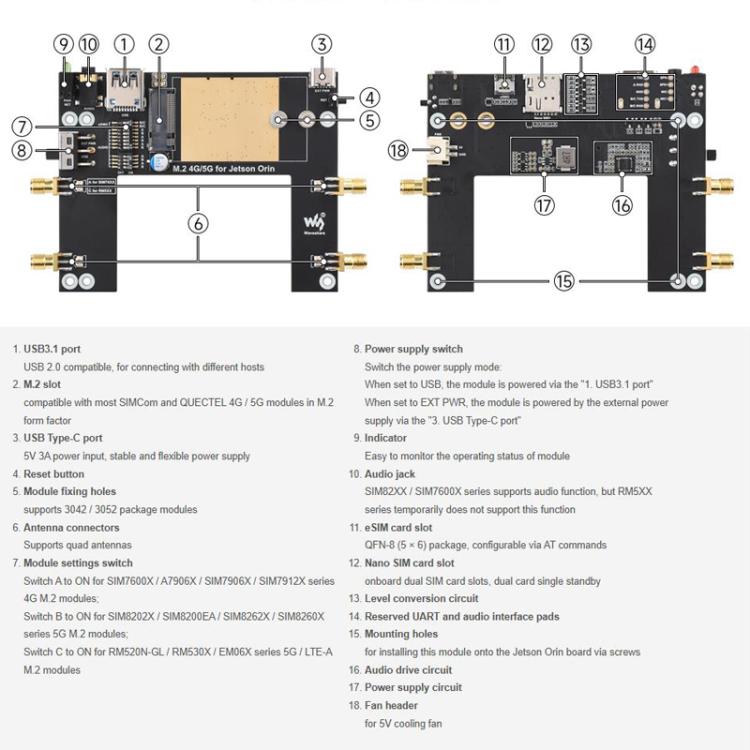

4. Onboard M.2 B KEY standard interface with pin configuration switch
5. Onboard 4x SMA-to-IPEX antenna conversion ports for simplified antenna installation
6. Reserved UART solder pad interface for data transmission with select modules
7. Onboard 1 Nano SIM card slot and 1 eSIM slot packaged as QFN-8 (5 x 6), supporting dual-SIM single-standby with AT command switching
8. Onboard power switch, reset button, and LED indicator for module power control and status monitoring
9. Onboard high-efficiency power circuit capable of delivering up to 3A current

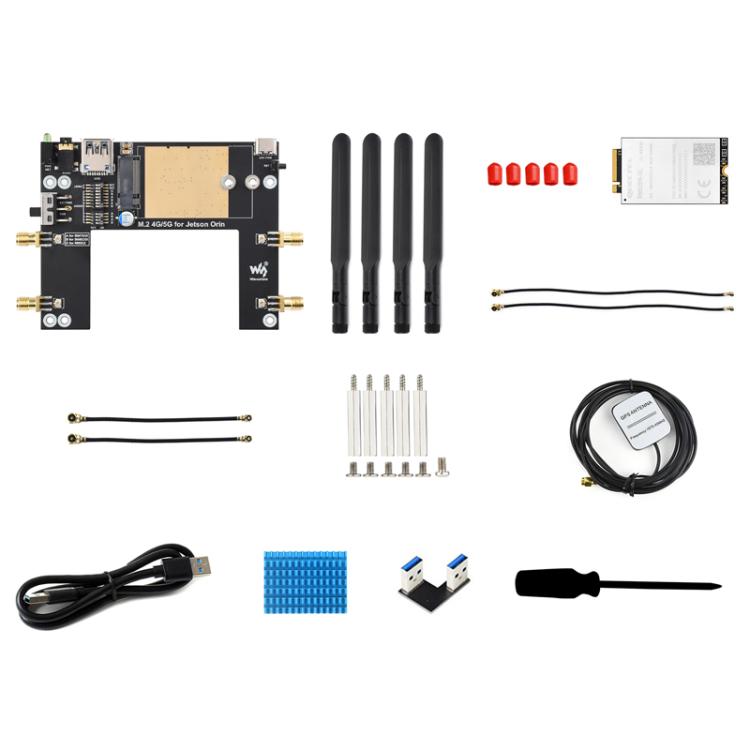

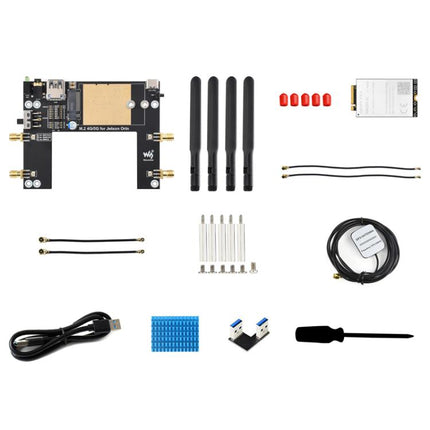

Package list:
- Expansion board x 1
- Module x 1
- 5G antennas x 4
- SMA dust caps x 5
- 13cm IPEX1 to IPEX4 cables x 2
- 5cm IPEX1 to IPEX4 cables x 2
- Screw set x 1
- GPS antenna x 1
- Dual-ended USB cable x 1
- Heat sink x 1
- USB 3.0 adapter x 1
- Screwdriver x 1
Specification:
| Package Weight |
| One Package Weight |
0.15kgs / 0.34lb |
| One Package Size |
18cm * 12cm * 4cm / 7.09inch * 4.72inch * 1.57inch |
| Carton Weight |
10.00kgs / 22.05lb |
| Carton Size |
50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch |
| Loading Container |
20GP: 412 cartons * 60 pcs = 24720 pcs 40HQ: 958 cartons * 60 pcs = 57480 pcs
|
|
