Descripción

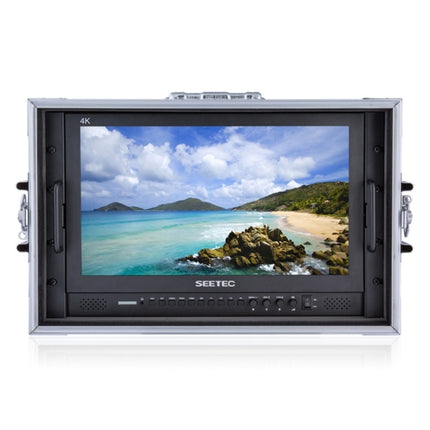

1. The aluminum shell design not only makes the product more robust and durable, but also solves the heat dissipation problem of the product. At the same time, it also enhances the anti-interference ability
2. Provides IPS brilliant colors with full viewing angle and no chromatic aberration experience. Excellent detail performance and true color reproduction ability presents extraordinary and natural high-definition pictures

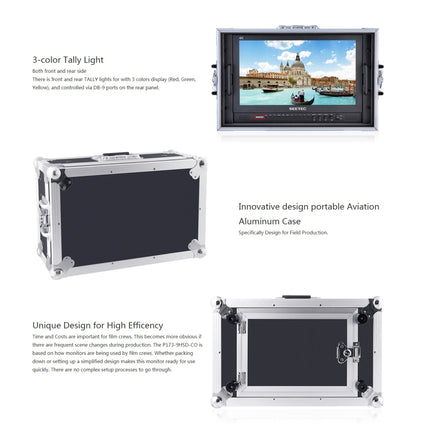

3. Three-color TALLY lights are set on the front and back, which can be controlled through the DB9 interface on the back panel
4. To meet the requirements of most professional applications, you can set the F1 to F4 shortcut keys on the front panel, such as: auxiliary focus, point-to-point, center mark/frame mark, monochrome display, image flip and other functions. Shortcut keys are also retained according to professional application habits
5. Widely used in news production, broadcast room and TV OB trucks of TV stations at all levels

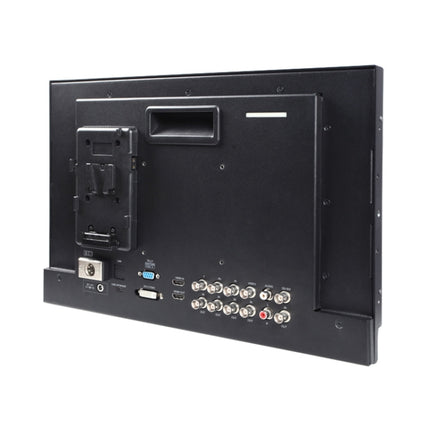

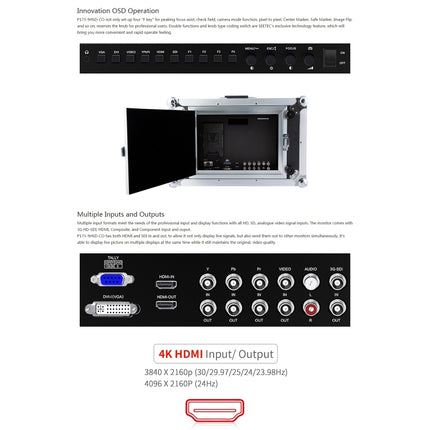

6. Multiple input formats to meet all professional functional requirements for HD, SD analog video signal input and playback. With 3G HD-SDI, HDMI, component YPbPr and composite analog video signal AV input and output interfaces. HDMI/SDI input and output can not only display live signals, but also output video signal sources to other devices simultaneously. While maintaining the original video quality, it can also synchronously output live images to multiple display devices
7. According to the usage habit of on-site monitoring, a simplified design method is adopted, no matter whether the work is started or closed, the monitor can be fully put into work and maintenance quickly without any unnecessary operation procedures.
8. Color: 16.7M
9. Resolution: 1920x1080 pixels
10. Dot pitch: 0.1989(H)x0.1989(V) mm
11. Screen ratio: 16:9
12. Brightness: 400cd/square meter
13. Contrast ratio: 600:1
14. Input signal: 3G-SDI, HDMI, YPbPr, DVI, video, audio (L/R)
15. Output signal: 3G-SDI, HDMI, YPbPr, video, headphone jack, speaker
16. Size: 414x280x35.1mm (without bracket)

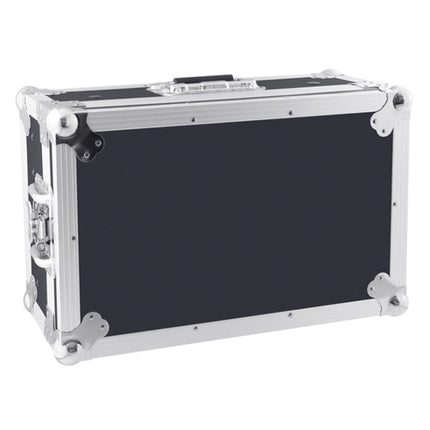

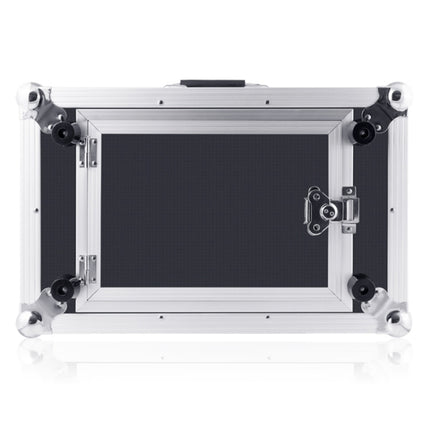

17. Accessories: 1*3A power adapter, 1*V battery back buckle, 1*mini HDMI cable, 1*Tally adapter kit, 1*sun visor, 1*aluminum box, 1*instruction
Specification:
| General |
| Power Consumption |
Less than or equal to 26W |
| Dot Pitch |
0.1989(H)x0.1989(V) mm |
| Brightness |
400cd/square meter |
| Operation Temperature |
-10-50 degrees Celsius |
| Storage Temperature |
-20-60 degrees Celsius |
| Viewing Angle |
80 Degree(L/R) 60 Degree / 80 Degree(U/D) |
| Product Size |
414x280x35.1mm (without bracket) |
| Weight |
2.75kg(without bracket) |
|
| Package Weight |
| One Package Weight |
11.21kgs / 24.70lb |
| One Package Size |
55cm * 38cm * 32cm / 21.65inch * 14.96inch * 12.6inch |
| Carton Weight |
12.51kgs / 27.58lb |
| Carton Size |
56cm * 39cm * 33cm / 22.05inch * 15.35inch * 12.99inch |
| Loading Container |
20GP: 370 cartons * 1 pcs = 370 pcs
40HQ: 858 cartons * 1 pcs = 858 pcs
|
|
