Description

Note
You need to disable your antivirus software (including the system built-in one) before installation. If you mind this, please do not purchase.


Features
1. Latest diagnostic and programming interface for the applications VAG ODIS-S (Service) and ODIS-E (Engineering), can replace the VAS 5054A and VAS 5055.
2. Available for Off-board Diagnostic Information Engineering from V6.2 onward and Off-board Diagnostic Information Service from V3.0.3 onward.
3. Support all VW Audi Skoda vehicles from 2000 onward including NEW & FUTURE MODLES under production.
4. Support WIFI & USB Connection:With wireless communication technology, can achieve wireless communication of the vehicle and diagnostic interface. The following countries can use both WIFI & USB Connection: Australia, Bosnia and Herzegovina, Brazil, Canada, Switzerland, Cyprus,Czech,Danmark,Estonia,Finland, Greece, Hongkong, Israel, India, Ireland,Italy, Lativia, Mexico, Netherland, New Zealand, Poland,Russia, Argentina, Korea, Singapore, Slovenia, Turkish, Ukraine, UAE, United States, United Kingdom. Also support USB module transmission, to ensure the reliability of diagnostic interface data transmission.if your country is not on the above authoriazted Country, you just can use USB Connection Module.
5. Support Multi-language:English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech, Russian, Greek, Chinese
6. Update by Software: Latest Version is V4.013. Note: Do not support Old V19 Software.
7. If you want to do Seat, Bentley and Lamborghini, please buy VAS 5054A with Old V19 Software.
8. Note: when install the software, please choose 5054A.
9. Power supply: 8-18V via vehicle connector
10. Output: approx 5W
11. PC interface (wired): USB 2.0 High Speed, 480 Mbit/s or Fast Ethernet, 100Mbit/s (via LAN module)
12. PC interfaces (wireless): WLAN 802.11 ab/b/g/n 2T2R 300 Mbit/s Client Mode (WPA2 EAP-TLS, WPA2 PSK)
13. AP mode (WPA2 PSK)
14. Applicable for Win 10 computer system

VAS6154 Infrastructure mode:

1. In infrastructure mode, several network-capable devices can be connected together (network subscribers).
2. For a wireless network, a WLAN access point is required. This access point forms the connection to WLAN-ready subscribers.

VAS6154 Point-to-point connection:

1. With point-to-point connection via a wireless network, VAS 6154 creates a radio network. VAS 6154 thereby adopts the role of a radio access point (Access Point). A direct connection is made between the diagnosis unit and the diagnosis interface VAS 6154.
2. VAS 6154 is configured using the web-based user interface.

New Functions
VAS6154 ODIS 7.2.1 Software New Functions;
1. Estimated remaining times are shown for ECU flash operations.
2. Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view,used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests.
3. The measured value display has been improved.
4. Documents in GFF are displayed in separate windows.
5. One message box will be shown at the beginning of the test drive mode.
6. GFF hotfixes can be integrated during diagnostic sessions.
7. Danger messages have been revised.
8. Stopping of diagnostic sessions may be interrupted.
9. Automatic deletion of autosave diagnostic protocols after successful transmission.
10. Selection of PassThru diagnostic hardware has been improved.
11. ODIS Service Software update has been stabilized.
12. No online functionality

Package Includes

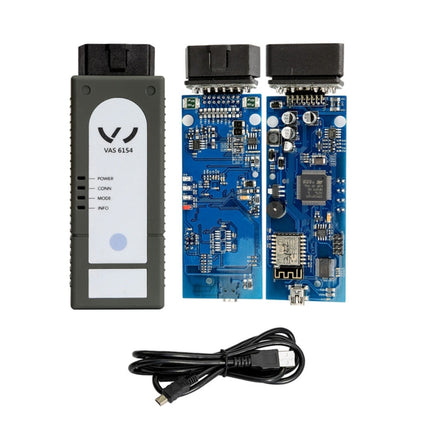

1pc x Diagnosis interface VAS 6154
1pc x USB cable

Specifications

• Product Assurance: Quality Standards
