Description
1. Multi-ports Expansion: Equipped with 1 x HD (4K@60Hz under DP1.4) + 2 x DP ports (8K@30Hz/4K@144Hz with DSC) + 85W USB-C PD port + 2 x 10Gbps USB 3.1 + 2 x USB 2.0, 1 x 2.5Gbps RJ45 port + 2 card reader slots for SD / TF card (104MB/s) + 3.5mm audio port, providing huge peripheral connectivity, upgrading your workstation with a single USB-C port, greatly improving work efficiency

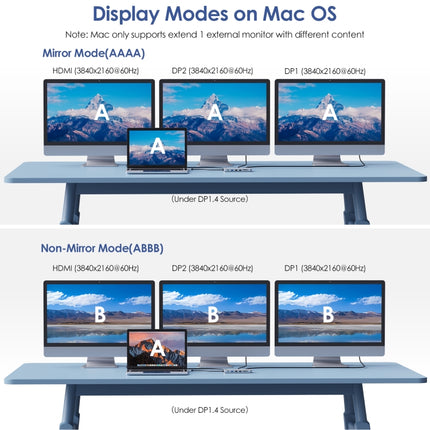

2. 4K Video Output Port: Designed for visual creators and game enthusiasts, it provides 3840x2160@60Hz ultra-high-definition images (under DP1.4) for MacBook users through HD/DP1/DP2 ports. Note: Please make sure the USB-C port on the host laptop supports video output. The 3 displays extended by the computer of Basic for Mas OS can only be the same

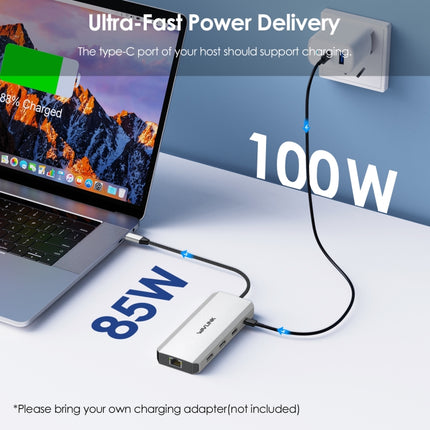

3. Maximum 85W Charging: With built-in USB-C PD port (for charging only), this laptop charging dock can power your laptop while connecting multiple displays and peripherals. For safety reasons, please use a certified charger to charge your laptop (charger not included). Note: Please make sure that the USB-C port on the host laptop supports charging

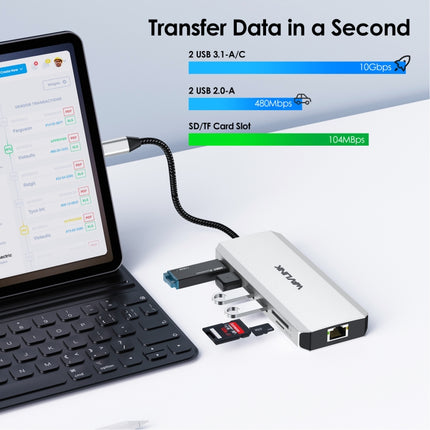

4. High-speed Data Transmission: Dual USB 3.1 (backward compatible with USB 3.0/2.0) ports ensure a data transfer rate of 10Gbps, and provide more connection possibilities at the same time with dual USB 2.0 ports. SD/TF card slots can work at the same time, supporting transfer speeds up to 104MB/s, which is very suitable for users of cameras, monitors, etc. RJ45 port supports up to 2500Mbps and stable network
5. Wide compatibility, supports charging and video output. No need to install drivers, plug and play
Specifications:
1. Cable length: 25cm
2. Video interface: 1 x HD+2 x DP

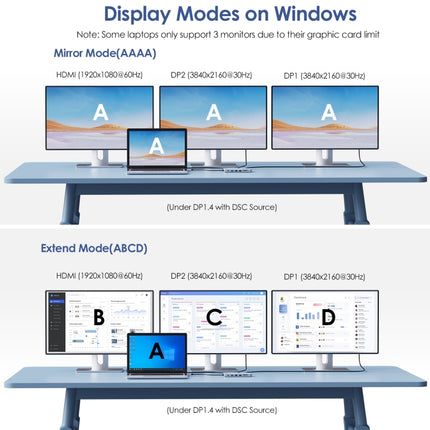

3. Triple display: up to 3x4K, 3840x2160@60Hz
4. Single display: (DP1 or DP1) 8K, 7680x4320@30Hz or 4K, 3840x2160@144Hz, or (HD) 4K, 3840x2160@60Hz
5. Maximum support 85W power supply to the host
6. USB 3.1: 10Gbps (for connecting USB devices such as USB flash drives, webcams, etc.)
7. USB 2.0: for connecting USB devices such as keyboards, mice, etc.
8. USB-C: 10Gbps (for connecting USB-C devices)
9. 2 Card reader slots: for SD and TF card (Read speed 104MB/s, supports up to 2TB capacity)

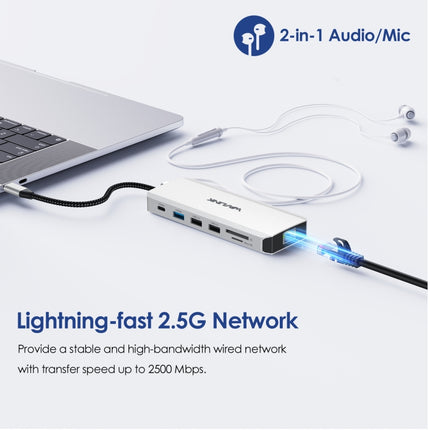

10. RJ45 Ethernet port: for wired networking, 2.5Gbps
11. 3.5mm AUX port: allows you to enjoy music/audio, etc.
12. USB-C PD IN: 100W
13. No need to install drivers, plug and play
Specification:
| Package Weight |
| One Package Weight |
0.17kgs / 0.37lb |
| One Package Size |
20cm * 9.9cm * 2cm / 7.87inch * 3.9inch * 0.79inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
90cm * 55cm * 14cm / 35.43inch * 21.65inch * 5.51inch |
| Loading Container |
20GP: 384 cartons * 178 pcs = 68352 pcs
40HQ: 893 cartons * 178 pcs = 158954 pcs
|
|
