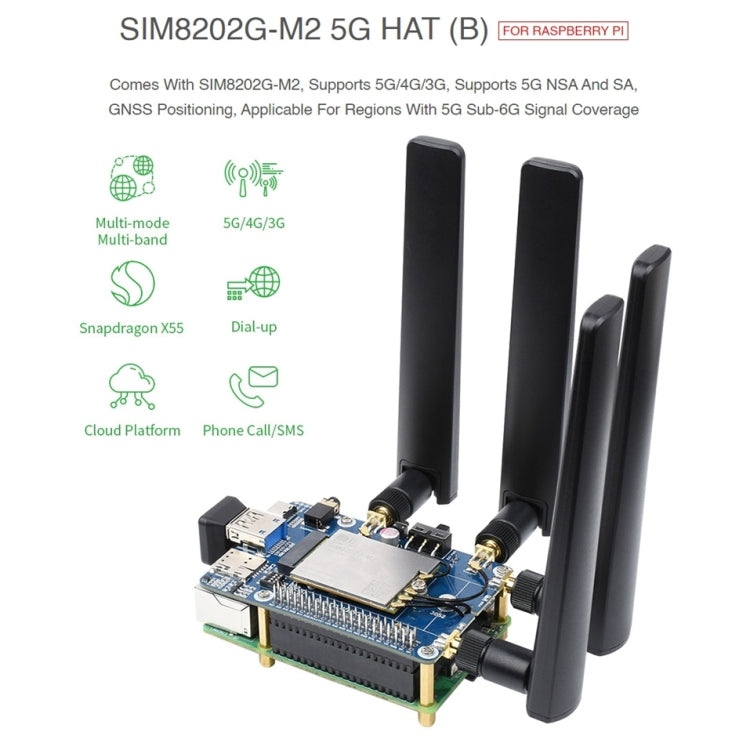

Waveshare SIM8202G-M2 5G HAT B Multi Band Snapdragon X55 Module Board for Raspberry Pi, SIM8202G-M2 5G HAT B
Features1. Comes with SIM8202G-M2 core module, based on Qualcomm snapdragon X55 platform, supports 5G NSA and SA...
- £215.99 GBP
- £215.99 GBP
- Unit price
- per
Please hurry! Only 999999 left in stock
{2% Additional Discount} Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Expedited Delivery?
Find more options at checkout! DHL Express 🚚
Payment Protection
Buy with confidence. All payments are secured by PayPal, Shopify Payments — trusted by millions worldwide. The world's leading payment gateways. Your security is guaranteed, so shop with peace of mind!
Standard Returns. We guarantee safe and secure shopping experience you never have to worry!
Learn More.
Vendor: WAVESHARE
Waveshare SIM8202G-M2 5G HAT B Multi Band Snapdragon X55 Module Board for Raspberry Pi, SIM8202G-M2 5G HAT B
£215.99
Vendor: WAVESHARE
Waveshare SIM8202G-M2 5G HAT B Multi Band Snapdragon X55 Module Board for Raspberry Pi, SIM8202G-M2 5G HAT B
£215.99
Features
1. Comes with SIM8202G-M2 core module, based on Qualcomm snapdragon X55 platform, supports 5G NSA and SA networking, supports multi-mode multi-band
2. Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
3. Operating system support: Windows/Linux/Android

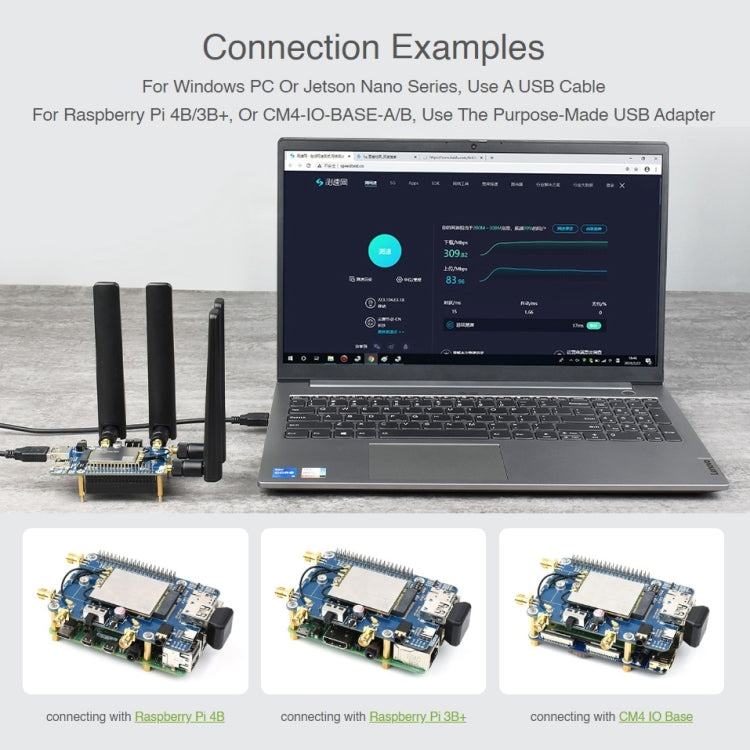

4. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication

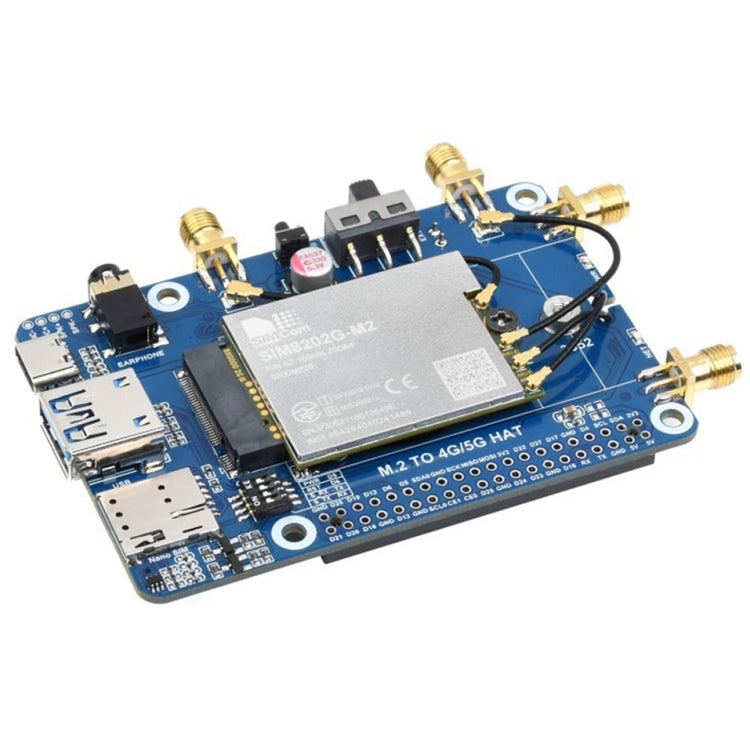

5. Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 series
6. Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
7. Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
8. Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
9. 4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
10. 2x SIM card slot, dual card single standby, switchable via AT command
11. Onboard audio jack and audio decoder, allows audio operation like making phone call
12. High efficiency power supply circuit, up to 3A output current
Specifications
Frequency band:
1. Sub-6G (SA): n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
2. Sub-6G (NSA): n41, n77, n78, n79
3. LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
4. LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48
5. WCDMA: B1, B2, B3, B4, B5, B8
6. GNSS: GPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
1. Sub-6G: 2.4 Gbps (DL) / 500 Mbps (UL)
2. LTE: 1 Gbps (DL) / 200 Mbps (UL)
3. HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL)
Software functions
1. Operating systems: Windows/Linux/Android
2. Communication protocols: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
3. SMS: Supports MT, MO, CB, Text, PDU
4. Firmware upgrade: Supports firmware upgrade via USB port
Applications
1. Applicable regions: Regions with 5G Sub-6G signal coverage including China, US, Japan, South Kor, Europe, the Middle East, Latin America, etc.
2. Application examples: CPE, Smart gateway, Drone, Live streaming, Remote treatment, Intelligent security
Package List
1. M.2 TO 4G/5G HAT x1
2. SIM8202G-M2 x1
3. Antenna 4pcs x1
4. IPEX adapter cable 4pcs x1
5. 2 x 20PIN pin header x1
6. Passive GPS antenna x1
7. Dual plug USB3.0 cable x1
8. USB 3.0 adapter x1
9. USB 2.0 adapter x1
10. SMA protective cap 4pcs x1
11. Screws pack x1
1. Comes with SIM8202G-M2 core module, based on Qualcomm snapdragon X55 platform, supports 5G NSA and SA networking, supports multi-mode multi-band
2. Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
3. Operating system support: Windows/Linux/Android
4. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
5. Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 series
6. Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
7. Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
8. Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
9. 4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
10. 2x SIM card slot, dual card single standby, switchable via AT command
11. Onboard audio jack and audio decoder, allows audio operation like making phone call
12. High efficiency power supply circuit, up to 3A output current
Specifications
Frequency band:
1. Sub-6G (SA): n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
2. Sub-6G (NSA): n41, n77, n78, n79
3. LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
4. LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48
5. WCDMA: B1, B2, B3, B4, B5, B8
6. GNSS: GPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
1. Sub-6G: 2.4 Gbps (DL) / 500 Mbps (UL)
2. LTE: 1 Gbps (DL) / 200 Mbps (UL)
3. HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL)
Software functions
1. Operating systems: Windows/Linux/Android
2. Communication protocols: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
3. SMS: Supports MT, MO, CB, Text, PDU
4. Firmware upgrade: Supports firmware upgrade via USB port
Applications
1. Applicable regions: Regions with 5G Sub-6G signal coverage including China, US, Japan, South Kor, Europe, the Middle East, Latin America, etc.
2. Application examples: CPE, Smart gateway, Drone, Live streaming, Remote treatment, Intelligent security
Package List
1. M.2 TO 4G/5G HAT x1
2. SIM8202G-M2 x1
3. Antenna 4pcs x1
4. IPEX adapter cable 4pcs x1
5. 2 x 20PIN pin header x1
6. Passive GPS antenna x1
7. Dual plug USB3.0 cable x1
8. USB 3.0 adapter x1
9. USB 2.0 adapter x1
10. SMA protective cap 4pcs x1
11. Screws pack x1
