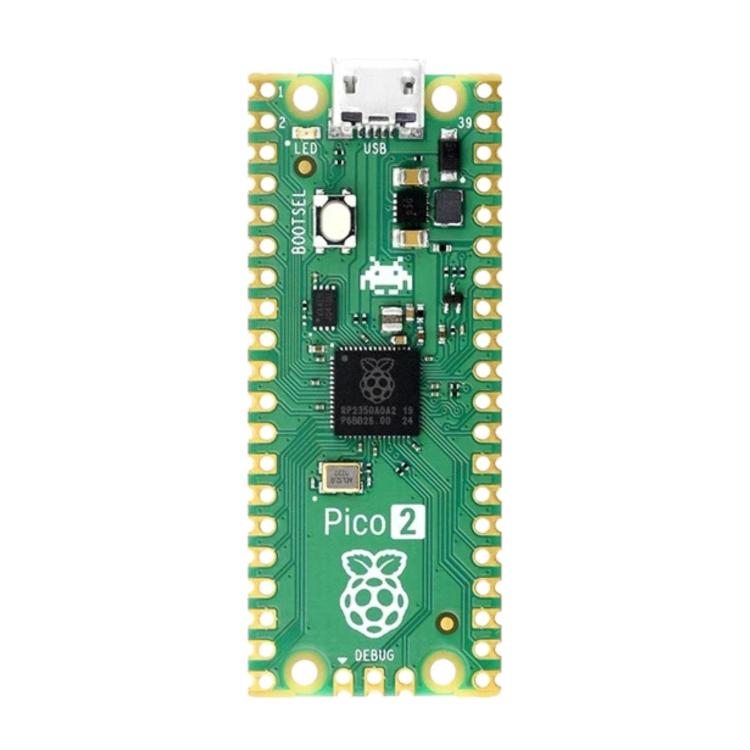

Description

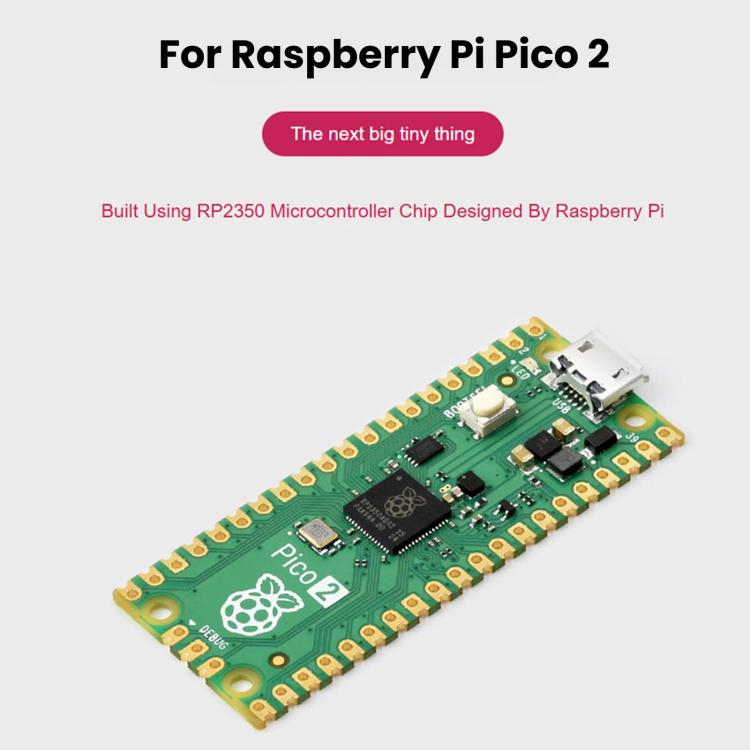

1. The official Raspberry Pi self-designed RP2350 microcontroller chip was adopted
2. It features a unique dual-core, dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, with operating frequencies reaching up to 150 MHz flexible clock
3. It is equipped with 520KB SRAM and 4MB on-chip Flash

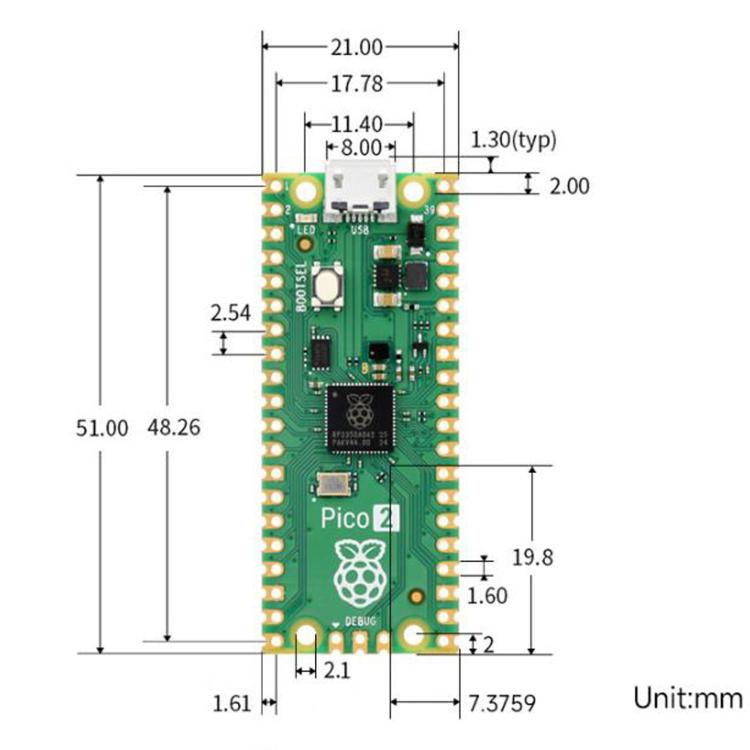

4. The stamp hole design allows for direct soldering integration onto the user self-designed baseboard
5. Supports USB1.1 host and device
6. Supports low-power sleep and hibernation modes
7. Can be recognized as a large-capacity storage device via USB for drag-and-drop program download

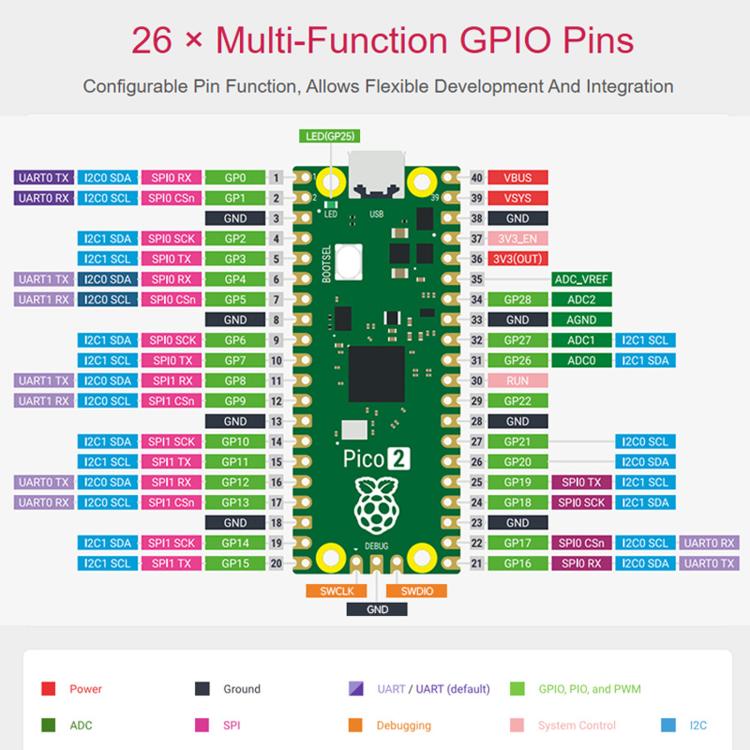

8. Up to 26 multi-functional GPIO pins, 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, and 16 controllable PWM channels
9. Comes with a temperature sensor
10. 12 programmable I/O (PIO) state machines for custom peripheral support
Parameters
1. Processor: dual-core ARM Cortex-M33; Dual-core Hazard3 RISC-V 150MHz
2. SRAM: 520KB
3. Flash: 4MB
4. Security features: boot signature, OTP storage for decryption, hardware SHA-256 accelerator, etc.
5. GPIO pins: 26
6. Peripherals:
- UART x 2
- SPI x 2
- I2C x 2
- ADC x 3
- USB 1.1 and PHY x 1
- PWM x 16
- PIO state machines x 12
- HSTX x 1

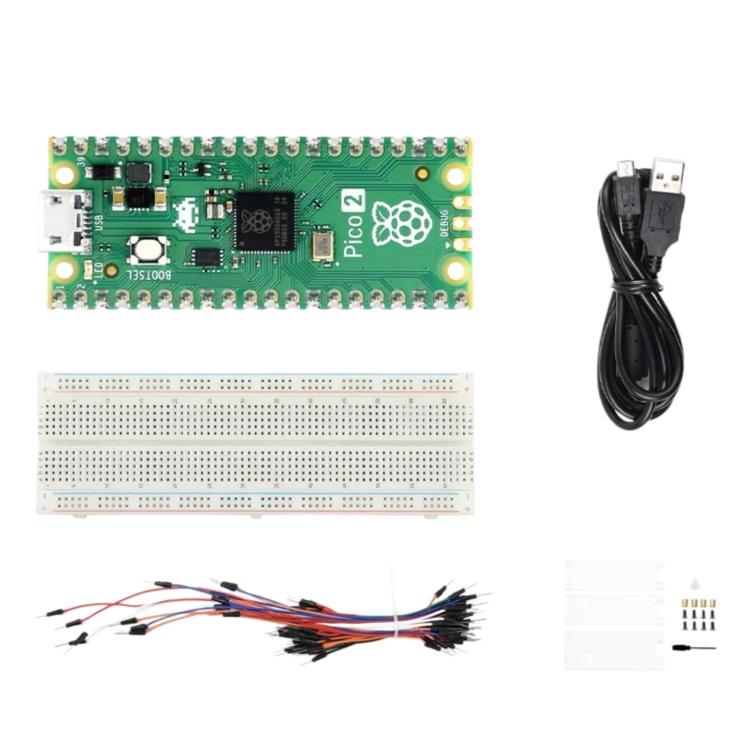

Entry-level kit packaging list:
- Raspberry Pi Pico 2 (with soldered yellow pin headers) x 1
- Acrylic transparent protective cover x 1
- Large breadboard + breadline x 1
- USB cable Type A male to Micro male, about 1.2 meters long x 1

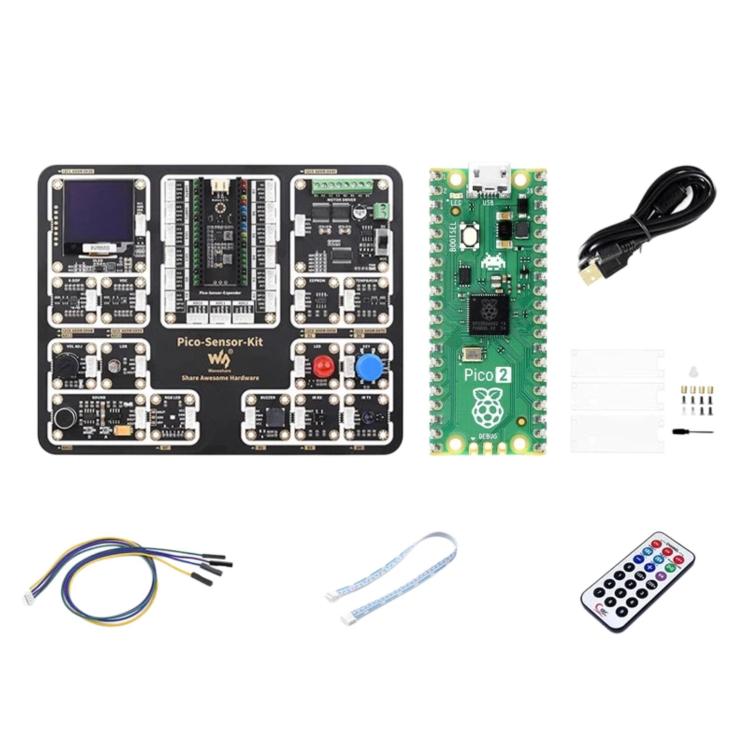

Sensor kit packaging list:
- Sensor kit x 1
- Raspberry Pi Pico 2 (with soldered yellow pin headers) x 1
- Acrylic transparent protective cover x 1
- PH2.0 4PIN connection cable 300mm (5pcs) × 1
- PH2.0 double-ended connection cable 4PIN opposite direction (15pcs) x 1
- Infrared remote control x 1
- USB cable Type A male to Micro male about 1.2 meters x 1
Specification:
| Package Weight |
| One Package Weight |
0.02kgs / 0.05lb |
| One Package Size |
8cm * 4cm * 4cm / 3.15inch * 1.57inch * 1.57inch |
| Carton Weight |
10.00kgs / 22.05lb |
| Carton Size |
50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch |
| Loading Container |
20GP: 412 cartons * 432 pcs = 177984 pcs
40HQ: 958 cartons * 432 pcs = 413856 pcs
|
|
