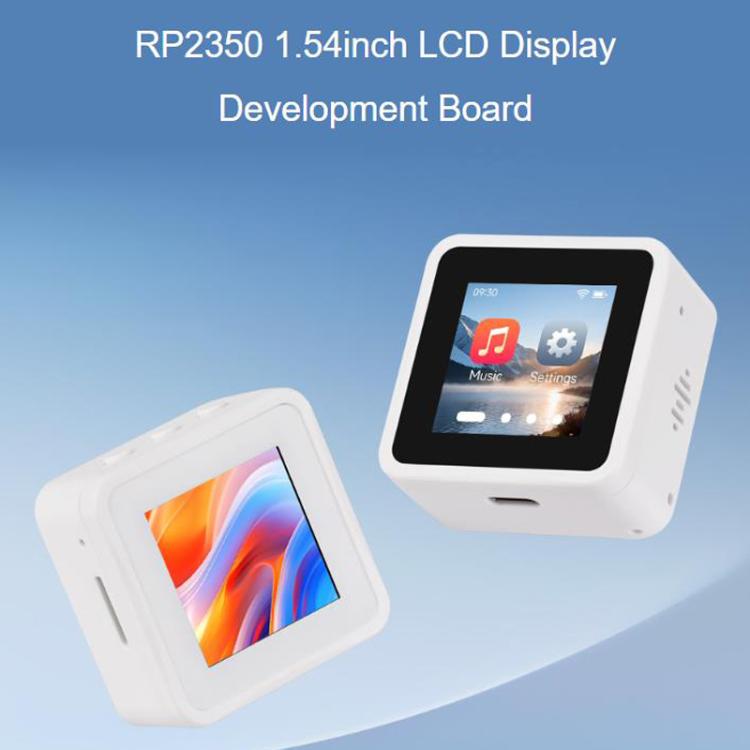

Waveshare 34332 RP2350 1.54 Inch LCD Display Development Board 65K Color, IPS Display Panel, Dual-Core And Dual-Architecture, 34332

Waveshare 34332 RP2350 1.54 Inch LCD Display Development Board 65K Color, IPS Display Panel, Dual-Core And Dual-Architecture, 34332

Product form

1. The RP2350A microcontroller chip designed with Raspberry Pi2. Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core... Read more

🔥 Why Pay Retail? Save Up to 45% with Wholesale Pricing  🔥 Why Pay Retail? Save Up to 45% with Wholesale Pricing
Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£16.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Why pay retails? Everyone deserves wholesale - even for 1 unit. Save like a pro
    • Wholesale pricing for everyone - no min
    • Buy at wholesale price(s) | Money saved vs marketplaces
    • Dedicated Account Manager
    • Bulk pricing - for large enquiries

    Description

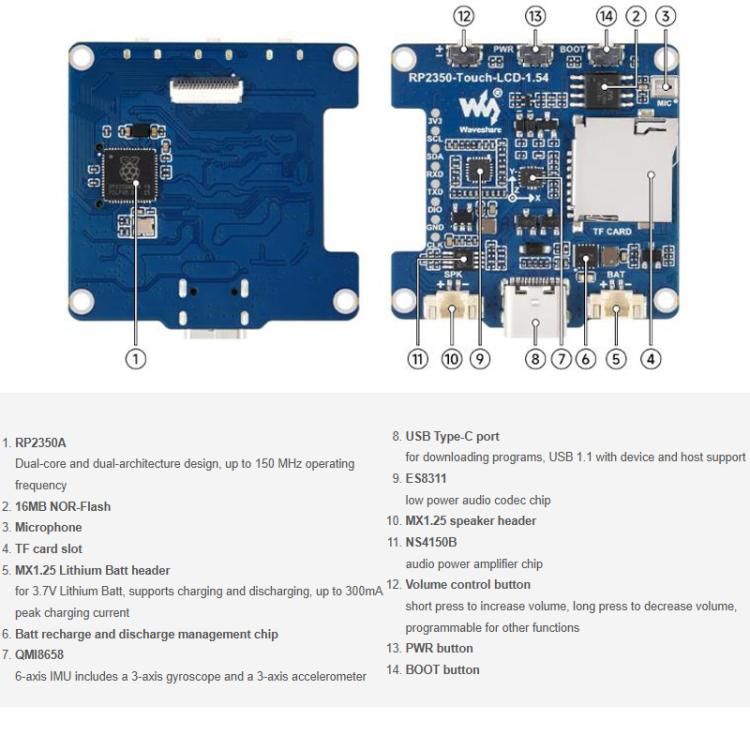

    1. The RP2350A microcontroller chip designed with Raspberry Pi
    2. Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, with clock operating frequencies both reaching up to 150 MHz, supporting users to switch flexibly between the two architectures
    3. Built-in 520KB SRAM, on-board 16MB on-chip Flash
    4. Adopting Type-C interface, no need to worry about the front or back insertion

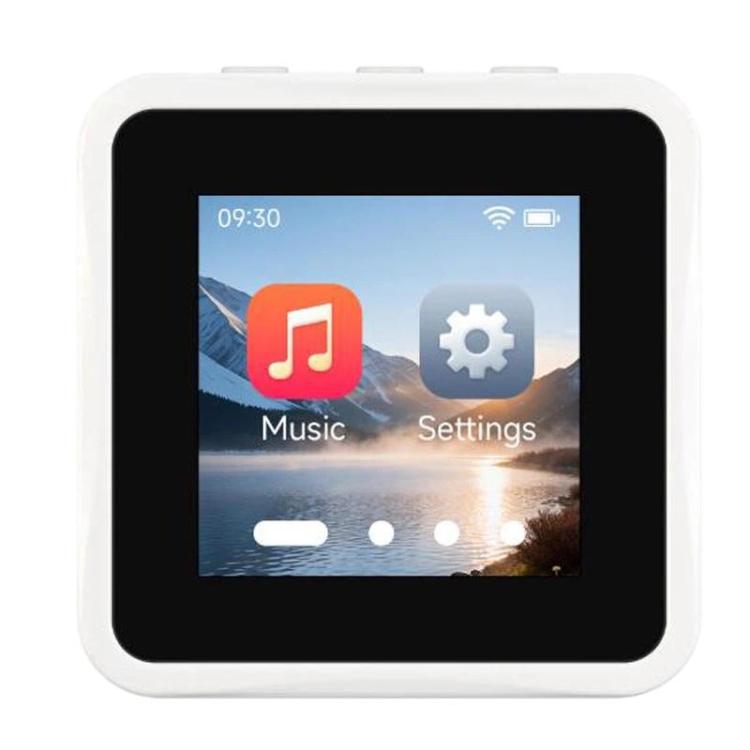

    5. Onboard 1.54-inch LCD screen, 240 x 240 resolution, 65K color
    6. USB1.1 host and slave device support
    7. Supports low-power sleep and hibernation mode
    8. Can be recognized as a large-capacity storage device for drag-and-drop program download via USB
    9. Exposed 4 multi-functional GPIO pins
    10. 1 I2C, 1 UART, 2 12-bit ADC, and 2 controllable PWM channels
    13. Precise on-chip clock and timer
    14. Built-in temperature sensor, capable of real-time monitoring of chip temperature
    15. 12 programmable I/O (PIO) state machines, used for custom peripheral support

    LCD screen parameters

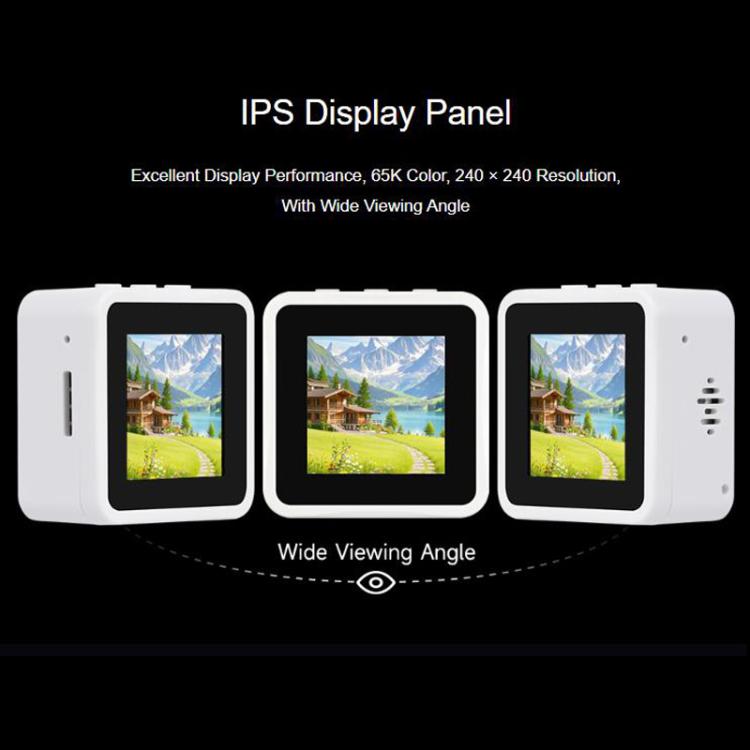

    1. Display panel: IPS
    2. Display resolution: 240 x 240 pixels
    3. Communication interface: 4-Wire SPI
    4. Touch type: capacitive sensing
    6. Display size: 1.54 inches
    7. Display colors: 65K
    8. Driving IC: ST7789
    9. Touch IC: CST816
    10. Effective screen size: about 2.772 x 2.772 cm
    Specification:
    Package Weight
    One Package Weight 0.06kgs / 0.13lb
    One Package Size 7cm * 7cm * 5cm / 2.76inch * 2.76inch * 1.97inch
    Qty per Carton 180
    Carton Weight 11.00kgs / 24.25lb
    Carton Size 47cm * 37cm * 30cm / 18.5inch * 14.57inch * 11.81inch
    Loading Container 20GP: 511 cartons * 180 pcs = 91980 pcs
    40HQ: 1186 cartons * 180 pcs = 213480 pcs
