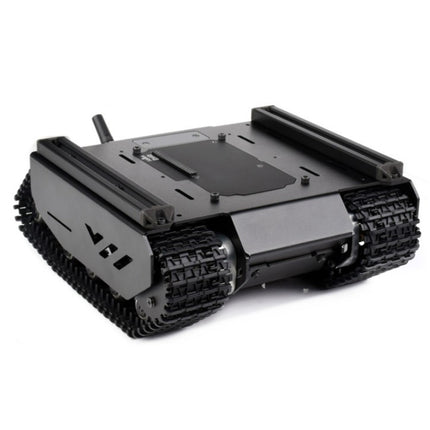

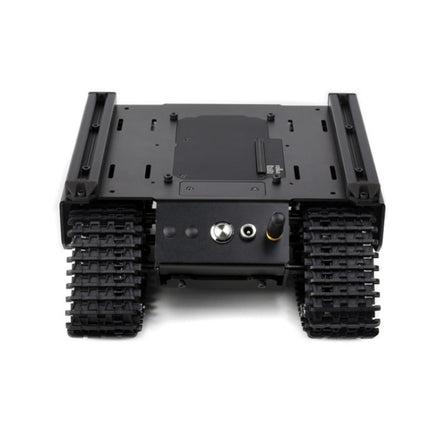

Waveshare 24019 Flexible And Expandable Off-Road Tracked UGV, Multiple Hosts Support, With External Rails and ESP32 Slave Computer, Waveshare 24019

Waveshare 24019 Flexible And Expandable Off-Road Tracked UGV, Multiple Hosts Support, With External Rails and ESP32 Slave Computer, Waveshare 24019

Product form

1. Dimensions: 231x197x151mm2. Suspension system: 4×2 (independent)3. Chassis height: 26mm4. Guide rail center distance: 170mm5. Track width: 44mm6. Running speed:... Read more

Expedited Delivery Available! Add to cart for exact shipping info.  Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£147.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Dec 07, 2025 14:00:00 +0000
    • We take great care in ensuring that all our products meet quality standards and are packaged securely for safe delivery.
    • No hassle returns, 30 days return

    Description


    1. Dimensions: 231x197x151mm
    2. Suspension system: 4×2 (independent)
    3. Chassis height: 26mm
    4. Guide rail center distance: 170mm
    5. Track width: 44mm
    6. Running speed: 0.25~1m/s
    7. Track horizontal ground length (no load): 115mm
    8. Suspension material: 1.5mm (thickness) stainless steel
    9. Track climbing ground length (with large load): 170 mm
    10. Body material: 2 mm (thickness) 5052 aluminum alloy
    11. Weight: 1.9 kg
    12. Vertical obstacle clearance capability: 40mm
    13. Driving Payload: 6.2kg
    14. Climbing ability: 36 degrees
    15. Battery holder: 18650 lithium battery x 3 (not included)
    16. Turning radius (min): 0 meters (rotating in place)
    17. Charging time: 1.5 hours
    18. Battery life: 1 hour (full power continuous output)
    19. Motor power: 5.2W×2

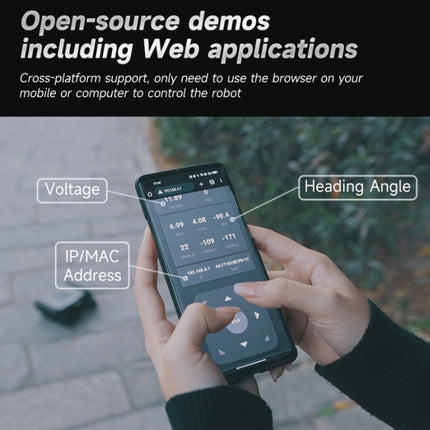

    20. Remote control function: WIFI, AP/STA
    21. Motor encoder: basic pulse 11PPR

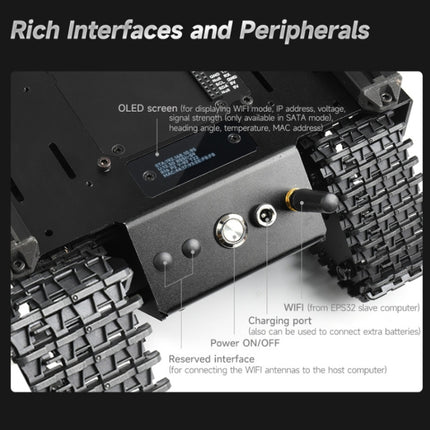

    22. Communication interface: UART/serial bus servo interface/IIC
    23. The crawler-type mobile robot chassis has super off-road crossing ability and anti-seismic performance, and all codes are open source for secondary development

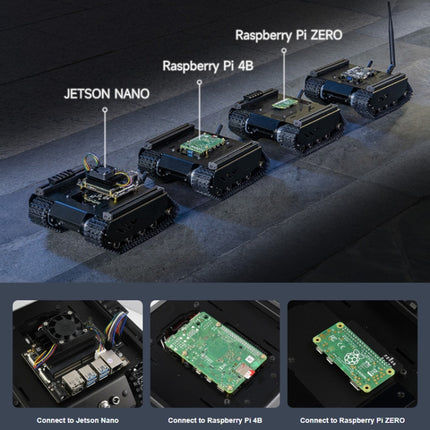

    24. Support multiple host computers, can communicate with ESP32 slaves through the serial port
    25. Motors with encoders can get speed feedback for closed-loop speed control

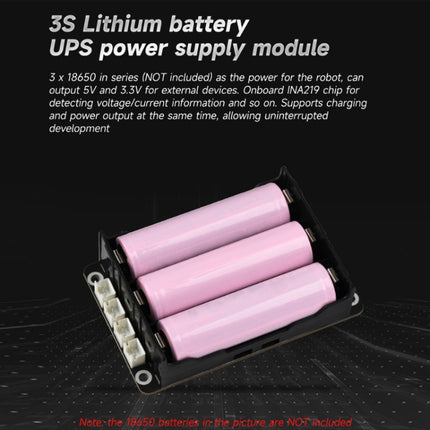

    26. Built-in 3S UPS power supply module, supports 3 18650 lithium batteries (serial connection, not included), provides uninterrupted power supply for the robot, and supports charging and power output at the same time

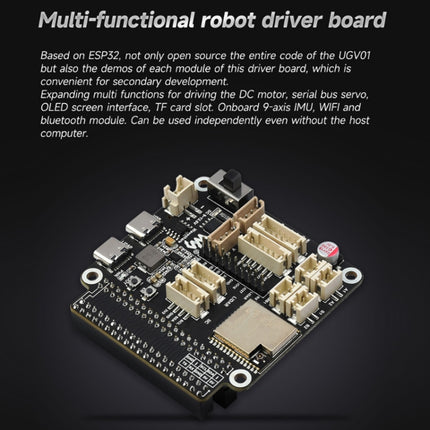

    27. Built-in multifunctional robot driver board, based on ESP32, onboard WIFI and Bluetooth, used to drive serial bus servos, output PWM signals, expand TF card slots, etc.

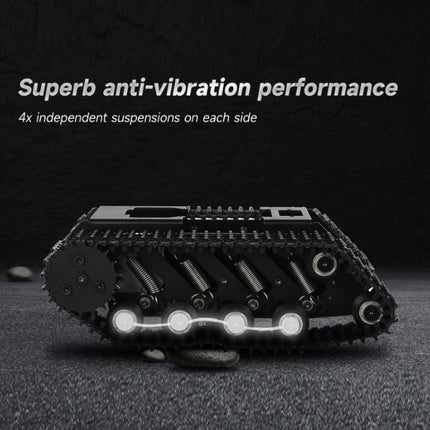

    28. Multiple independent suspension systems are used to greatly reduce the impact of complex terrain and easily meet the needs of heavy loads, shock absorption, and off-road
    29. And it comes with 2x 1020 European standard profile guide rails, providing more possibilities for secondary development


    Specification:
    Package Weight
    One Package Weight 2.00kgs / 4.42lb
    One Package Size 23cm * 23cm * 14cm / 9.06inch * 9.06inch * 5.51inch
    Qty per Carton 14
    Carton Weight 30.00kgs / 66.14lb
    Carton Size 56cm * 56cm * 34cm / 22.05inch * 22.05inch * 13.39inch
    Loading Container 20GP: 250 cartons * 14 pcs = 3500 pcs
    40HQ: 580 cartons * 14 pcs = 8120 pcs
