Description

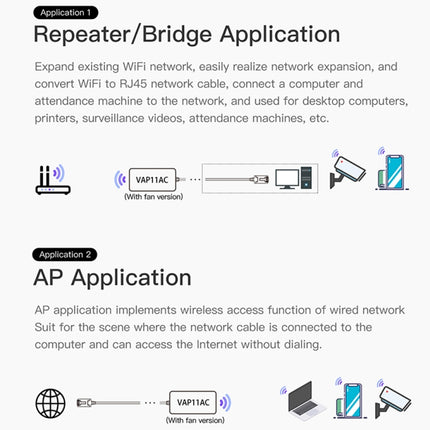

1. WiFi Intelligent Net Bridge Relay/Router can achieve wireless transition wired and wired turning wireless functions
2. Support the wide voltage DC5V-24V power supply, two-level automatic overvoltage protection (the upper limit of the protection voltage 29V), anti-connection protection
3. Support both 2.4G and 5G band
4. Support WiFi transmission protocols 802.11ac, 802.11a, 802.11n

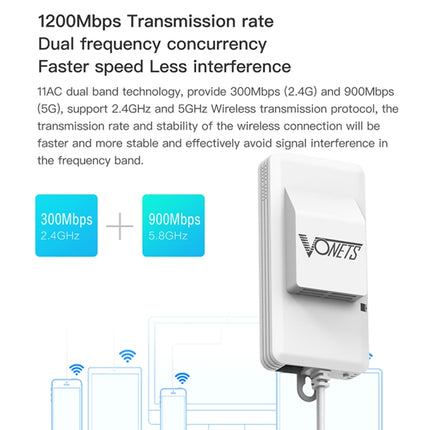

5. WiFi transmission rate: 300Mbps (2.4G) + 900Mbps (5G)
6. RF power: 2.4G-14.5dBm, 5G-21dBm/23dBm Adjustable
7. Point-to-point barrier-free maximum transmission distance: 300 meters (802.11A)
8. Two 10/100Mbps adaptive Ethernet/network port
9. WIFI hotspot automatic re -connection, two hotspot matching methods (complete matching authentication mode, SSID and password certification mode);
10. WiFi hot memory, 100 hotspots of the maximum memory
11. Support connecting more than 20pcs WiFi terminal at the same time
12. Support SSA signal strength detection and reporting function to realize WiFi mobile positioning
13. Support manually close SSID broadcast, manually close WiFi hardware
14. The introduction of hot spots connecting parameters
15. Original creation VDNS virtual domain configuration technology to solve the useras trouble of configuration
16. Support WEB management, Chinese and English configuration interface
17. Adopt temperature compensated auto frequency control technology (TAFC), WiFi signal is more stable and not easy to drop

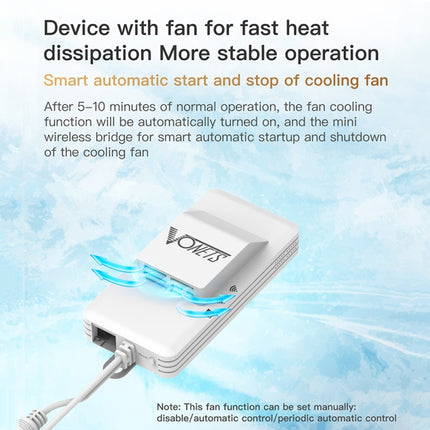

18. Built-in 2 high-power FEM, and intelligent automatic start-stop heat dissipation fan
19. Built-in heat sink with convection cooling holes on both sides of the housing for more efficient heat dissipation
20. Work environment temperature: -40 degrees Celsius to 55 degrees Celsius
21. Support IP layer transparent transmission and MAC layer transparent transmission two bridge modes to meet various bridge applications:
- IP layer transparent transmission (factory default), transparent transmission of IP layer data, can meet most of the bridge applications
- MAC layer transparently transmits all data above the MAC layer (link layer) and the MAC layer, including IP layer data
- MAC transparent transmission can solve some special applications for MAC layer encryption, such as GoPro camera, Cisco AP, Hikvision monitoring system, etc.

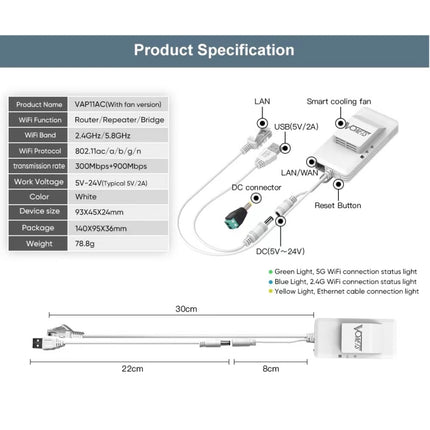

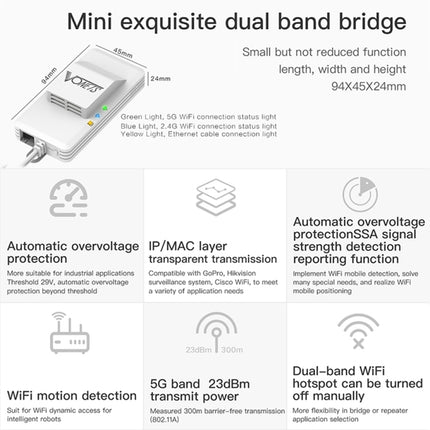

22. Size: 9.3x4.5x2.4cm
23. Weight: 79g
