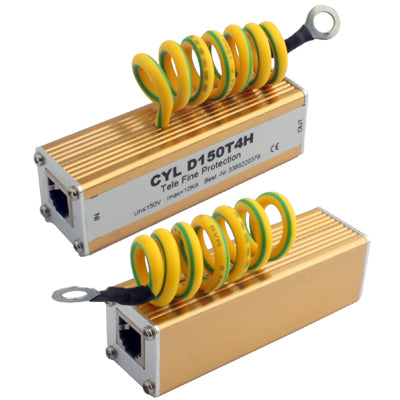

Description
1. With this audio signal device surge protector, you can protect your sensitive audio signal equipment which uses RJ11 interface and sensitive to electromagentic interference from inductive voltage, static discharge and over-voltage by operator.
2. The telecom surge protector features large electric current support, mutiple level protection, quickly response, minor wastage.
3. Comes with an integrated braided ground lines to divert surge energy
4. Simple operating surge arrester, just following the instructions.
5. This telephone lightning protector needs no special care, if it's broken, please replace it by a new one.
Technical parameter:
1. Model: CYL D150T4H
2. Discharge voltage: ≤180V
3. Response time: ≤1ns
4. Working Temperature: -60°C + 190°C
5. Max discharge current: 10KA
6. Max continuous voltage: ≤150V
7. Joint wastage: ≤0.5dB
8. Protect pin:2/3/4/5
9. Transmission speed:10Mbps
10. Size: 80 mm x 25 mm x 25 mm
11. Weight: 119.2g
Specification:
| Package Weight |
| One Package Weight |
0.14kgs / 0.32lb |
| Carton Weight |
10.20kgs / 22.49lb |
| Carton Size |
40cm * 30cm * 30cm / 15.75inch * 11.81inch * 11.81inch |
| Loading Container |
20GP: 740 cartons * 84 pcs = 62160 pcs
40HQ: 1719 cartons * 84 pcs = 144396 pcs
|
|
