Description
Introduction:

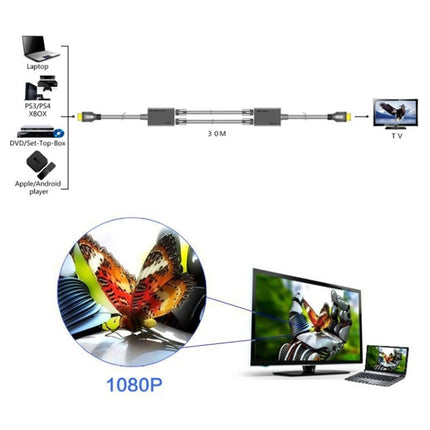

This kind of HDMI Extender by CAT-5e/6 uses two pieces of CAT-5e/6 cables to extend the HDTV display up to 30 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length,but also CAT-5e/6 has more flexibility and convenience in cable construction.

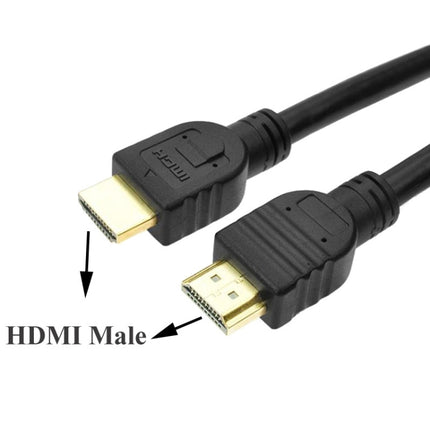

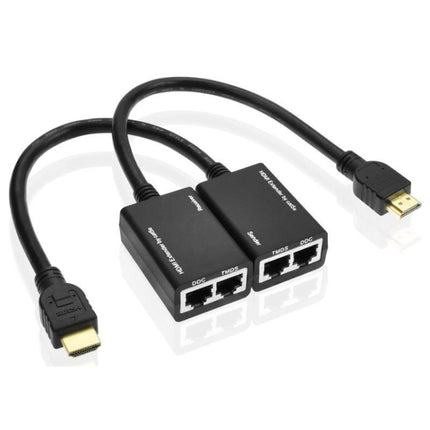

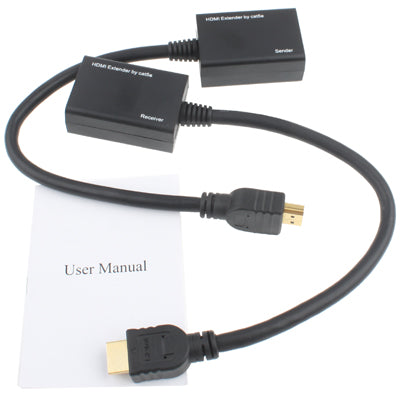

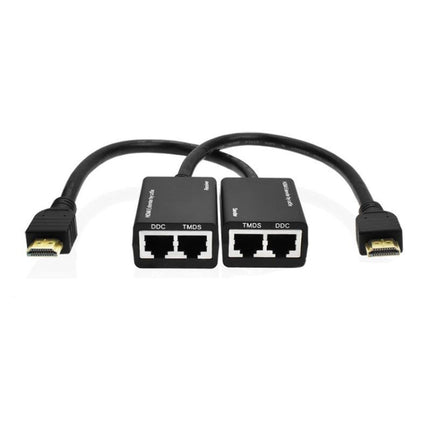

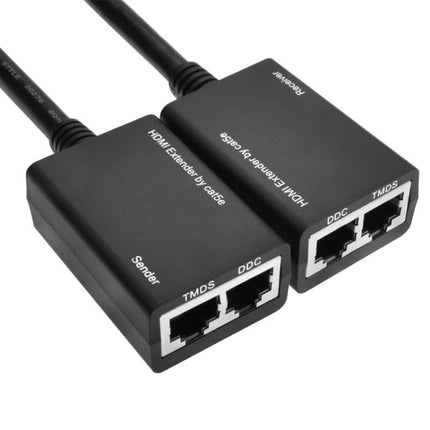

Both the sender and receiver are equipped with fixed HDMI cable that allows consumers reduce cost and time for setting. It is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components.
This product offers solutions for residential consumers: HDTV retail and show site, HDTV, STUB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
This HDMI Extender has many features that enable it to perform in a superior manner. Among those features you will find:
1) One pair as a full functional module, no need of setting.
2) CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
3) Follow the standard of IEEE-568B.
4) Transmission distance can be up to 30 meters for 1080p using CAT-6 Cable.
5) Compact size.
6) Signaling rates up to1.65Gbps in support of 1080P display.
7) HDCP compliant.
SPECIFICATIONS:
1) Input Video Signal: 0.5 -1.0 volts p-p
2) Input DDC Signal: 5 volts p-p (TTL)
3) Maximum Single Link Range: 1920X1200, 1080P
4) Output Video: HDMI 1.2a
5) DTV/HDTV: 1080P/1080i/720P/576P/480P/576i/480i
6) CAT-6 cable: 30M for1080p
7) Interlaced(50&60Hz): 480i,576i,1080i
8) Progressive(50&60Hz): 480p,576p,720p,1080p
Environmental:
1) Operating Temperature: 0 to +70°C
2) Operating Humidity: 10% to 85 % RH (no condensation)
3) Storage Temperature: -10°C to +80°C
4) Storage Humidity: 5% to 95 % RH (no condensation)
Specification:
| Package Weight |
| One Package Weight |
0.11kgs / 0.23lb |
| One Package Size |
19cm * 10cm * 2.5cm / 7.48inch * 3.94inch * 0.98inch |
| Carton Weight |
10.00kgs / 22.05lb |
| Carton Size |
40cm * 42cm * 27cm / 15.75inch * 16.54inch * 10.63inch |
| Loading Container |
20GP: 587 cartons * 80 pcs = 46960 pcs
40HQ: 1364 cartons * 80 pcs = 109120 pcs
|
|
